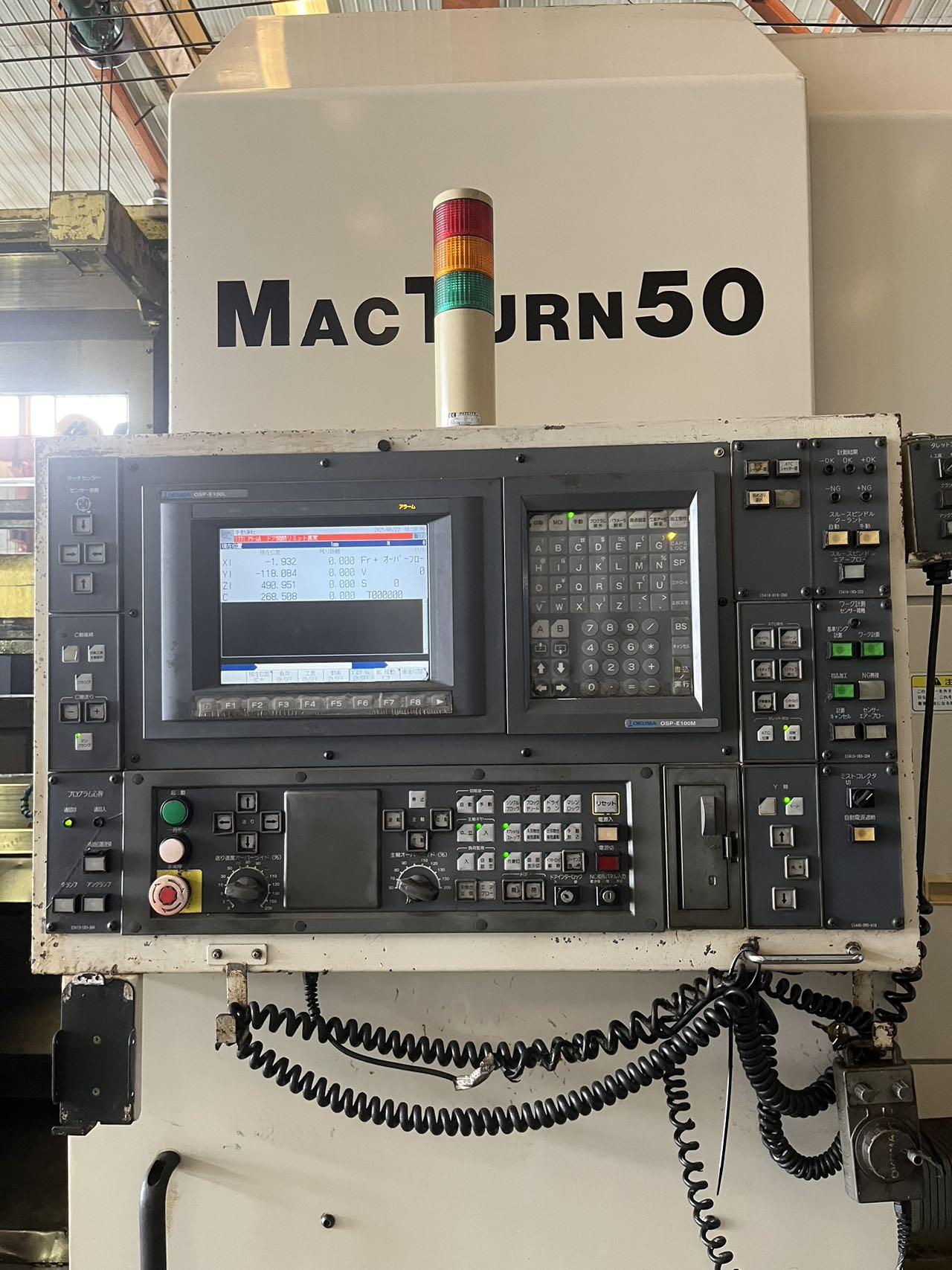

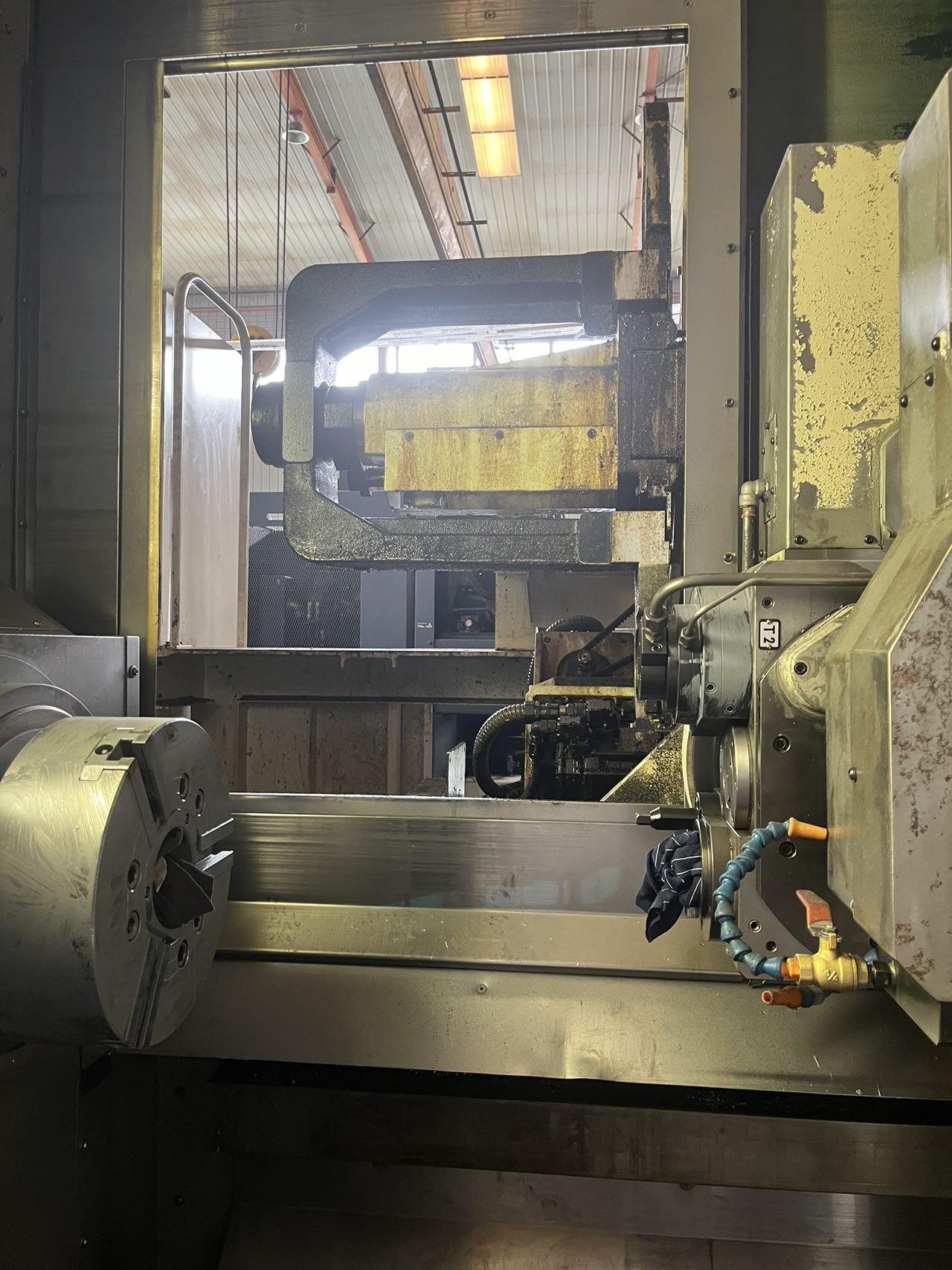

OKUMA MACTURN50  Turn Mill Machining Centre

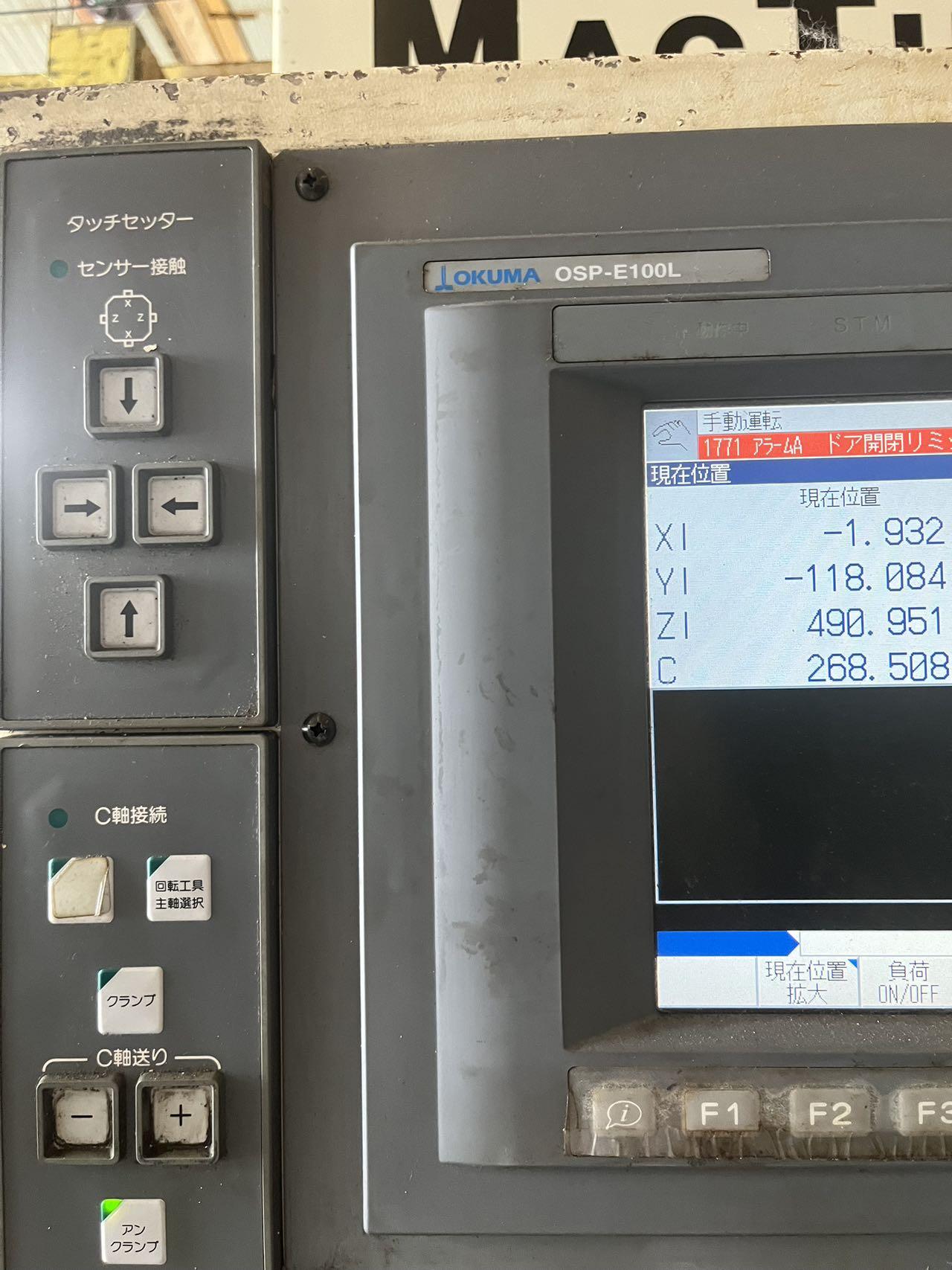

CNC System: OKUMA  OSP-E100L

X-axis travel: 598mm(bottom: 200)

Y-axis travel: 230mm (+110 to -120)

Z-axis travel: 1660mm (bottom: 1045)

C-axis travel: 360° (0.001 degree)

Spindle type: JIS  A2-8

spindle through hole diameter: 90[110]mm

Internal diameter of spindle bearing: 130[150]mm

machining  length: 1500mm

Rotary diameter: 610mm

machining  diameter: 580mm

spindle rotational speed: 14 to 3200rpm

Main motor power: VAC " 30/22kw

tools magazine: 32 tools

spindle: BT50

Overall Footage: 5500*3105*2774

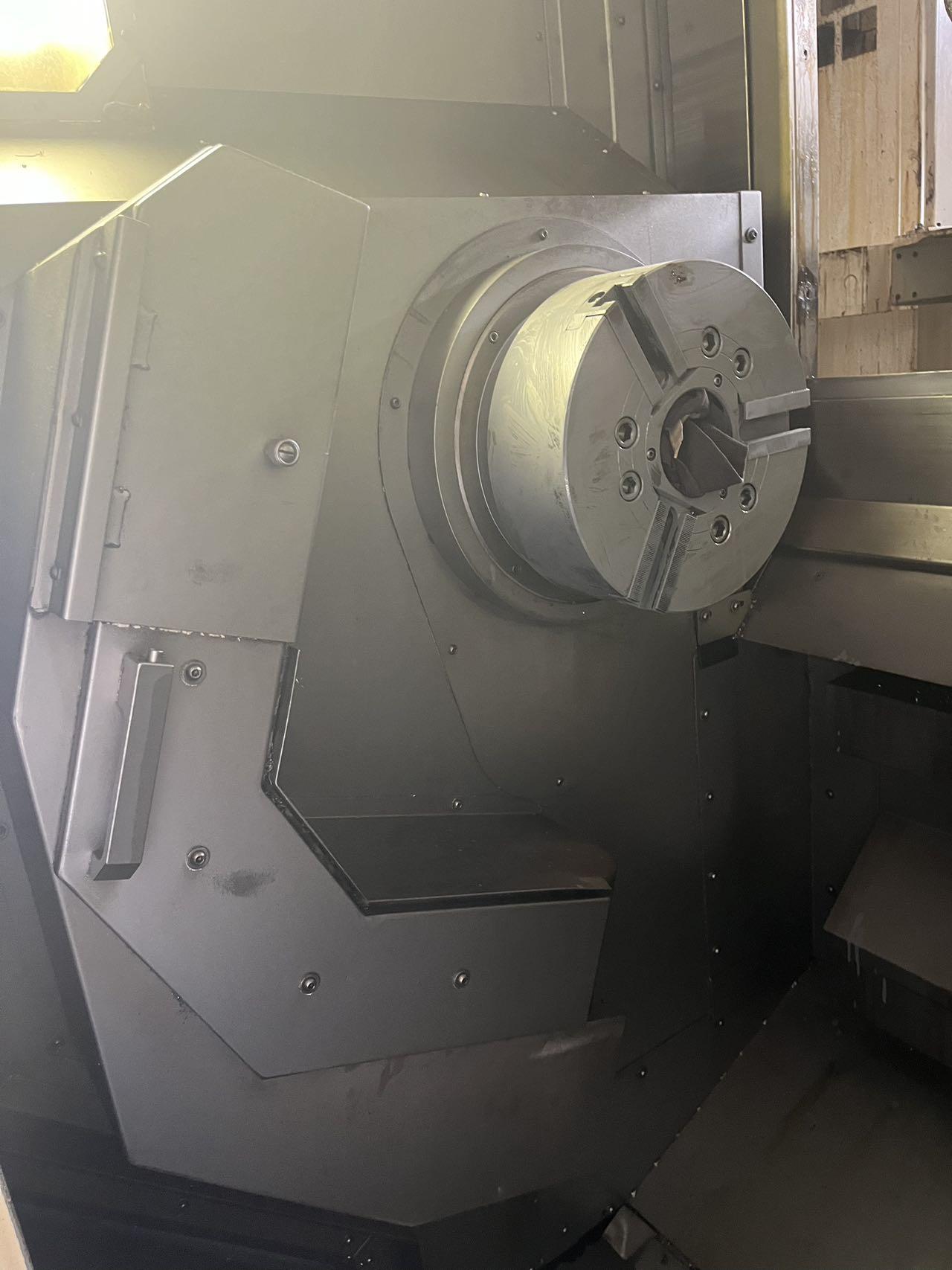

chuck  diameter: 308mm
