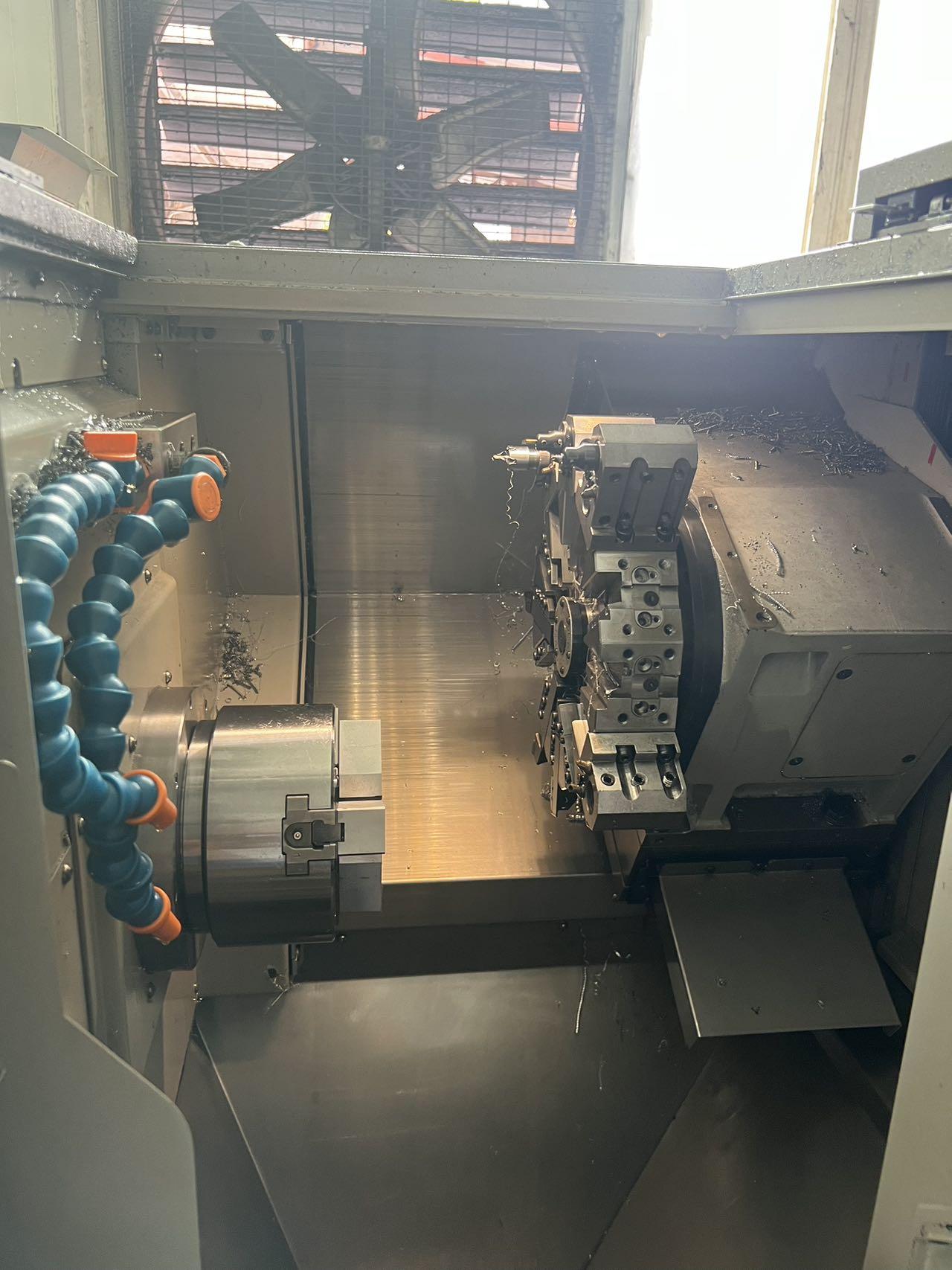

Tsugami M06JC-II CNC turning lathe

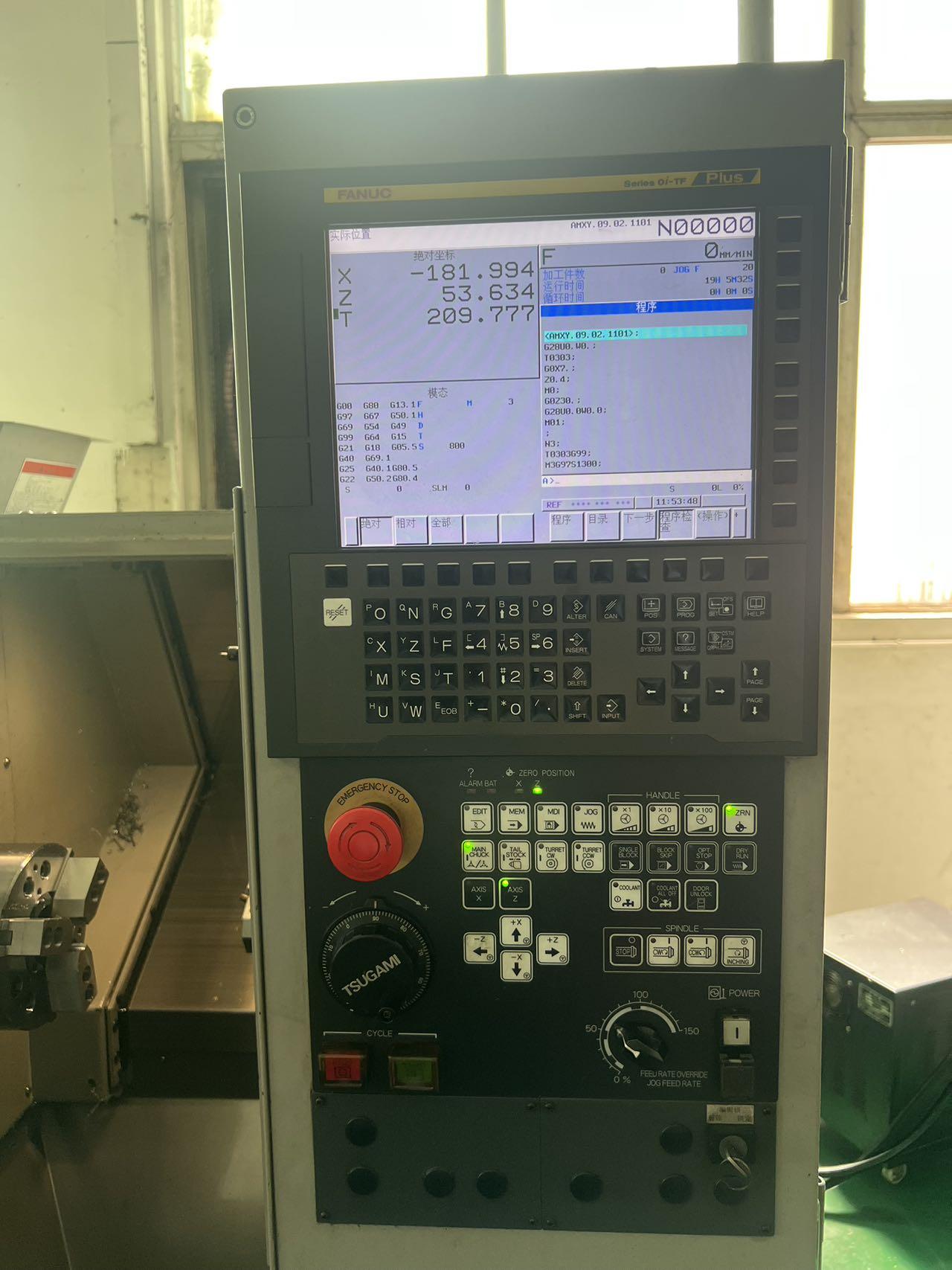

CNC CNC System: FANUC

Maximum machining  diameter: φ220/42mm

Maximum machining  length: 190mm

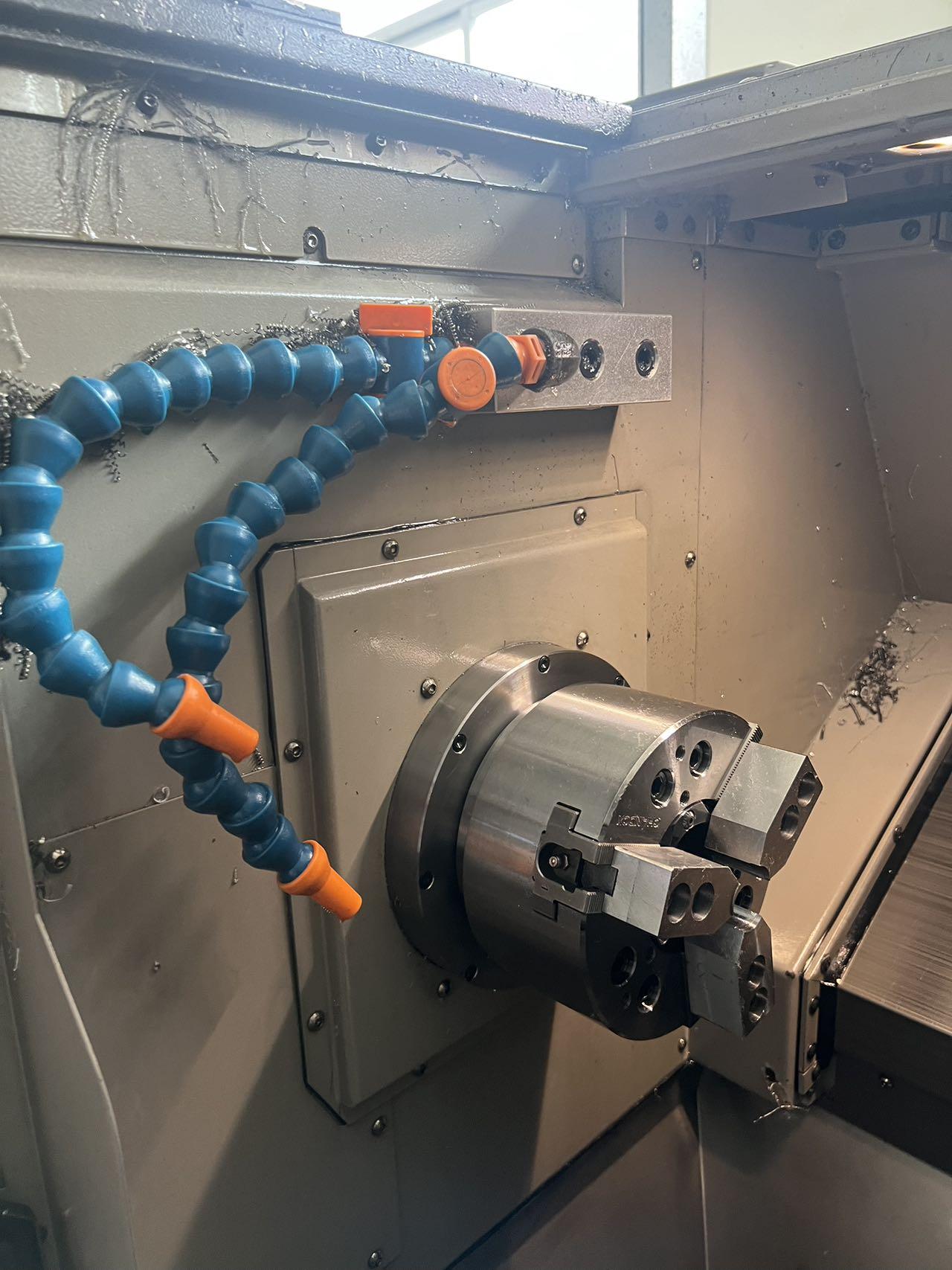

Chuck size: 6inches

spindle maximum speed: 5000rpm

spindle through through hole: φ52mm

spindle bearing diameter: φ80mm

External diameter Tool Tool holder: 20mm

Hole diameter: φ25mm

主轴电机：5.5/7.5kw

X/Z motor: 1.2kw

X/Z轴行程：130/230mm

X/Z轴快移速度：24m/min

Machine Footage: 1165*1560*1650mm

Machine weight: 2580kg
