Tsugami M06J-II CNC turning lathe

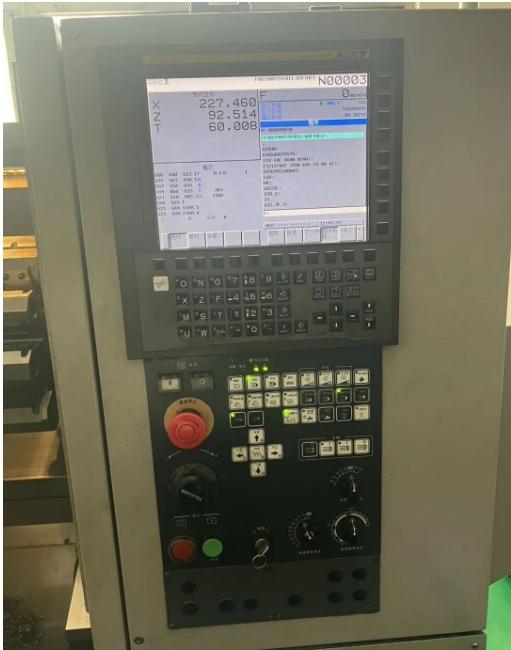

CNC CNC System: FANUC

Maximum machining  diameter: φ280/φ51 (bar material) mm

Maximum machining  length: 290mm

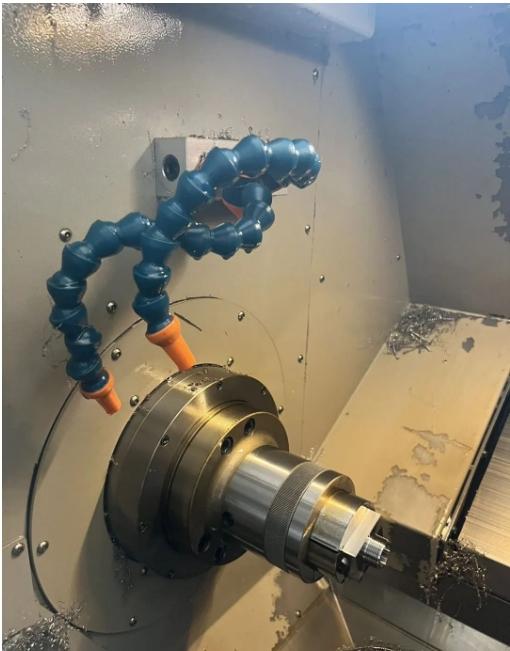

Chuck size: 6 inches

spindle maximum speed: 5000rpm

spindle through through hole: φ73mm

Internal diameter of spindle bearing: φ100mm

spindle motor: 5.5/7.5kw

X/Z travel: 160/330mm

X/Z Fast moving rate: 24/27m/min

machine tool size: 2145*1601*1600mm

Weight: 3300kg
