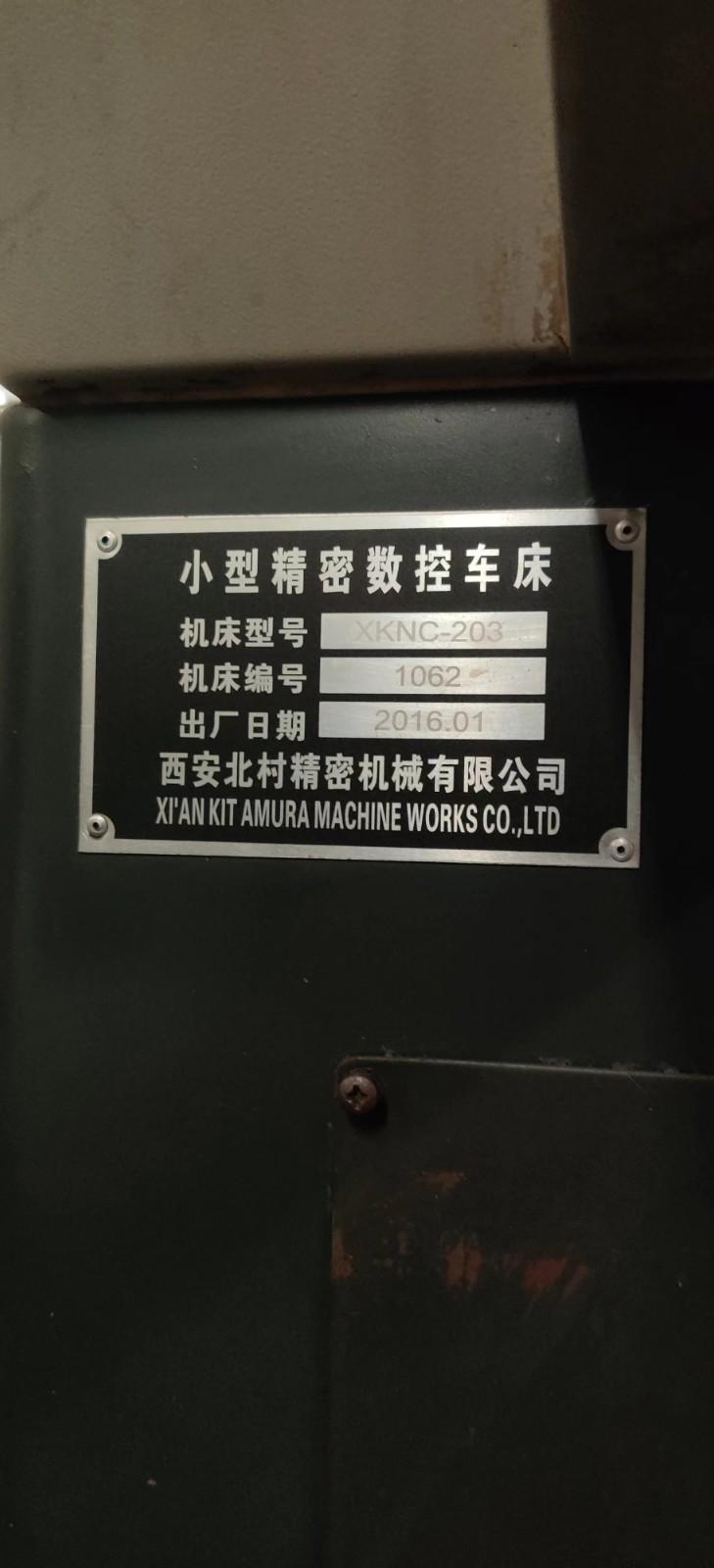

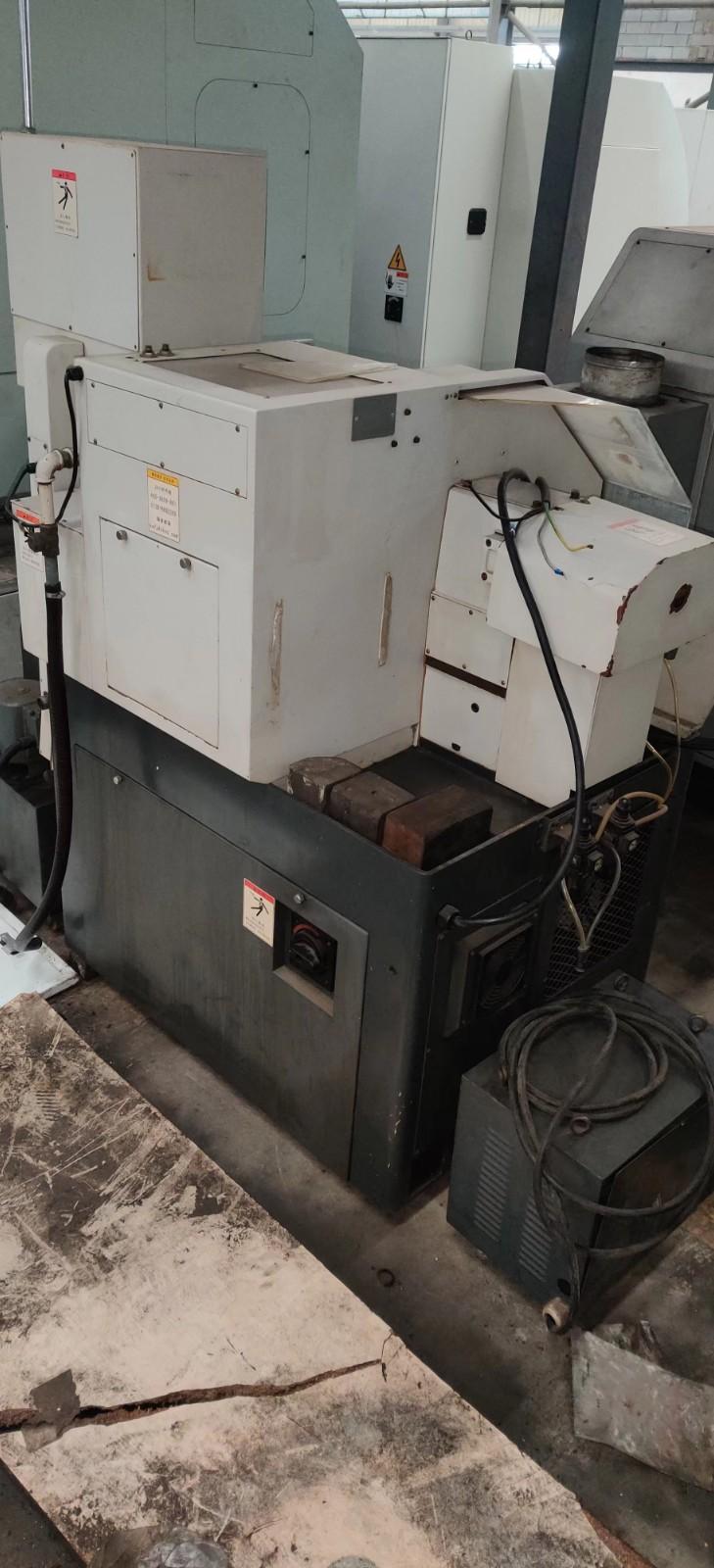

Kitamura XKNC-203 CNC turning lathe

Diameter of spindle through hole φ 20mm

Maximum machining diameter φ 100mm

Maximum machining length 100mm

X axis movement 200mm

Z-axis movement 180mm

X and Z axis rapid feed rate 15m/min

Spindle motor power 2.2/3.7KW

Feeding spindle motor power X/Z axis 0.75KW

Maximum speed of spindle 6000rpm

Overall dimensions of machine (length*width) 1467*990mm

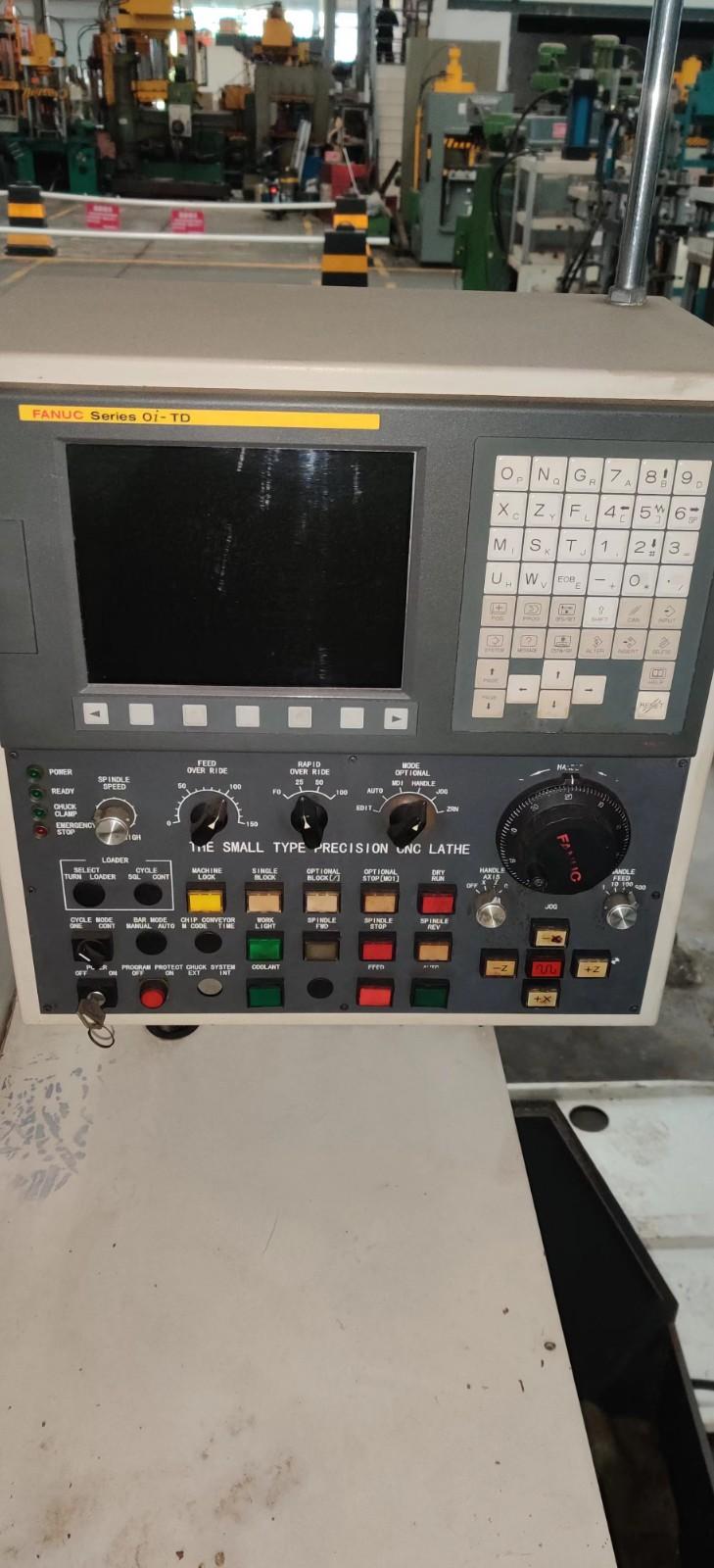

Control system FANUC 0i-mate-TD

Machine weight is approximately 550kg
