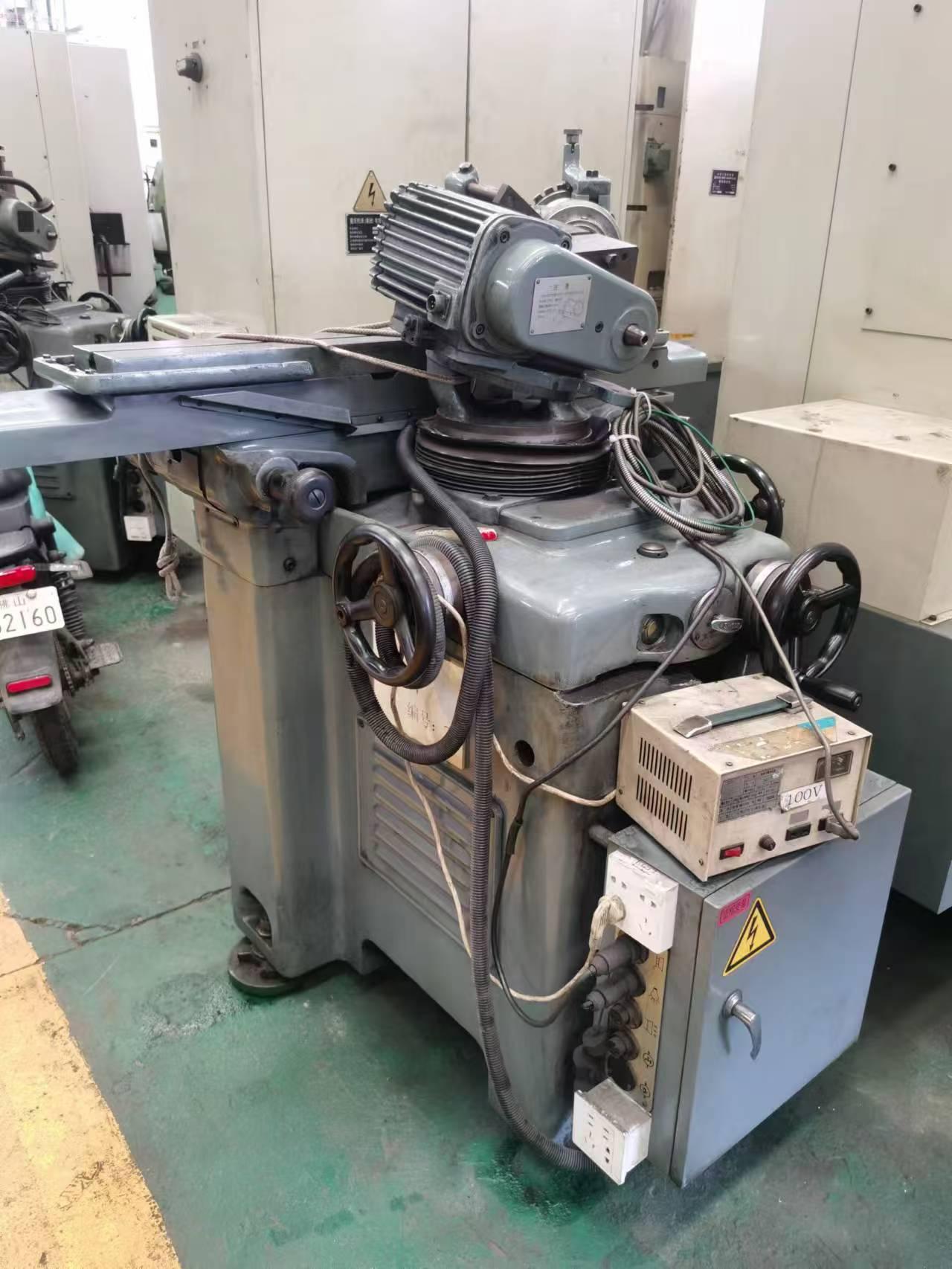

MAKINO c-40 Grinding machines

workWorktable surface size :135×940mm Worktable around travel :400mm grinding wheel head forward and backward momentum :250mm Worktable horizontal rotation Angle :120° taper adjustment :±10° Worktable rotation degree :±60° The grinding wheel head up and down travel :250mm grinding wheel head horizontal rotation Angle :360° the vertical of the grinding wheel head Tilt Angle :±15° Distance between the center line of the sand wheel shaft and the surface of workWorktable: minimum ~ maximum: 50 ~ 300mm Weight :900kg
