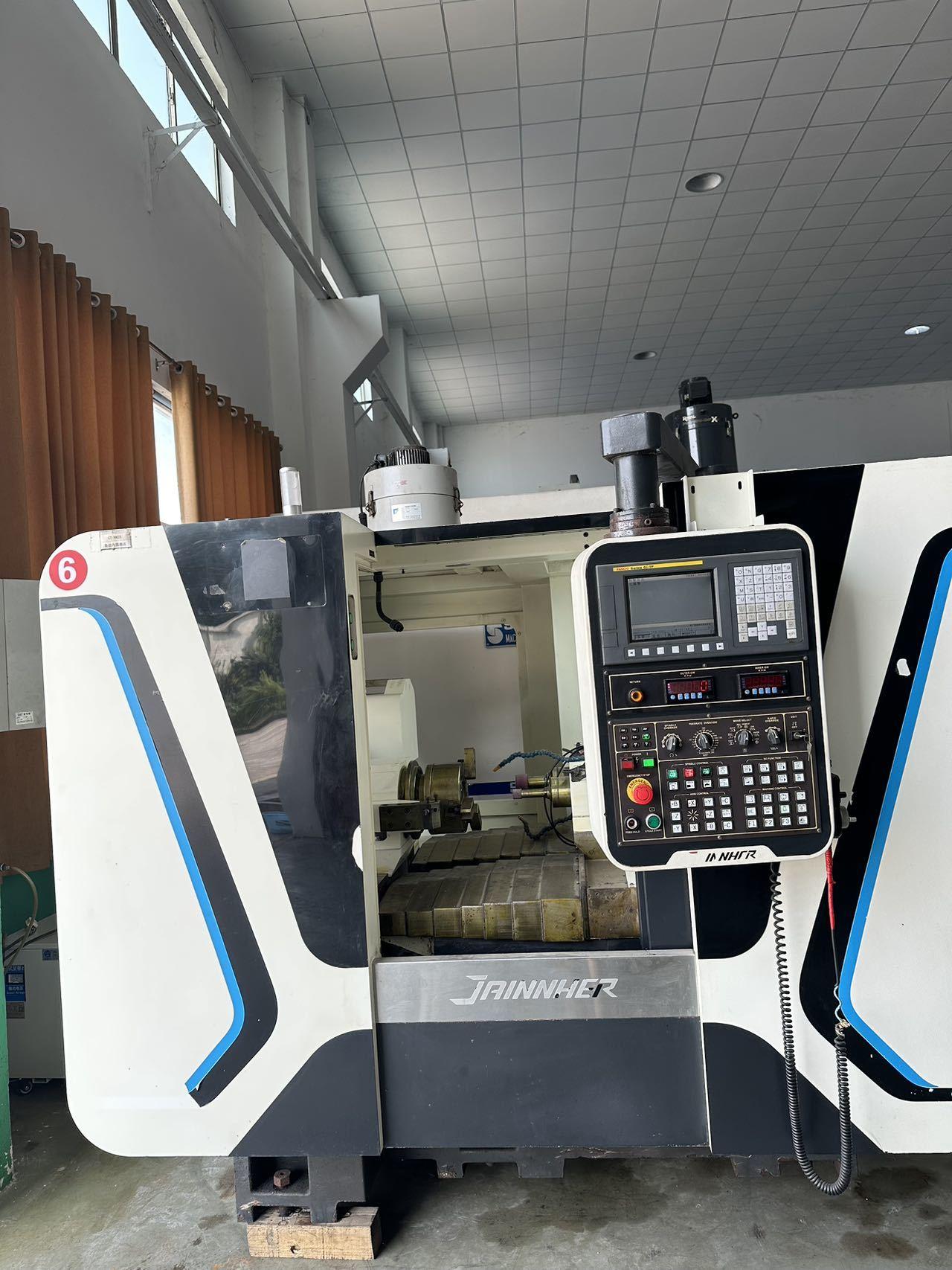

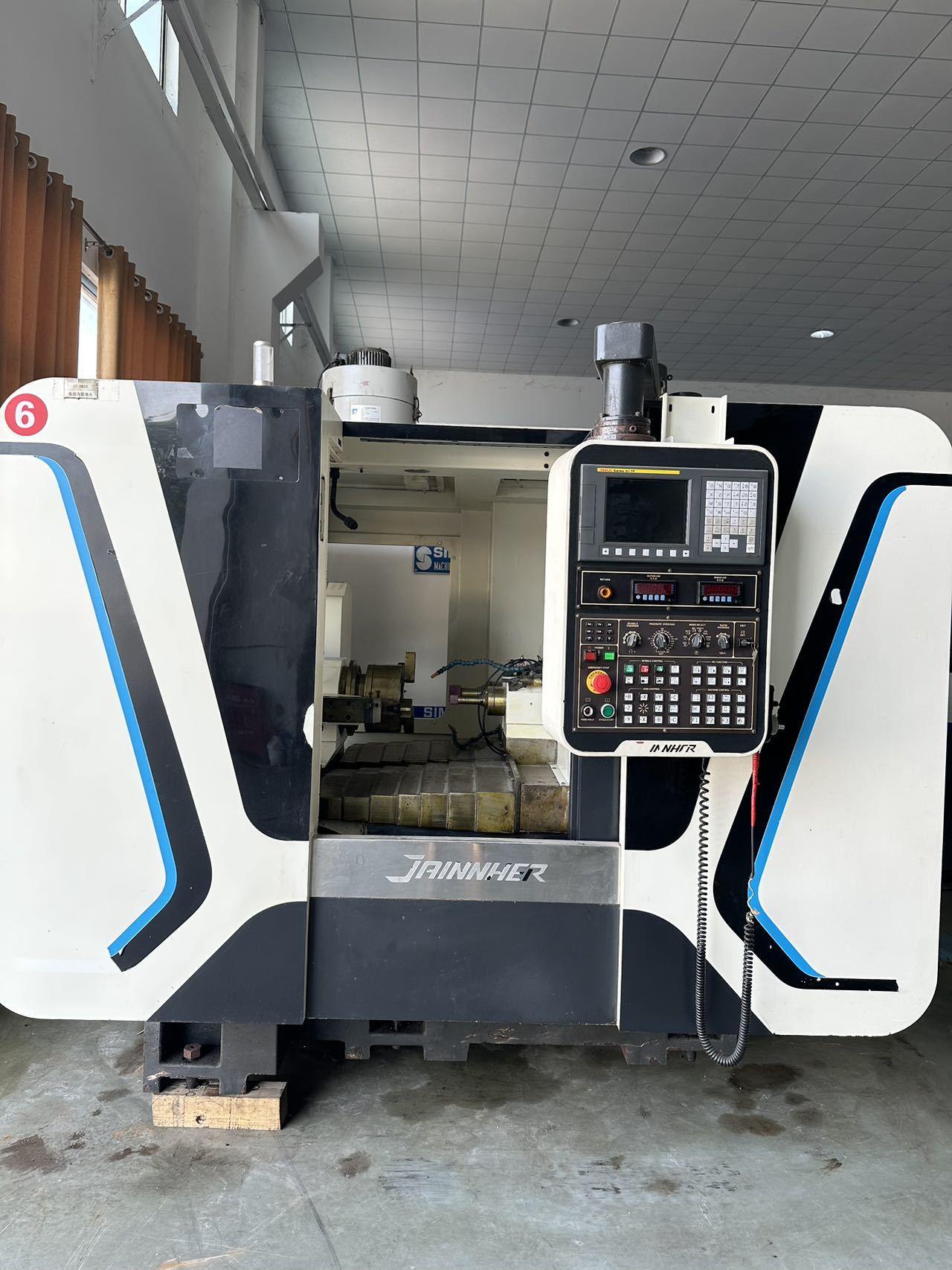

JAINNHER JHD1503 other

[Product Information]:

Inventory number：461425
Brand：JAINNHER
Model：JHD1503
Origin：Taiwan of China
Location：China
Year：2017
Create Time：2024-10-16

Specifications:

Maximum grinding diameter :150 mm
Maximum grinding length :120mm
spindle head maximum diameter :0 300 mm
Maximum workpiece weight :70kg
Main chuck :6 inches
Spindle speed (forward and inverse):20-1000 rpm/min
Maximum travel :350 mm
grinding wheel speed :4200rpm
Feeding method: straight into the outer diameter grinding, molding sand inner hole grinding
Weight :4200kg
Size :2800*1950*2100mm
