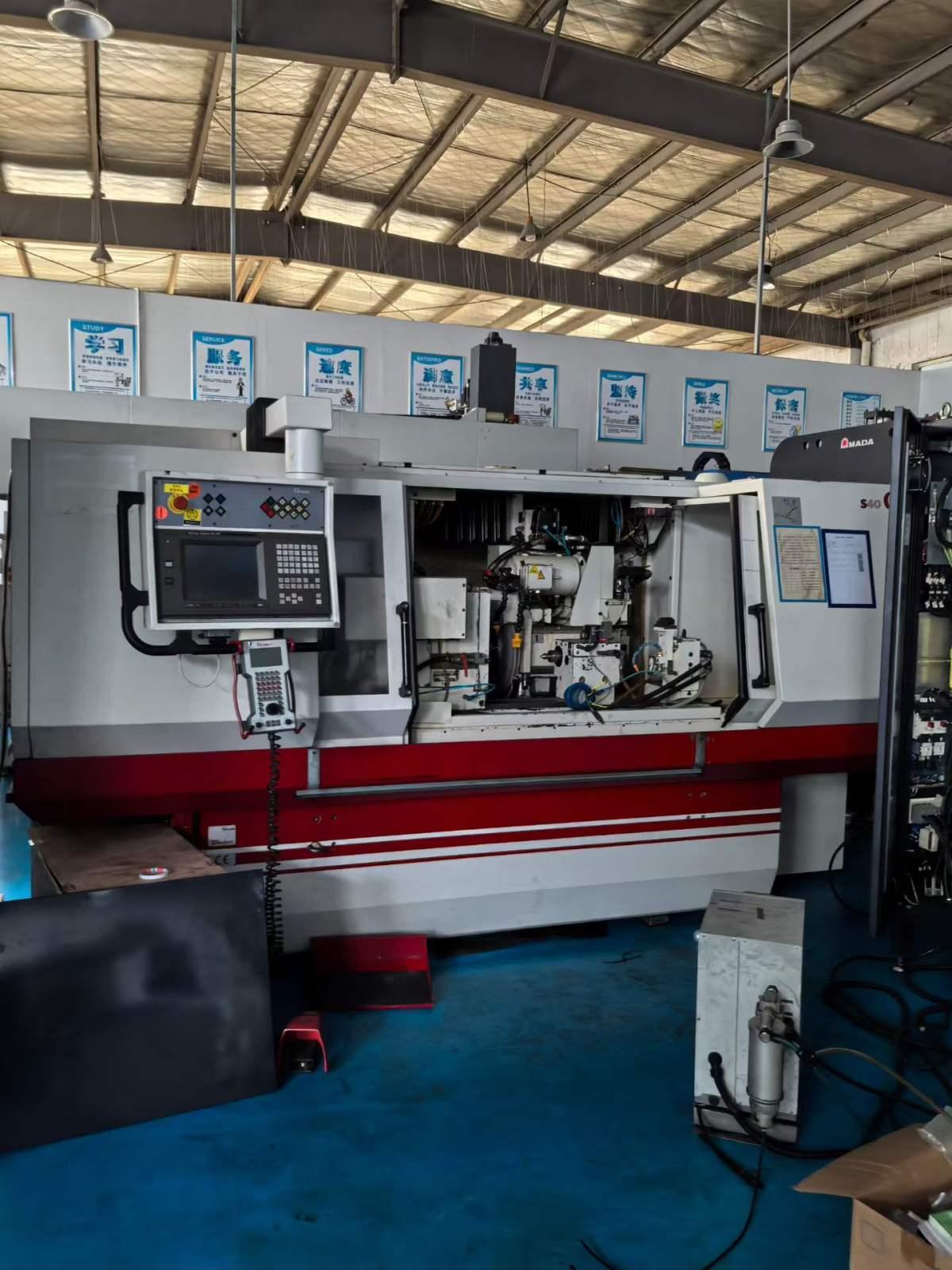

STUDER S40 CNC other

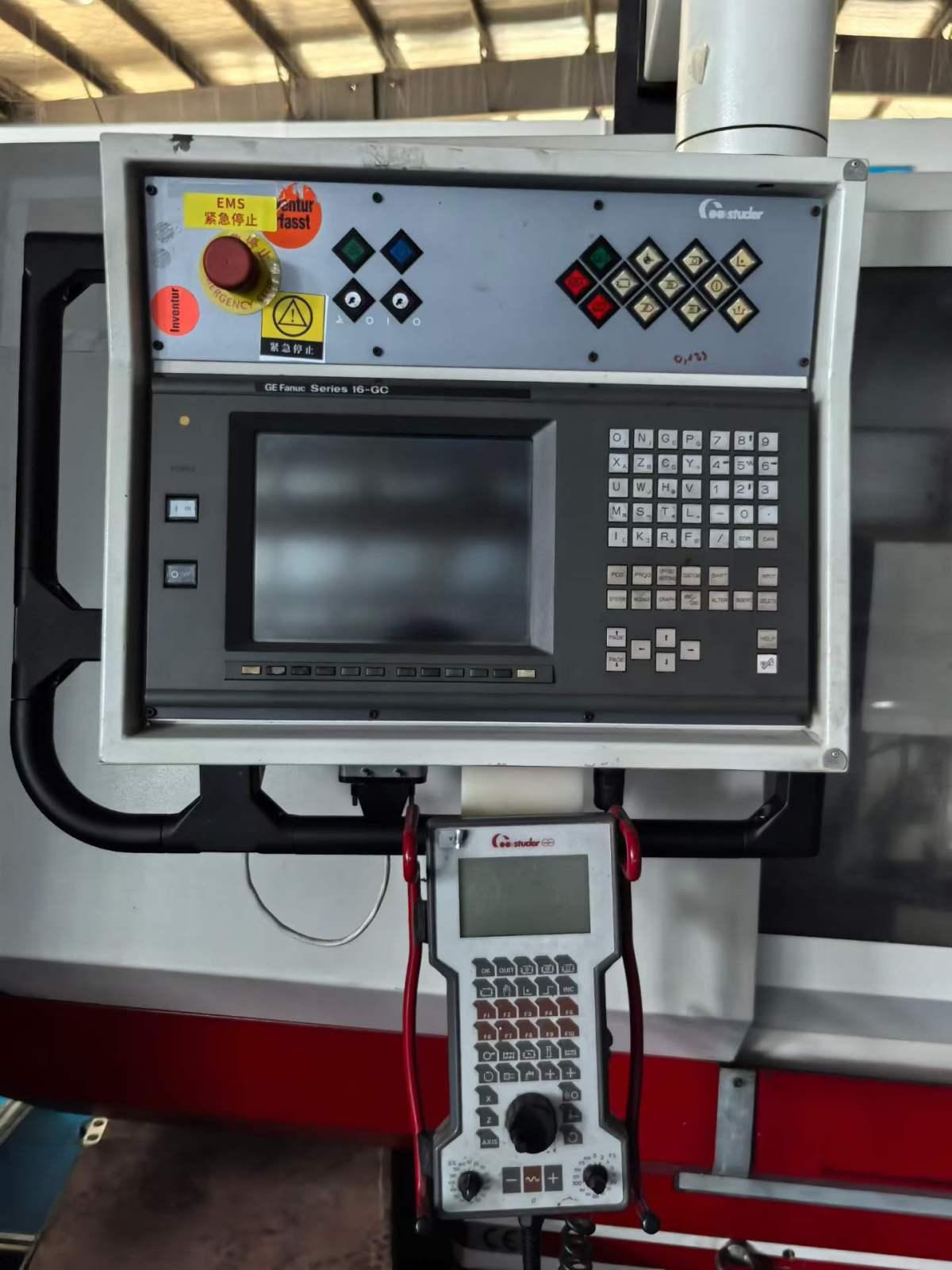

CNC System: FANUC
Distance between centers: 650 mm
Center height: 225 mm
Grinding diameter：3-250 mm
Linear axis:
X*Z axis travel: 275 × 1650 mm
Resolution of the X*Z axis: 00001 × 00001 mm
Wheel head
Azimuth: -15/+225[°]
Indexing on the B-axis: 0.0005
Left external grinding:
Grinding wheel size: Φ400×80×127 mm
Peripheral velocity: 50 m/s
Power: 7.5 kW

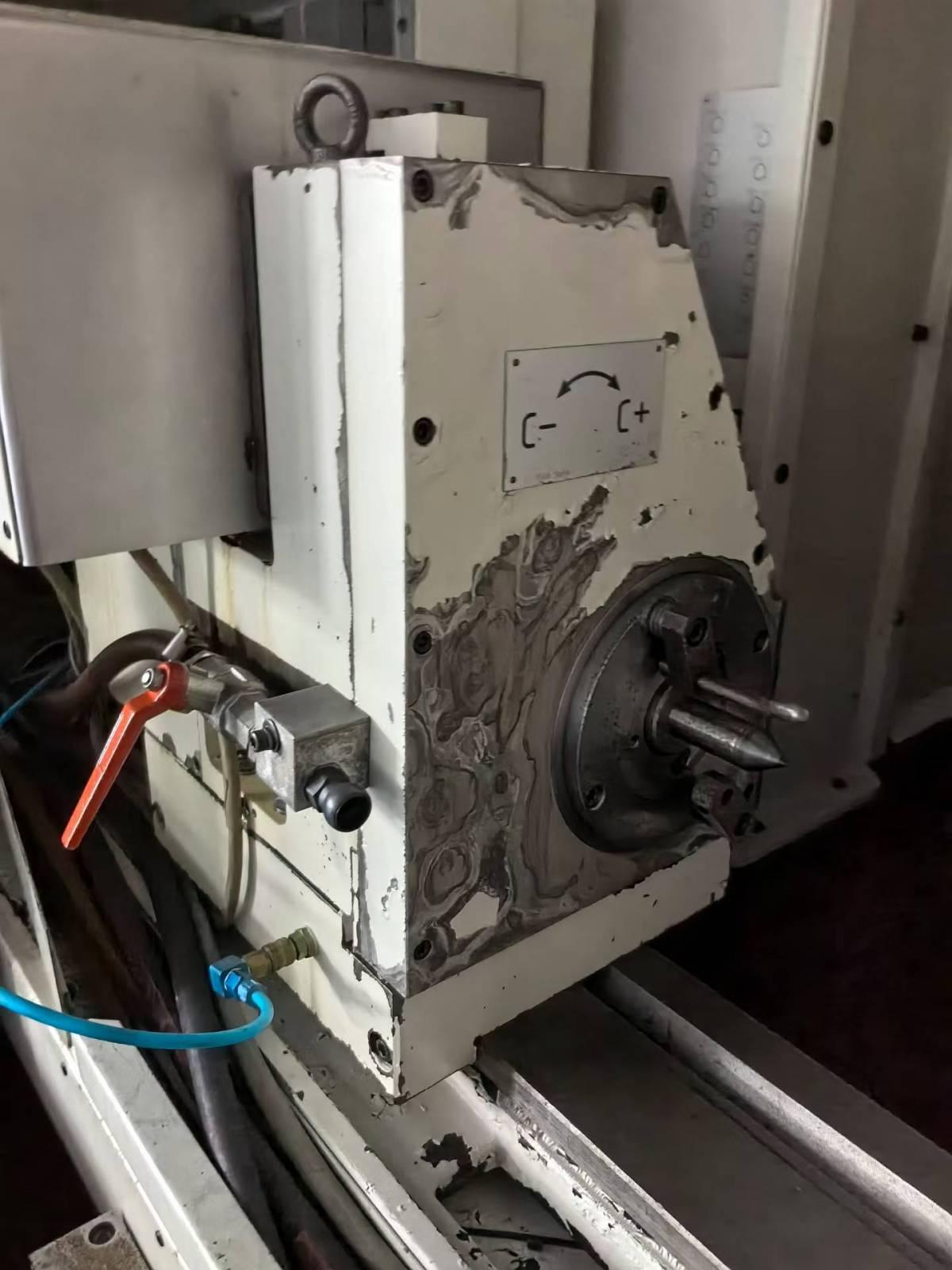

Work head:
Rotational speed: 0-1000 RPM
Taper type: ISO 50
Power: 4[kW]
indexing precision C-axis: 0001[°]

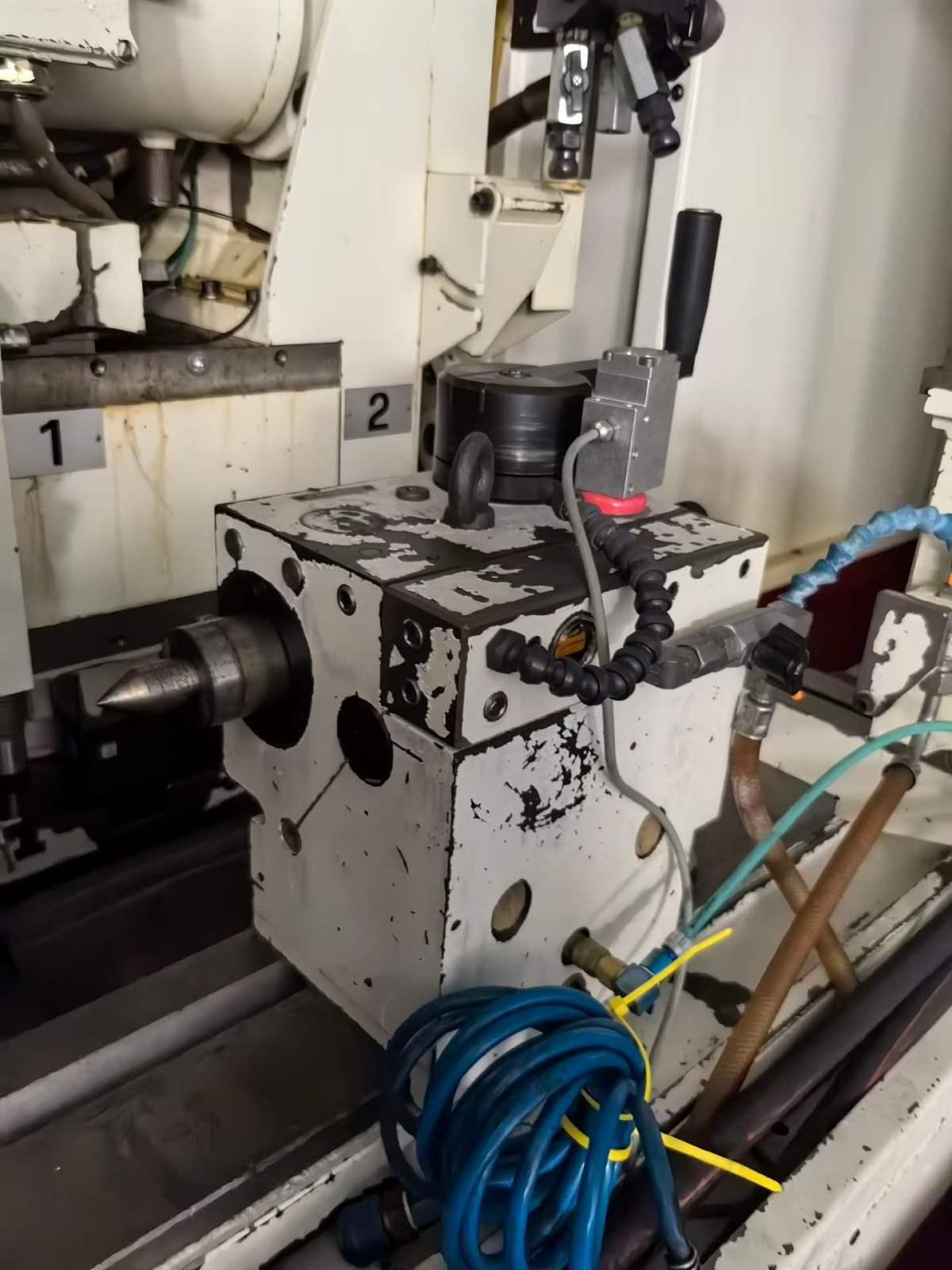

Tail frame
Internal taper: MT4
Quill shaft Travel: 35 mm
Power supply
Power supply voltage: 400 V
Land area:
Floor size: 5.200 × 2.300 mm
Machine height: 2.084 mm
Machine weight: 7,000 kg
