Tsugami M08SY Turn Mill Machining Centre

X/Z/A/Y travel: 221/400/506/+-50mm

X/Z/A/Y Fast moving rate: 24/27/30/12m/min

Machine Footage (length/width/height) : 2470*1850*1930mm

Maximum machining  length: 380mm

spindle resolution: 5000rpm

Through hole diameter: 59mm

spindle motor: 5.5/7.5kw

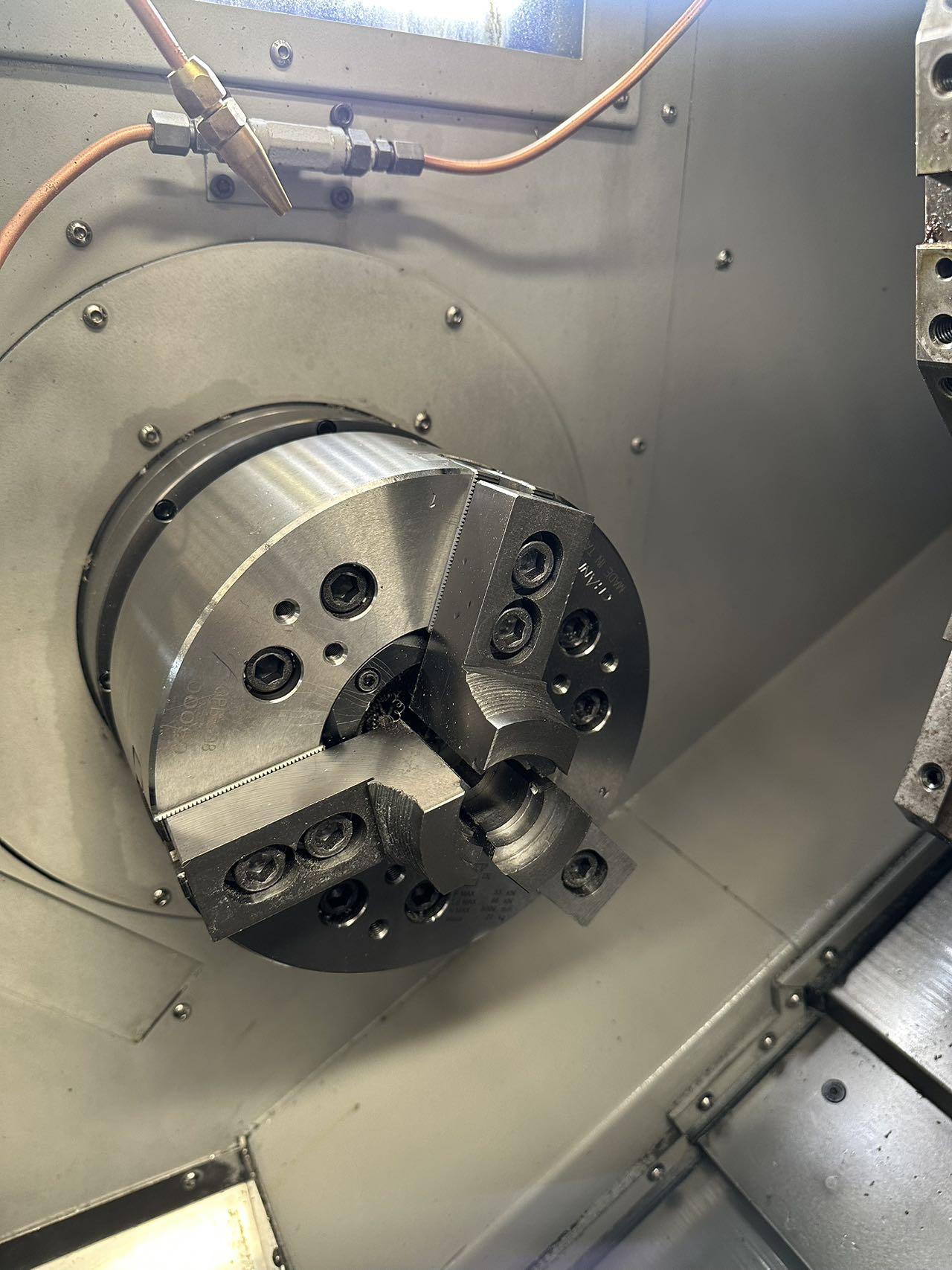

spindle 8 inch chuck

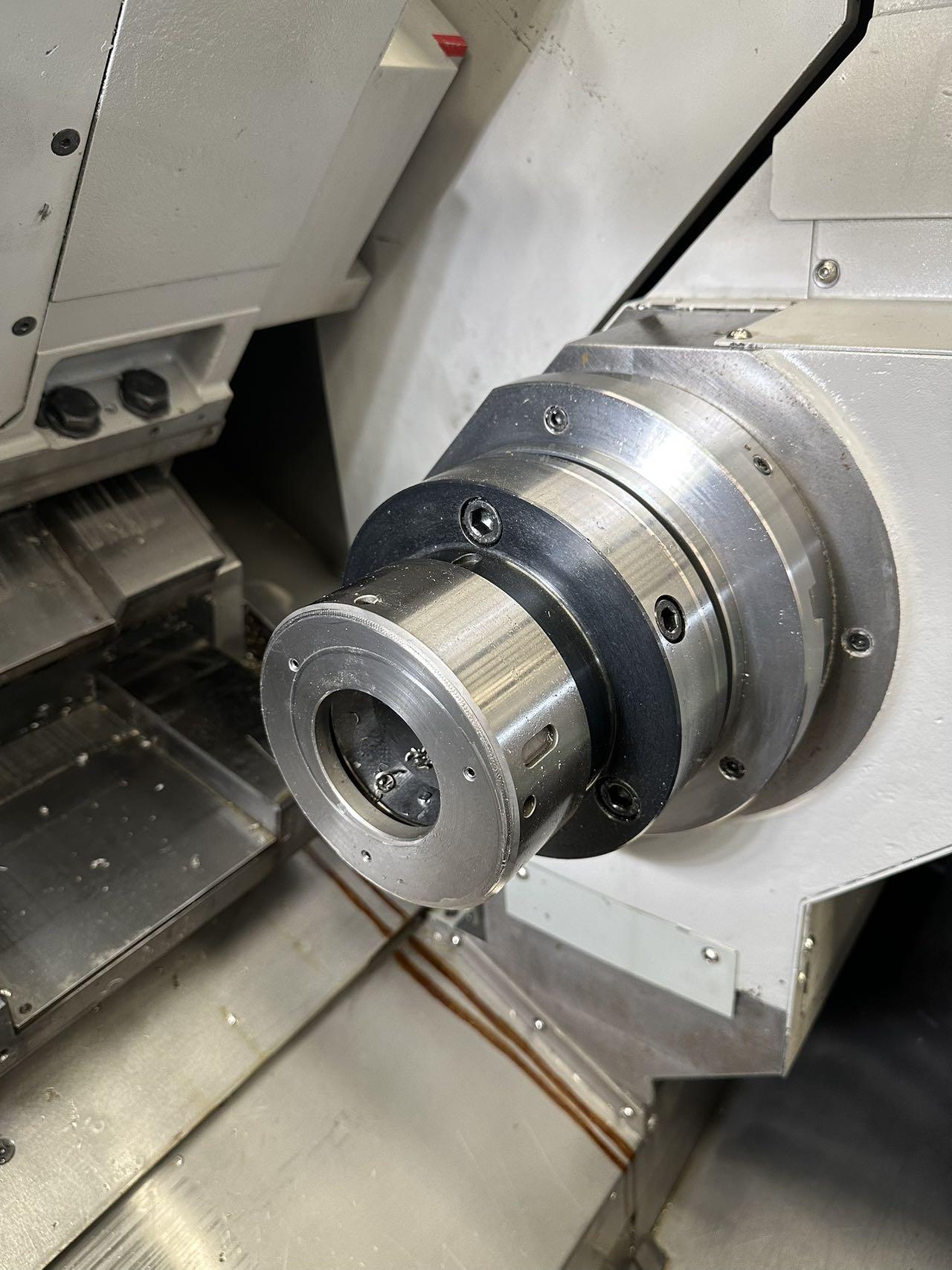

Secondary spindle 6 inch chuck

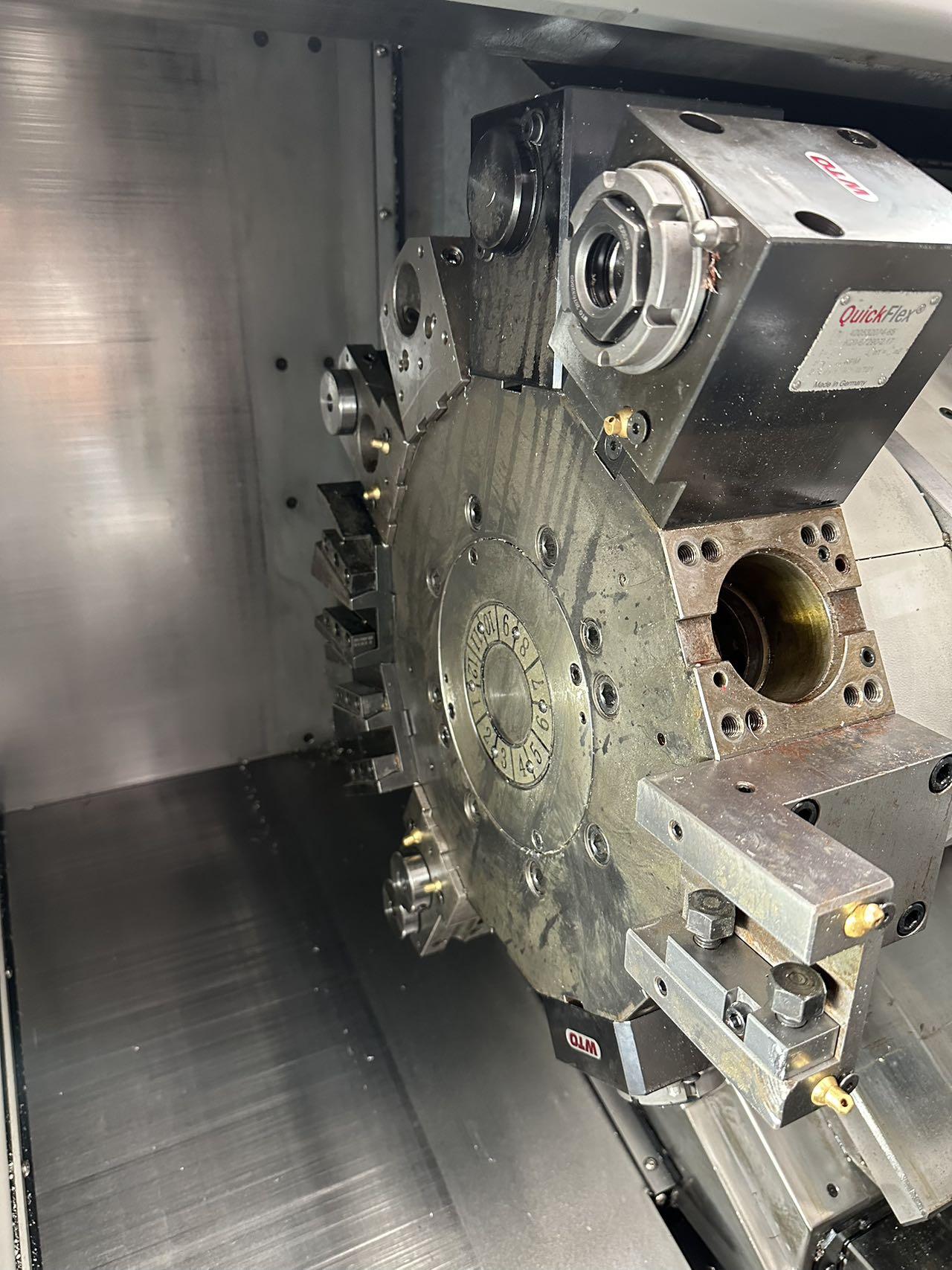

12 positions servo turret

Y-axis

high pressure pump

Tool Aligner

With a chip conveyor
