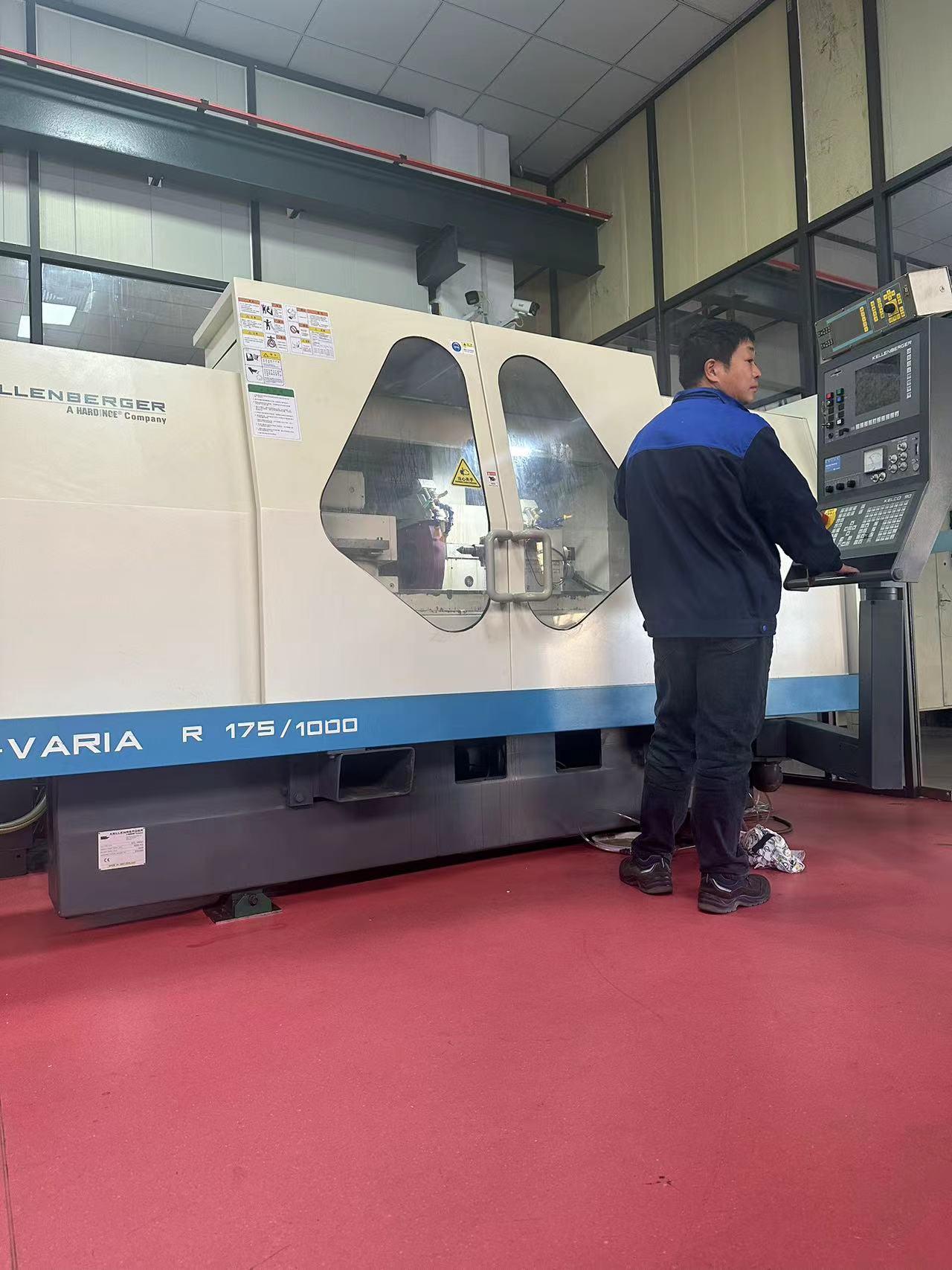

KELLENBERGER KEL-VARIA R 175/1000 Cylindrical grinder

Center height: 175mm

Distance between the two ends: 1000mm

Grinding length: 1000mm

Maximum weight parts between centers: 100kg

X*Z axis travel: 320*1150mm

Maximum grinding diameter: 349mm

External dimensions of the revolver：400*63*127mm

Left wheel speed：1500-2200rpm

Peripheral speed: 32m/s

Feed rate: 10m/min

Right outer wheel size: 400*63*127mm

Right wheel speed: 8-800rpm

Spindle taper：5mt

Tailstock taper: 4mt

Tailstock travel: 30mm

Spindle chuck diameter: 200mm

Chuck holding load: 100nm

Machine weight: 4800kg

Power supply: 3*400V 50 Hz

Dimensions: 4840*2260*2120mm
