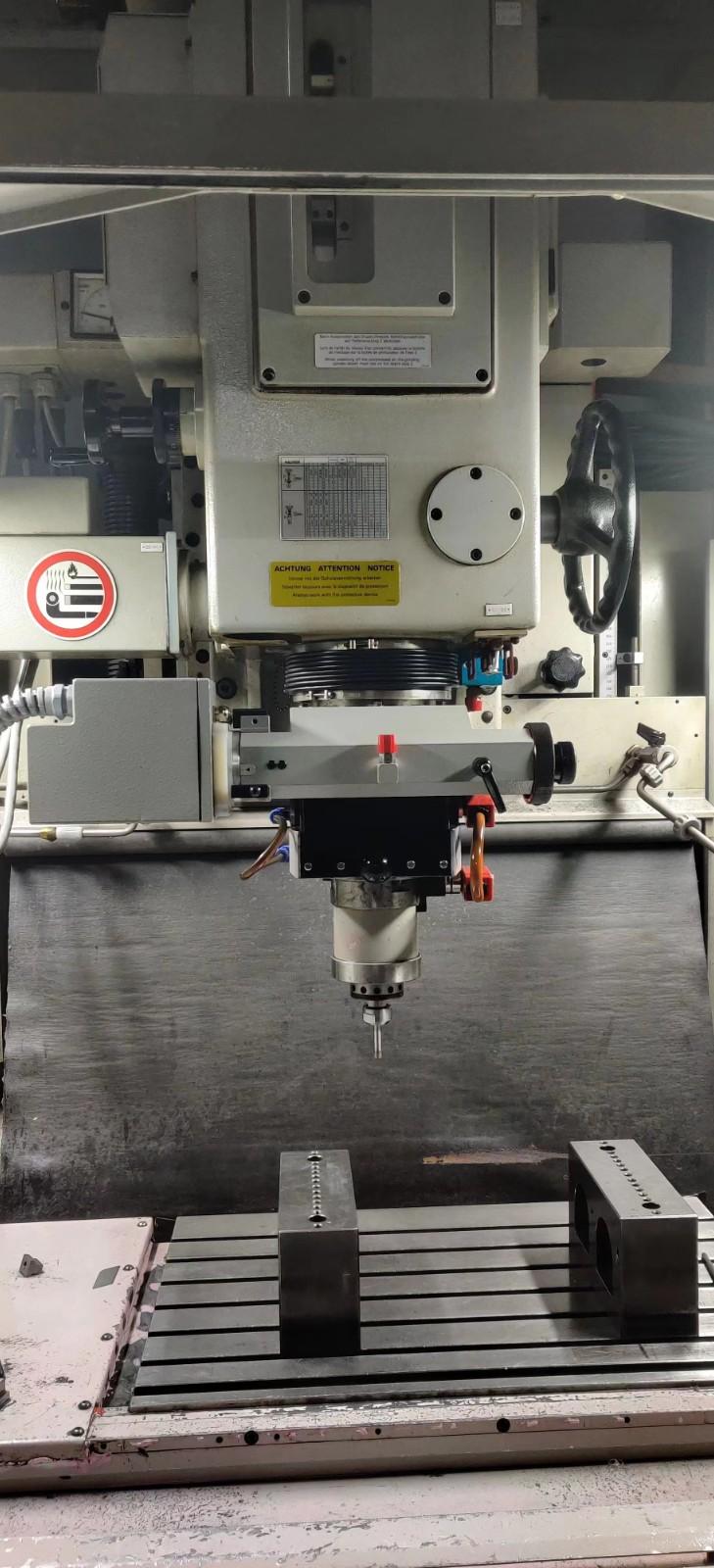

Hauser S35-400 Jig grinding machine

Brand: Hauser

Model:S35-400

Worktable length: 600 mm

Worktable width: 380 mm

X axis: 500mm

Y-axis: 300 mm

W axis: 450 mm

Worktable load: 250 kg

Grinding diameter: 230 mm

Display disk: 360 mm

Spindle nose travel: 340 mm

Grinding taper angle: 16.0 °

Grinding axis vertical travel (stepless) : 1-110 mm

Travel rate(stepless) : 0-9 m/min

Z-axis: 0.5-12000 mm/min

Travel frequency: Z4 Hz

Z Travel (unlimited adjustment) Unlimited adjustment: 110 mm

U axis：5.5 mm

C-axis (stepless) : 5-300 rpm

Possible grinding spindle speed (stepless) : 4500-80000 rpm

Air turbine: 160,000 rpm

Working voltage: 50Hz 3x 380 Volt

Machine weight: 4100 kg

Footage (length × width × height) : 2650×1700×2850 mm
