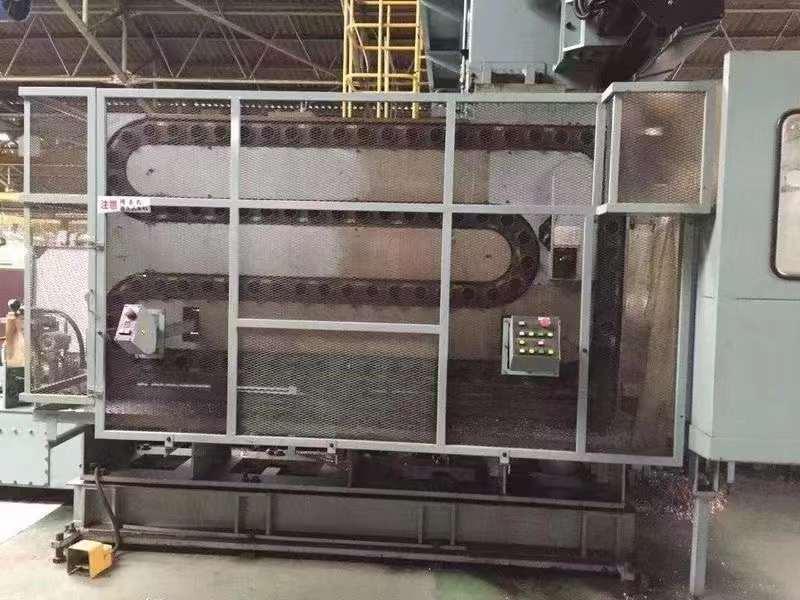

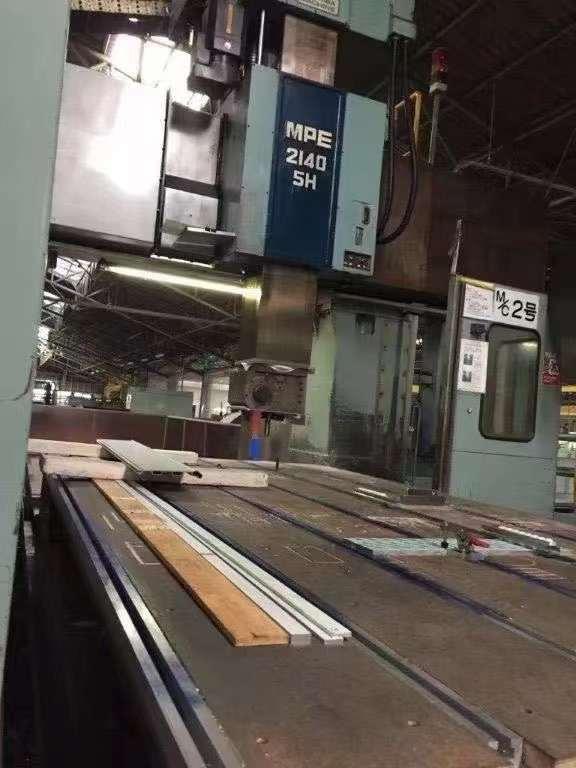

Toshiba MPE-2140 5H Gantry machining centre

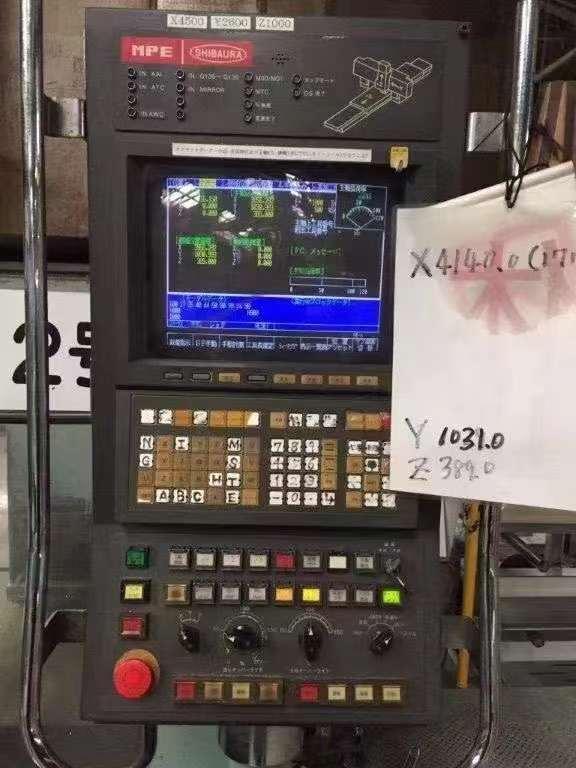

CNC system: TOSNUC 800M

Gantry width: 2100 mm

Worktable size: 1800x4000mm

Three axes travel: 4500x2900x1000mm

Fast feed rate: 10000 mm/min

Cutting feed rate: 1-6000mm/min

Worktable load: 14000 kg

Spindle speed: 30-3000rpm

Distance from spindle nose to worktable surface: 50-1050 mm

ATC: 100

BT50

Machine dimension: 12800×5900x2700mm

Machine weight: 38000kg
