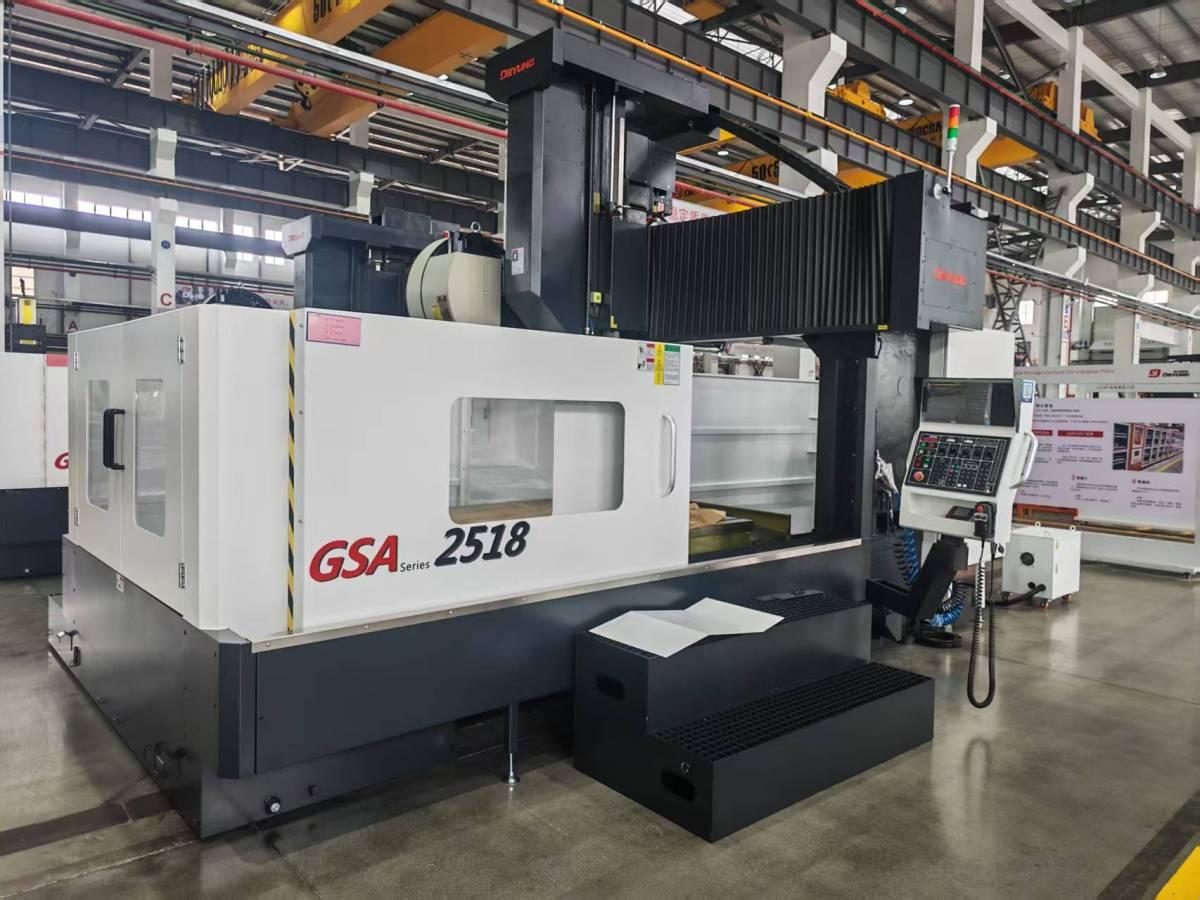

Deyung GSA-2518 Gantry machining centre

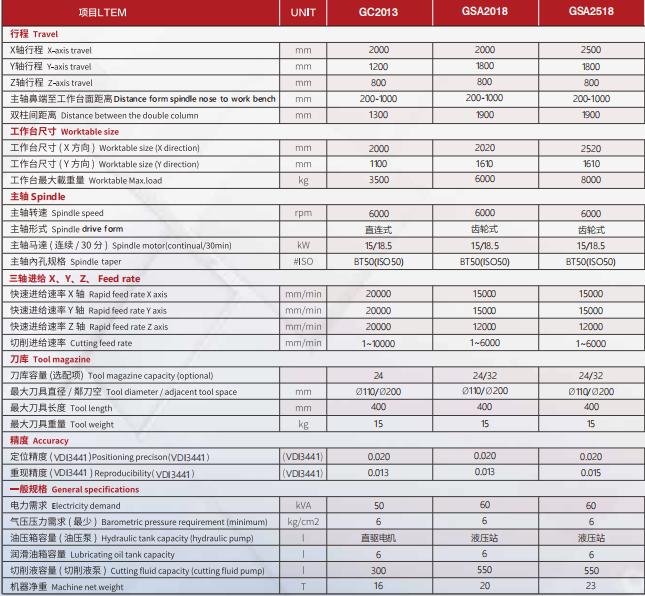

Three-axis travel: 2500 × 1800 × 800 mm
Distance from spindle nose to worktable surface: 200–1000 mm
Gantry height: 1120 mm
Gantry width: 1910 mm
Worktable size: 2520 × 1610 mm
Maximum load of worktable: 8000 kg
Spindle speed: 6000 rpm
Spindle type: Gear type
Spindle motor (Continuous / 30 min): 15 / 18.5 kW
Spindle taper: BT50 (ISO50)
Rapid feed rate X-axis: 15,000 mm/min
Rapid feed rate Y-axis: 15,000 mm/min
Rapid feed rate Z-axis: 12,000 mm/min
Cutting feed rate: 1 to 6000 mm/min
Tool magazine (Optional)
Magazine capacity: 24 / 32 T
Maximum tool diameter / Adjacent tool clearance: Ø110 / Ø200 mm
Maximum tool length: 400 mm
Maximum tool weight: 15 kg
Positioning accuracy (VDI3441): 0.020 mm
Repeatability (VDI3441): 0.015 mm
Electricity demand: 60 kVA
Air pressure (Minimum): 6 kg/cm²
Hydraulic system: Hydraulic station
Lubricating oil tank: 6 L
Cutting fluid capacity: 550 L
Machine weight: 23 Tons
Standard Option
Spindle temperature control system
Central automatic lubrication system
Cutting fluid cooling system (including pump and coolant tank)
Powerful twin-screw chip conveyor
Hinge-type chip conveyor
Fully enclosed protective sheet metal
Foundation leveling pads and foundation bolts
Work light
Automatic power-off function
Electrical cabinet heat exchanger
Warning light
Transformer
Air gun
Water gun
Optional Items
Gear-type 6000 rpm full-automatic spindle upgrade
Direct-drive spindle 8000 / 10000 rpm upgrade
Built-in 8000 rpm high-speed spindle upgrade
Built-in 8000 rpm electric spindle upgrade
Z-axis extended structure (1 m / 1.2 m / 1.4 m)
Column height increase +200 / +300 mm
Through-spindle coolant (gear box optional)
