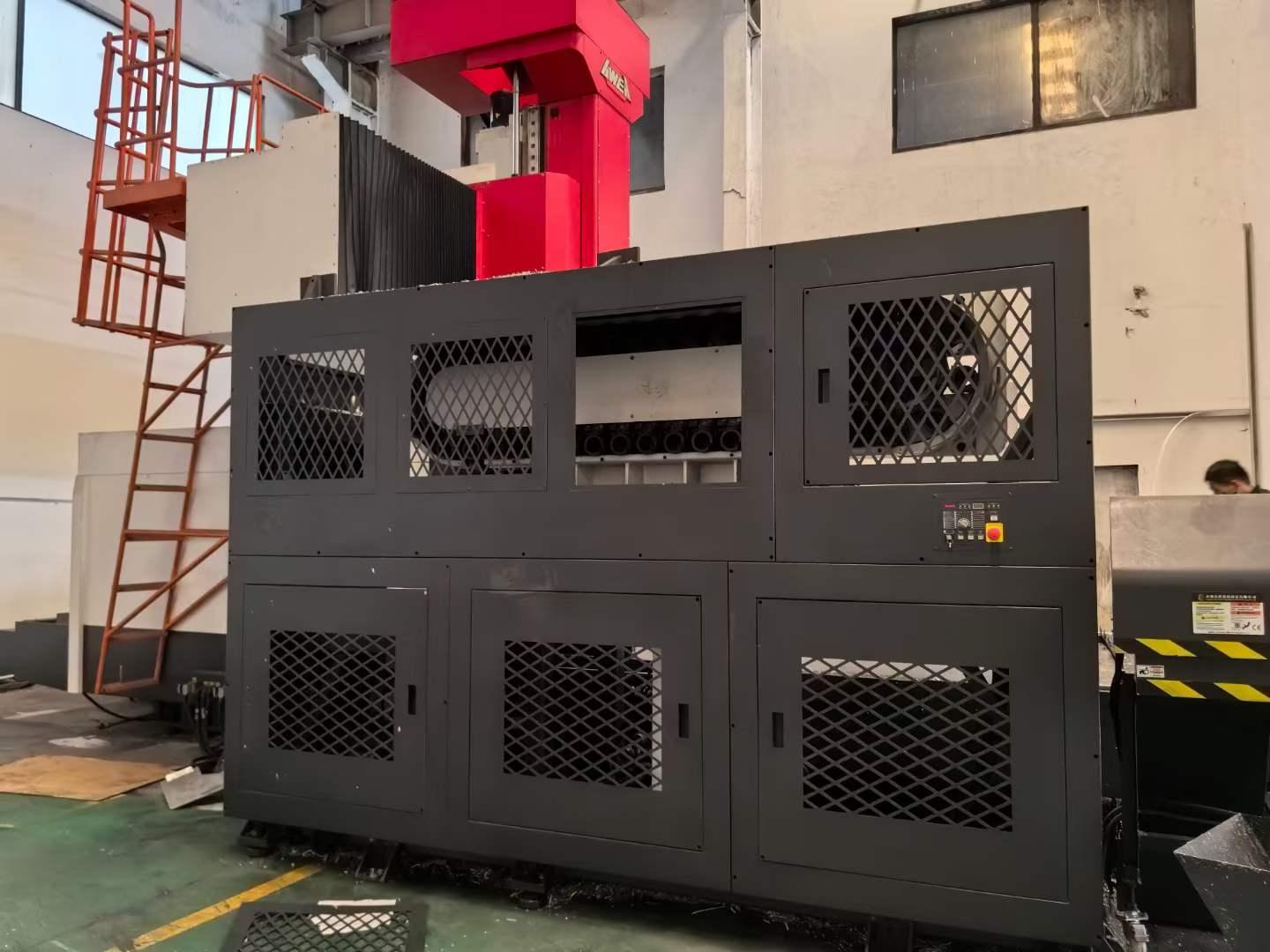

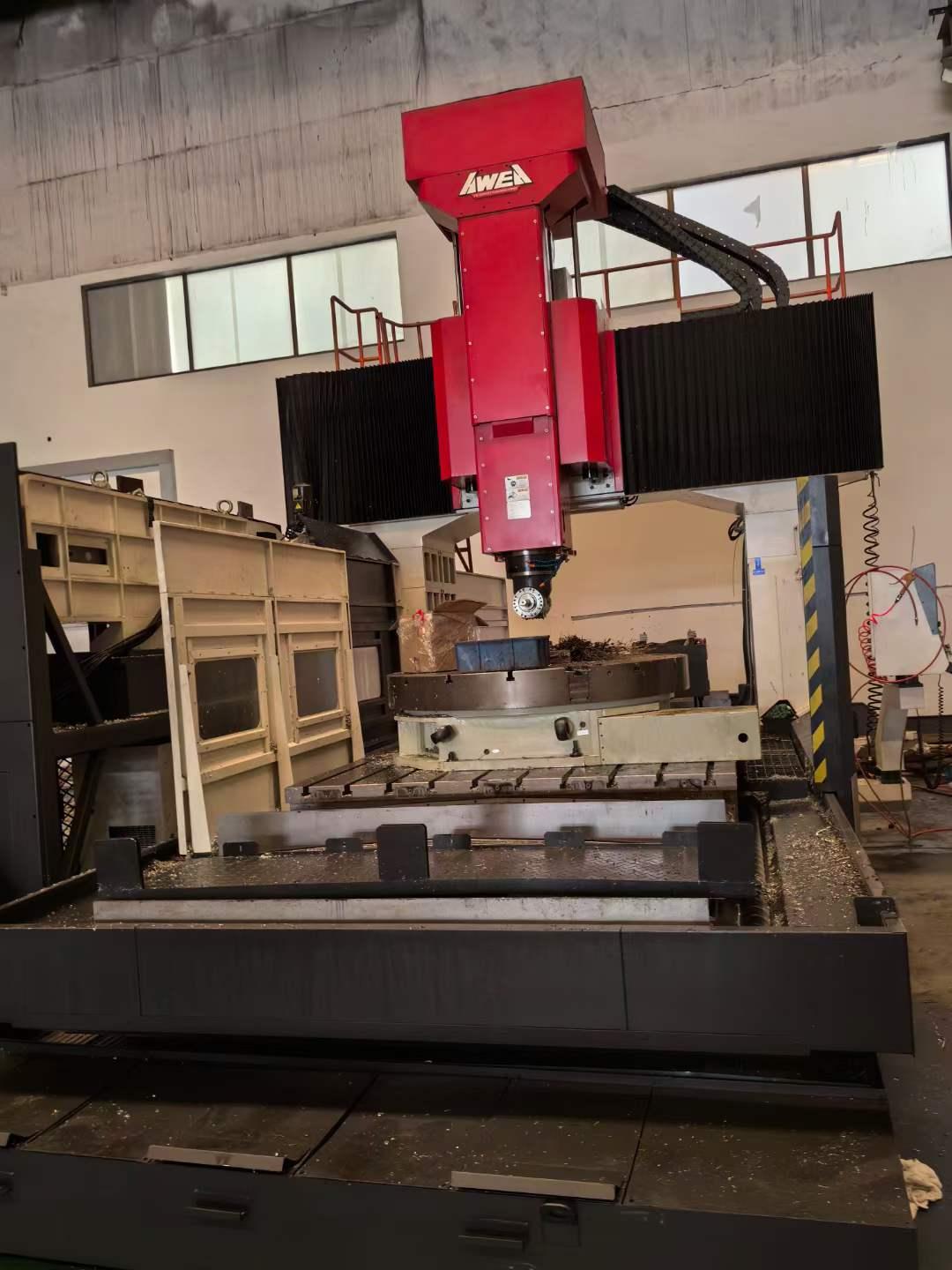

AWEA LP-3021Z Gantry machining centre

Three axes travel: 3000*2100*760mm

Distance between two columns: 2300mm

Distance from spindle nose to worktable surface: 240-1000mm

Worktable size: 3020*2010mm

T-slot (width*distance): 28*200mm

Maximum worktable load: 10000kg

Spindle speed: 10-6000rpm

X-axis fast feed rate: 20000mm/min

Y-axis fast feed rate: 15000mm/min

Z-axis fast feed rate: 15000mm/min

Cutting feed rate: 1-10000mm/min

Tool magazine: 32
