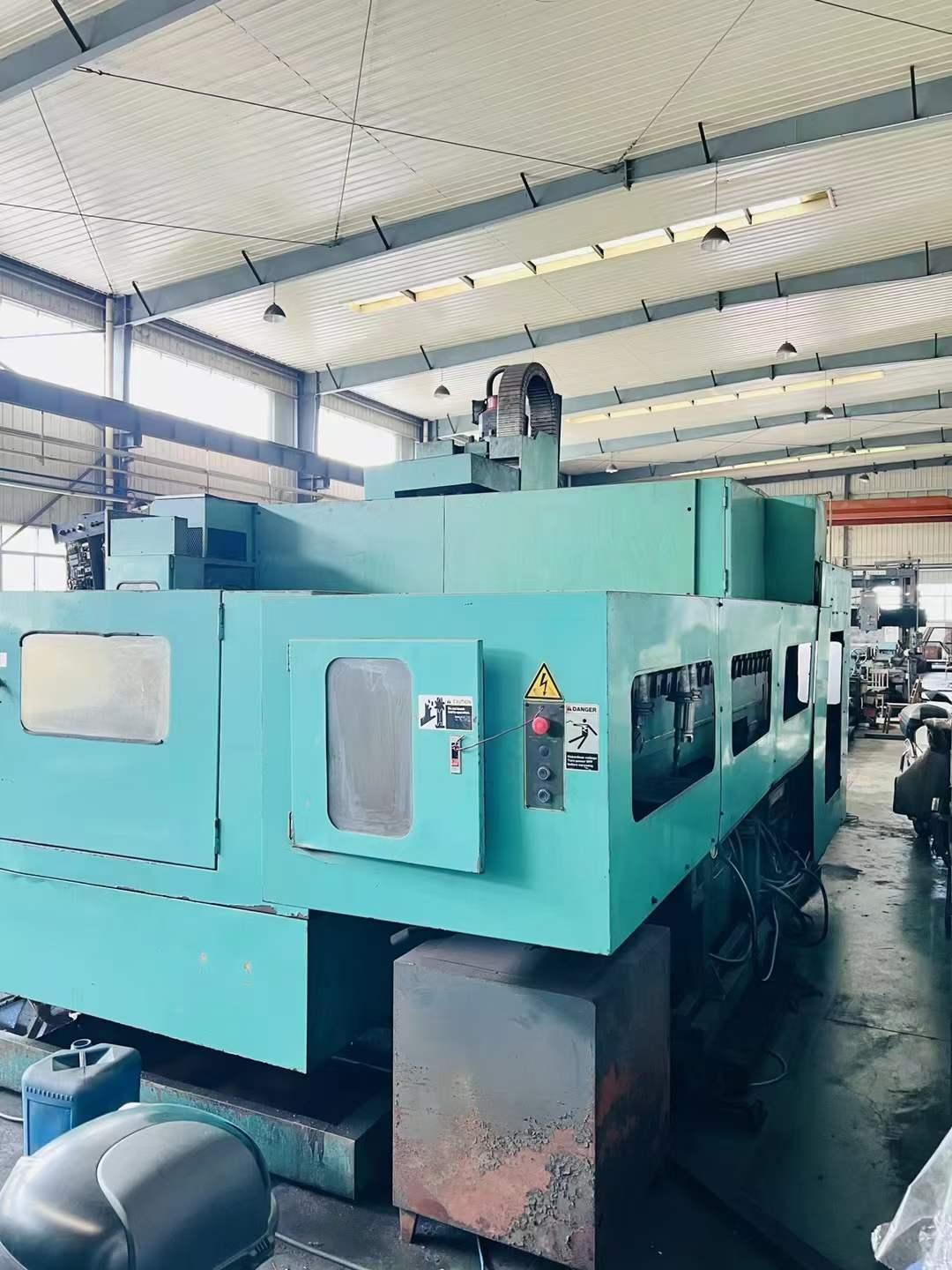

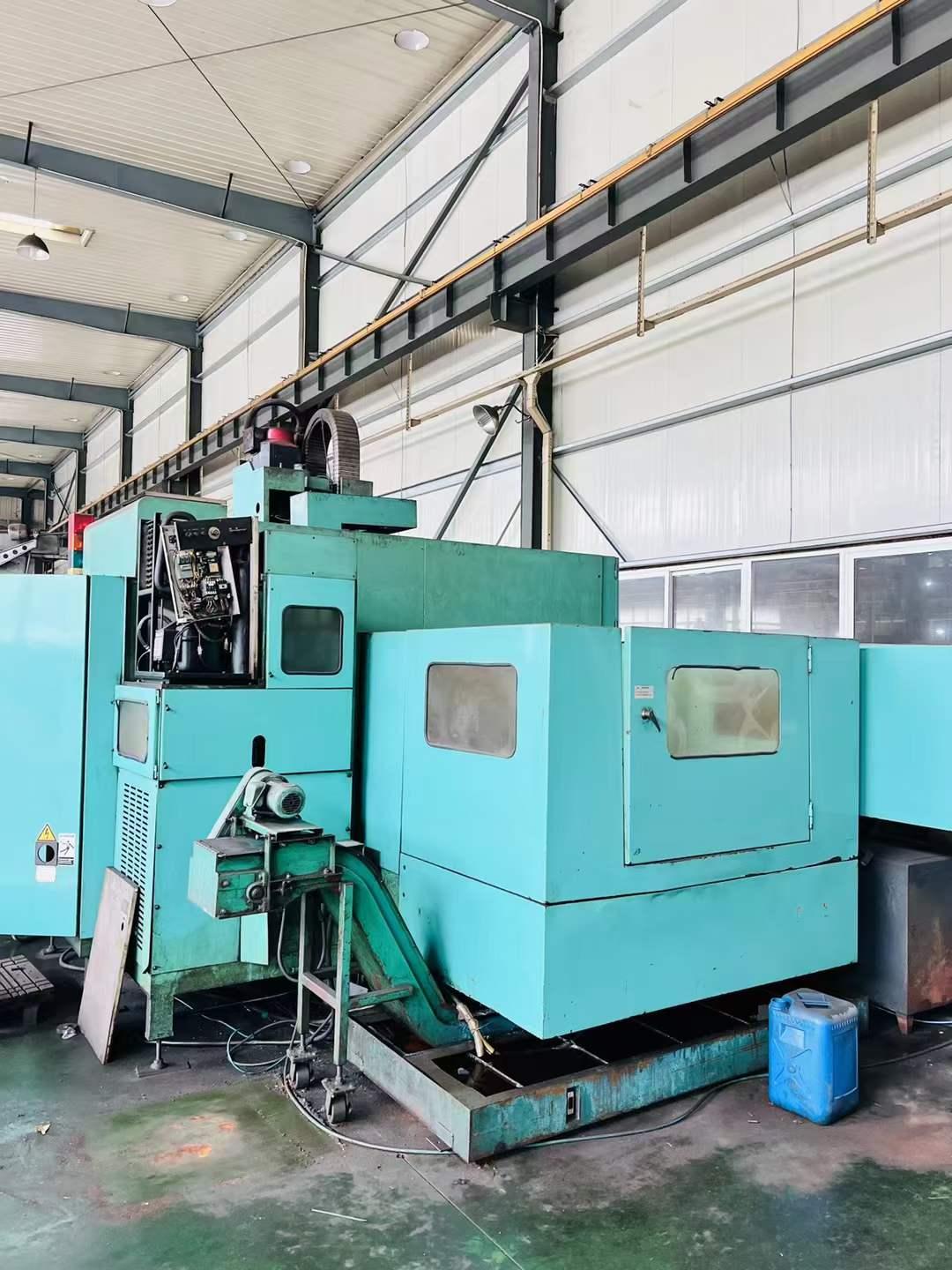

WINTEC DMV-3000 Gantry machining centre

[Product Information]:

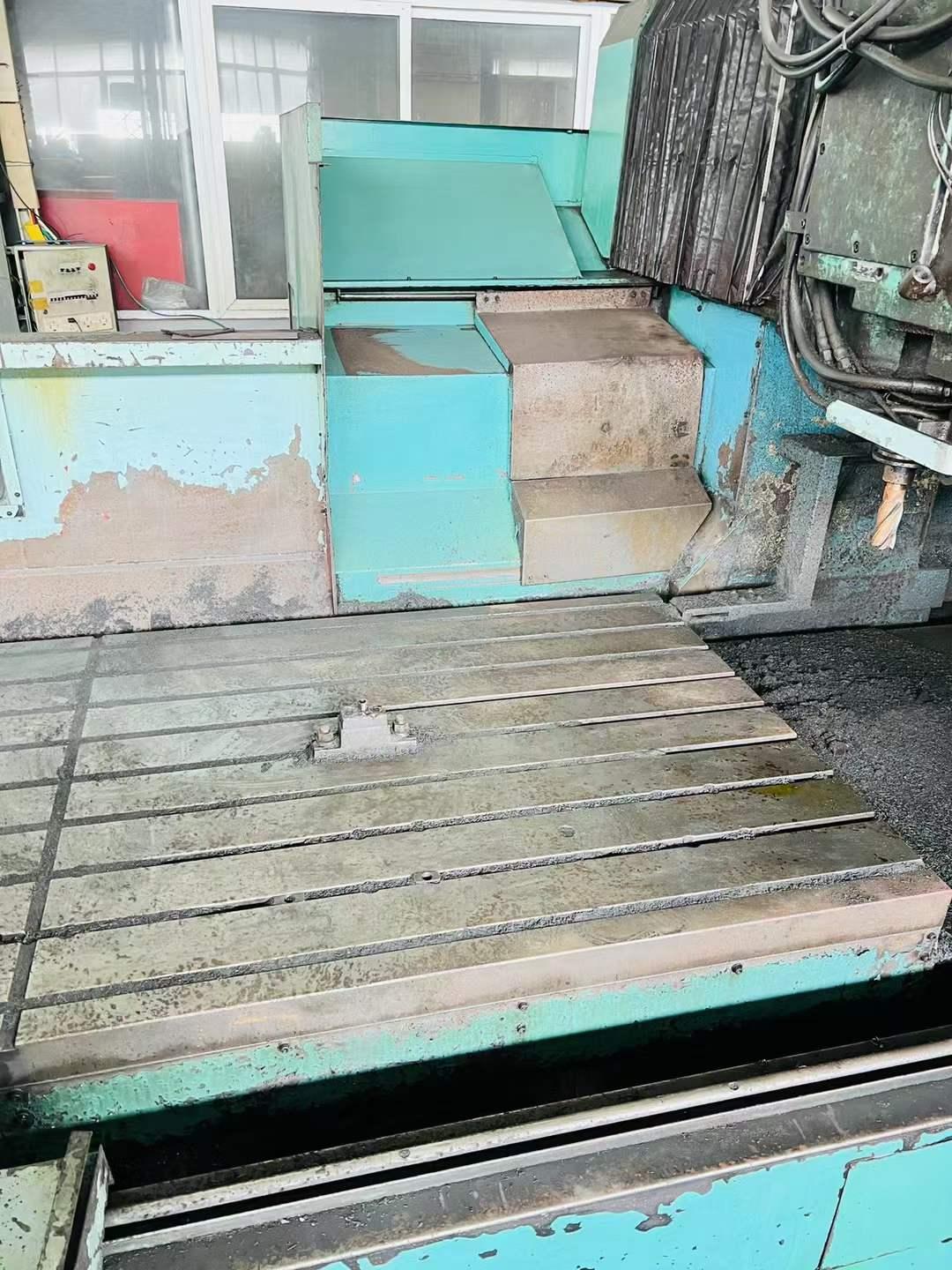

Worktable size: 3200*1450mm

Three axes travel: 3000*1600*800mm

Worktable load: 5000kg

Distance from spindle nose to worktable: 200-1000mm

T-slot size (slot * width * distance) : 22*10*150mm

Spindle speed: 6000rpm

Spindle motor power: 18.5/22kw

X/Y/Z fast feed rate: 12/15/10m/min

Cutting feed rate: 5-6000m/min

Machine footage: 8300*4850mm

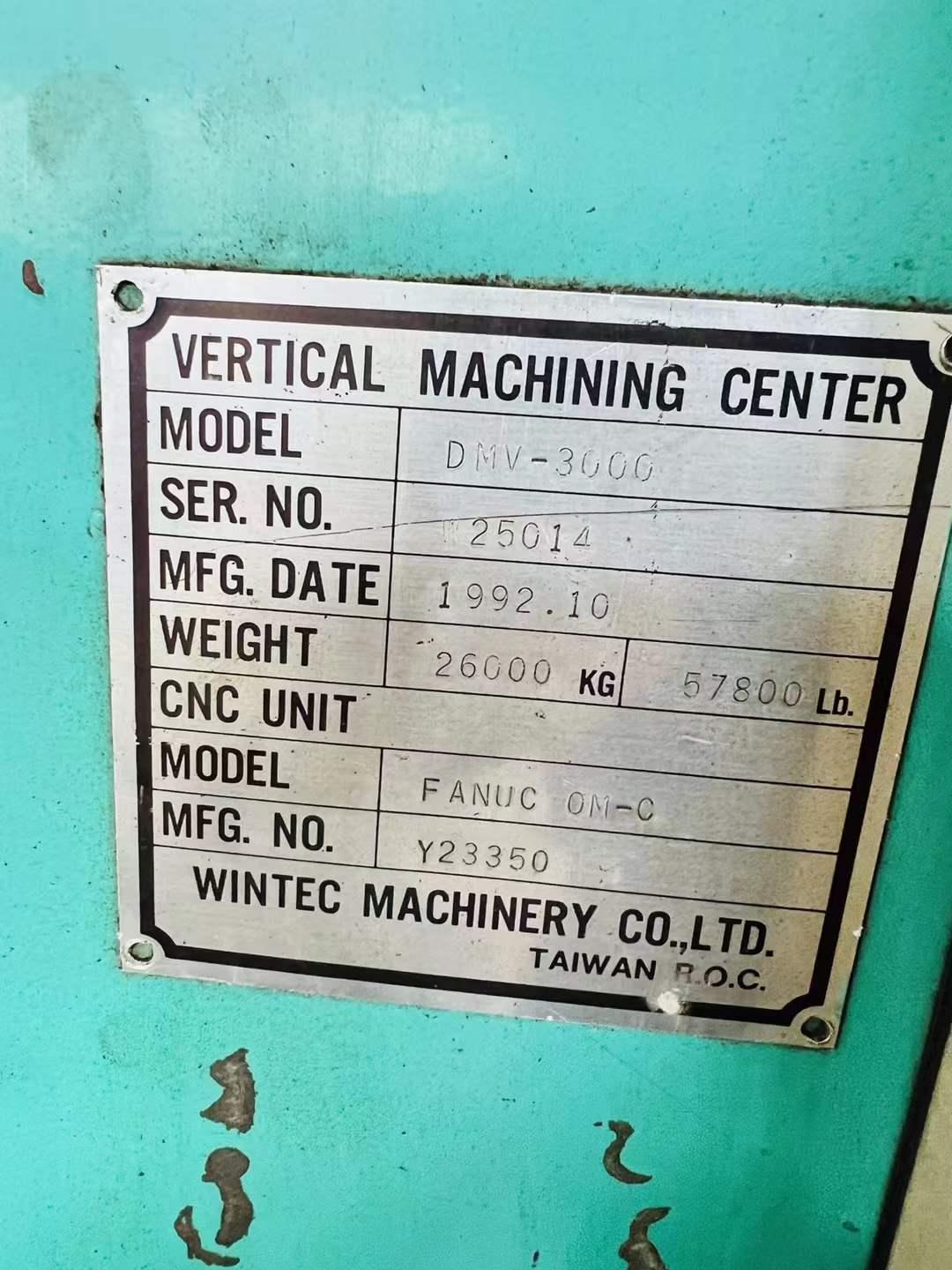

Machine weight: 26000kg

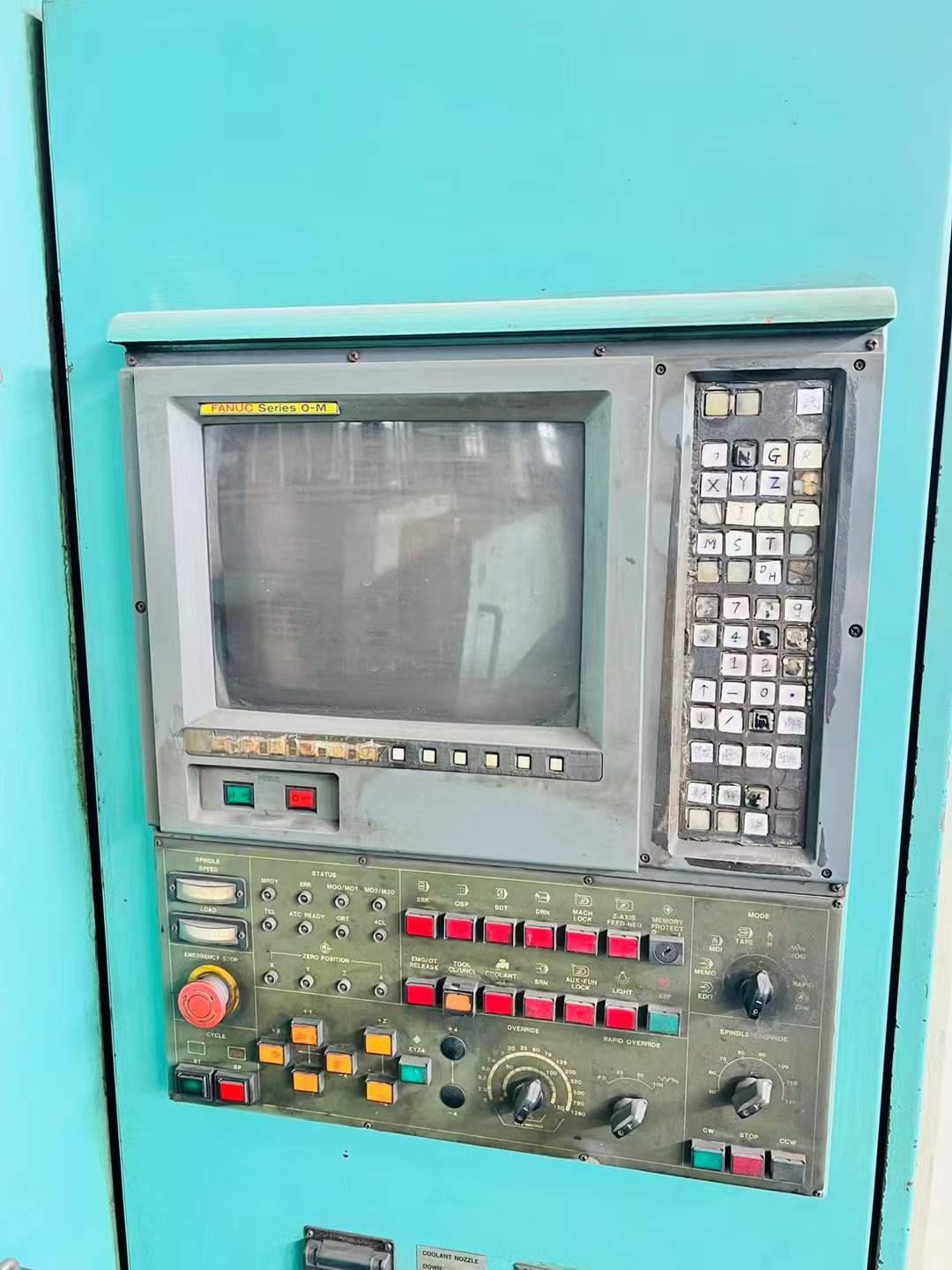

CNC system: FANUC OM-C
