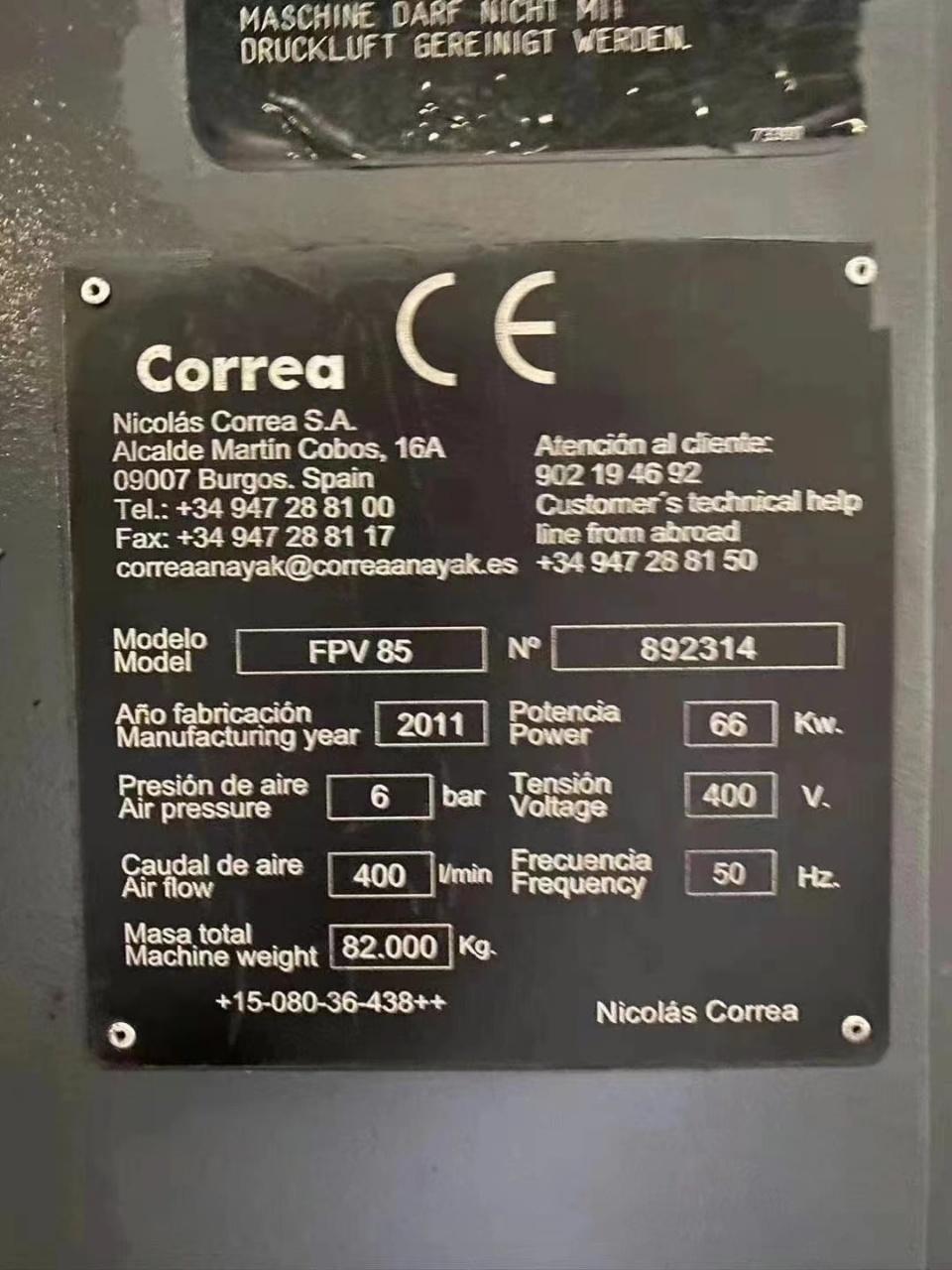

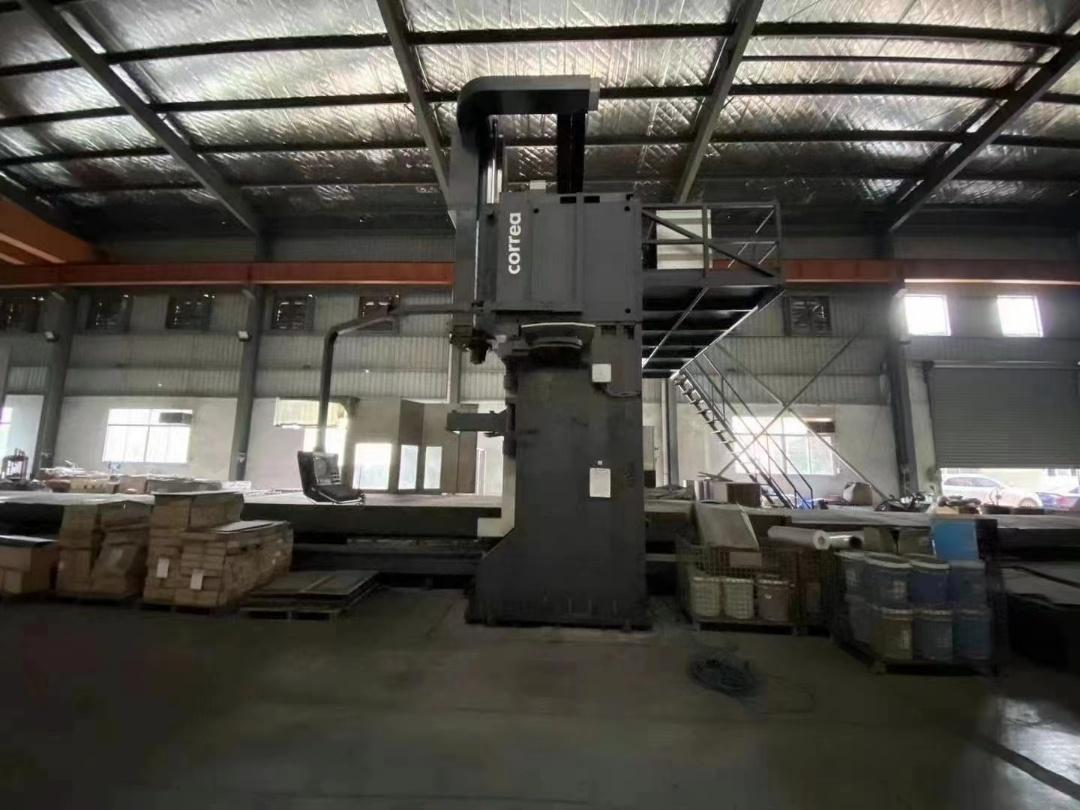

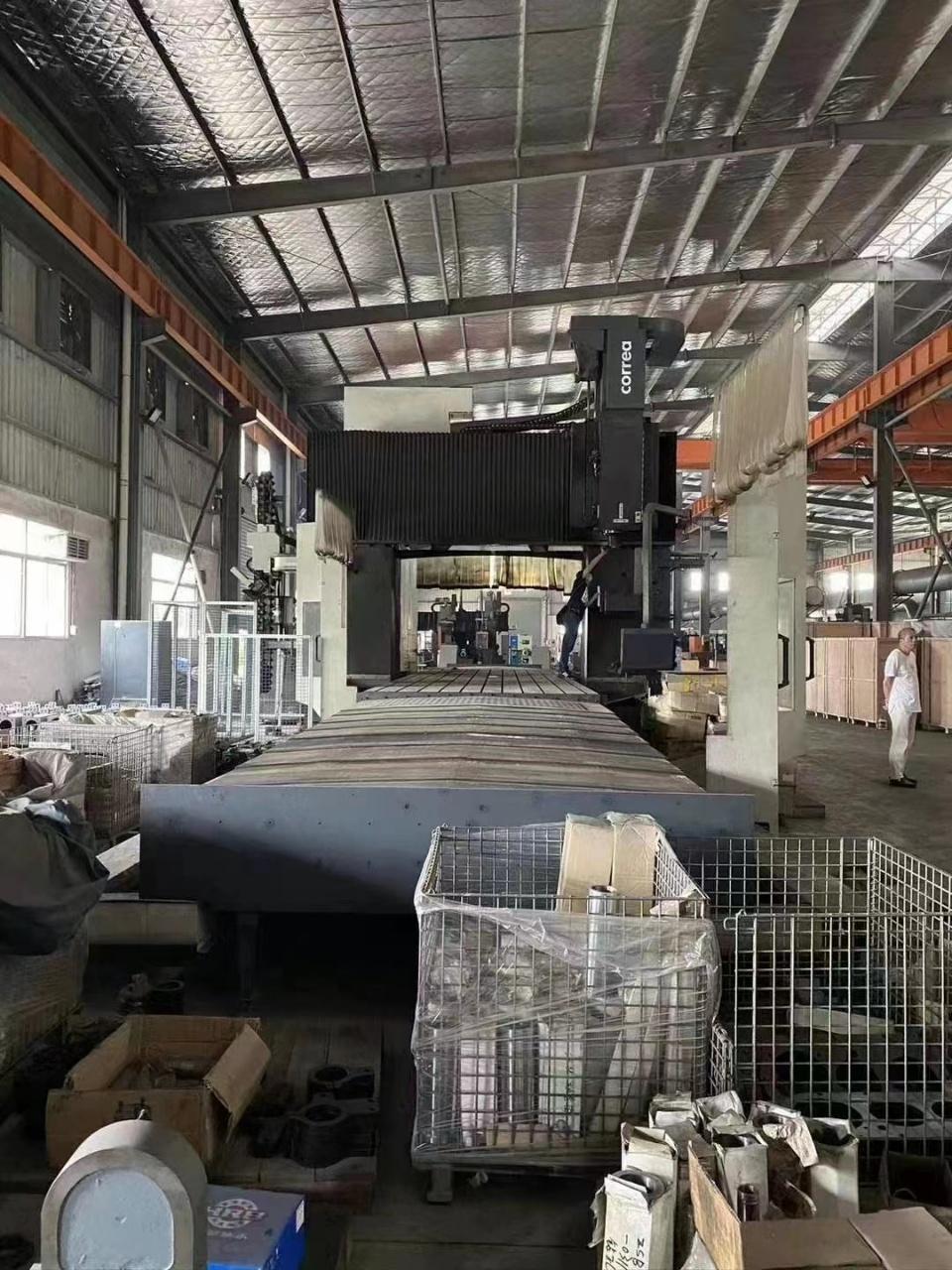

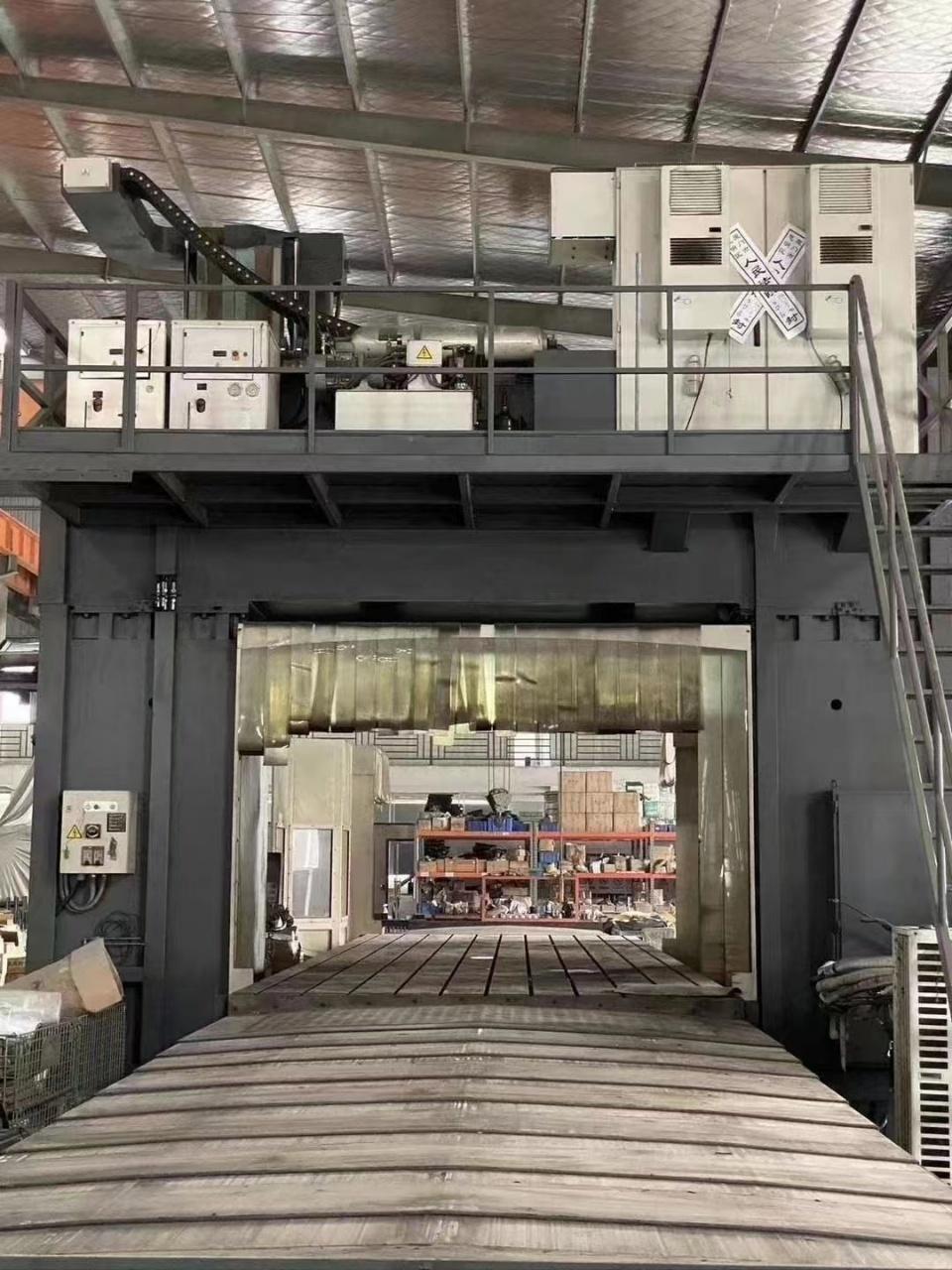

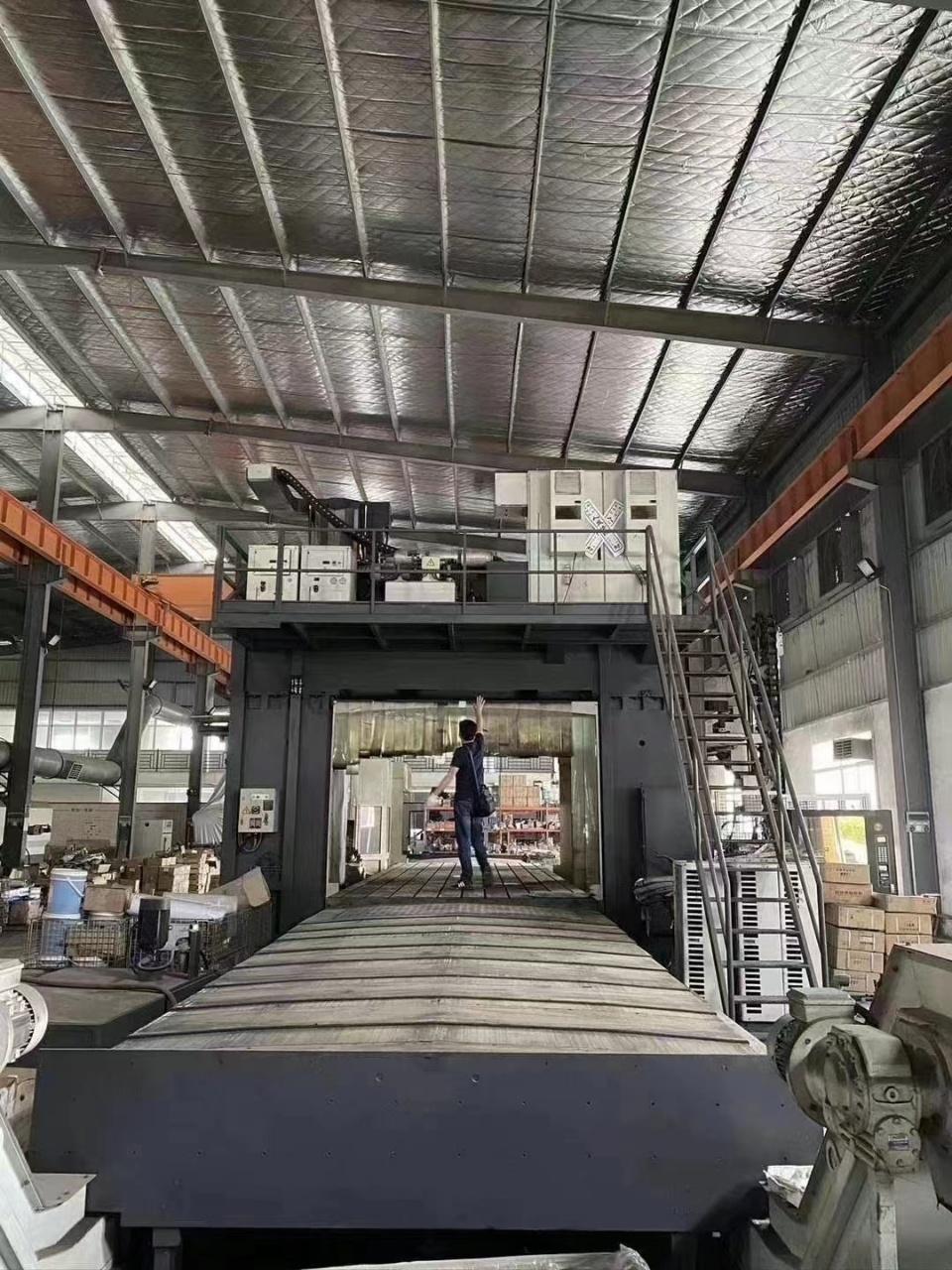

Nicholas FPV85 Machining centre

[Product Information]:

Three axes travel: 8500*3800*1250mm

Worktable size: 8000*2500mm

Maximum load: 35t

Gantry width: 3100mm

Heidenhain TNC530 CNC system

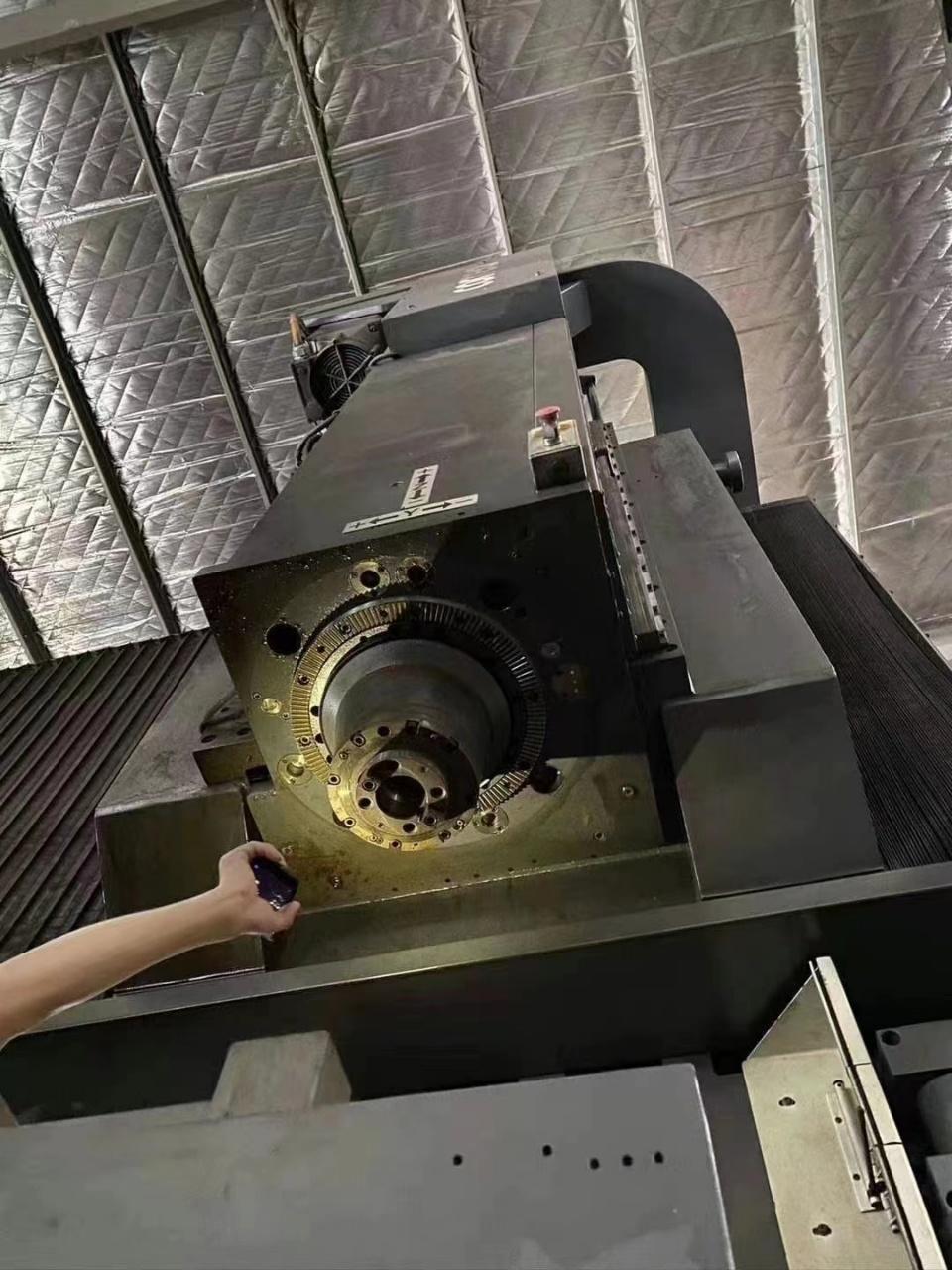

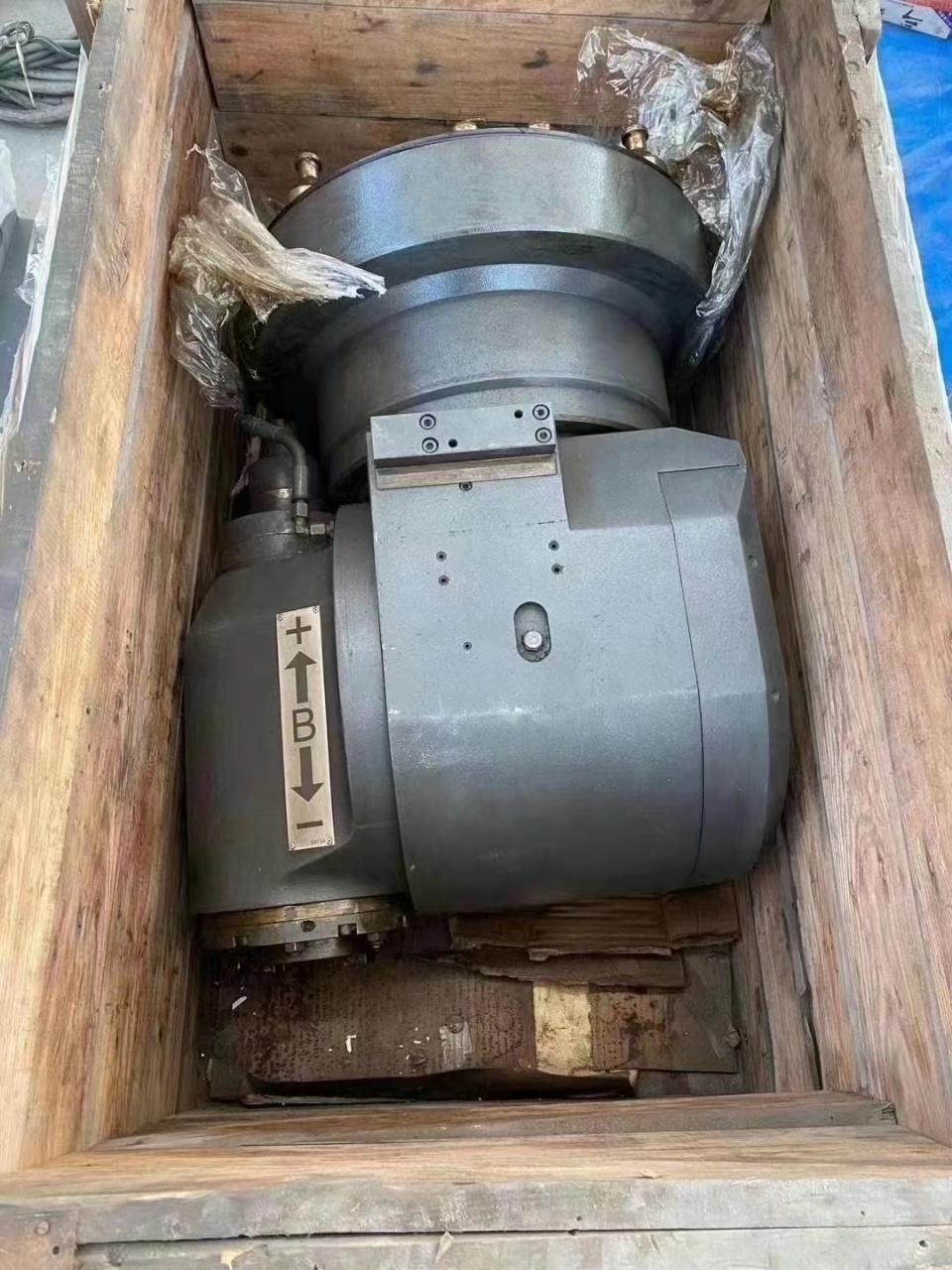

1 steering milling head

Spindle taper: ISO50

X-axis fast feed rate: 30m/min

Y-axis fast feed rate: 12m/min

Z-axis fast feed rate: 12m/min

Spindle speed: 5000rpm

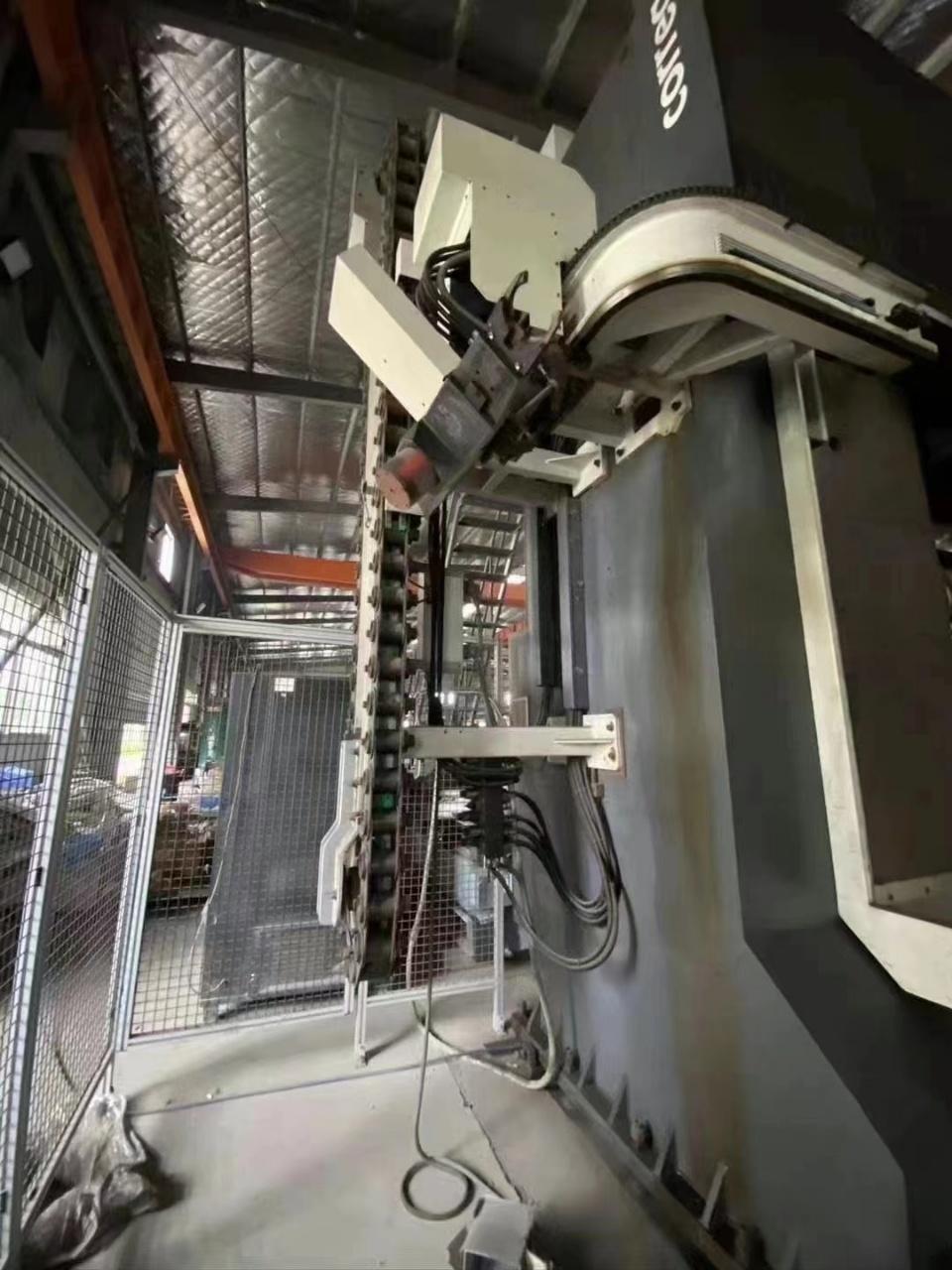

Tool magazine: 60

Maximum tool length: 400mm

Tool weight: 20kg

Tool holder: DIN 69871 A50

Distance from worktable surface to spindle nose: 1350mm

Cutting feed rate: 1 ~ 5000mm/min

Main motor power: 37/30KW
