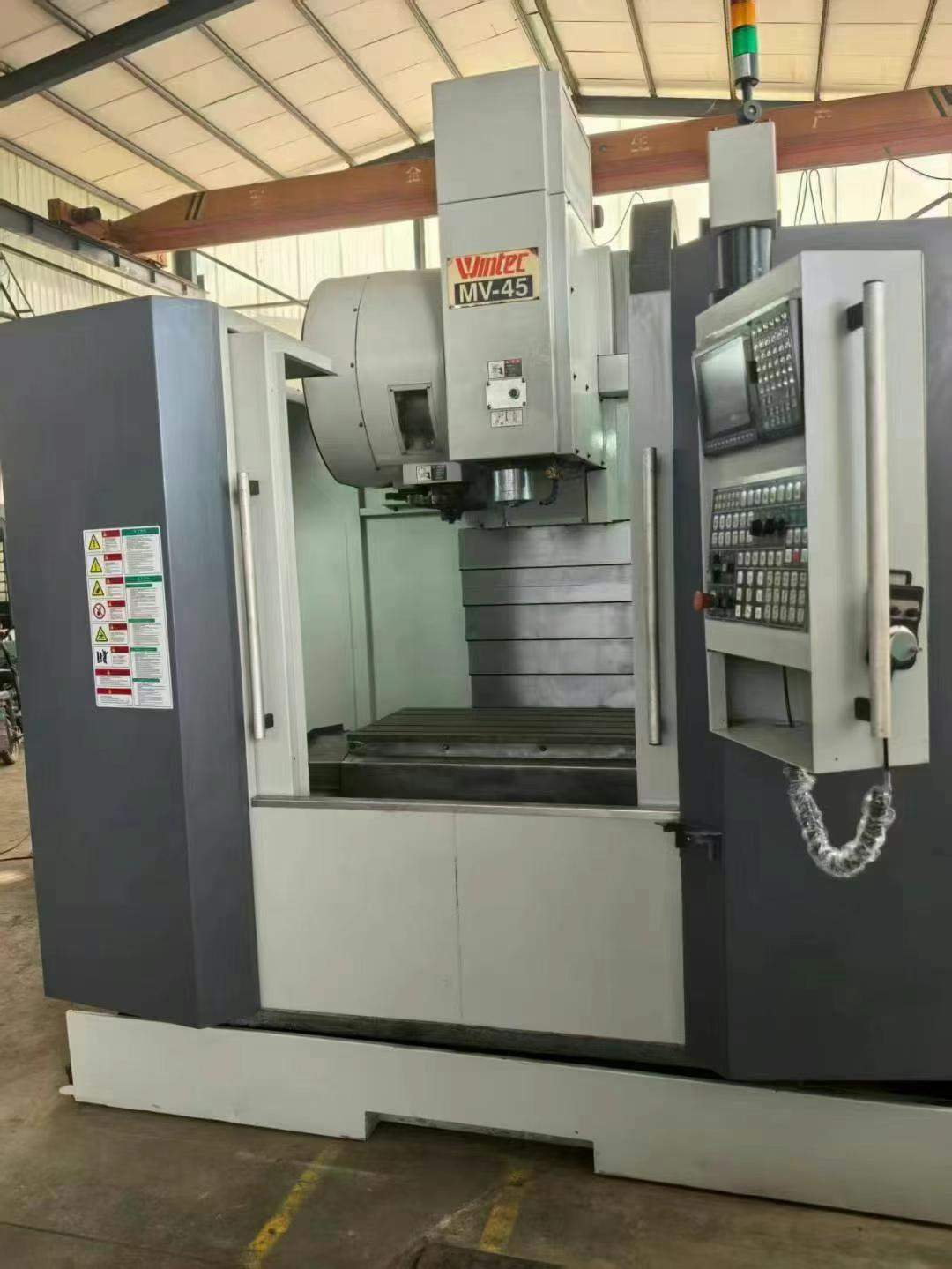

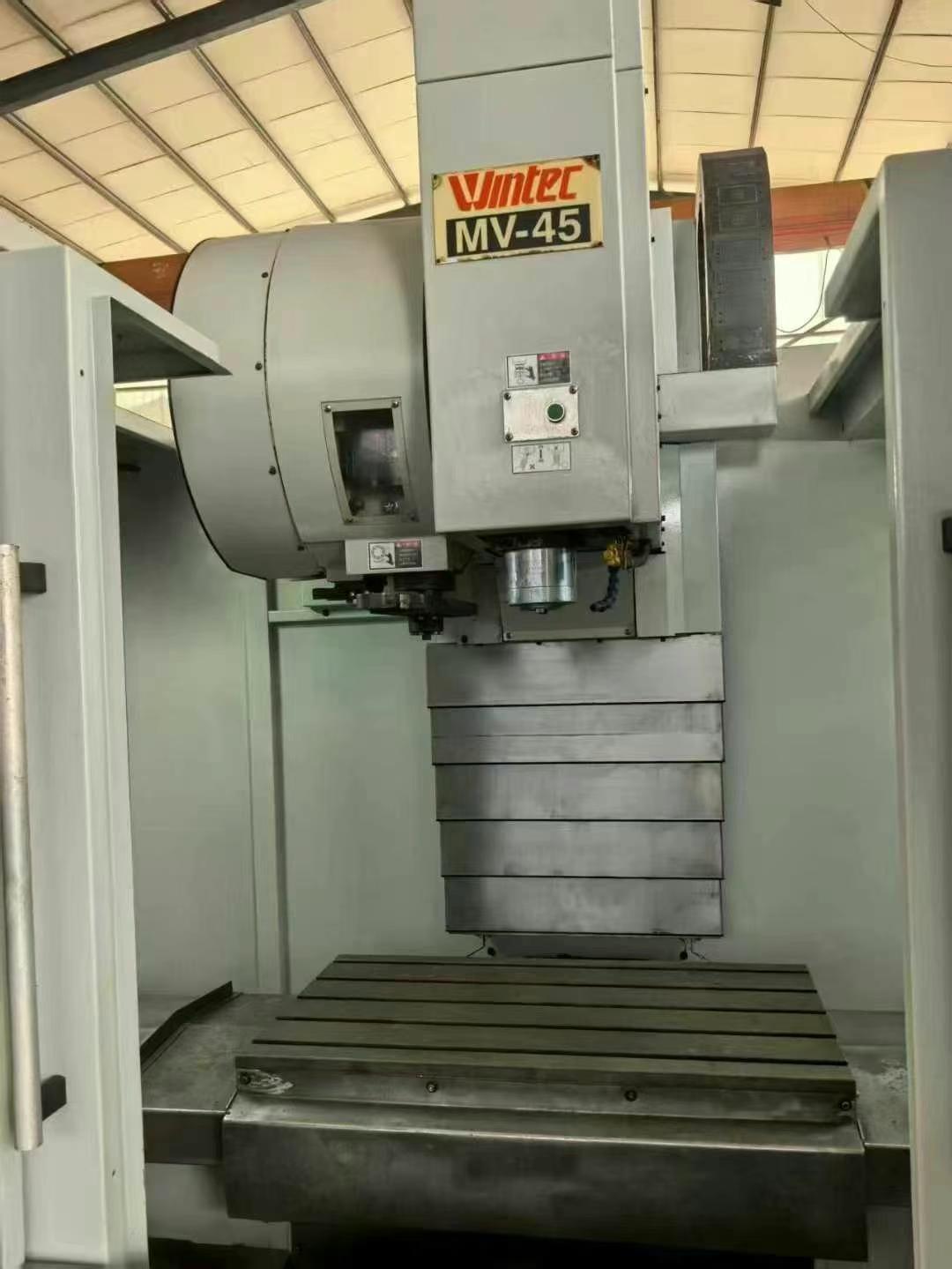

Wintec MV-45 Machining centre

[Product Information]:

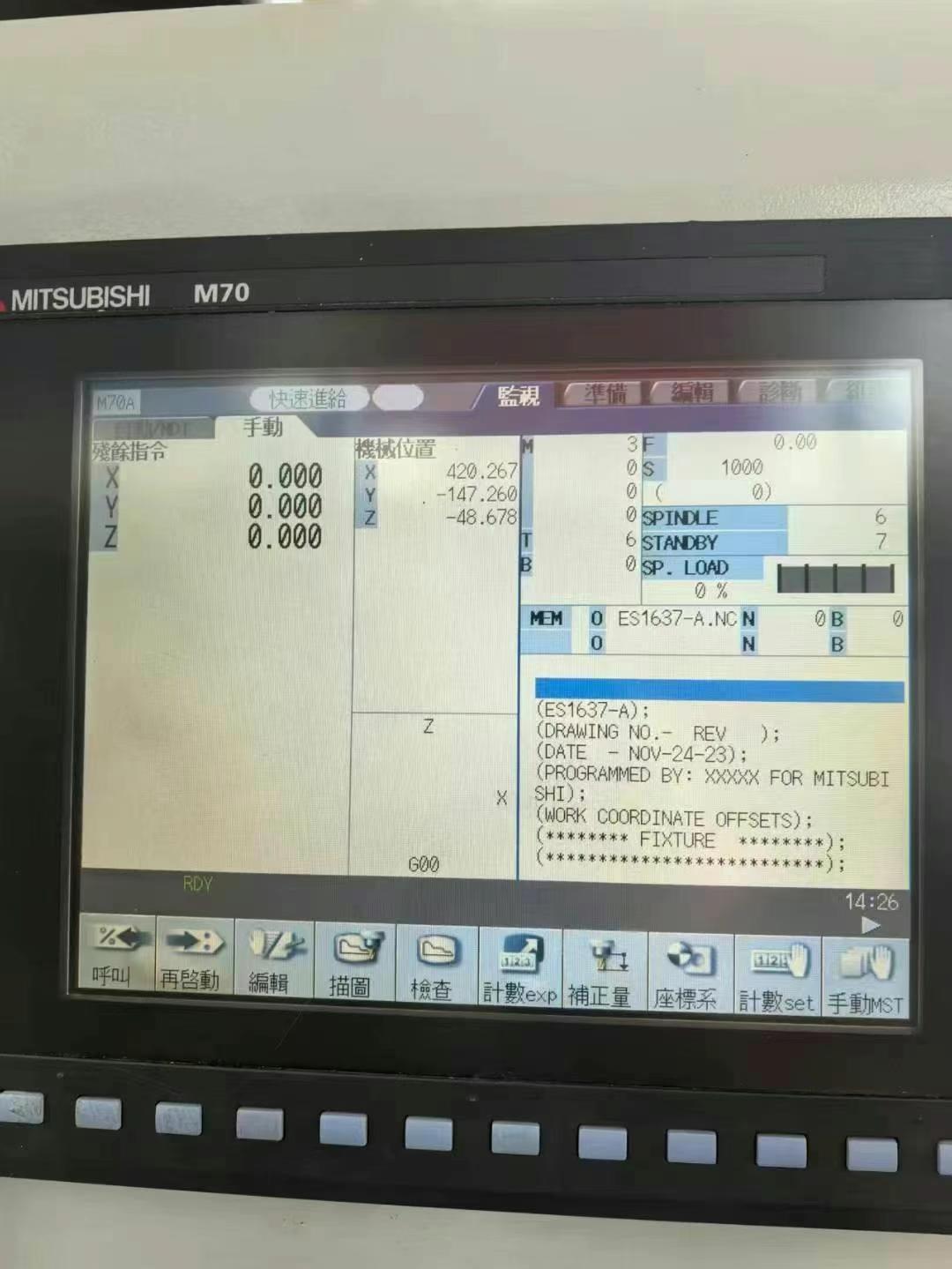

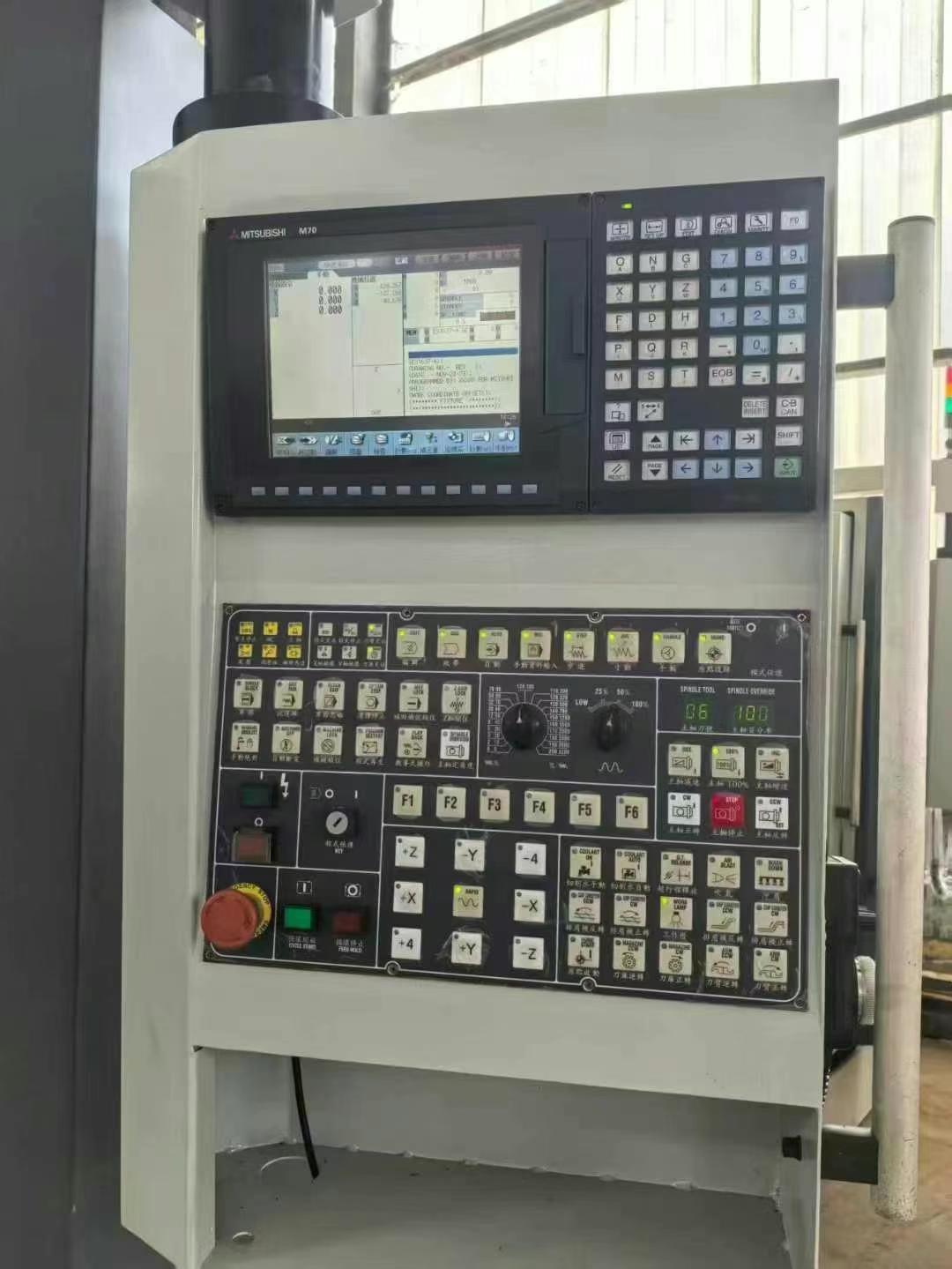

CNC CNC System: Mitsubishi M70

WorkWorktable size :1000X500mm

three-axis travel :850X550X580mm

Distance from spindle nose to workWorktable surface :120-700mm

The taper of spindle nose :BT40

Distance from spindle center to the column slide rail surface :600mm

spindle :7.5kw/11kw

Spindle speed: 10,000 RPM

Overall Footage :3800X3100X2650mm
