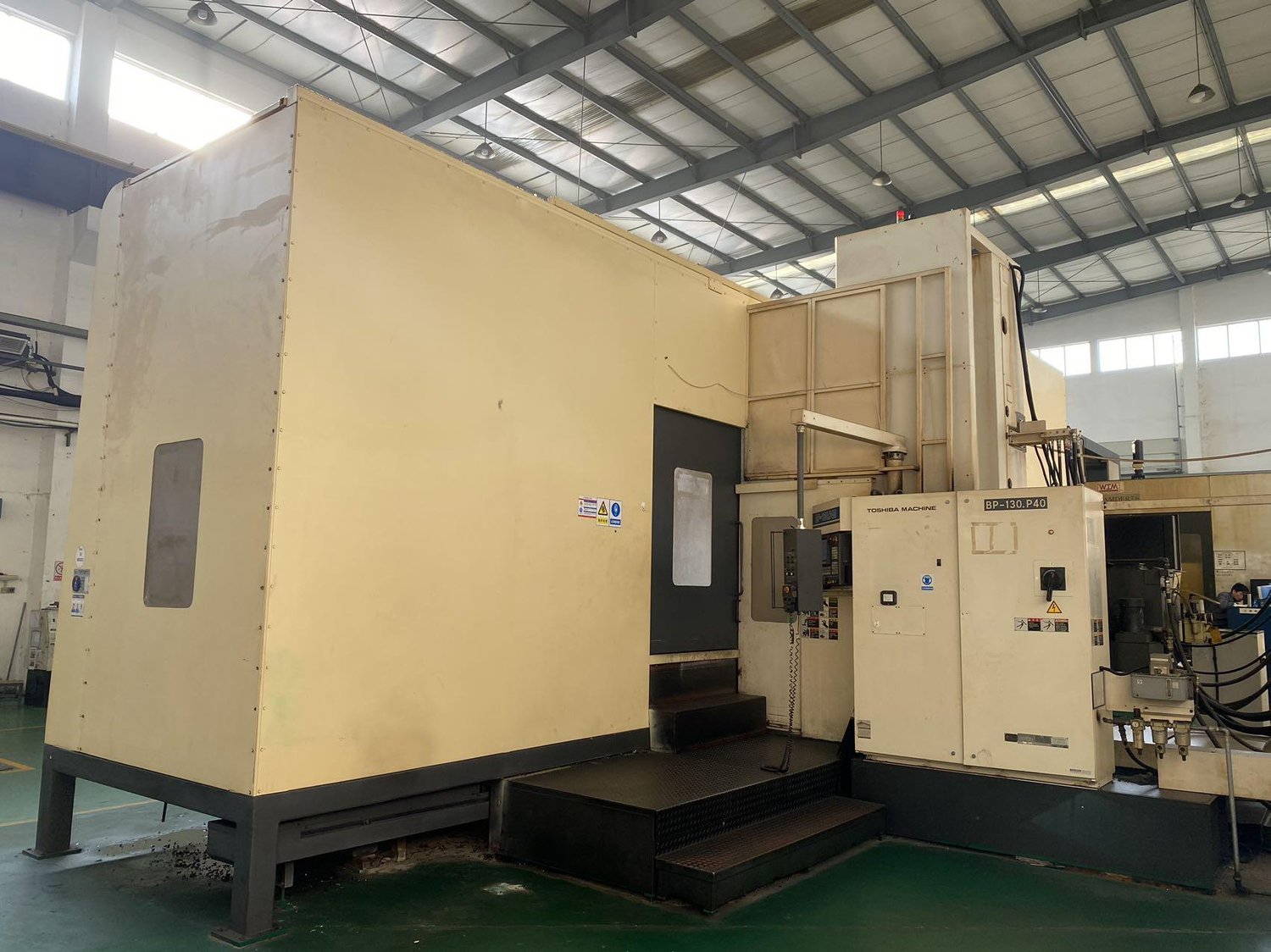

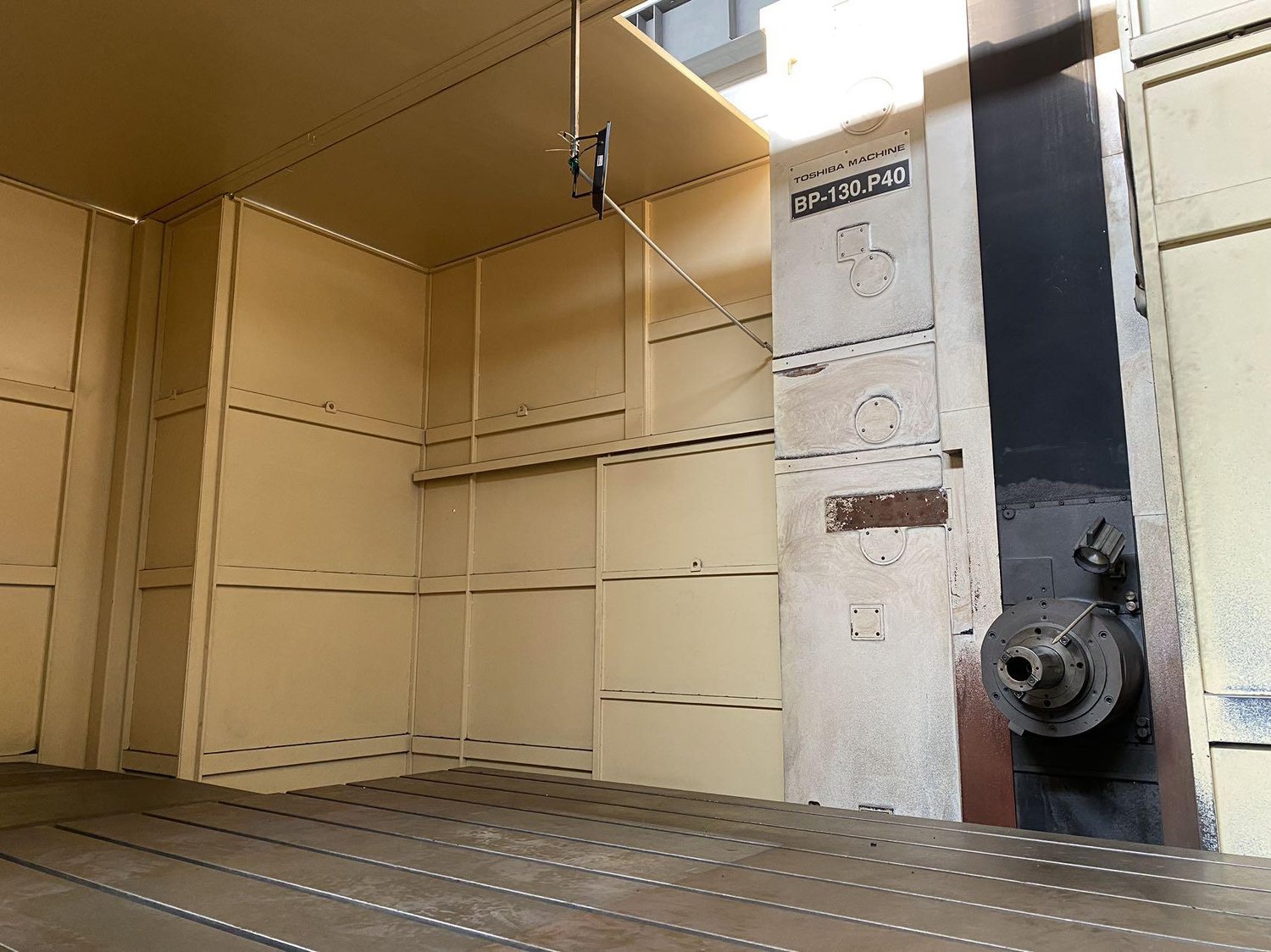

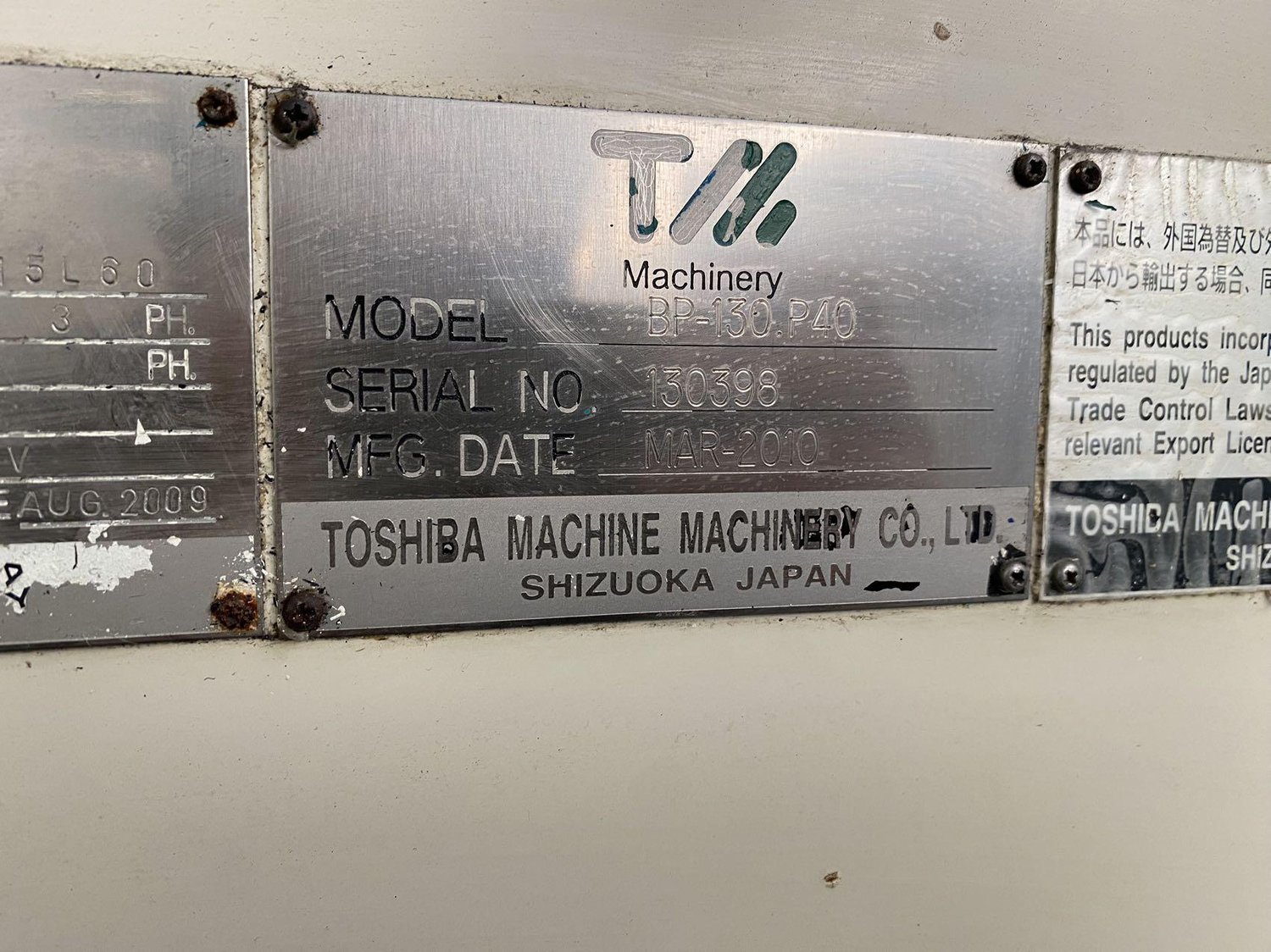

Toshiba BP - 130.140 - Boring machine

[Product Information]:

X*Y*Z*W axis travel: 4064*2540*1524*711.2mm

Distance from worktable to spindle center : 101.6~2646.6mm

Worktable size: 1778*3937mm

Maximum worktable load : 25000kg

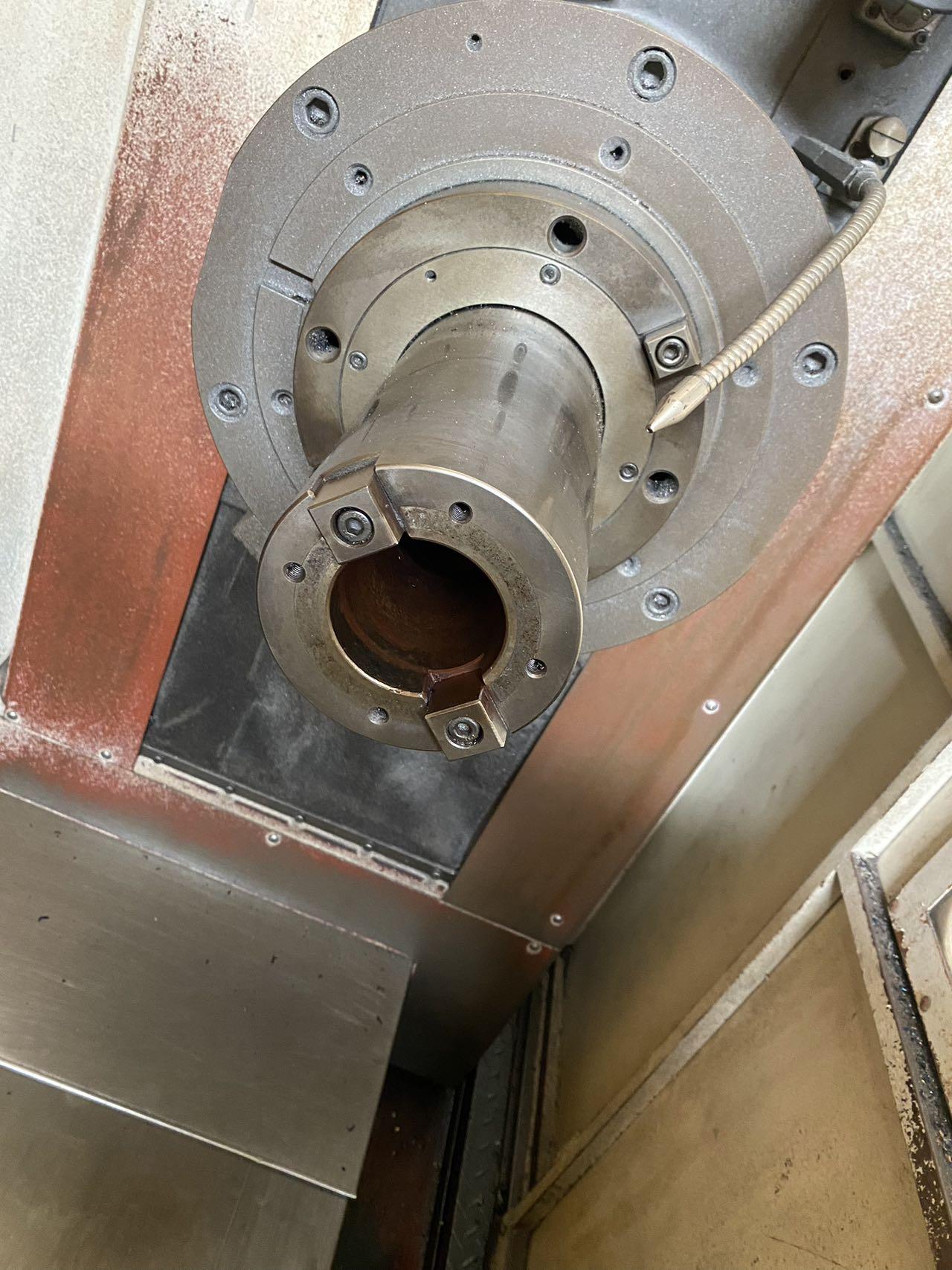

Spindle diameter: 130mm

Spindle speed: 5~2500/min

Fast conveying speed: X,Y,Z: 10000mm/min W: 5000mm/min

PDF Download Click to Contact Seller
