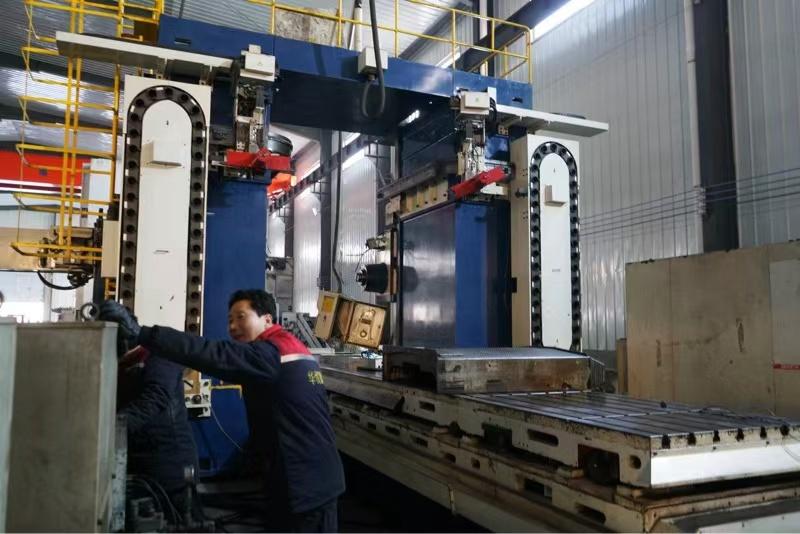

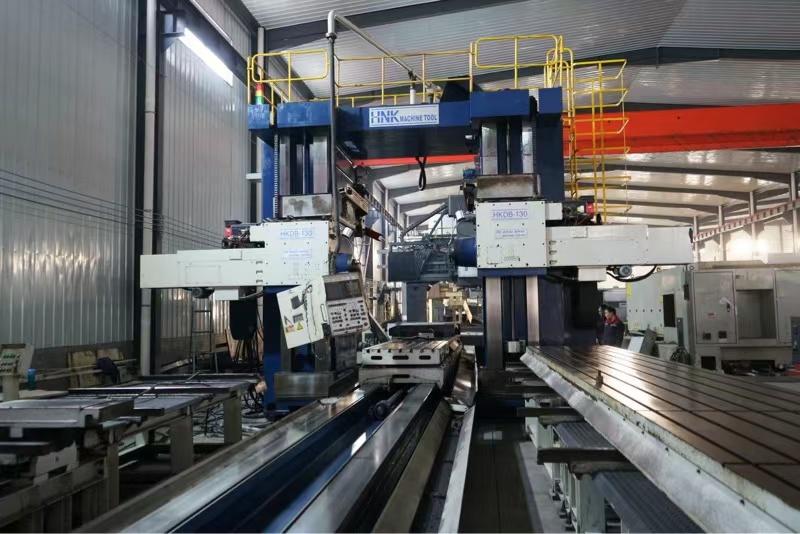

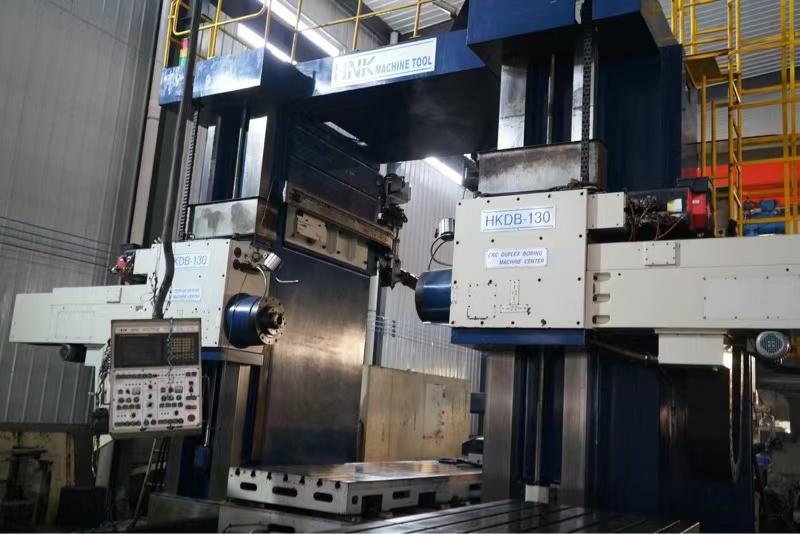

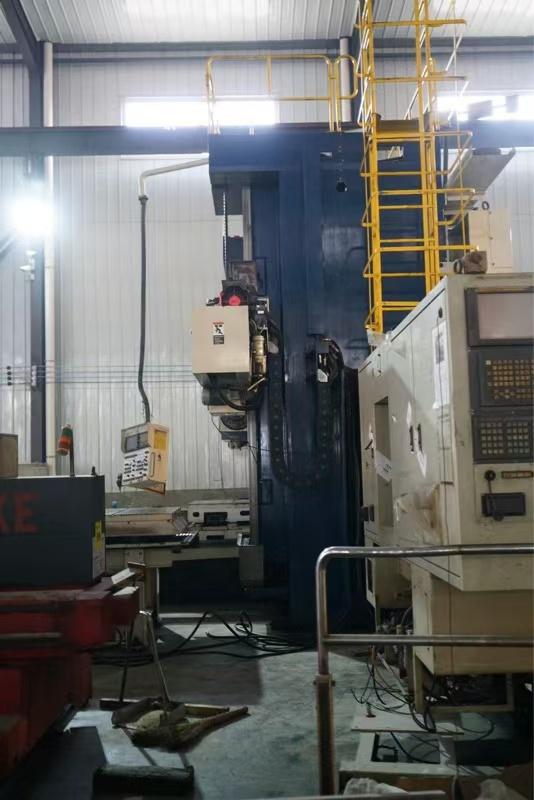

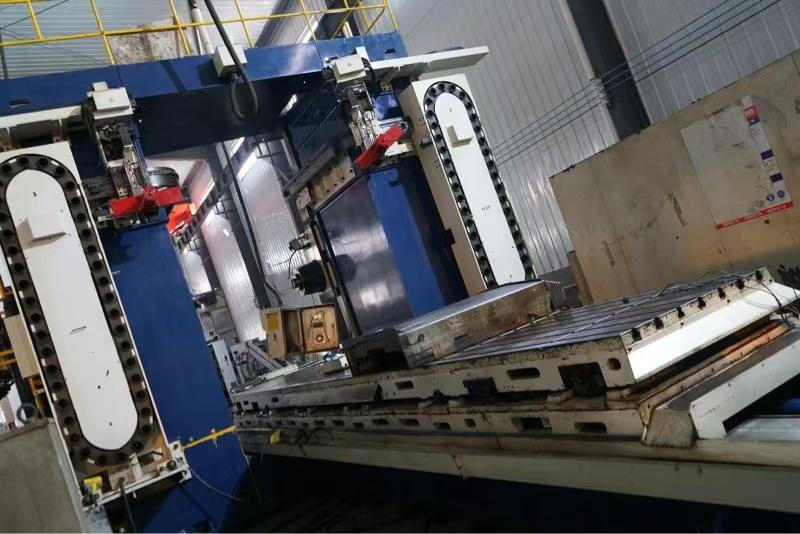

HNK HKDB-130P Boring machine

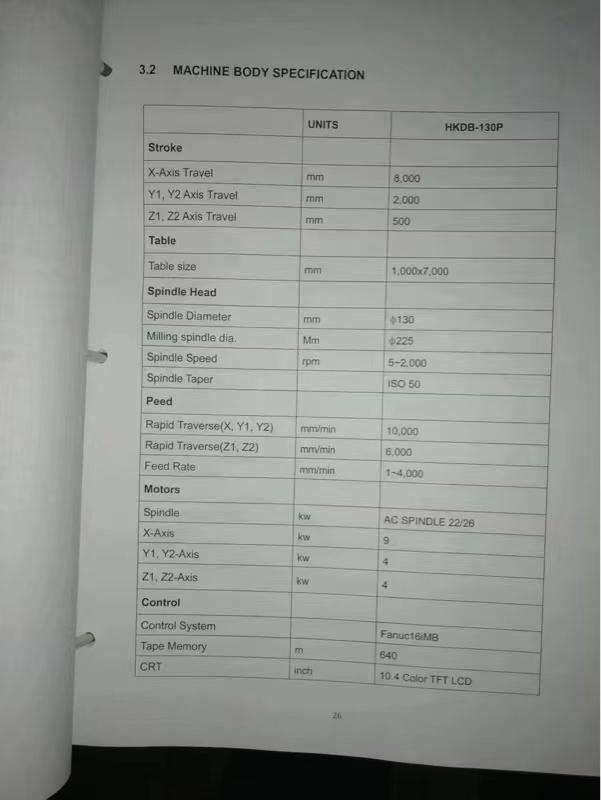

[Product Information]:

CNC System: FANUC 16iMB

X-axis travel: 8000mm

travel of Y1 and Y2 axes: 2000mm

Z1.Z2 axis travel: 500mm

WorkWorktable size: 1000x7000mm

Spindle diameter: 130mm

milling spindle diameter: 225mm

Spindle speed: 5 to 2,000 rpm

Fast movement (X, Y1, Y2) : 10,000 mm/min

Fast movement (Z1, Z2) : 6000mm/min

Feed rate: 1 to 4000mm/min

3 axes with Heidenhain optical scale

Weight :100 tons
