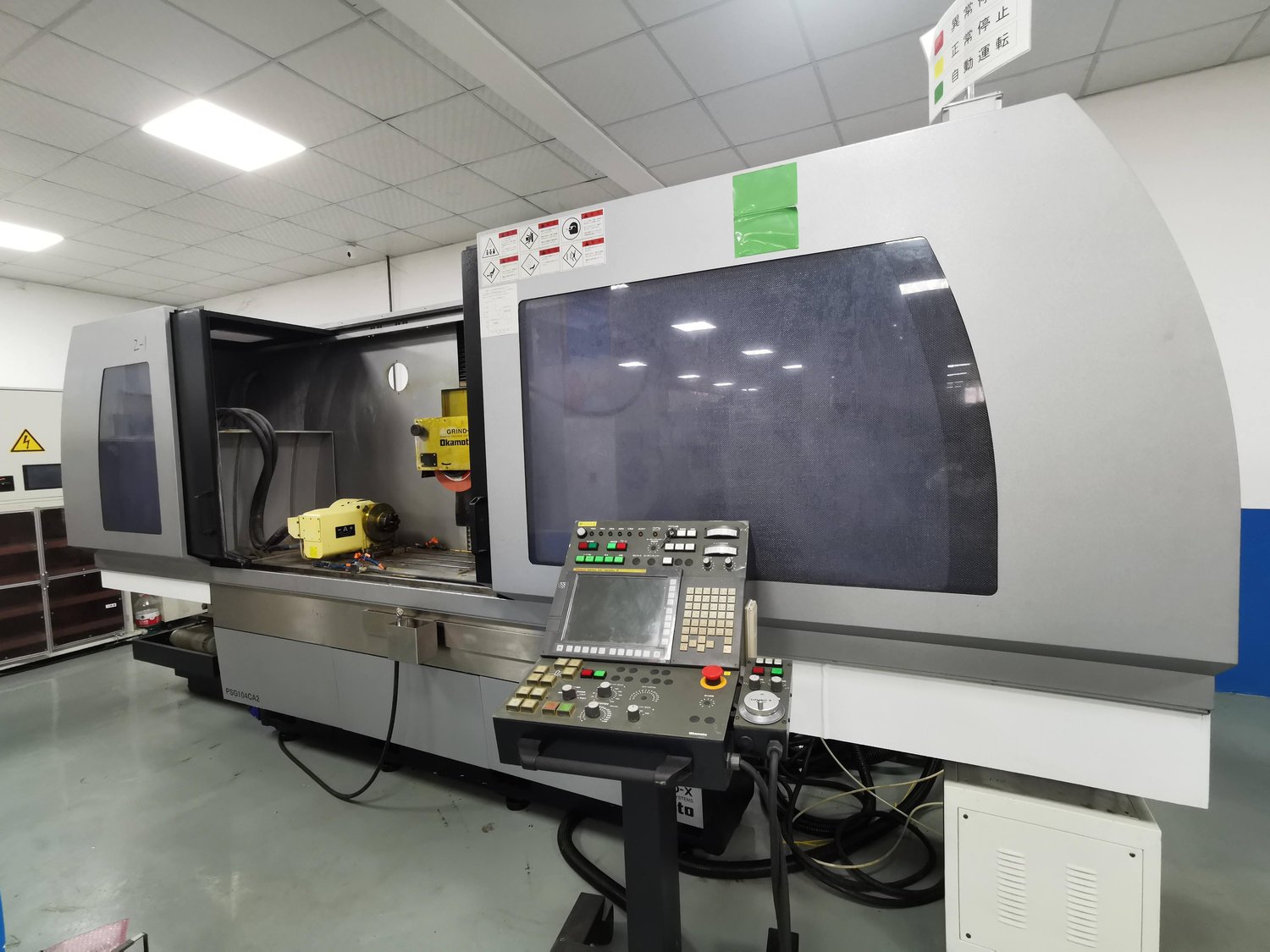

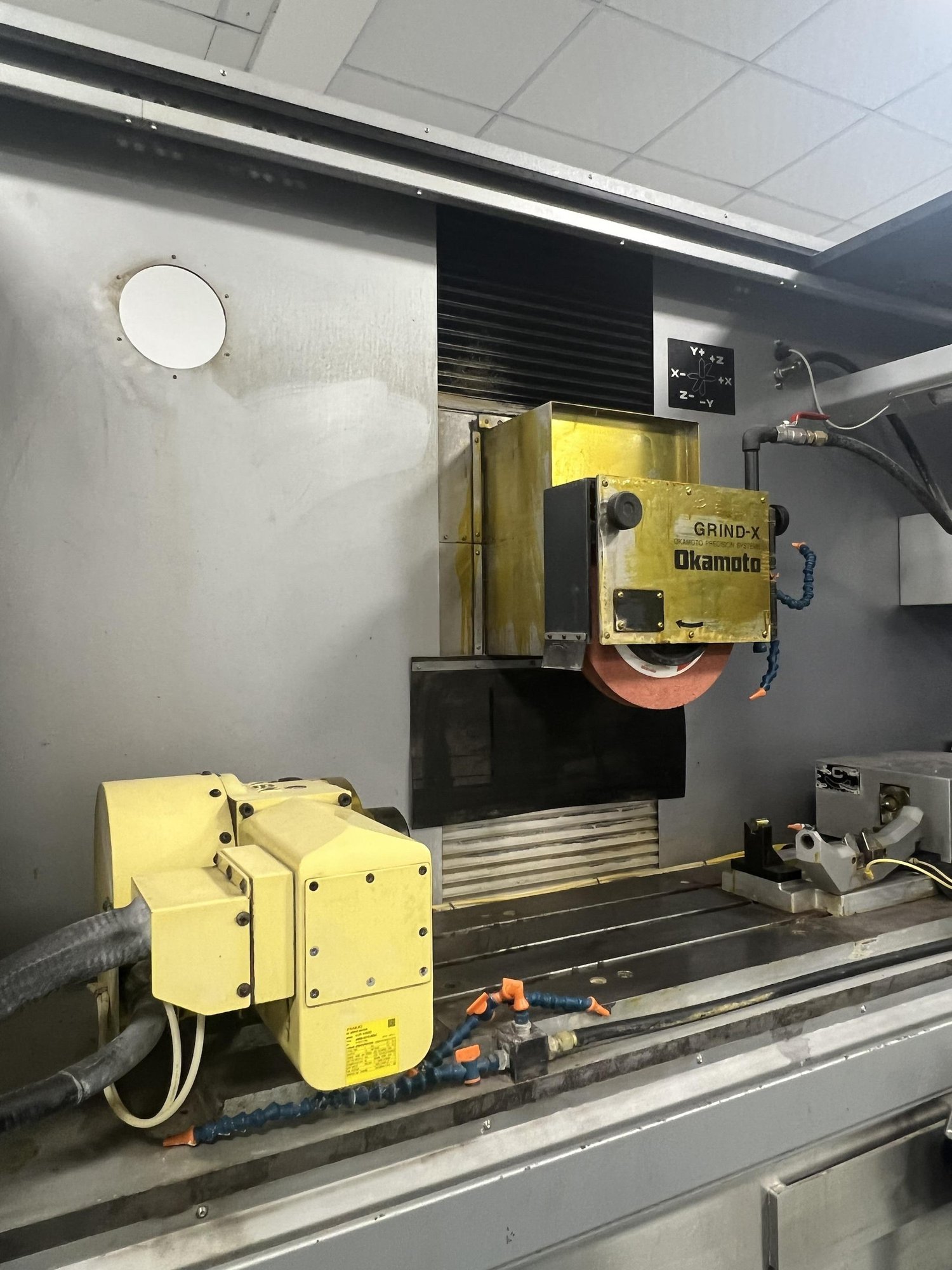

Okamoto PSG104AC2 Grinding machines

[Product Information]:

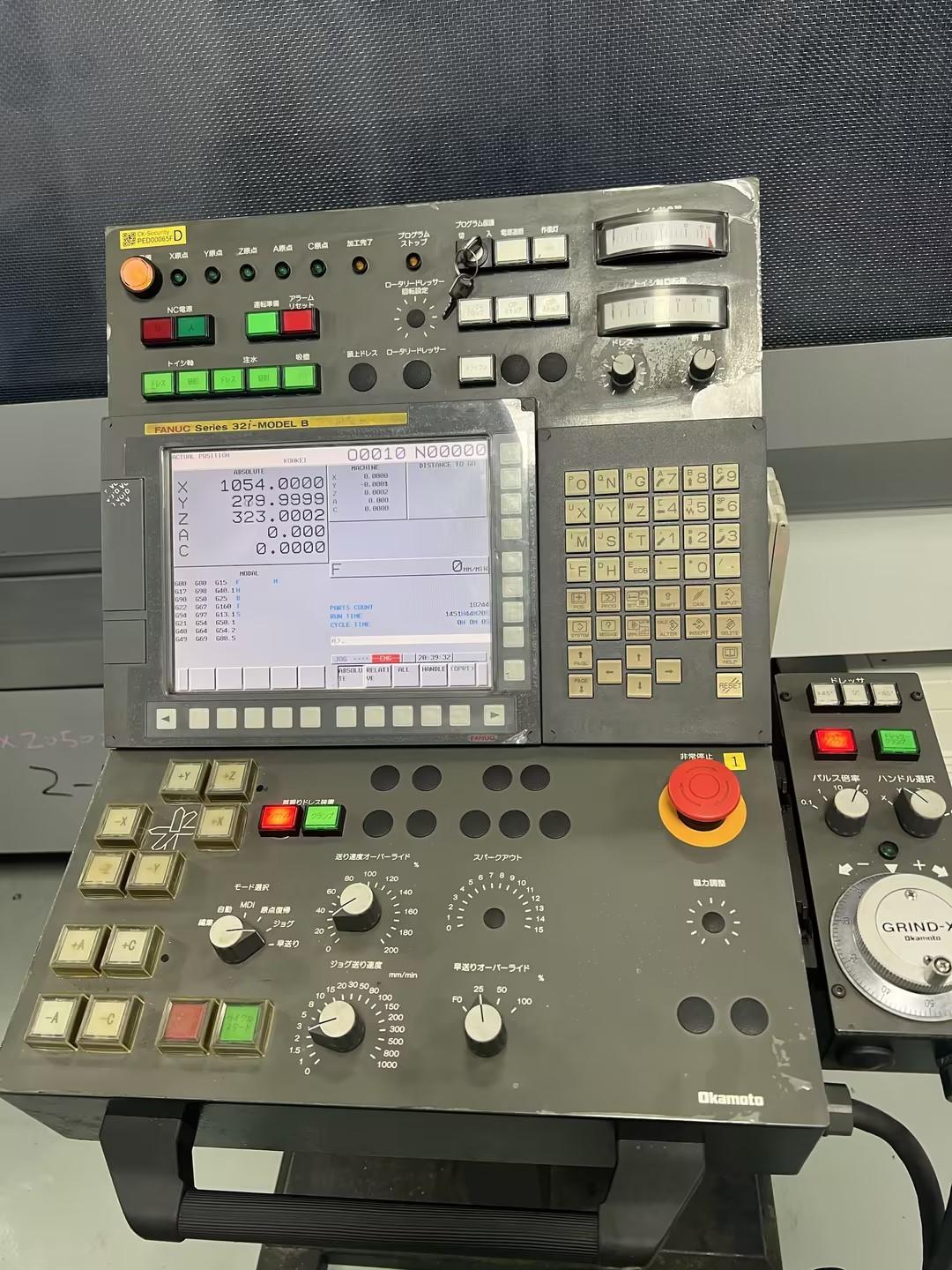

CNC System: FANUC321 series 32i-mb

X*Y*Z axis travel: 1200*440*400mm

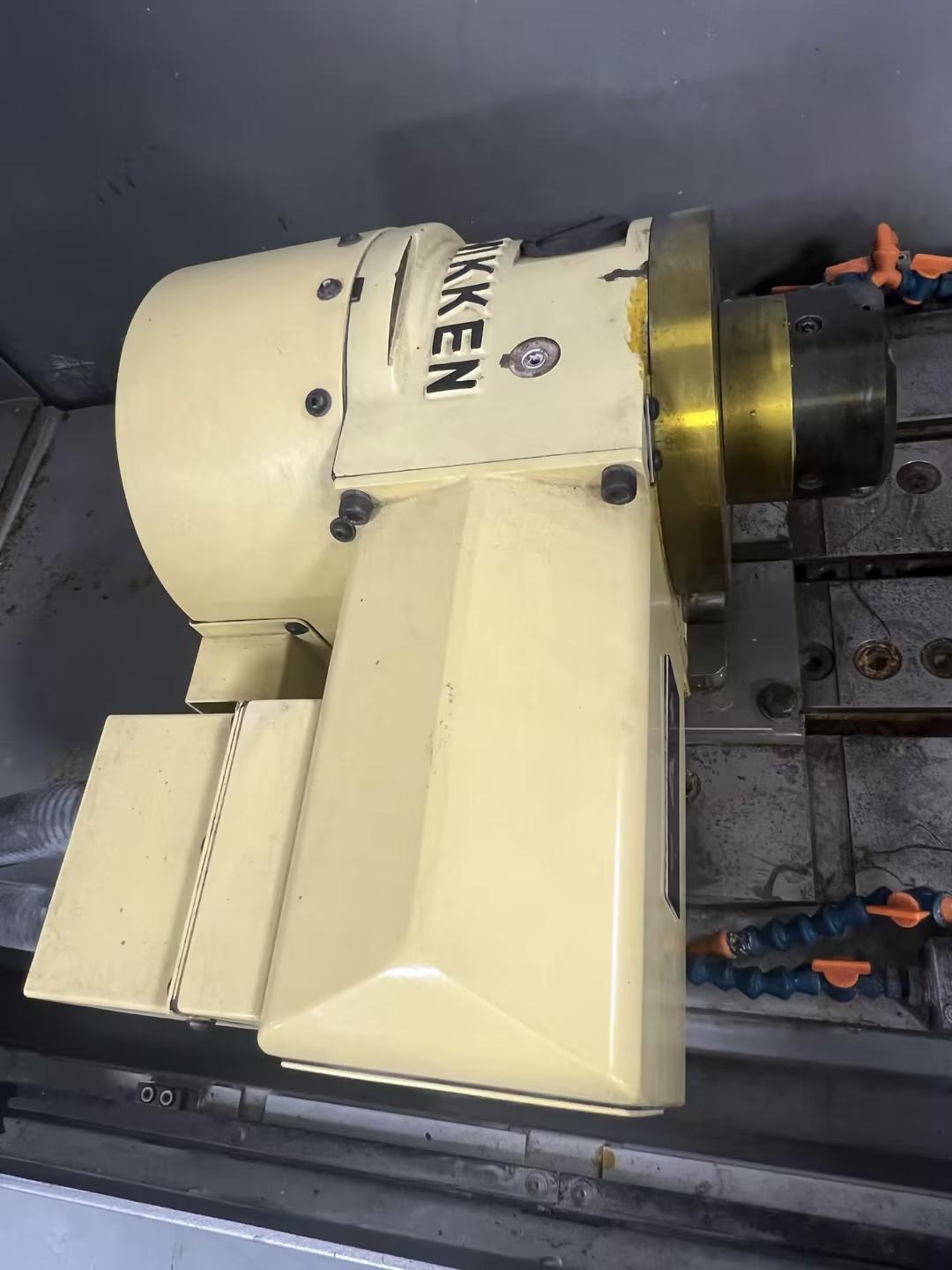

A-axis: 360 degree

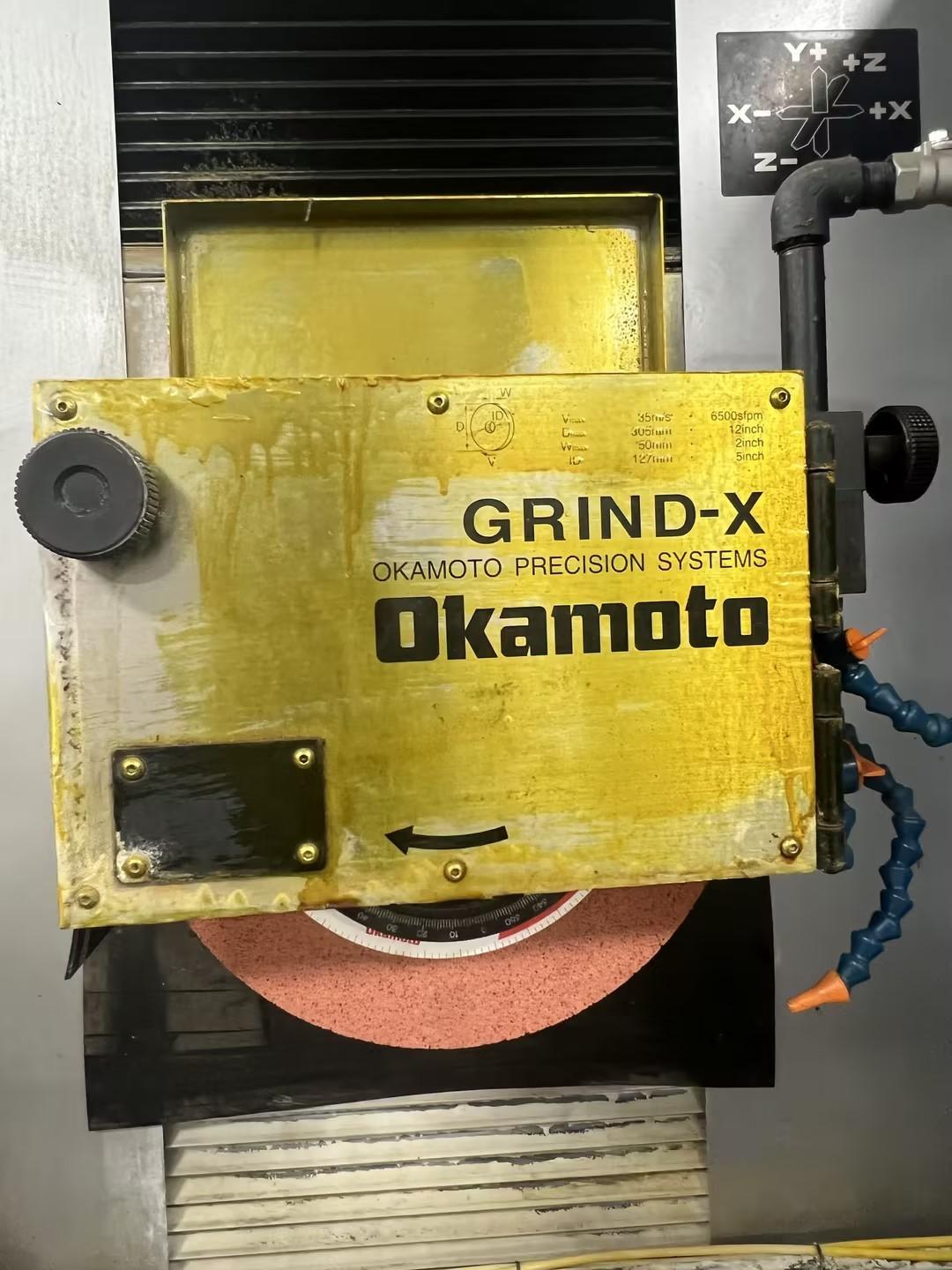

Grinding wheel diameter * width * Internal diameter : φ305 * 50 * φ127

Lead rail mode : linear guideway

Worktable : 1400*300mm

Worktable load : 700KG

Spindle drive mode : Electric spindle

Grinding wheel speed : 2500rpm

Spindle feed rate : 20000mm/min

Magnetic seperation chip conveyor

Dimensions : 4700*3275*2166mm

Feed value : 0.0001 mm
