ICHIKAWA RCB-402 Grinding machines

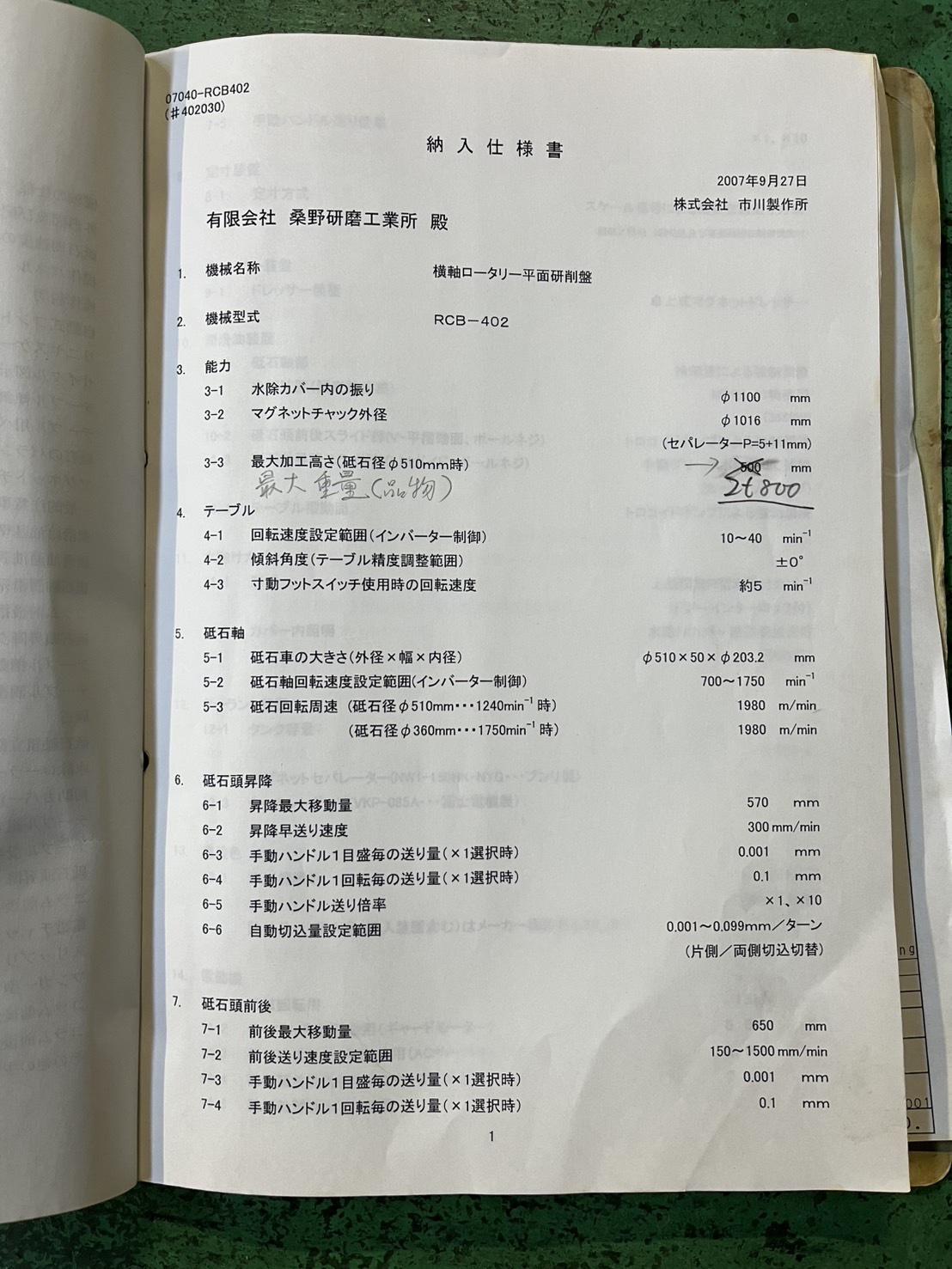

Swing in the sink: p1100mm

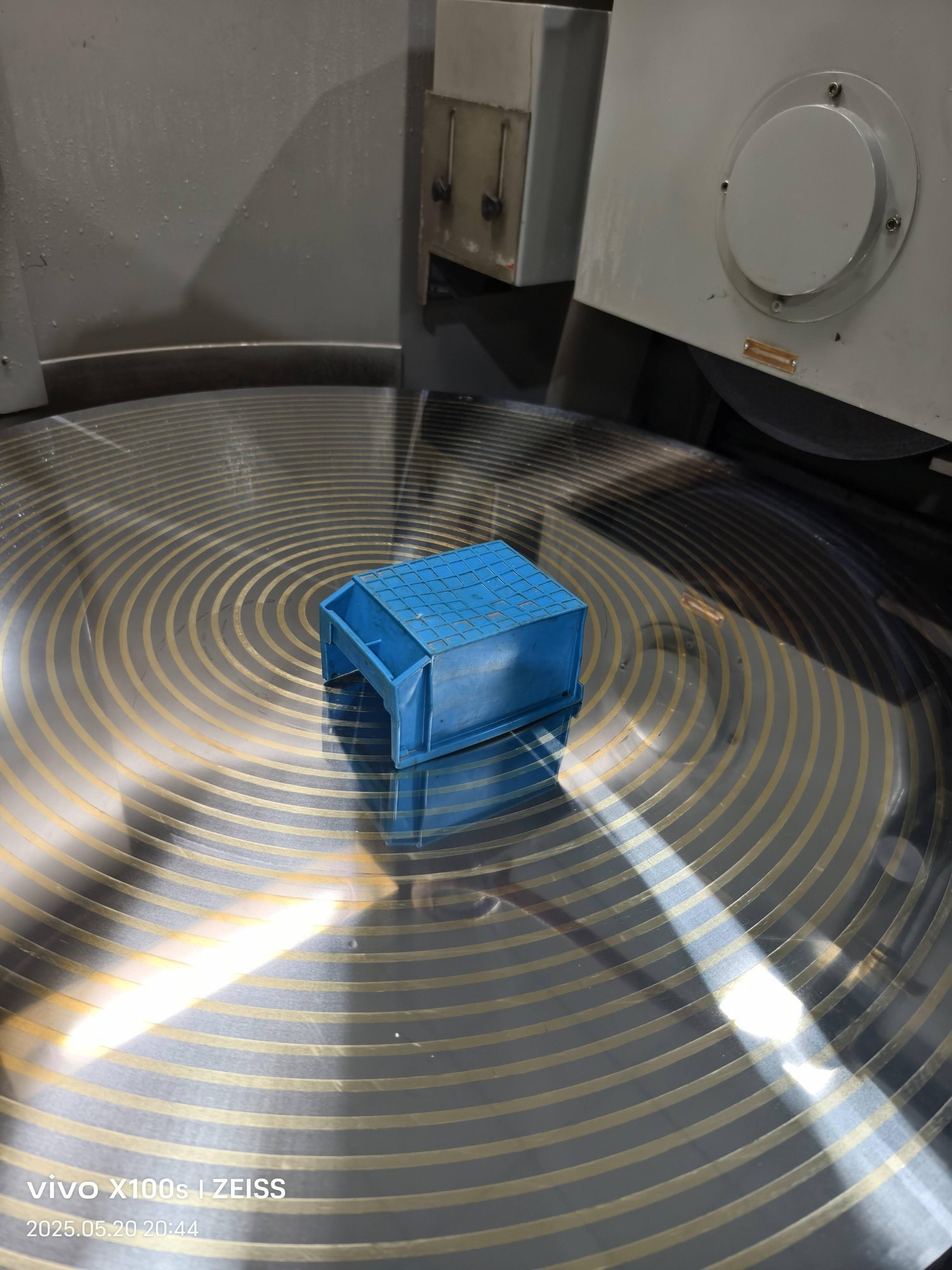

external diameter of the electromagnetic chuck :φ 1016mm (Salem P=5+11mm)

Maximum machining  height (grinding wheel diameter) : p510mm

speed setting range (controlled by frequency converter):10 to 40min ⁻ ¹

Tilt Angle (WorkWorktable precision adjustment range): approximately ±0°

The speed when using the point switch: approximately 5 minutes -1

grinding wheel Footage (external diameter x width x Internal diameter):φ510x50xφ203.2mm

The rotational speed setting range of the grinding wheel shaft (controlled by the frequency converter):700 to 1750 min-1

Maximum travel for lifting :570 mm

Rapid feed rate for lifting :300 mm/min

The feed rate of the manual Tool holder for 1 position (when x1 is selected): 0.001mm

The feed rate for 1 turn of the manual Tool holder (when x1 is selected):0.1mm

Manual Tool holder feed ratios x1 and x10
