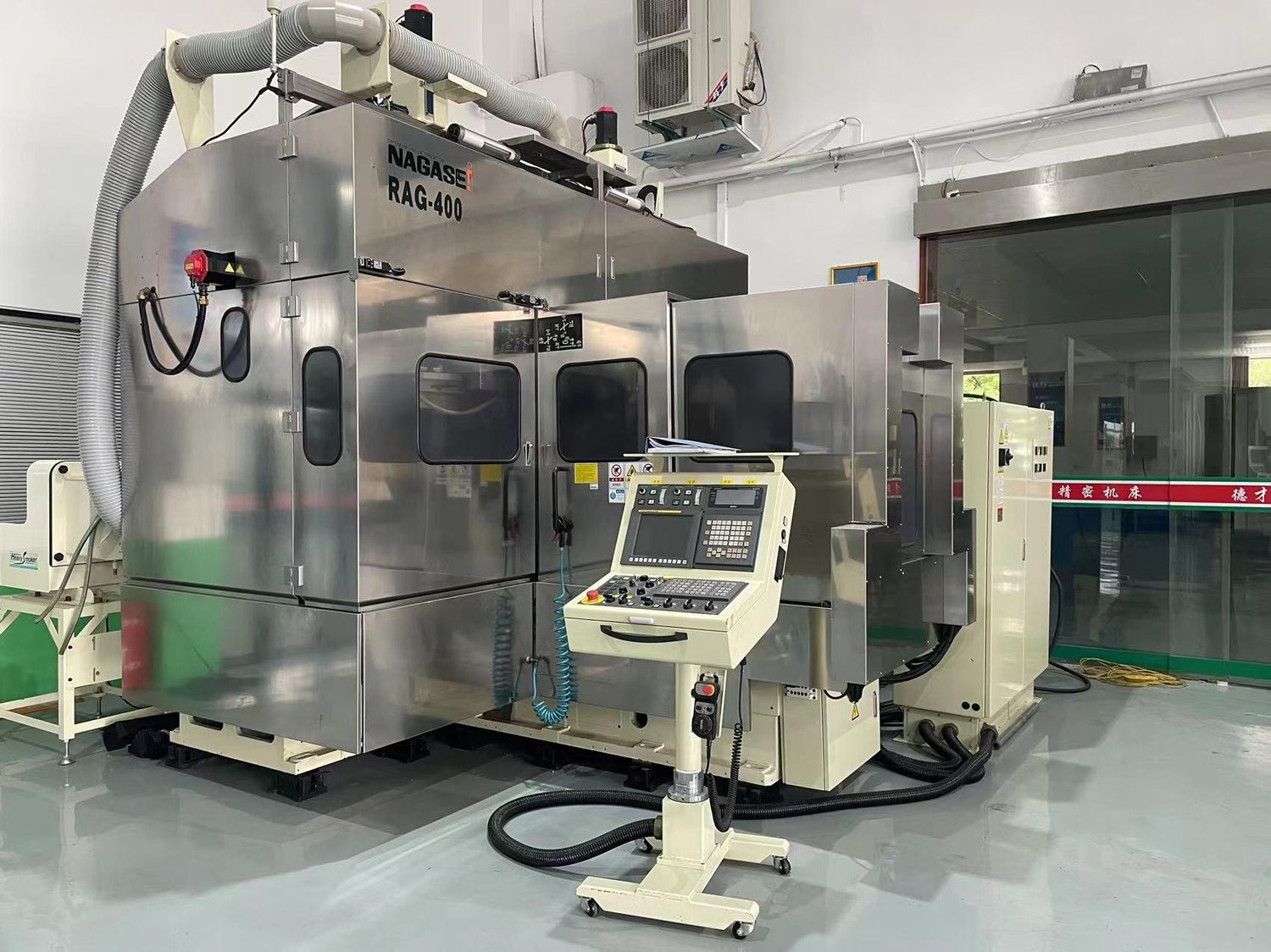

Nagase RAG-400 Grinding machines

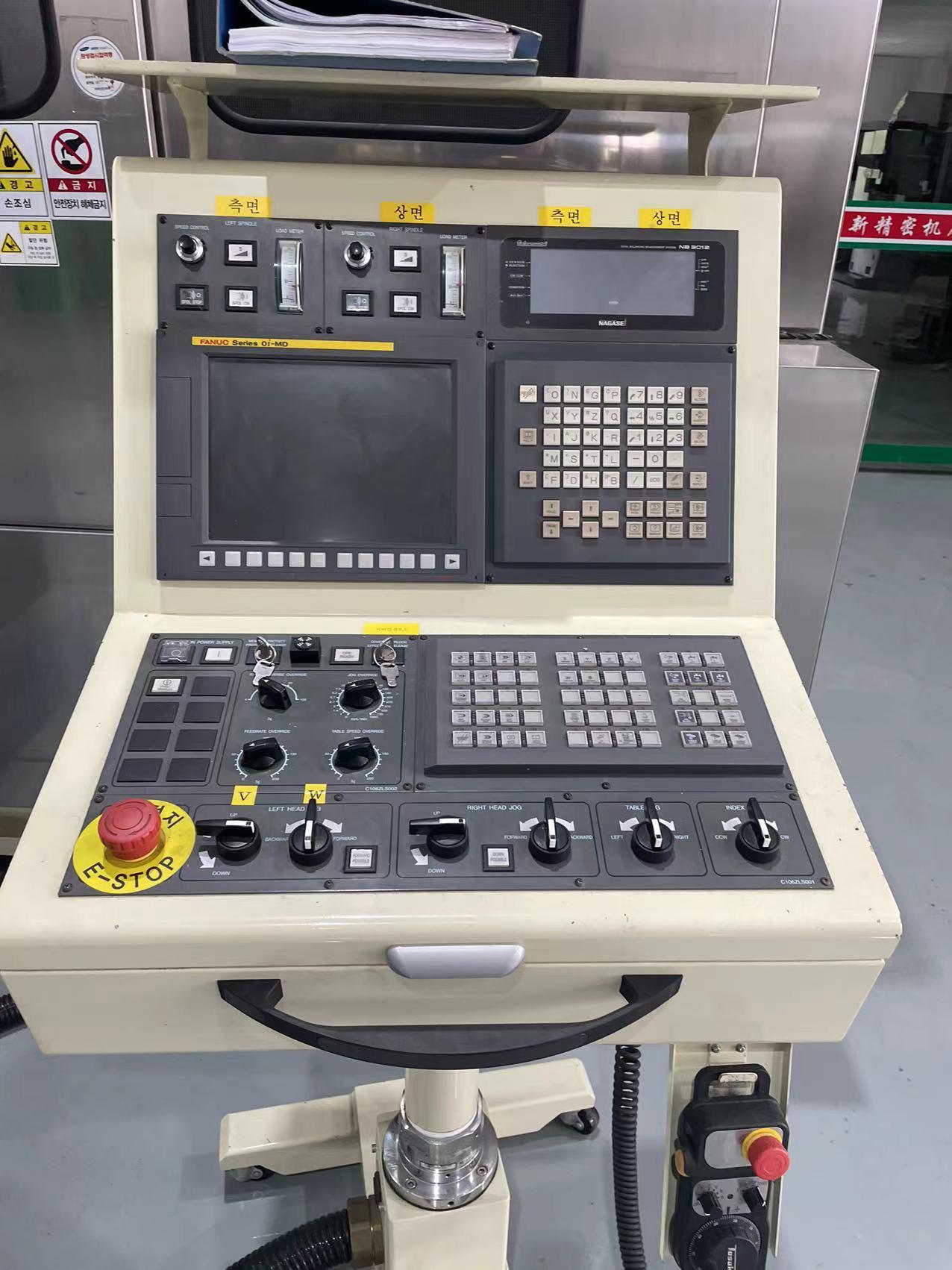

CNC System :FANUC series oi-md

X*Y*Z axis travel: 945*330*695mm

W axis travel :570 degree

V-axis :345

Spindle speed :2000rpm

Spindle drive mode: mechanical direct connection

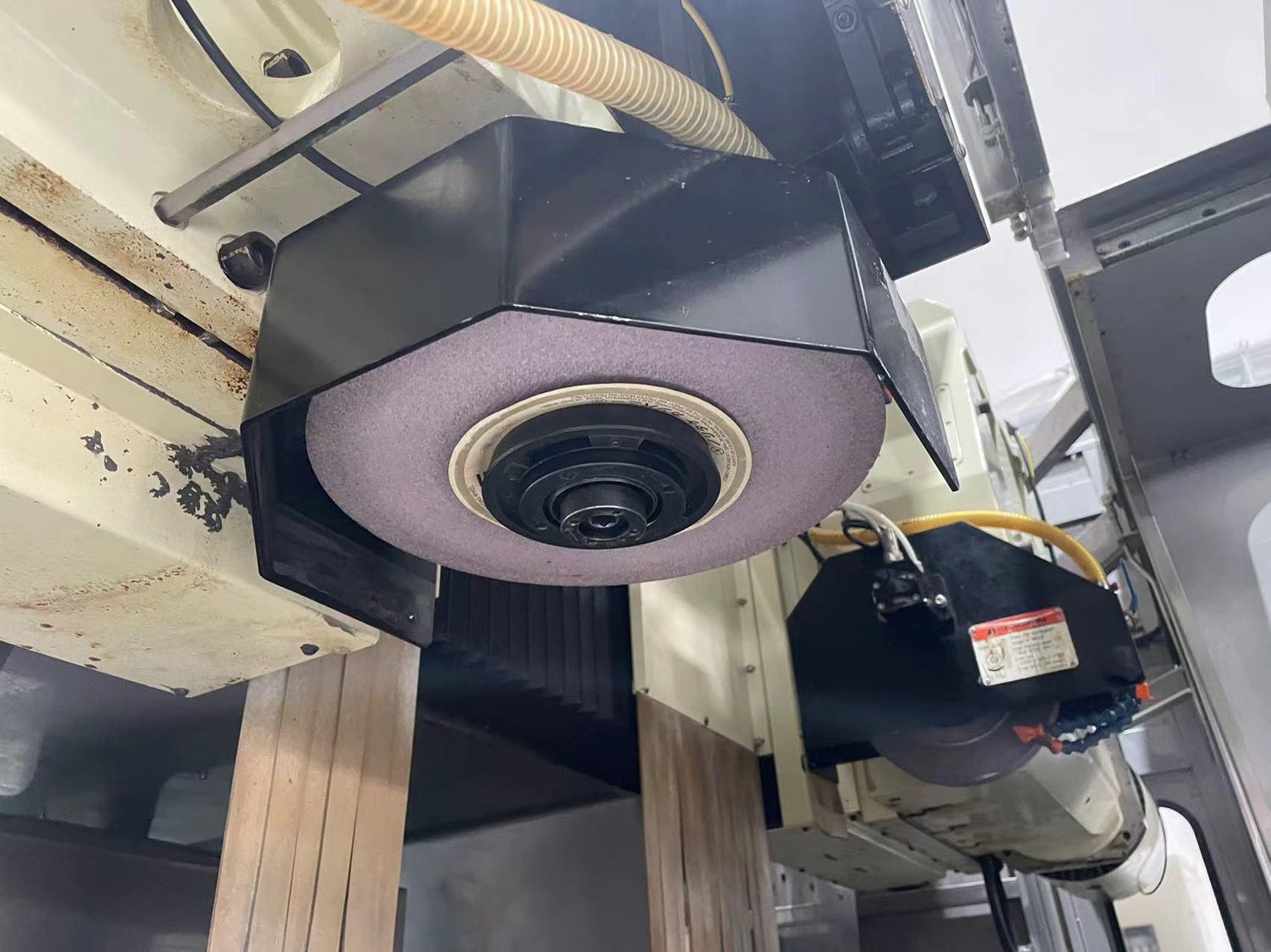

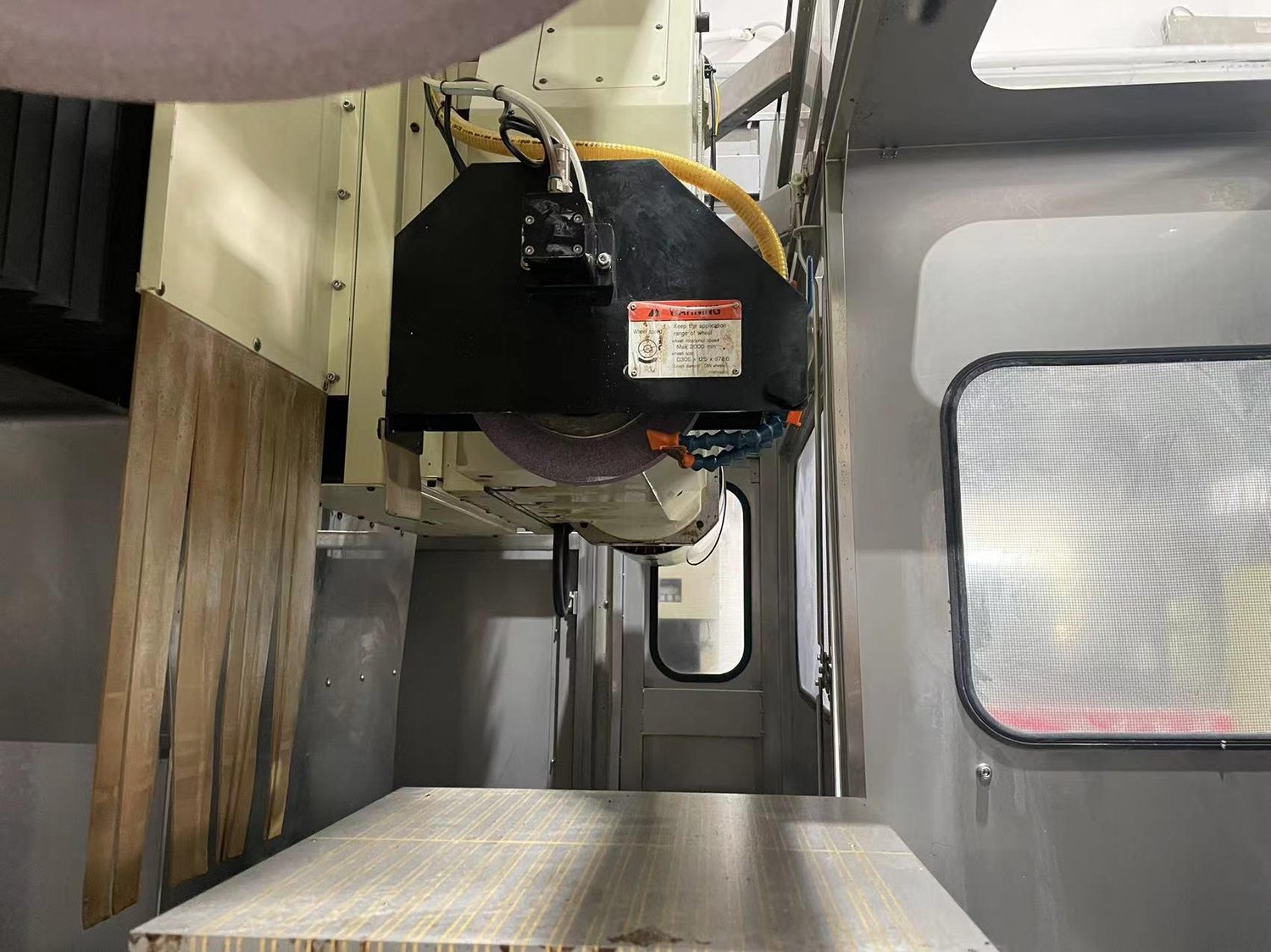

Grinding wheel diameter * width * internal diameter: φ250-305*25*φ76.2mm

Grinding travel: 350*350mm

Minimum feed: 0.0001mm

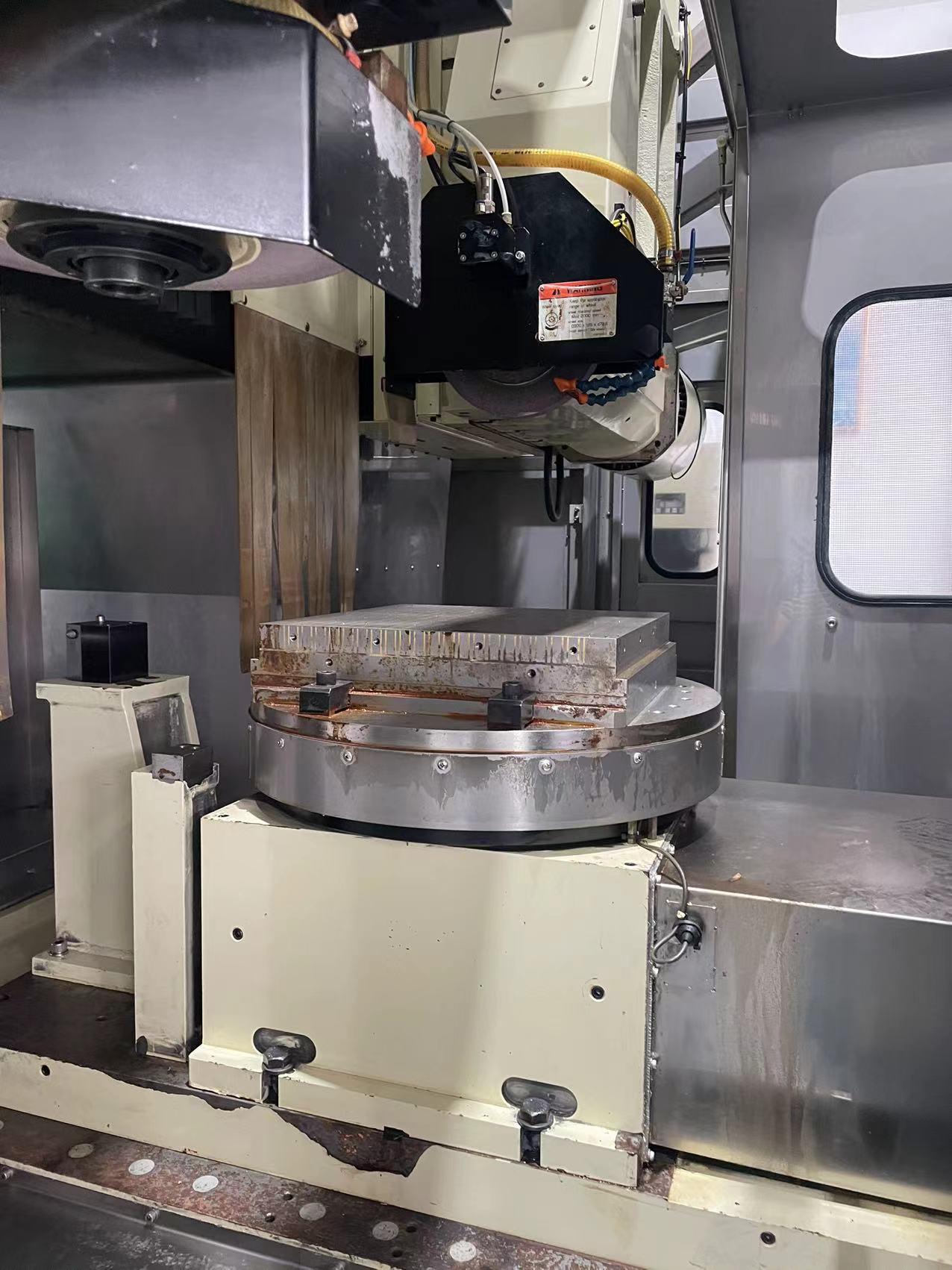

Worktable size: 400*400mm

Lead rail: linear guideway

Drive mode per shaft: screw

Chip removal method: magnetic separation

Dimensions: 5000*6000*3200mm
