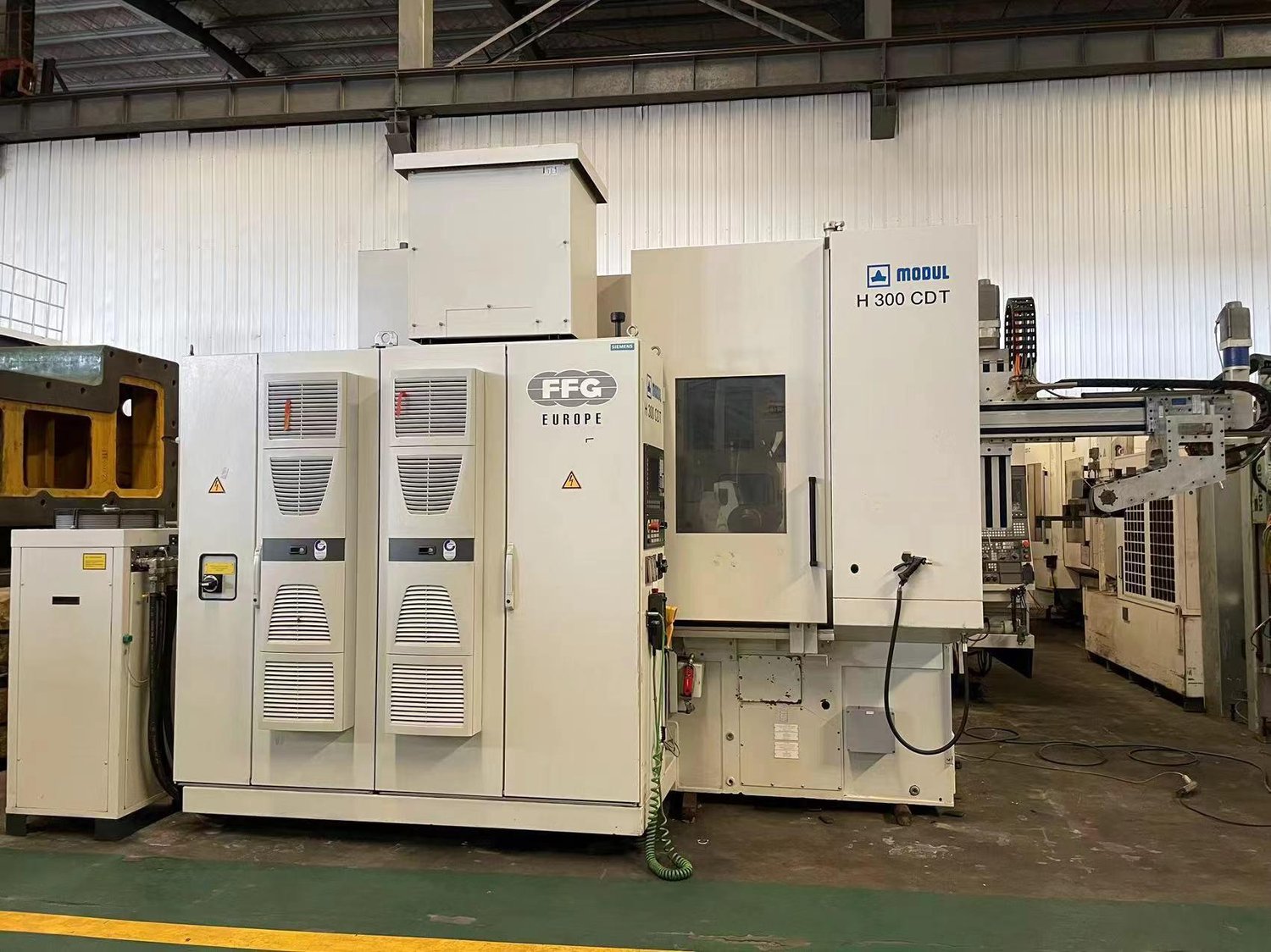

FFG Werke GmbH H 300 CDT Hobbing machine

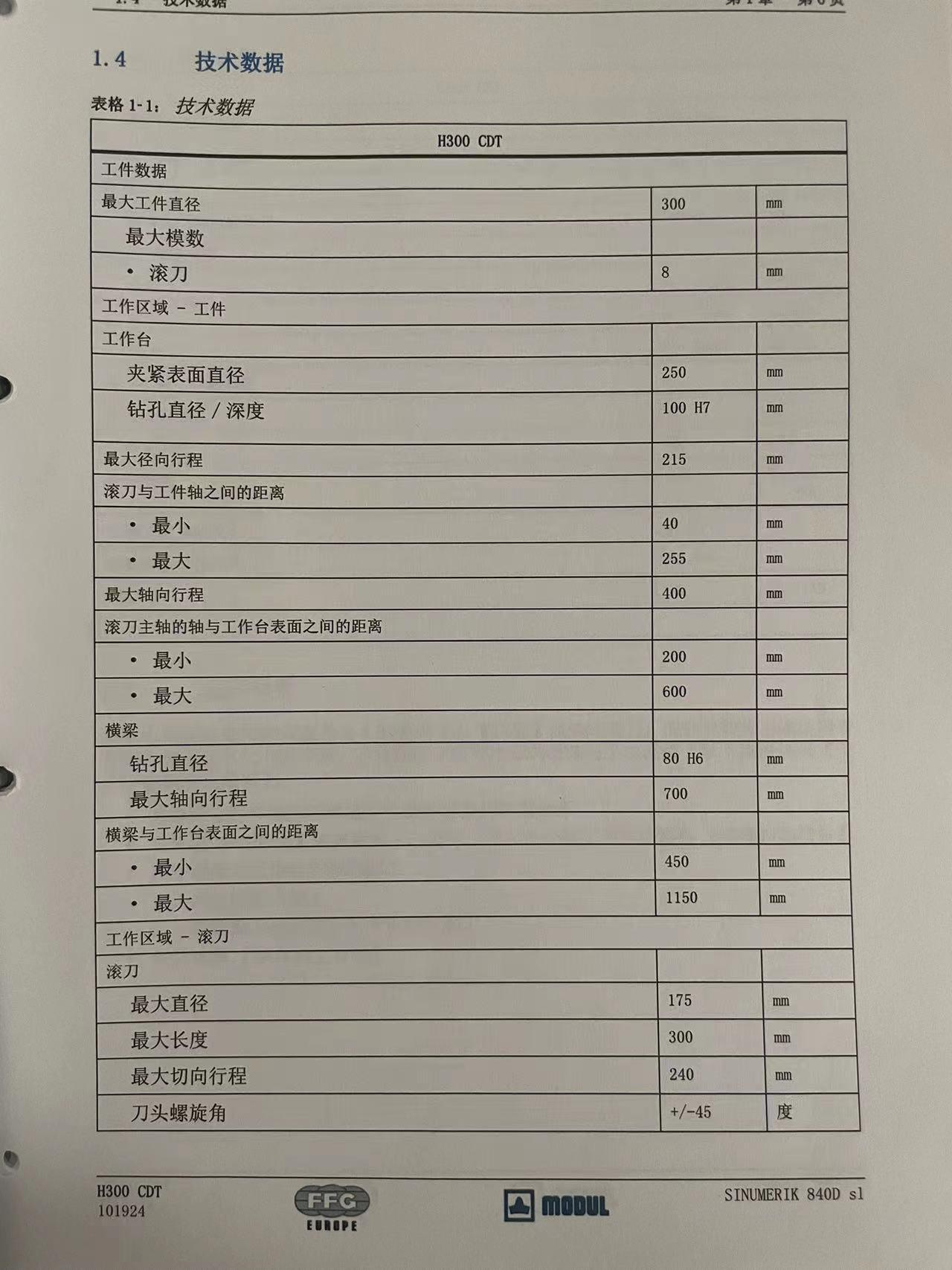

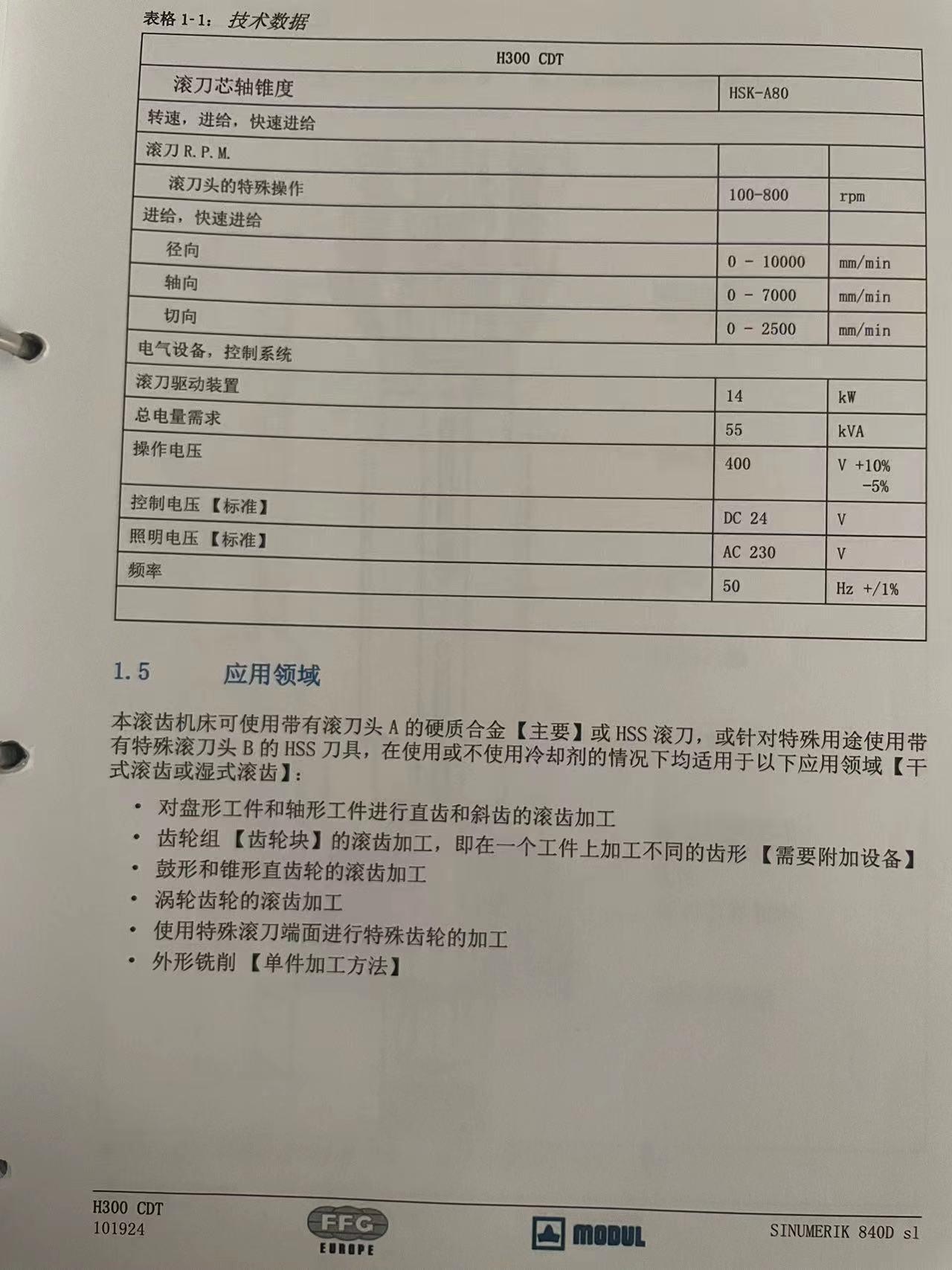

[Product Information]:

Maximum workpiece diameter: 300mm

Maximum radial travel: 215mm

Distance between hob and workpiece travel: 40-255mm

Maximum axial travel: 400mm

Distance between the hob spindle and the surface of worktable: 200-600mm

Maximum axial travel: 700mm

Worktable diameter: 250mm

Maximum hob diameter: 175mm

Maximum hob length : 300mm

Maximum hob cutting travel: 240mm

Hob speed：100-800rpm

Radial feed rate: 0-10000mm/min

Axial feed rate: 0-7000mm/min

Cutting feed rate: 0-2500mm/min

Hob power：14kw

Hob torque：550kN

Dimensions: 4000*2420*2750mm
