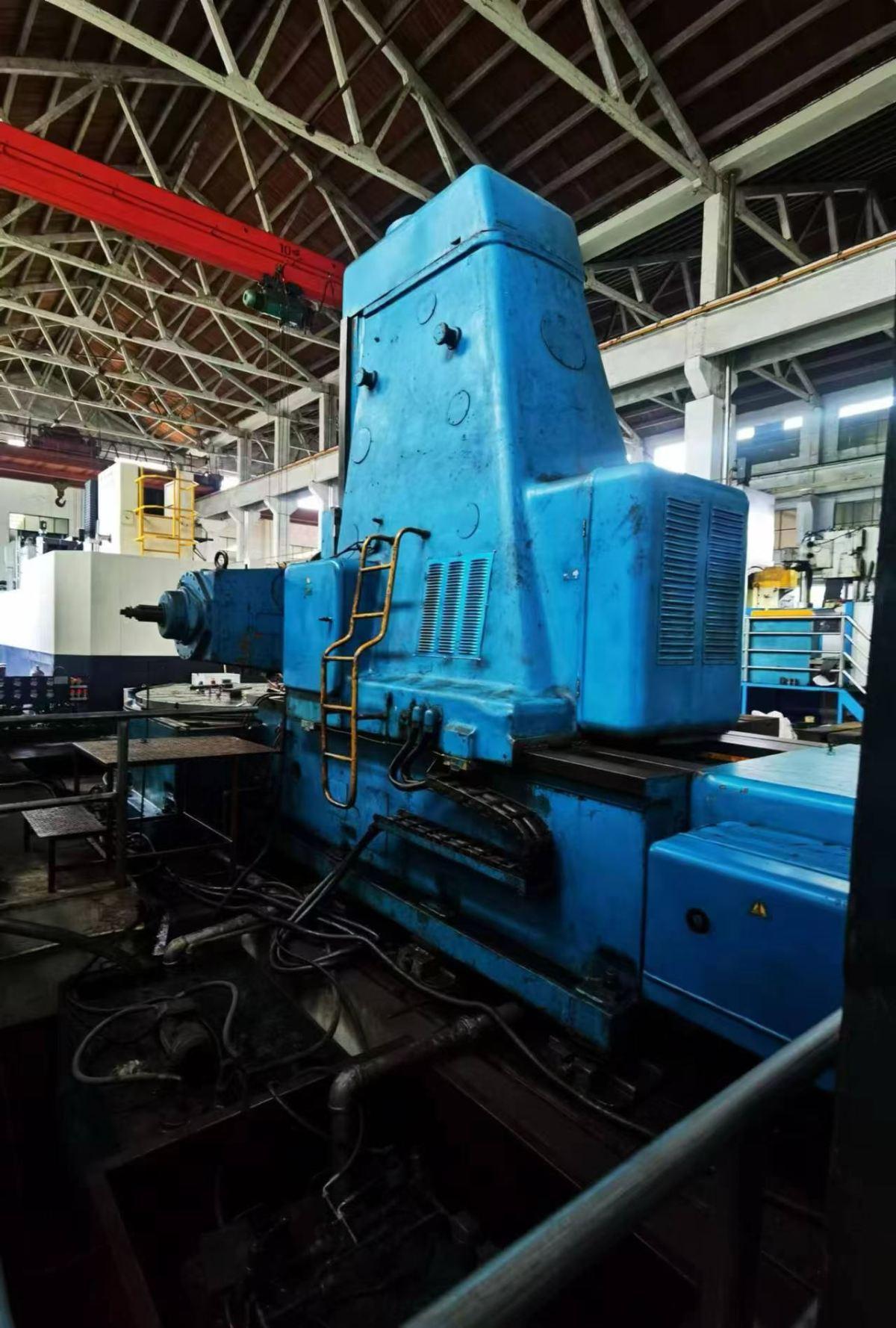

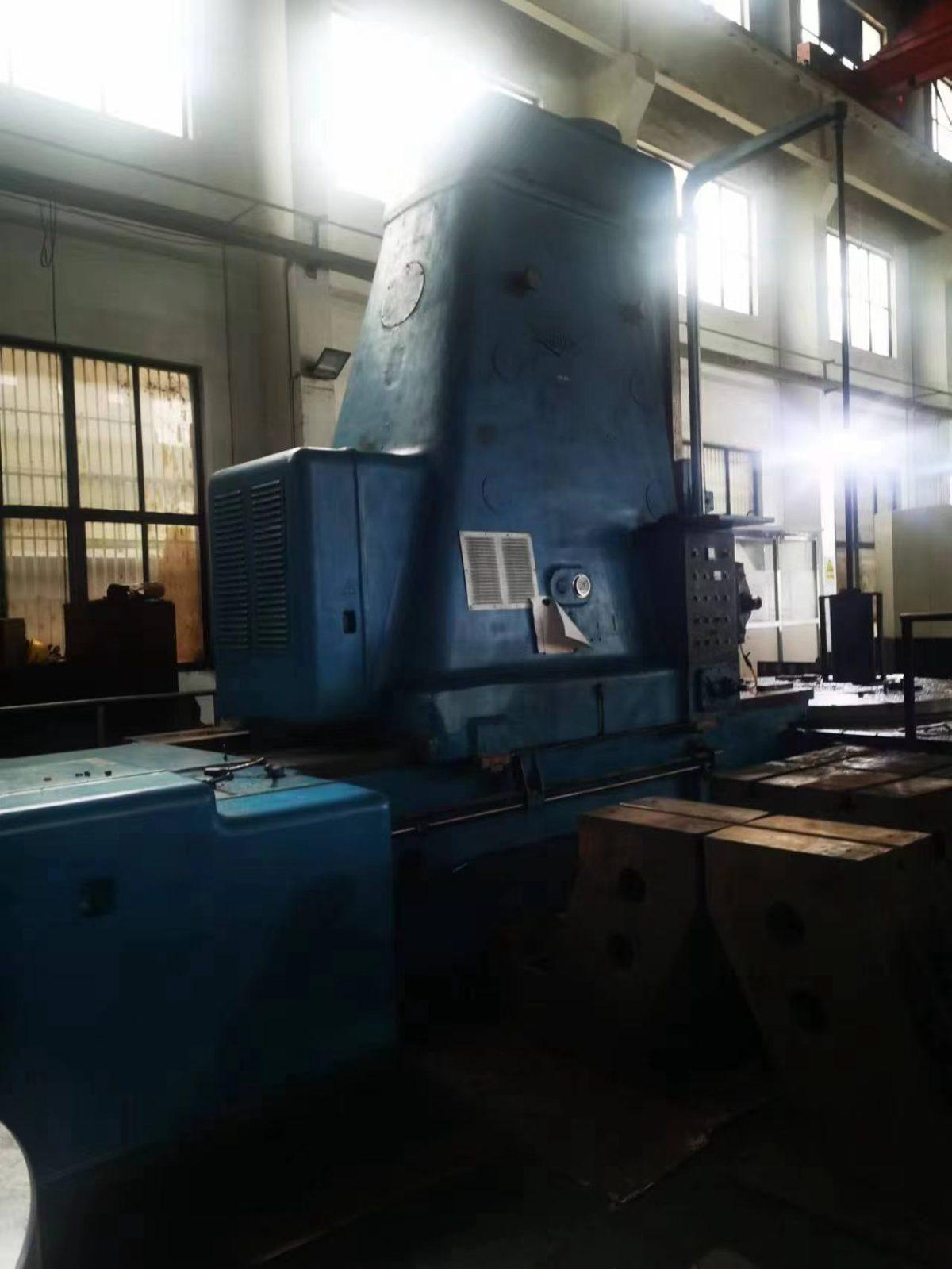

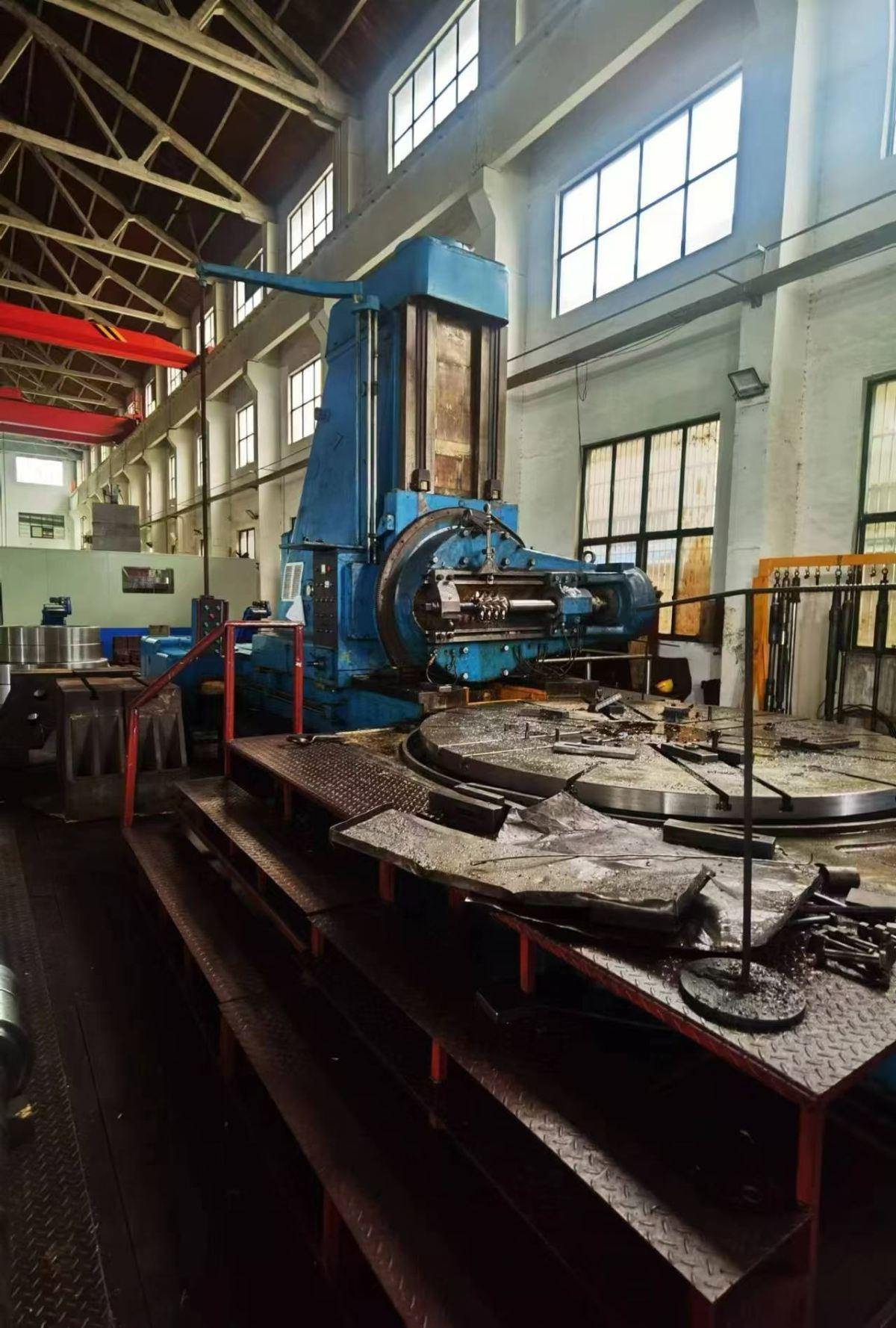

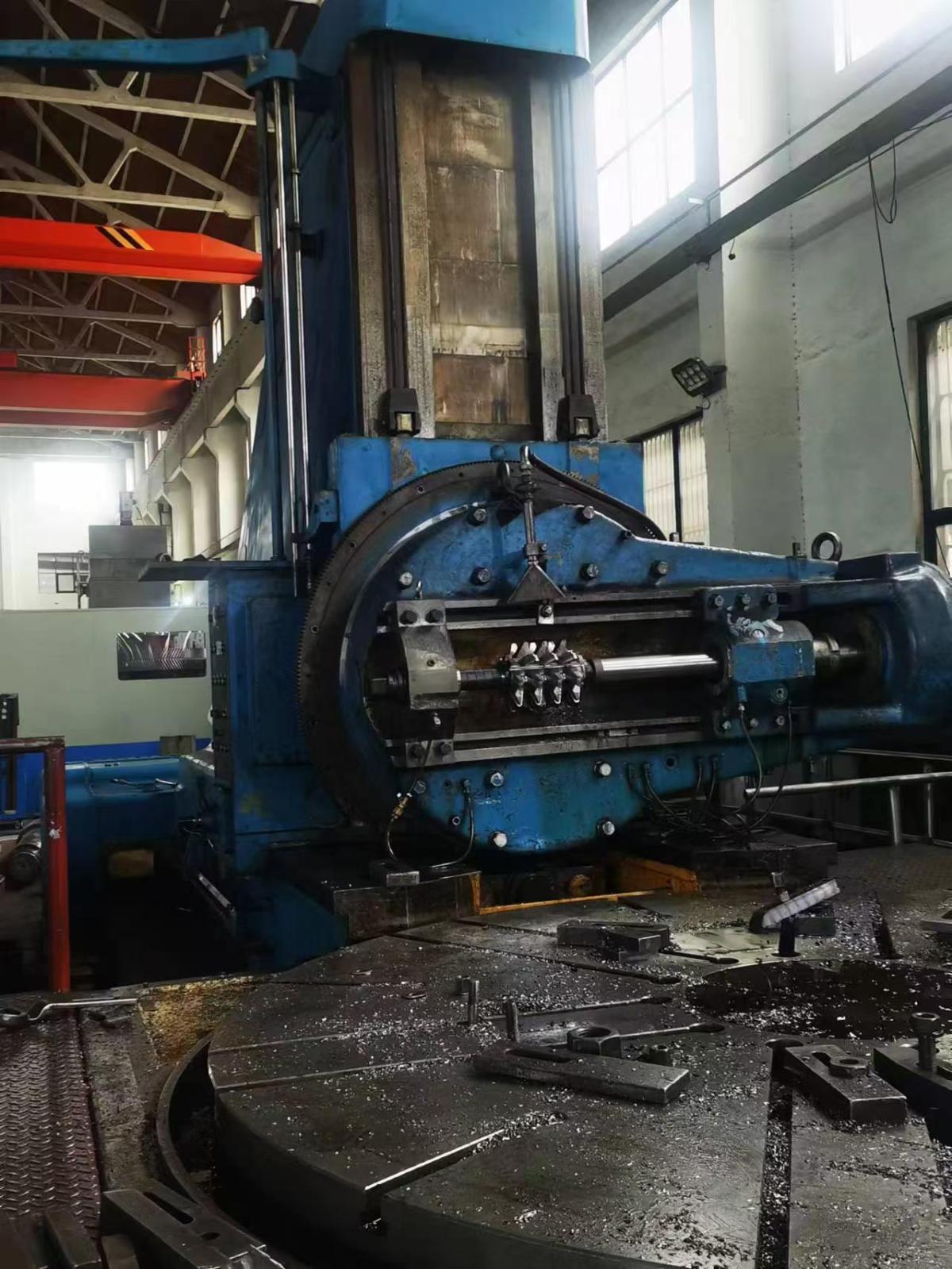

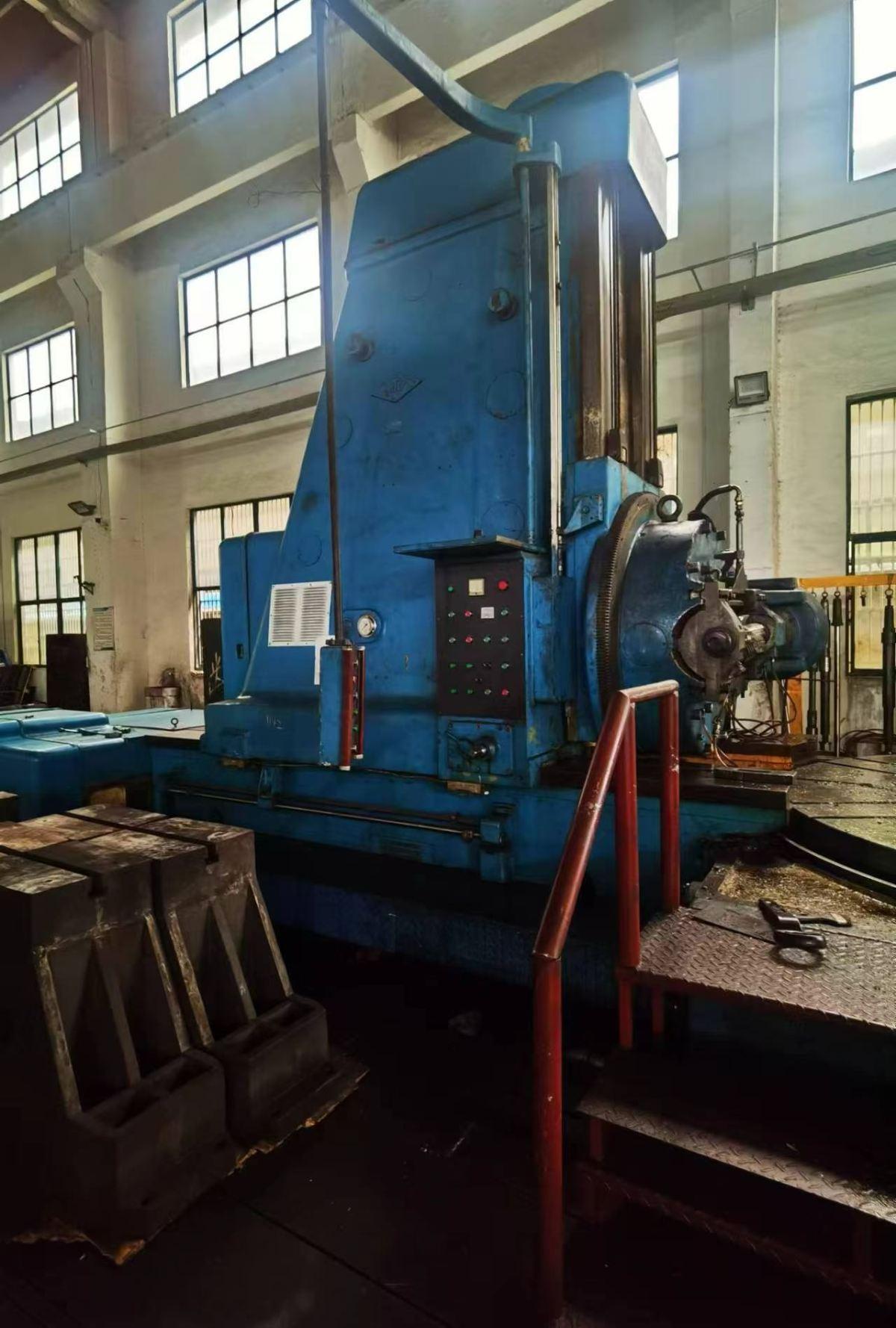

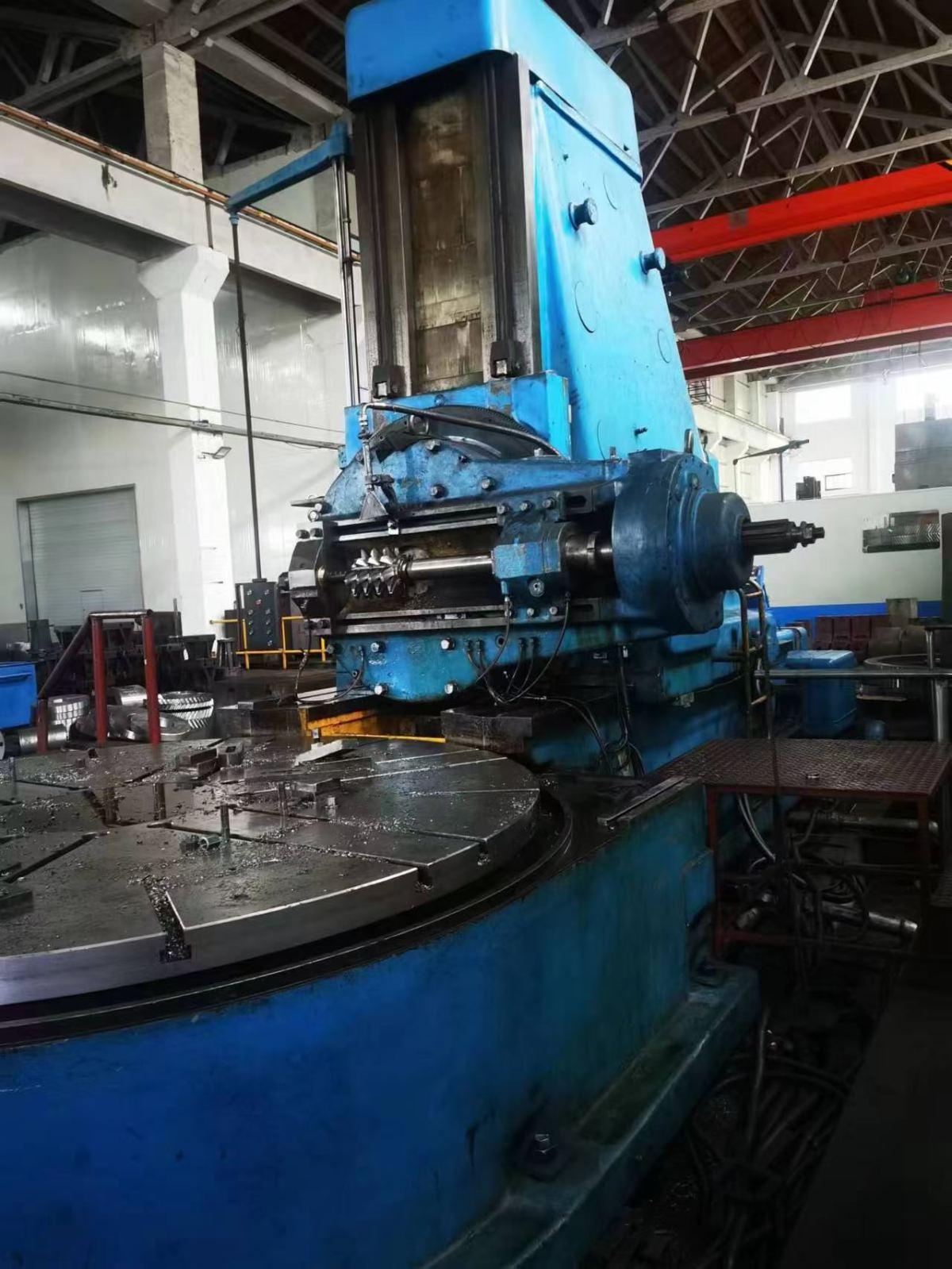

3TC 5343П Hobbing machine
[Product Information]:
- Inventory number：67737
- Brand：3TC
- Model：5343П
- Origin：Russia
- Location：China
- Year：1987
- Create Time：2026-05-09
Specifications:
Standard machining diameter: 3200 mm
Extended machining diameter: 4000mm
machining module: 32mm
machining height: 2100 mm
Maximum length of the gear Tool: 425mm
The maximum diameter of the gear Tool is 360 mm
The range of machining teeth: 20 to 1800 teeth
Maximum helix Angle: ±45°

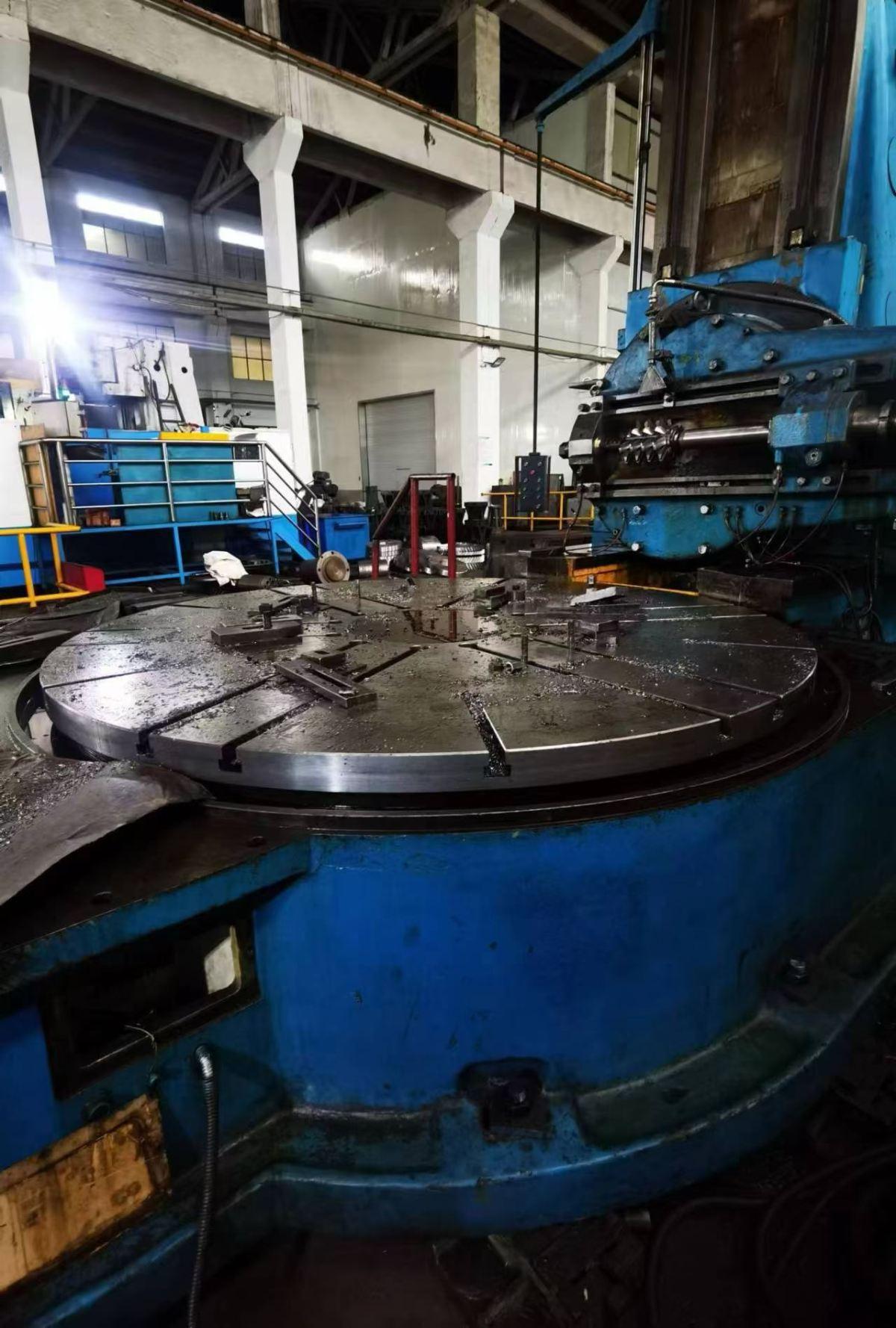

Worktable diameter: 2800 mm
Worktable load: 20 TONS
Main motor power: 55 to 75 kW
