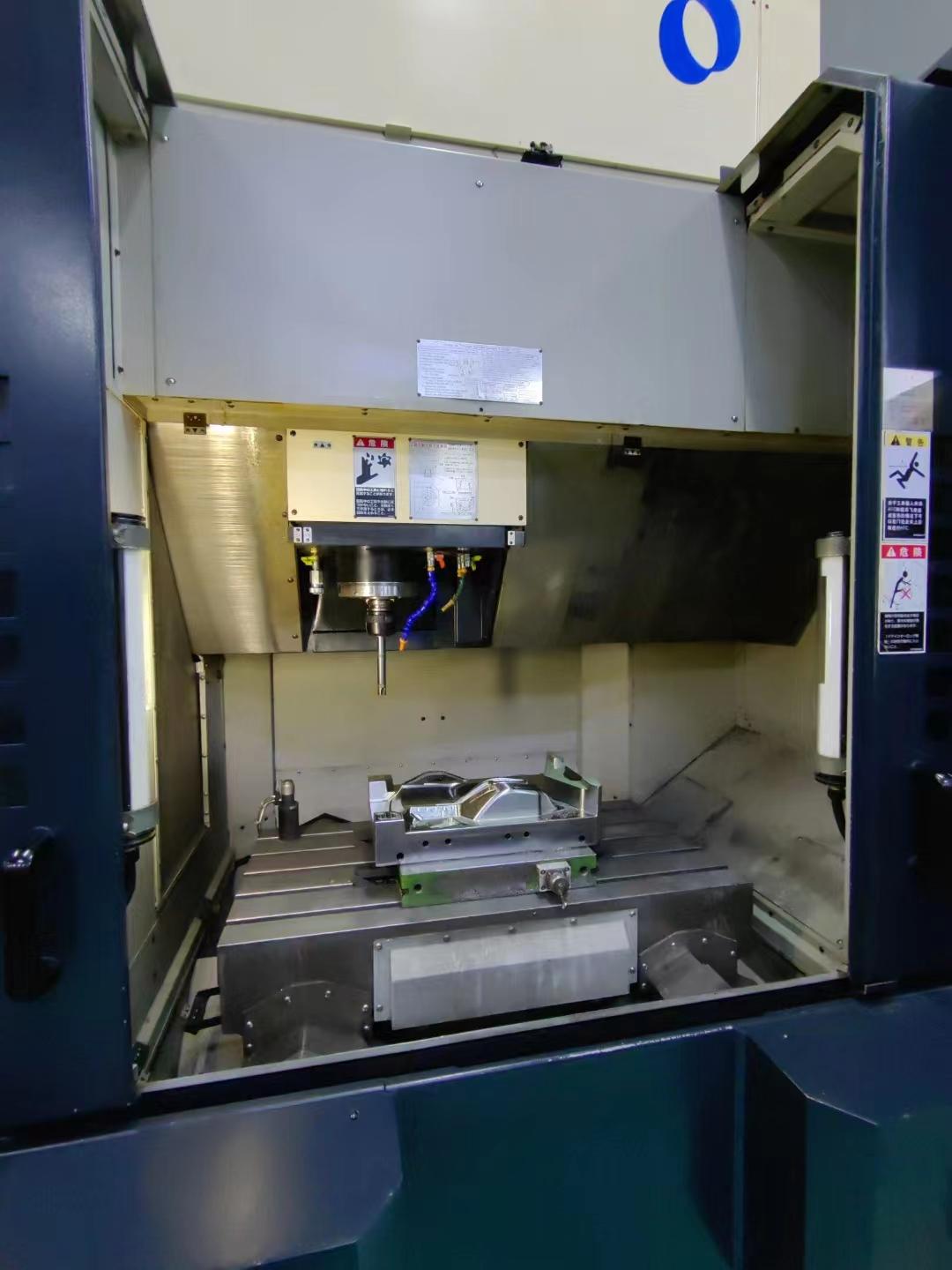

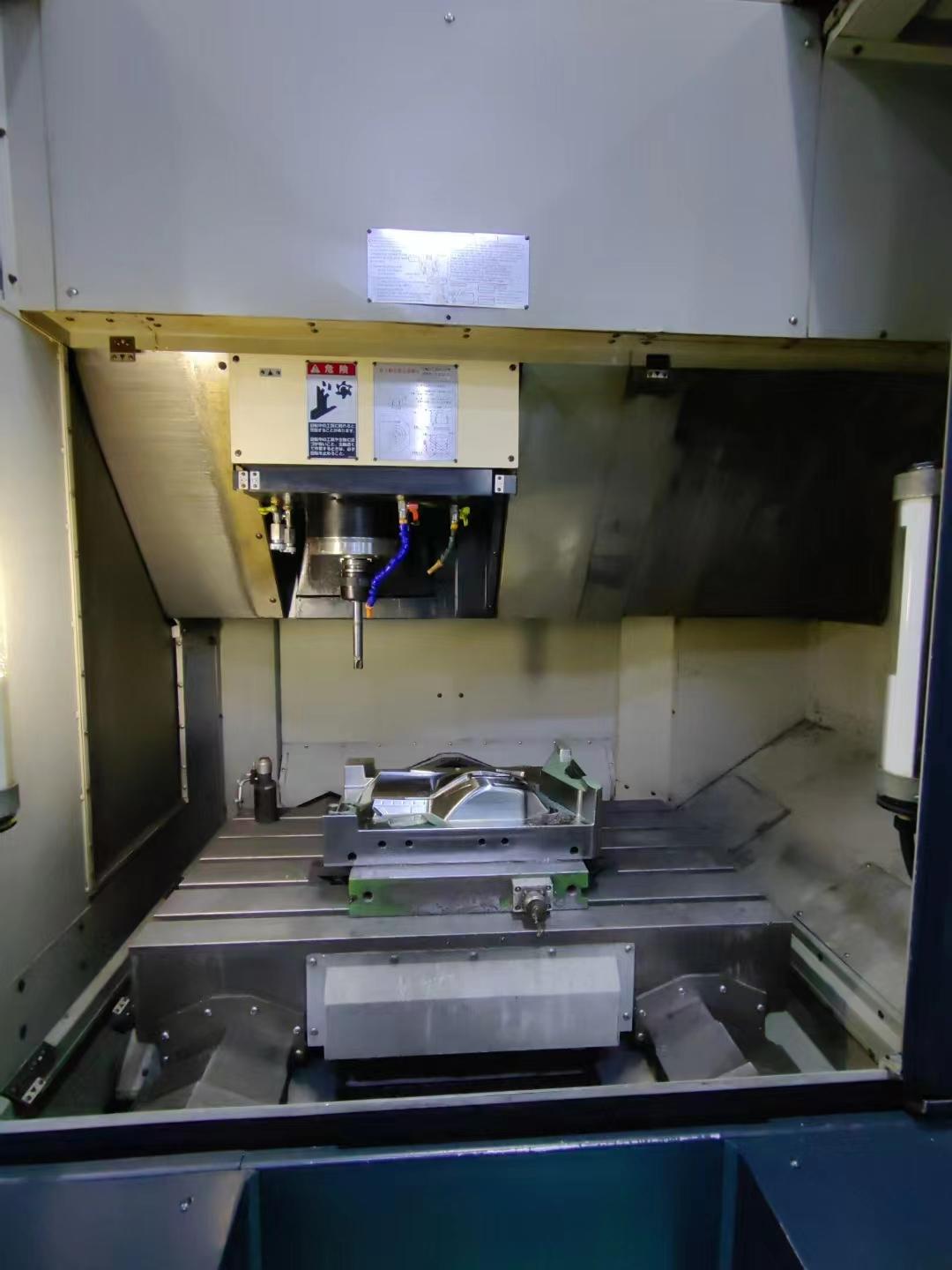

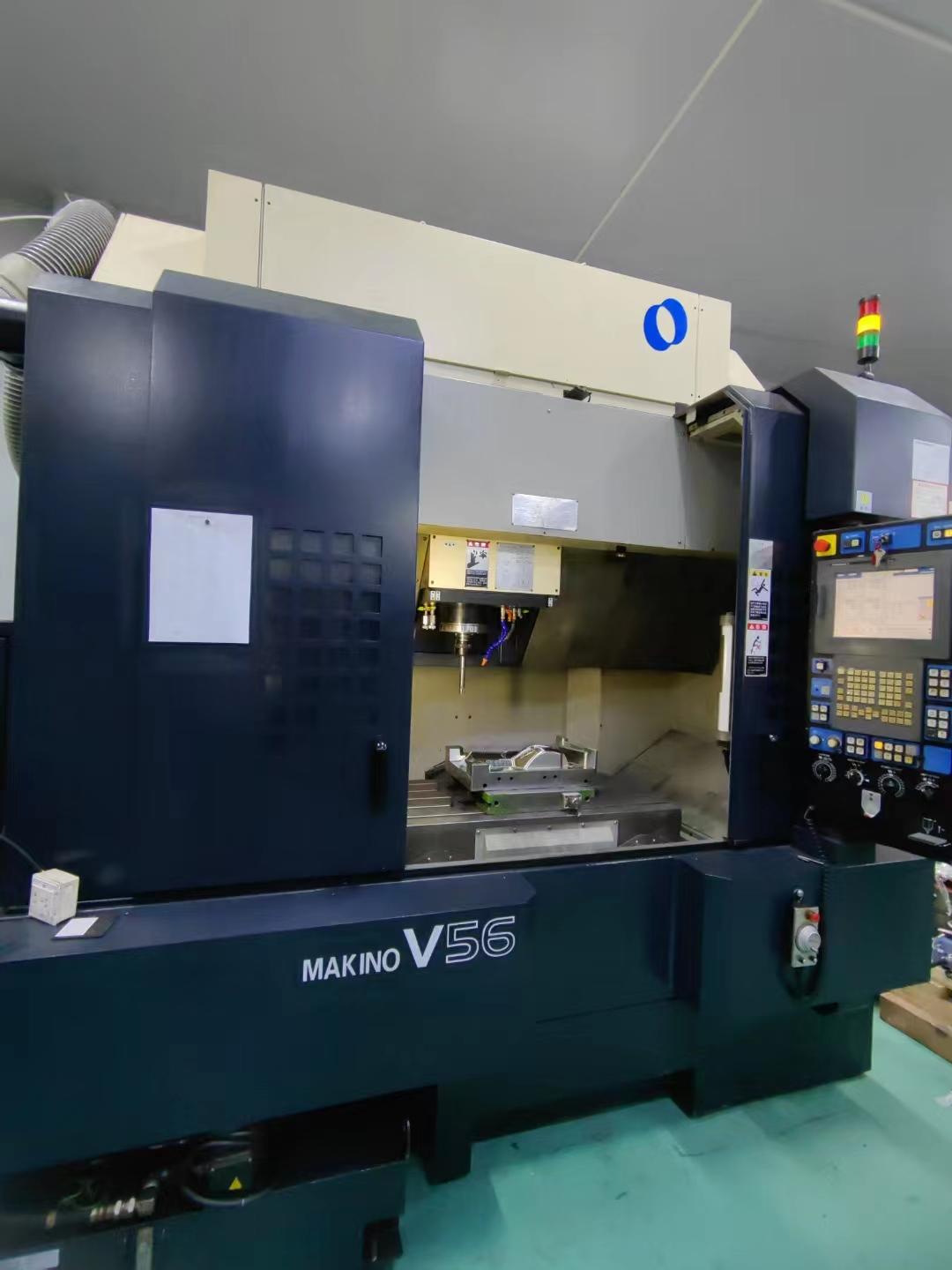

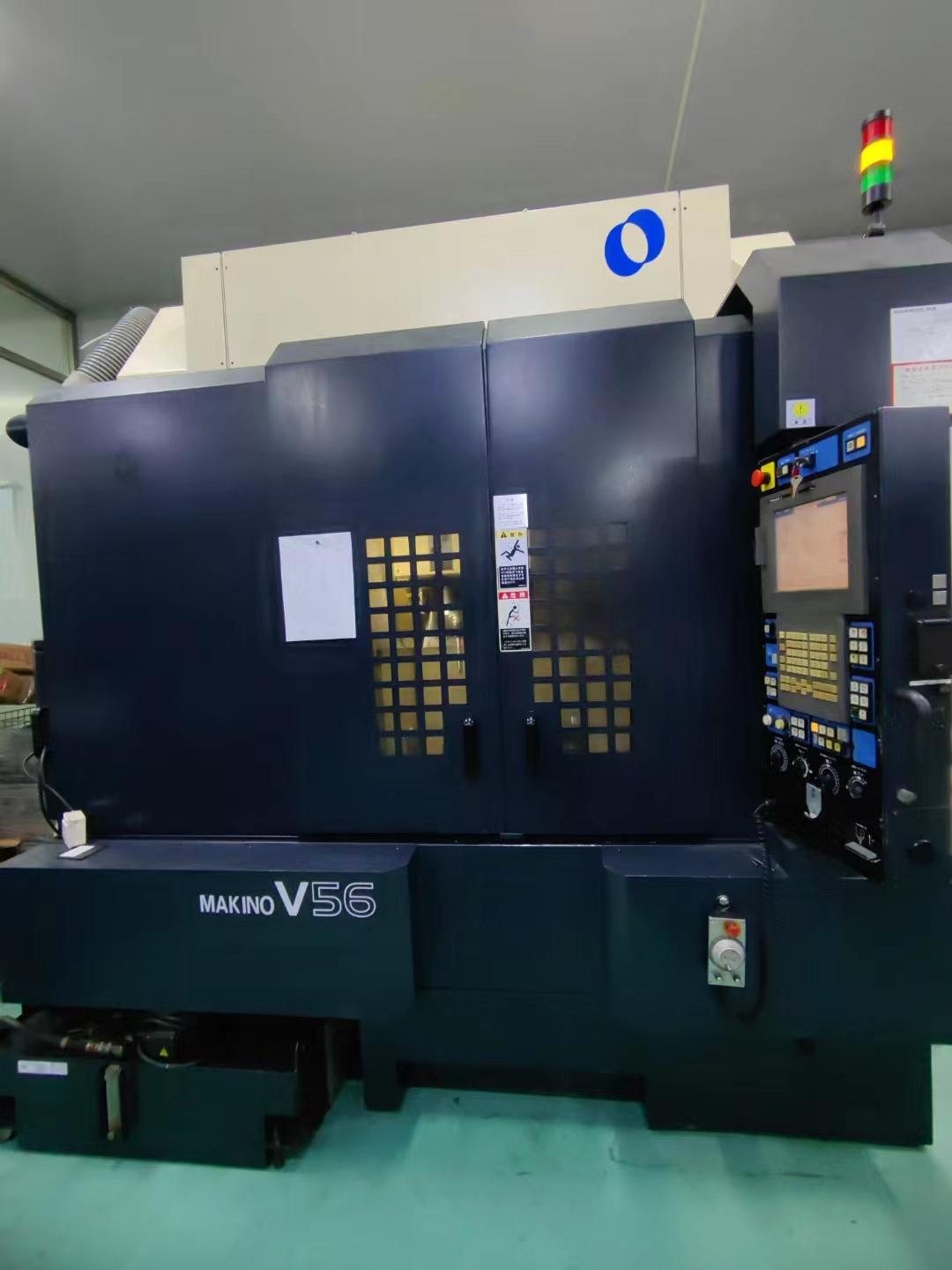

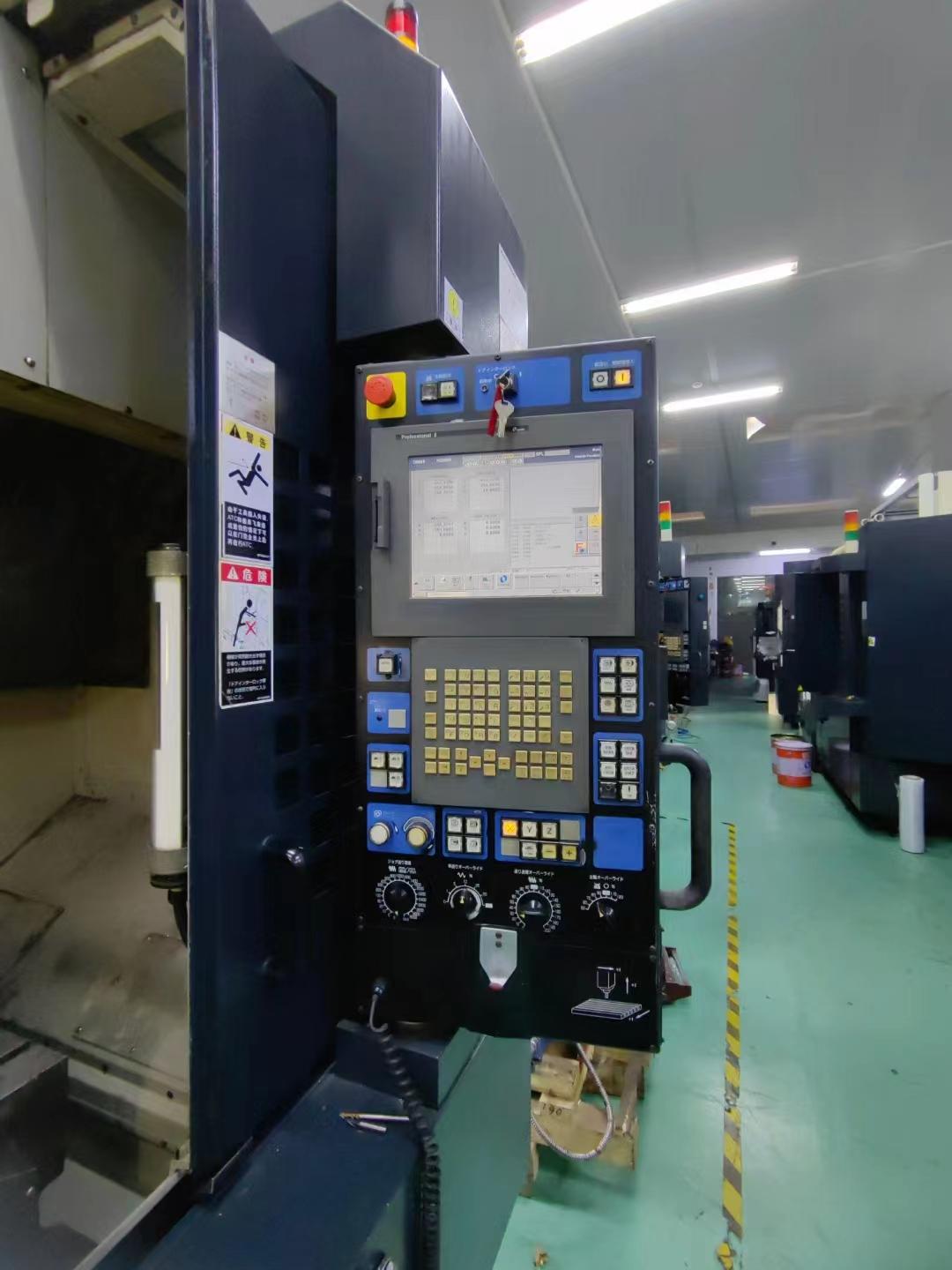

Makino V56 Vertical Machining centre

Worktable size: 1050* 550mm

Worktable height: 850mm

Tool magazine: 15

X*Y*Z axis travel: 900*550*450 mm

Spindle drive motor: 18.5/15kW

Spindle bearing internal diameter: 80 mm

Spindle speed range: 50-20000rpm/min

Spindle taper: 7/24taper No.40

Maximum workpiece size: 1050*720*450 mm

Maximum load weight: 800kg

Machining feed rate: 1-20000 mm/min
