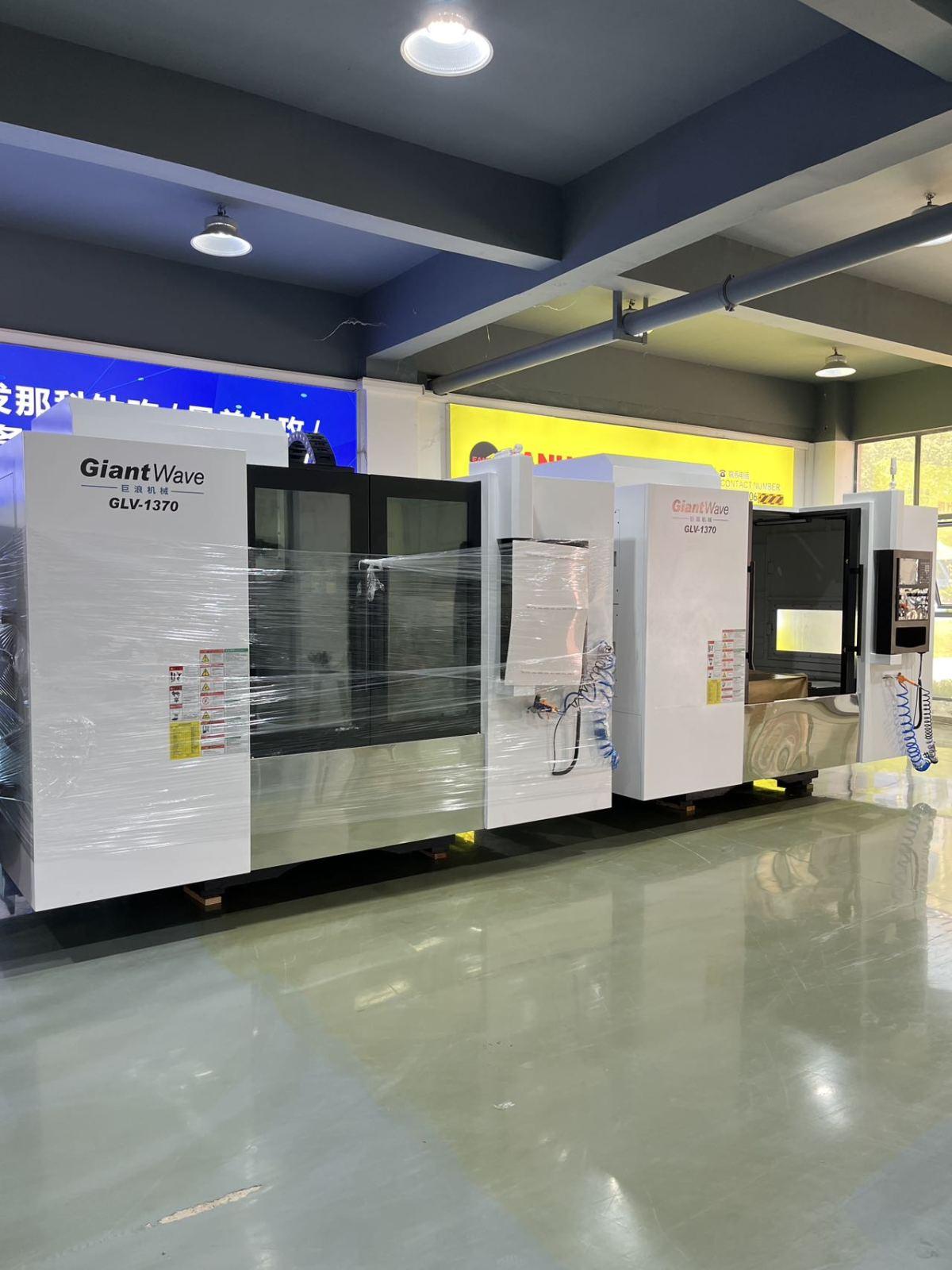

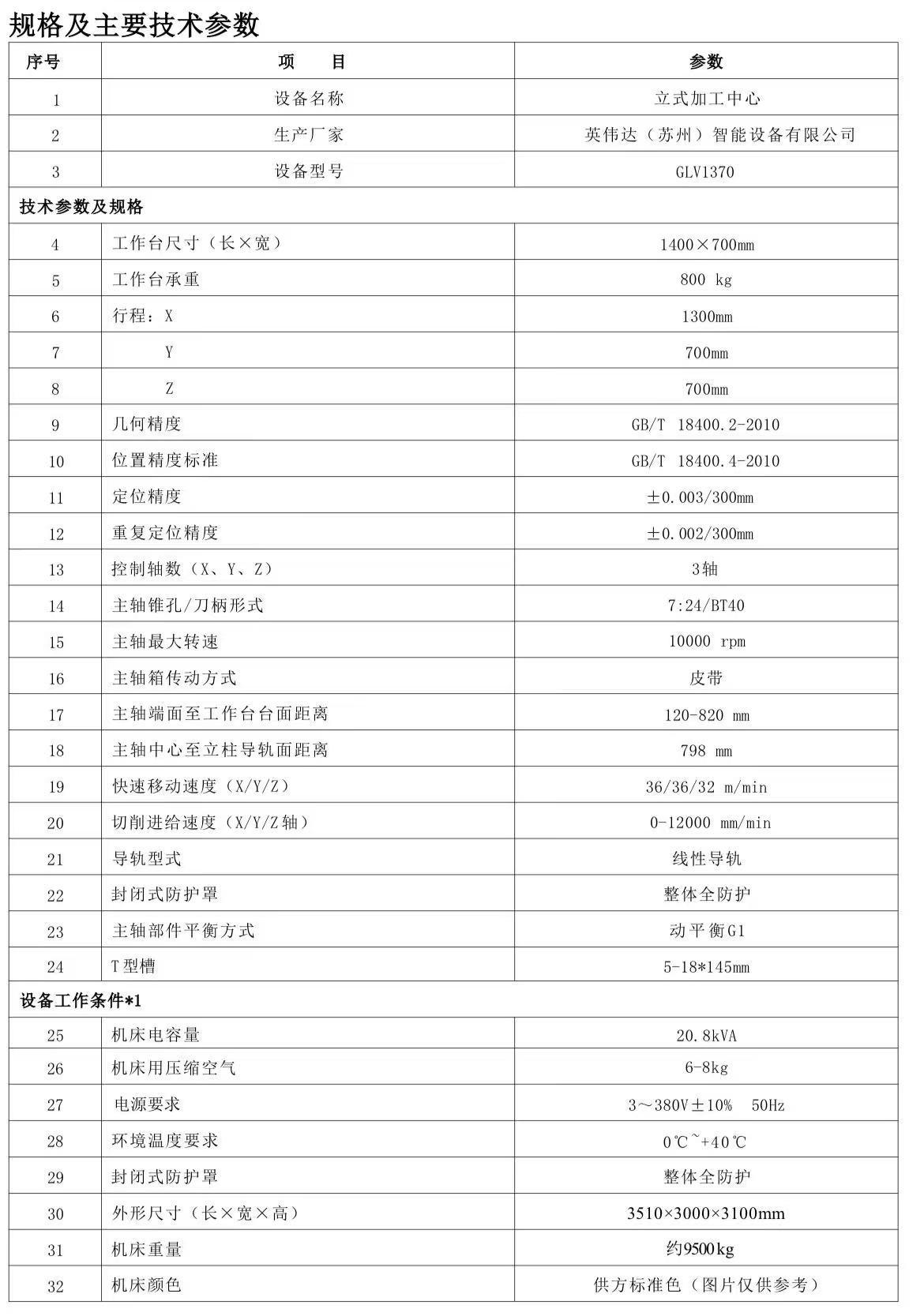

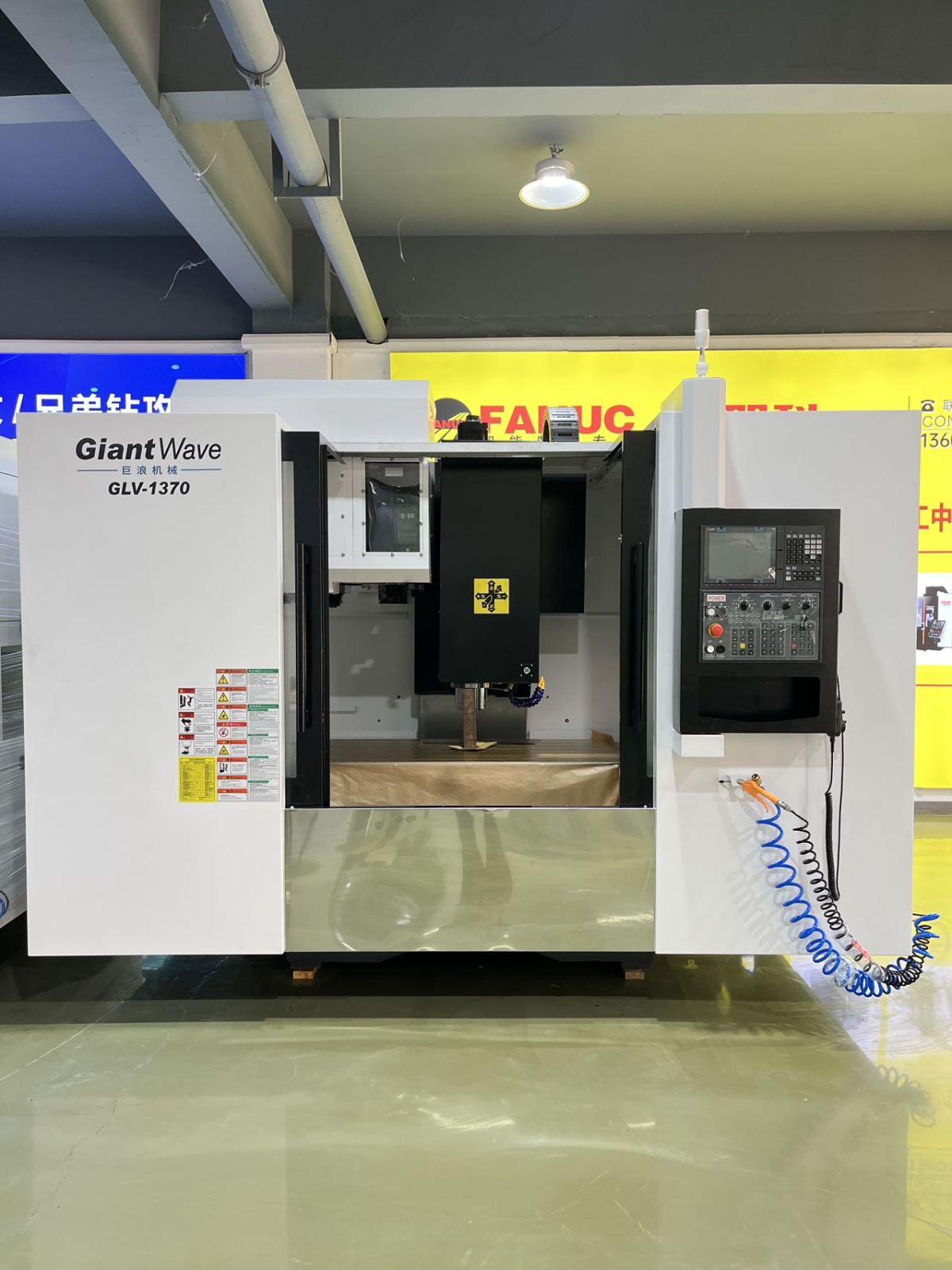

Chiron GLV1370 Vertical Machining centre

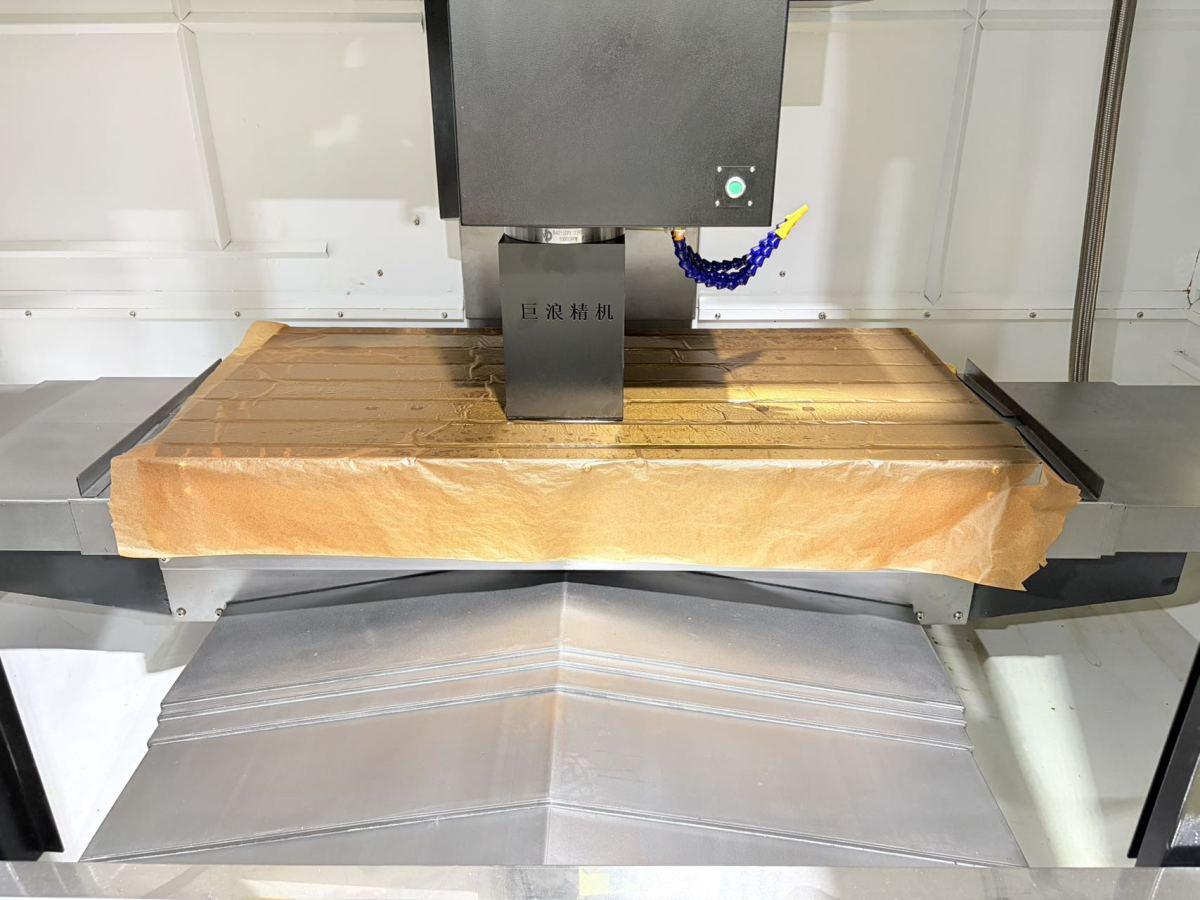

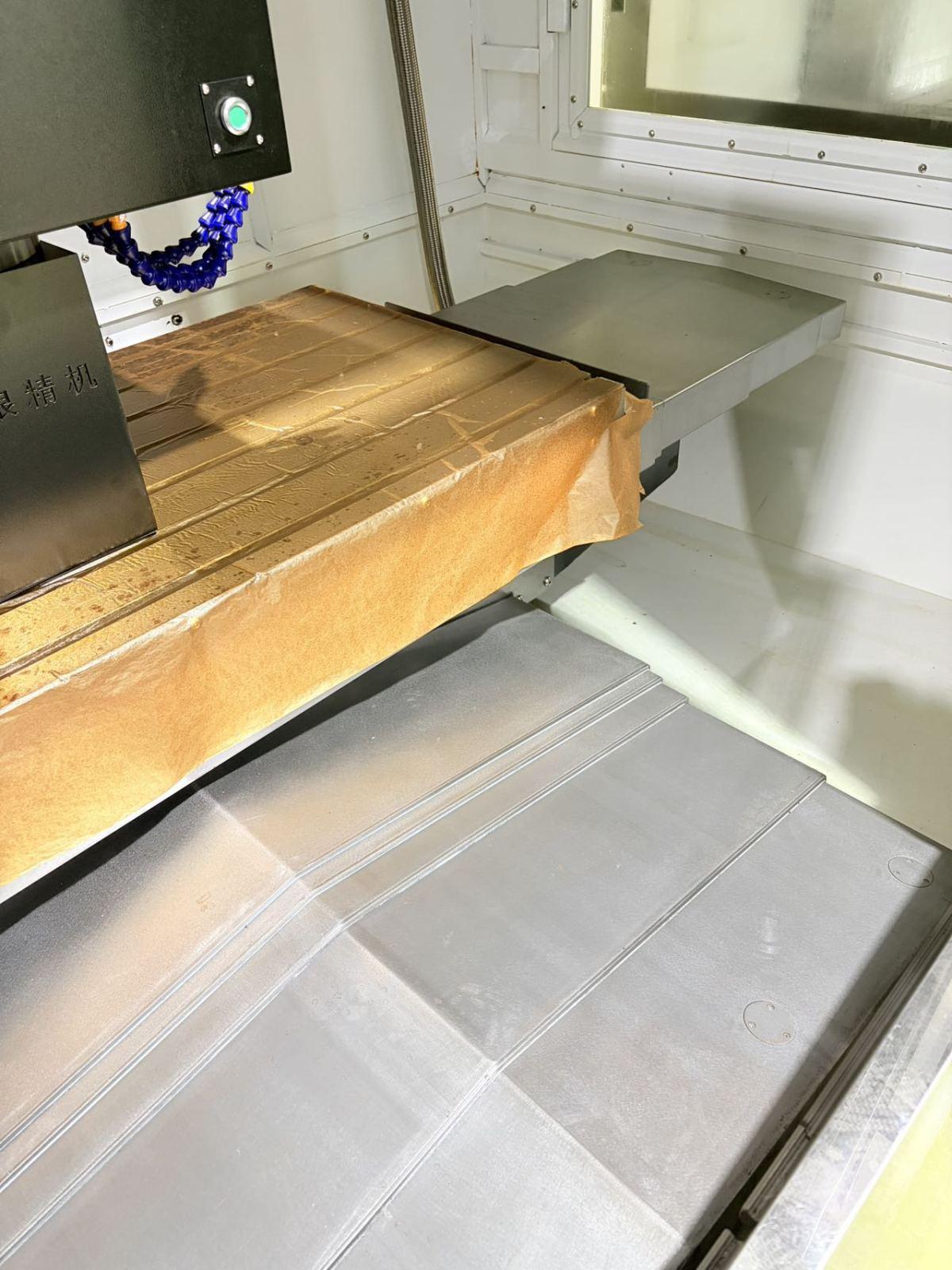

Worktable size: 1400 × 700 mm
Worktable load: 800 kg
travel (X) : 1300 mm
travel (Y) : 700 mm
travel (Z) : 700 mm
Geometric precision standard: GB/T 18400.2-2010
Position precision standard: GB/T 18400.4-2010
Positioning precision: ±0.003/300mm
Repeated Positioning precision: ±0.002/300mm
Number of control axes (X, Y, Z) : 3 axes

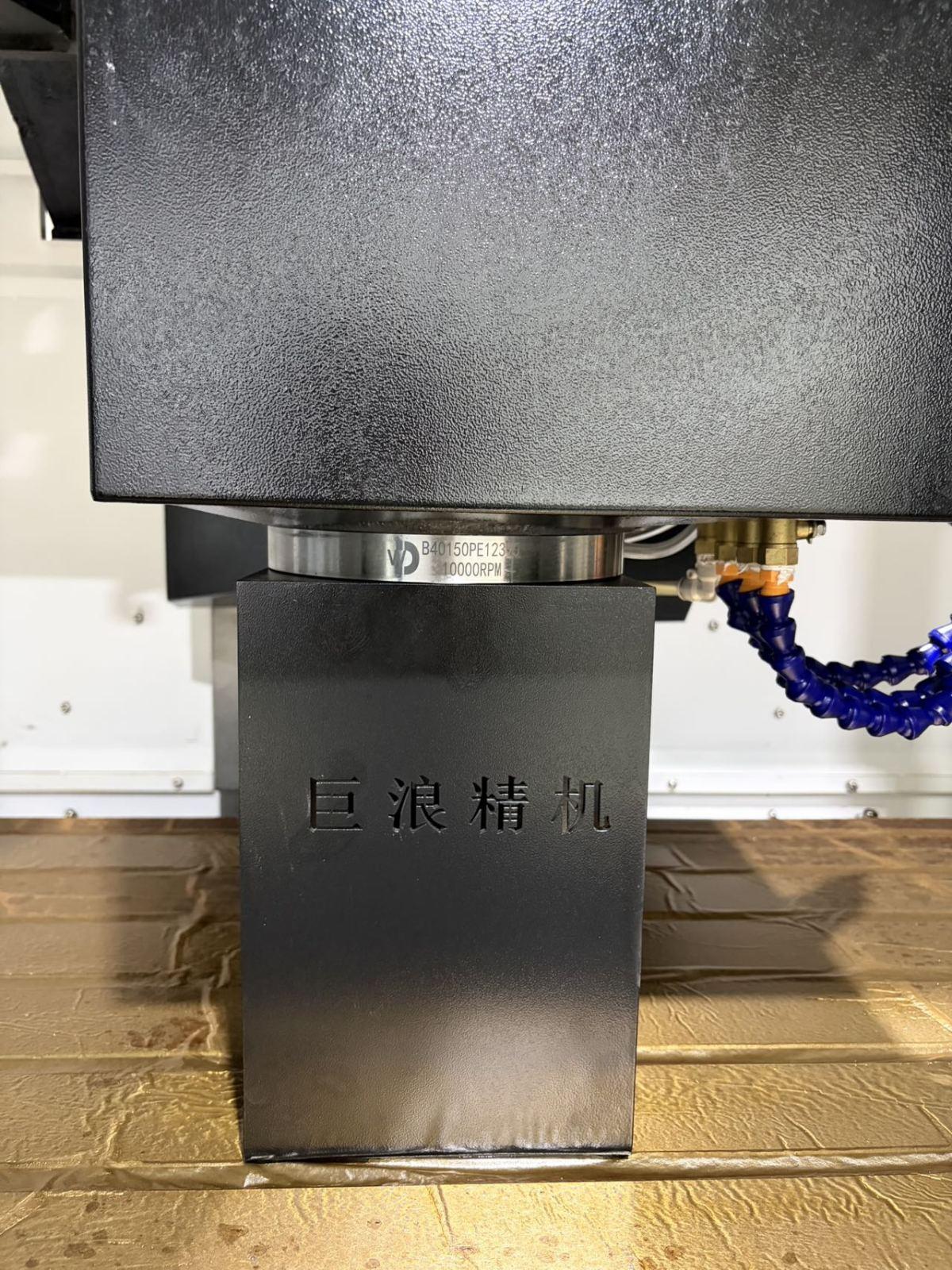

spindle taper/tool holder form: 7:24/BT40
Maximum spindle speed: 10,000 rpm
headstock drive method: strap
Distance from spindle nose to Worktable surface: 120-820 mm
Distance from spindle center to the column guideway surface is 798 mm
fast movement rate (X/Y/Z) : 36/36/32 m/min
Cutting feed rate (X/Y/Z axes) : 0-12000 mm/min
guideway type: Linear guideway
Closed protective cover: Overall full protection
The balancing method of spindle component: dynamic balancing G1
T-slot: 5-18*145mm
machine tool capacitance: 20.8KVA
Compressed air for machine tool: 6-8kg
Power supply requirements: 3 to 380V±10%, 50Hz
Ambient temperature requirement: 0℃ to +40℃
Closed protective cover: Overall full protection
Overall dimensions (length × width × height) : 3510×3000×3100mm
The weight of machine tool is approximately 9,500 kg
