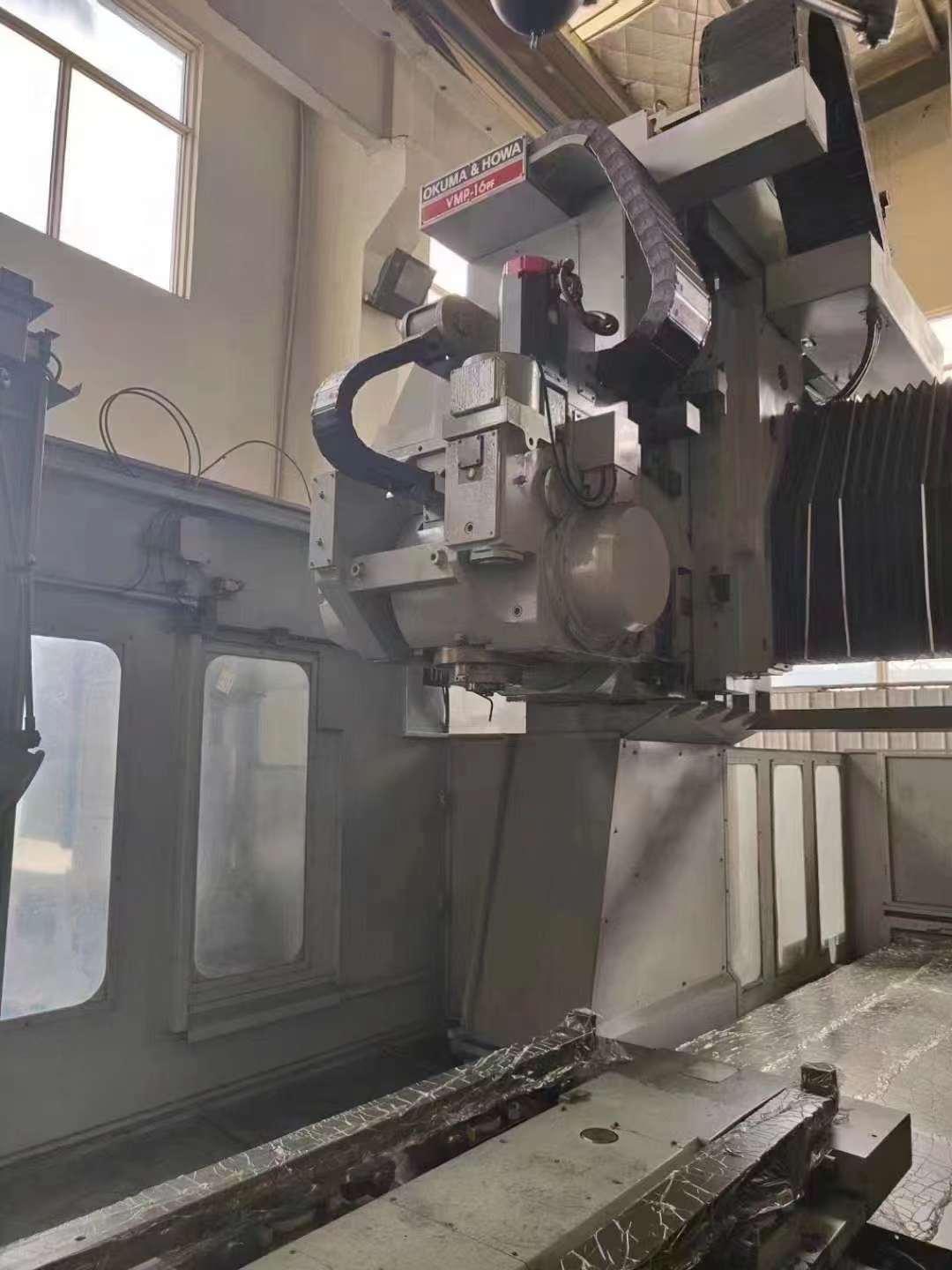

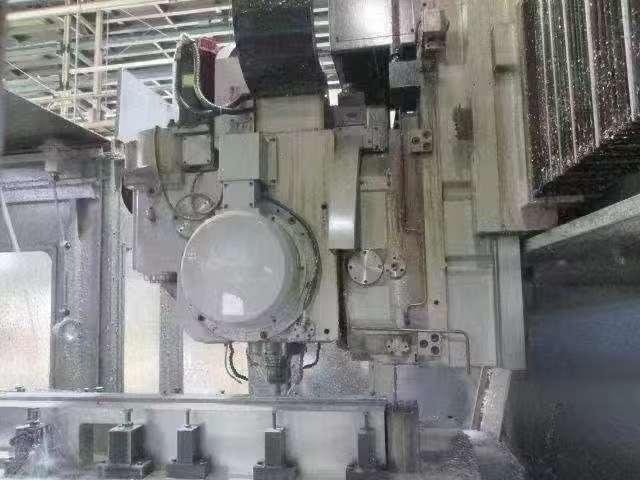

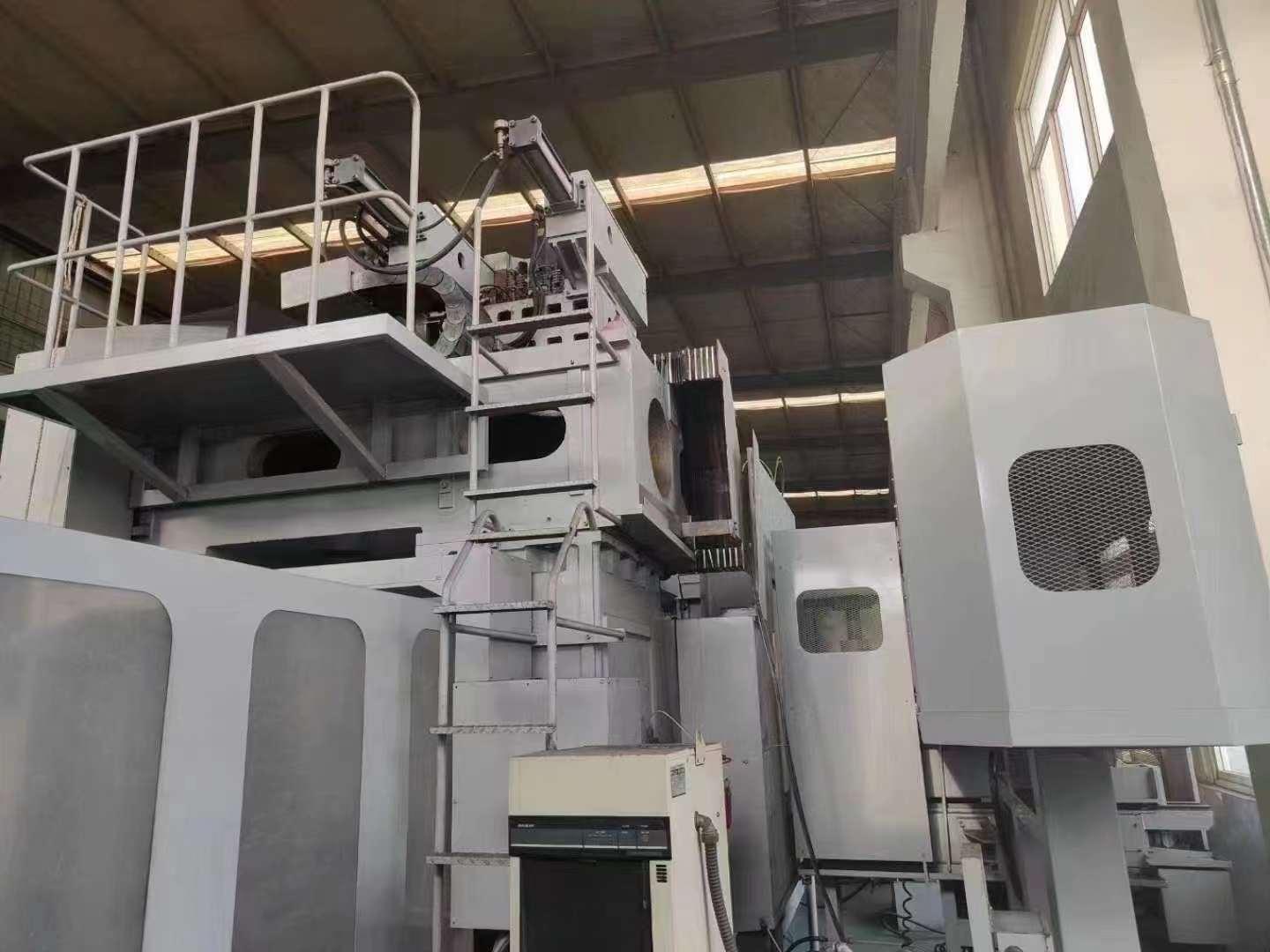

Okuma VMP-16PF Gantry machining centre

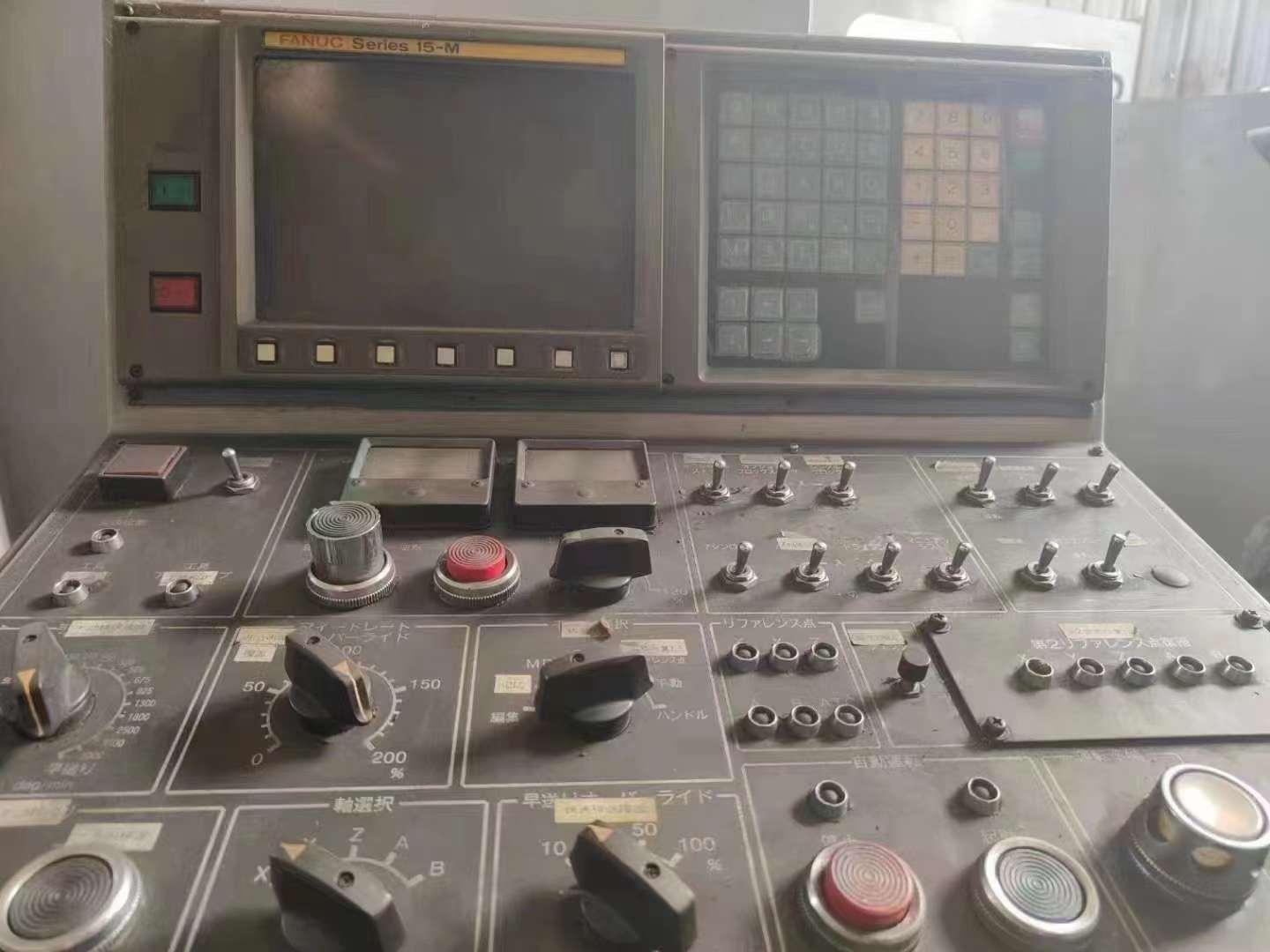

CNC System :FAUNC-15M

Gantry Width :1600 mm

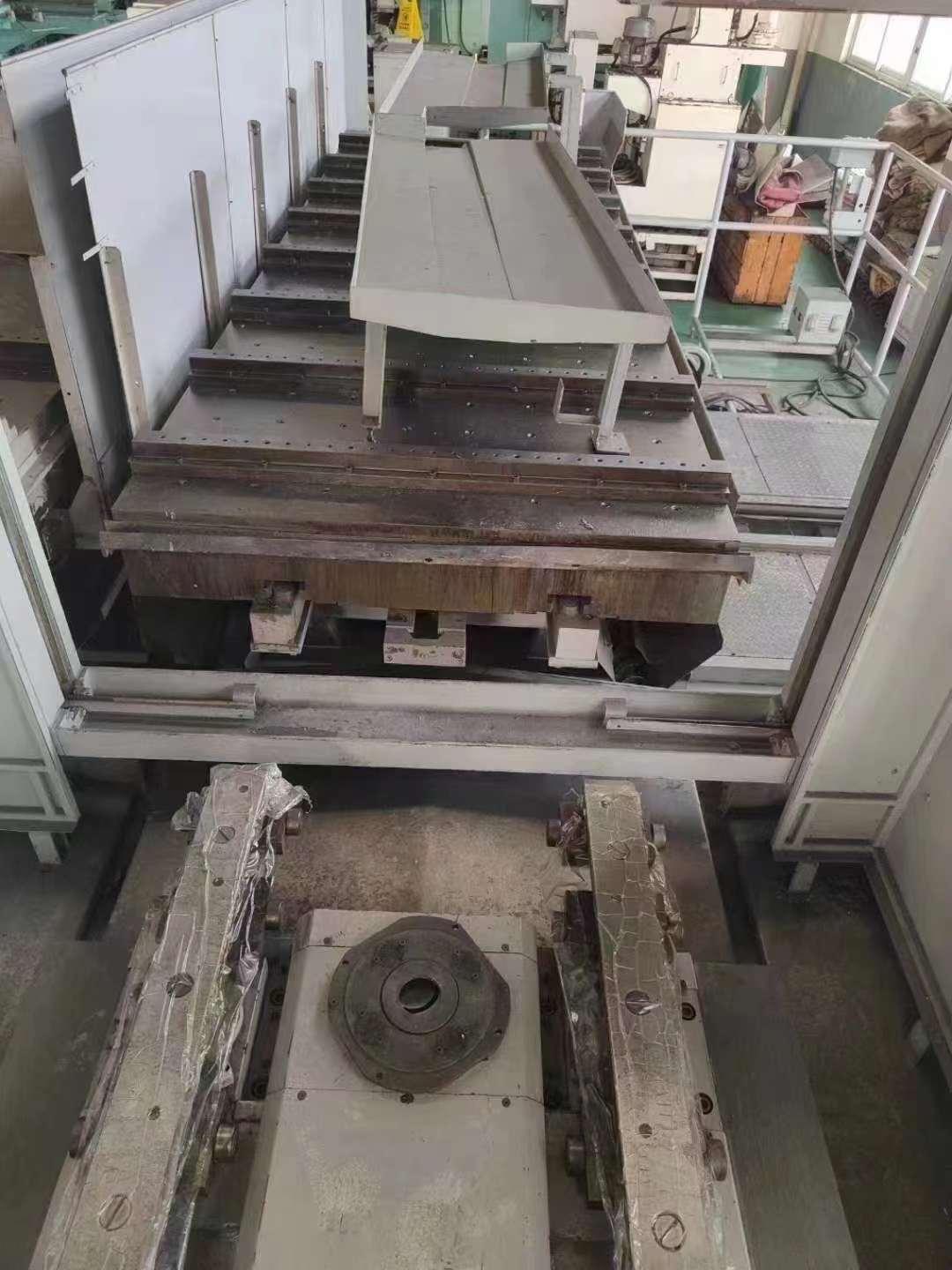

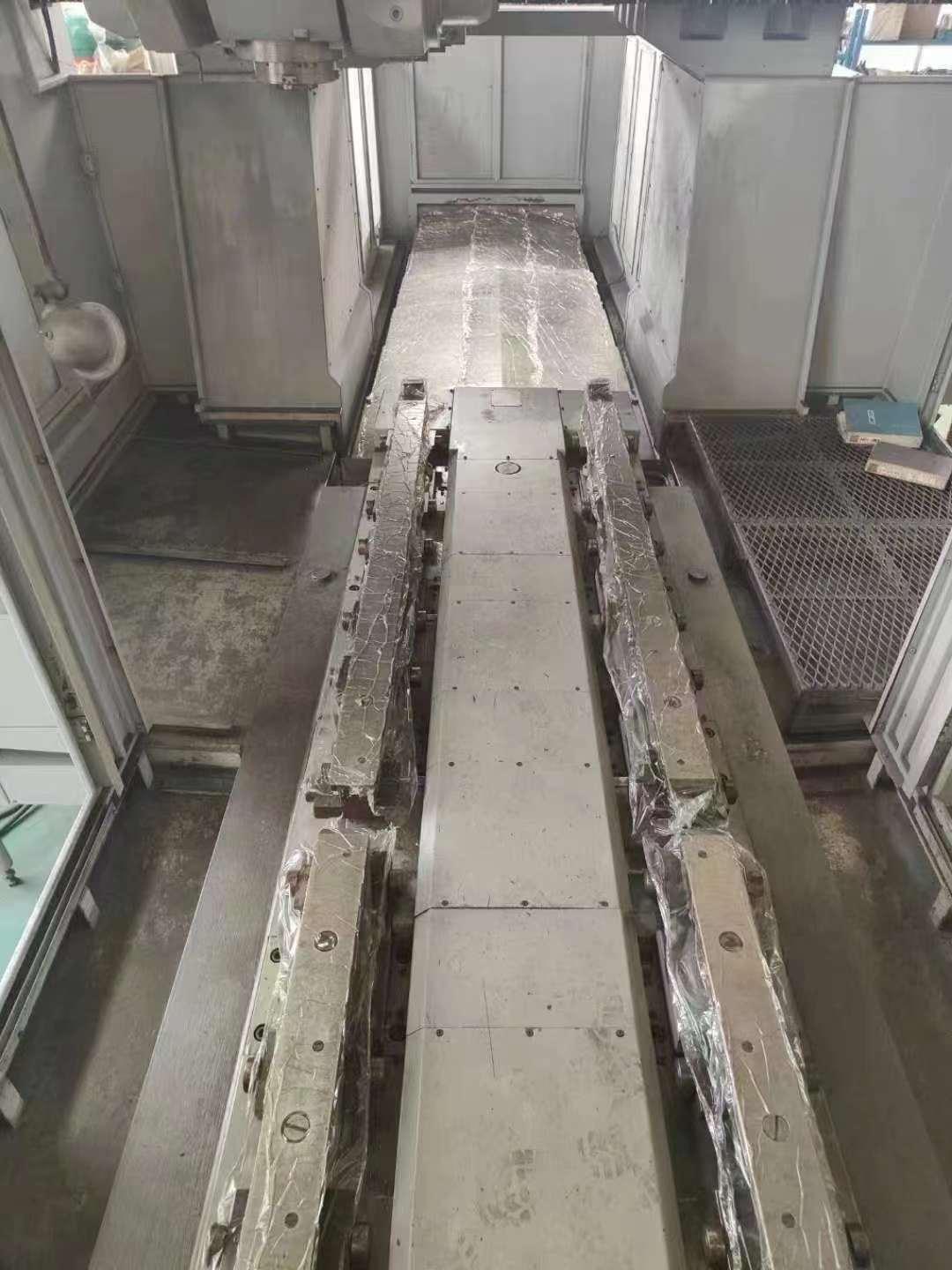

Worktable size :4000*1450 mm

X*Y*Z axis  travel :4000*2000*700

Distance from spindle nose to worktable surface  :130~830 mm

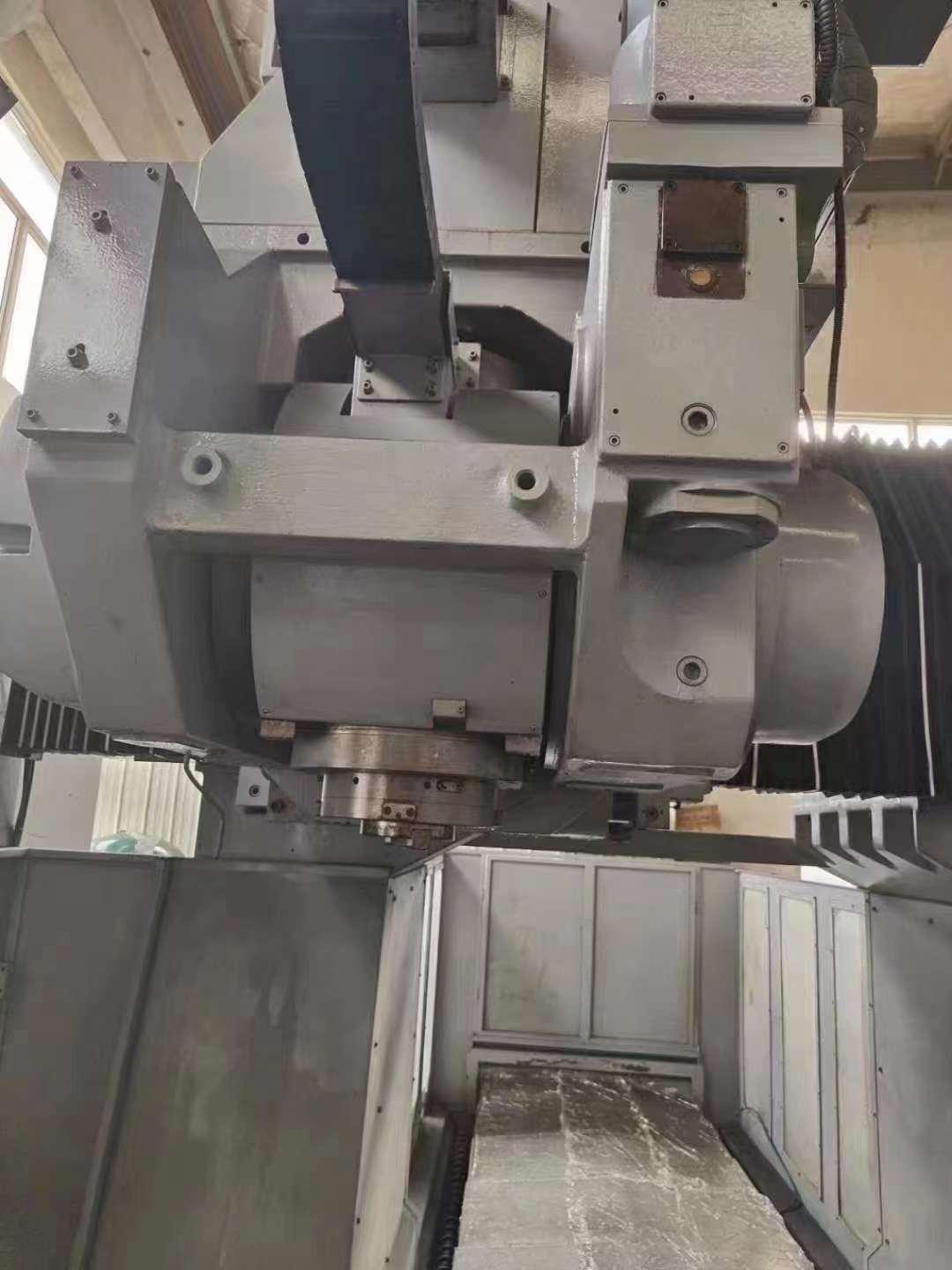

Spindle rotation angle: A-axis -30°~+30°; B-axis -25°~+25°

Spindle speed :60-6000rpm

Tool magazine :50

Spindle taper: BT50
