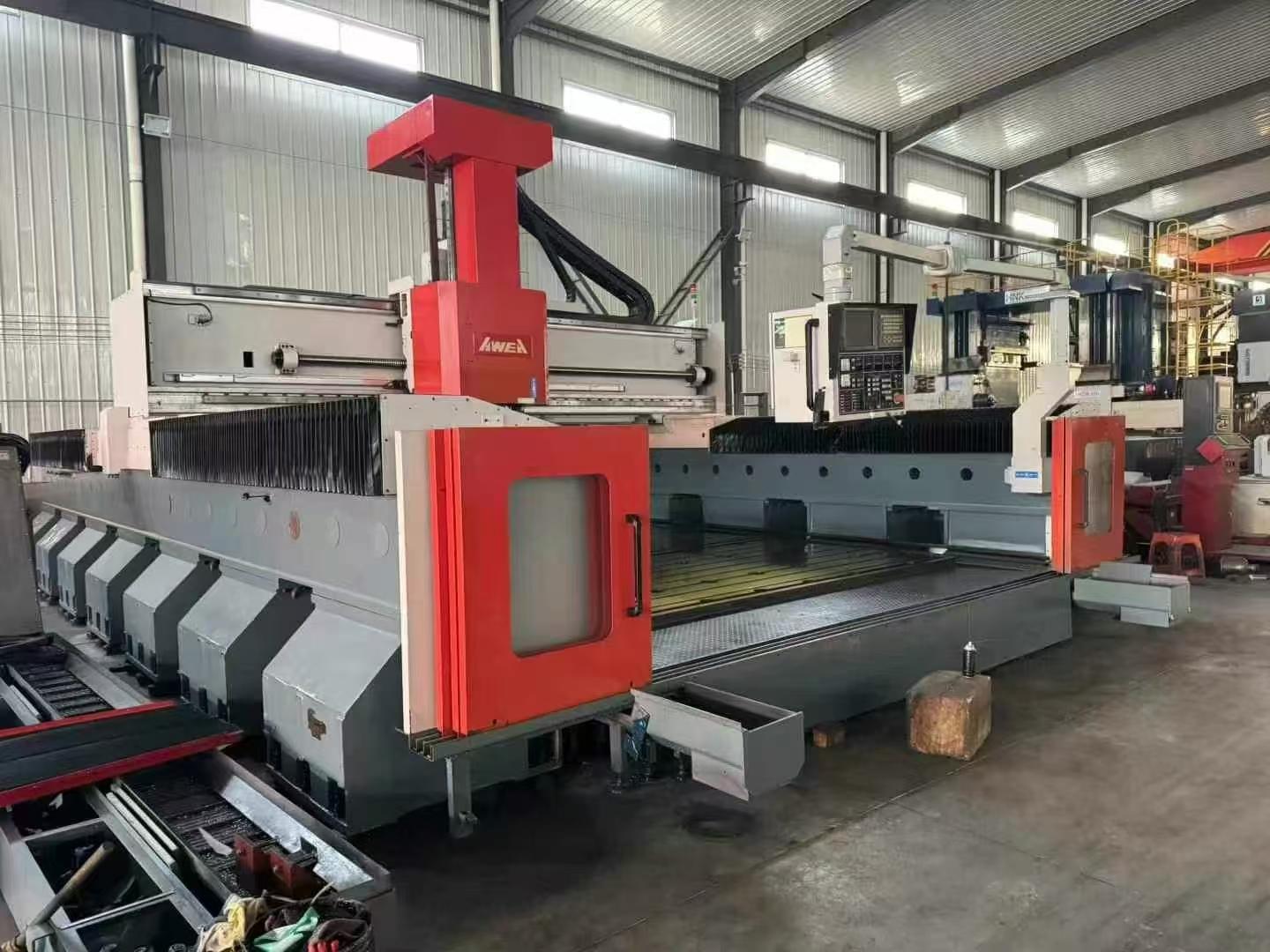

AWEA LG6040 Gantry machining centre

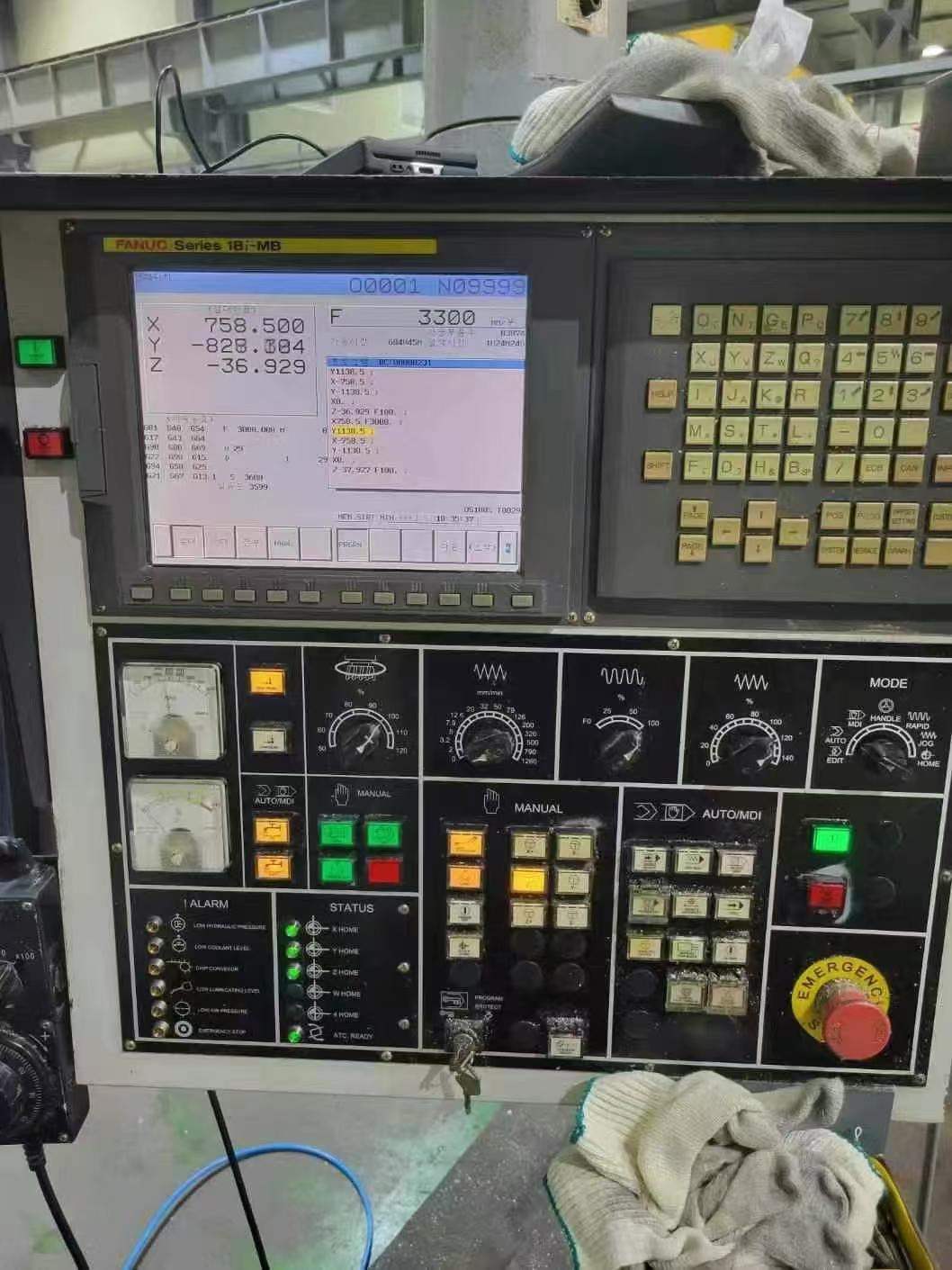

CNC System: FANUC 18i-MB

Weight: 60000 (kg)

Main motor power: 26 (kw)

Interface language: Chinese

Spindle speed range: 4000 (rpm)

Positioning precision: 0.020

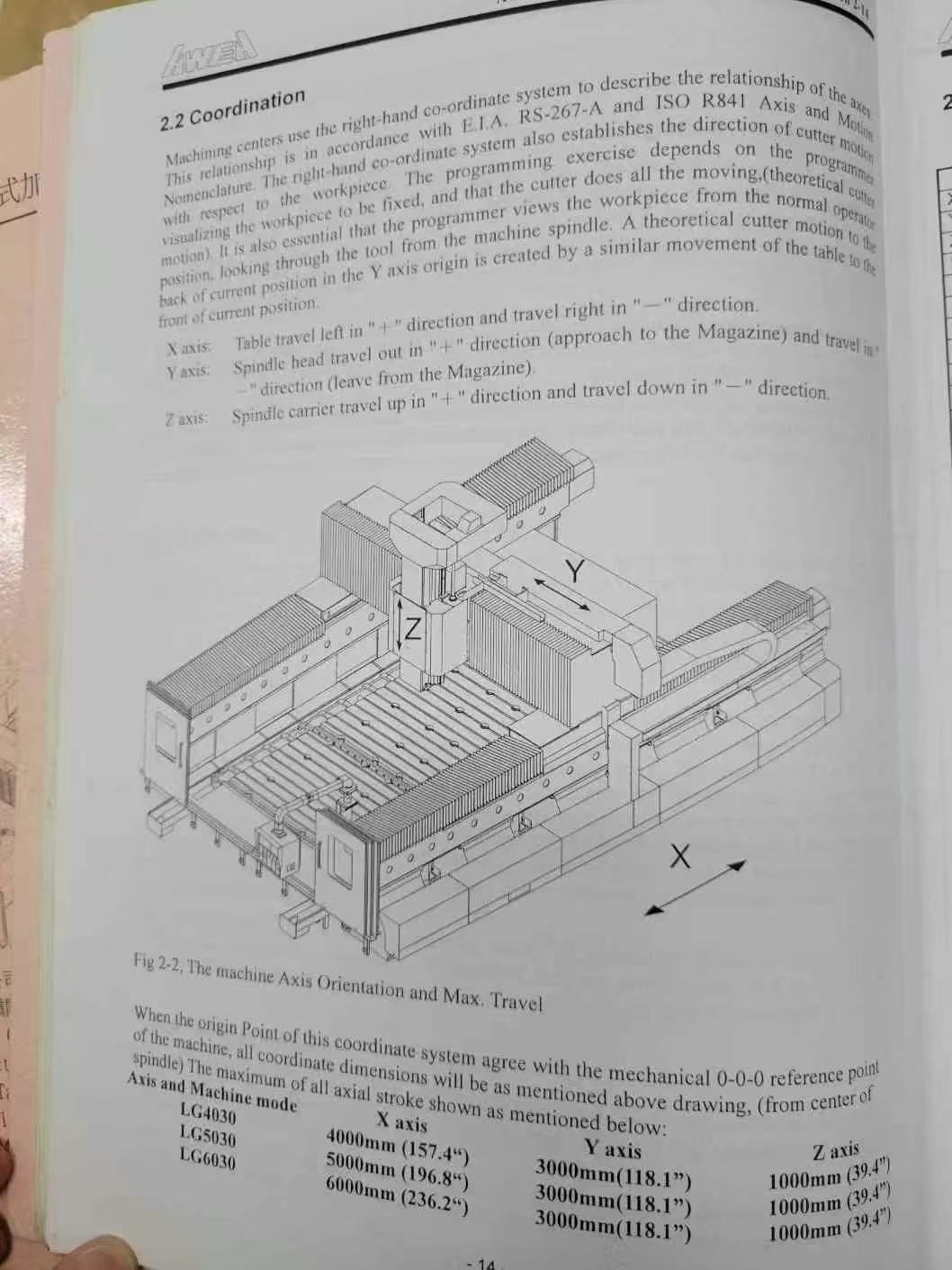

three-axis travel (X*Y*Z) : 6200*4000*1000mm

Power type: mechanical drive

Distance from nose of spindle to WorkWorktable: 200 ~ 1,200mm

Distance between two columns (with water baffle) : 4,800 mm (4,500mm)

WorkWorktable size (X direction) : 8,000 mm

WorkWorktable size (Y direction) : 3,800 mm

Maximum load :2,500kg/m2

spindle motor :(continuous / 30 point) 22/26 kW (30/35 HP)

spindle through hole specification: BT50 (7/24)

X-axis fast feed rate: 20 m/min.

Y-axis fast feed rate: 15 m/min.

Z-axis fast feed rate: 10 m/min.

Cutting feed rate: 10 m/min

Reproduction precision (VDI3441) Y/Z axis Ps = 0.025mm

Power demand: 220 ± 10%

air pressure requirement (minimum) : 5 ~ 8 kg/cm2

Oil pressure Water tank capacity: 120 liter

Lubricating oil Water tank capacity: 6 liter

Cutting fluid capacity: 1,300 L
