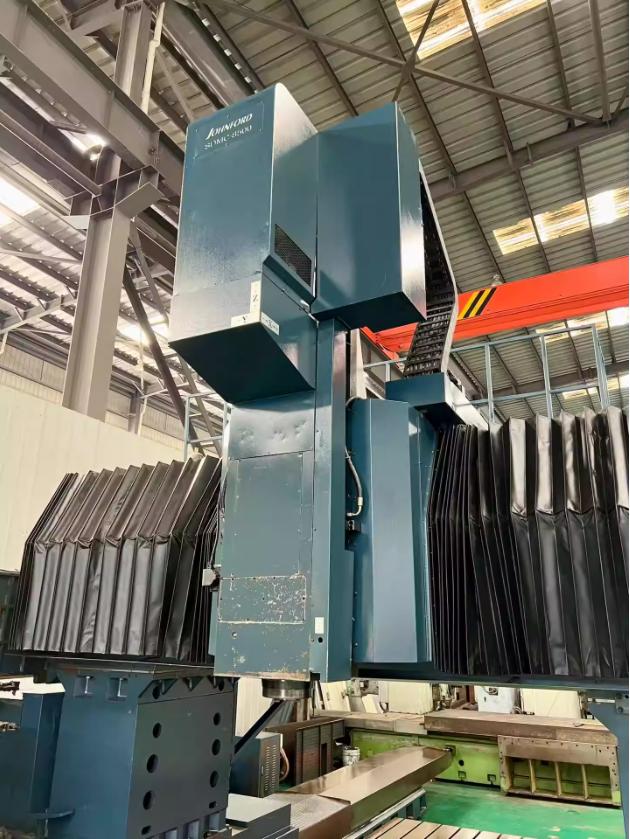

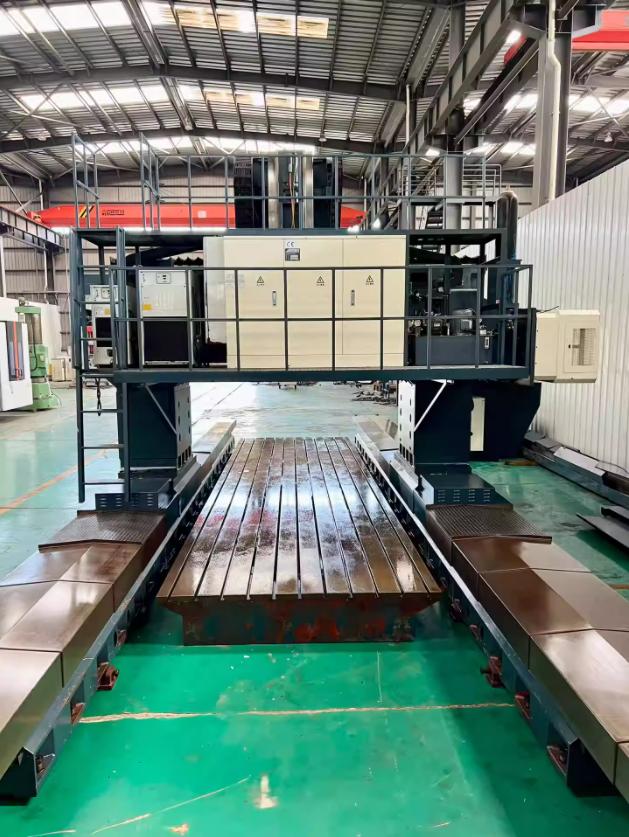

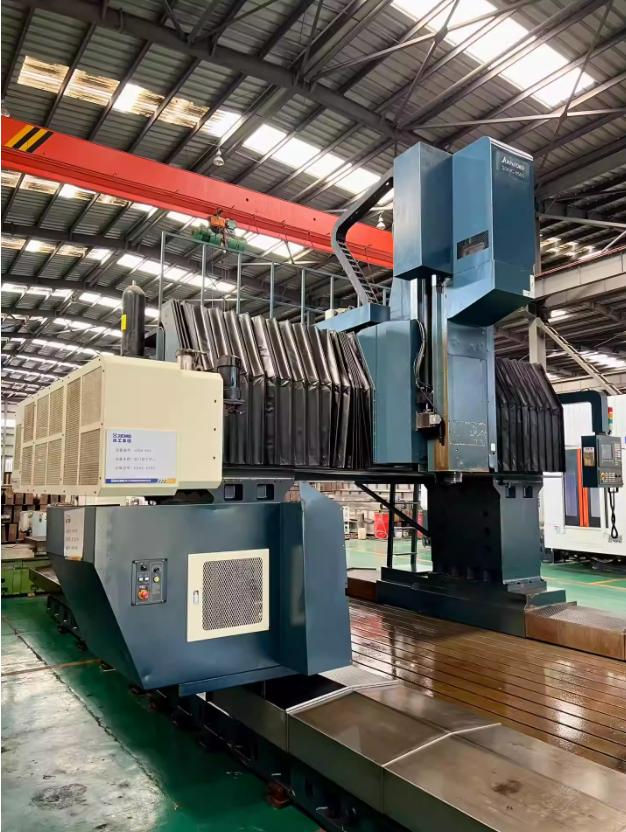

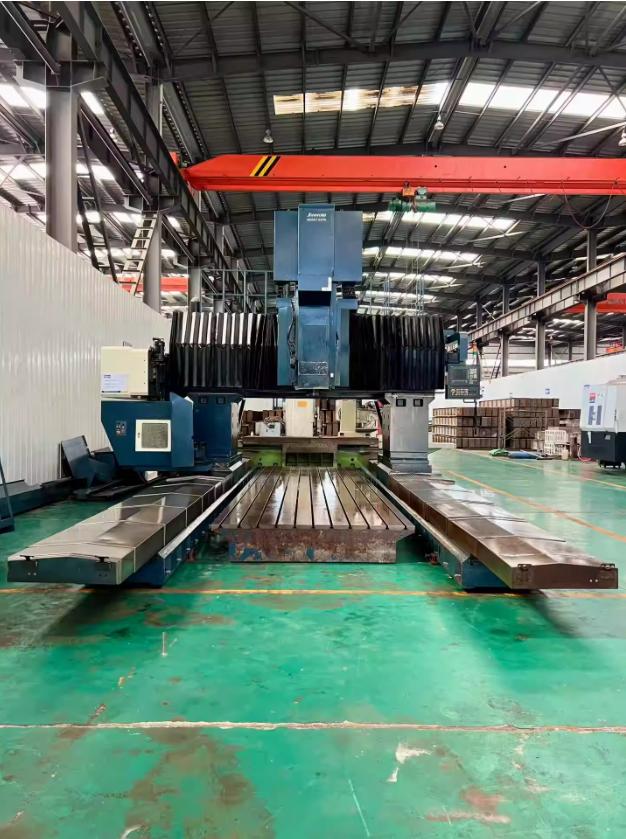

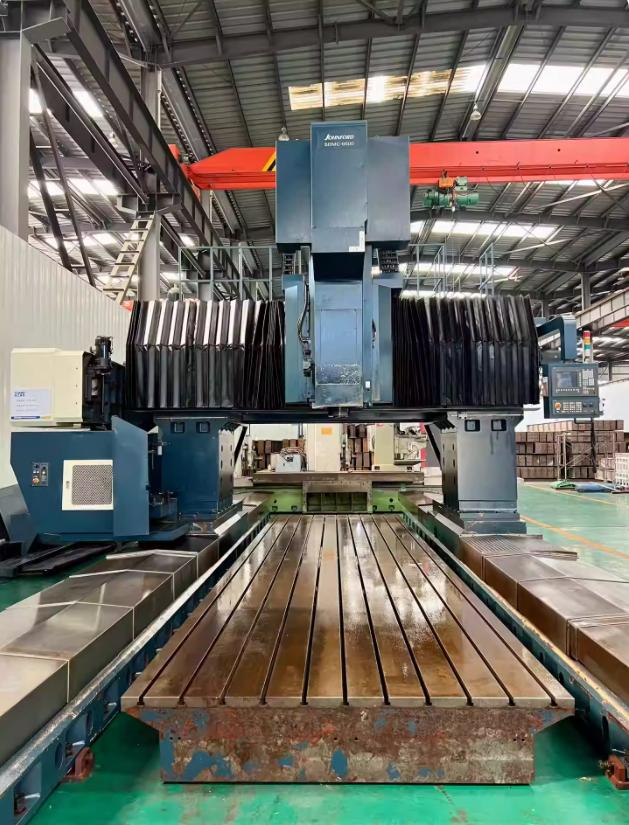

JOHNFORD SDMC-8500×2800 Gantry machining centre

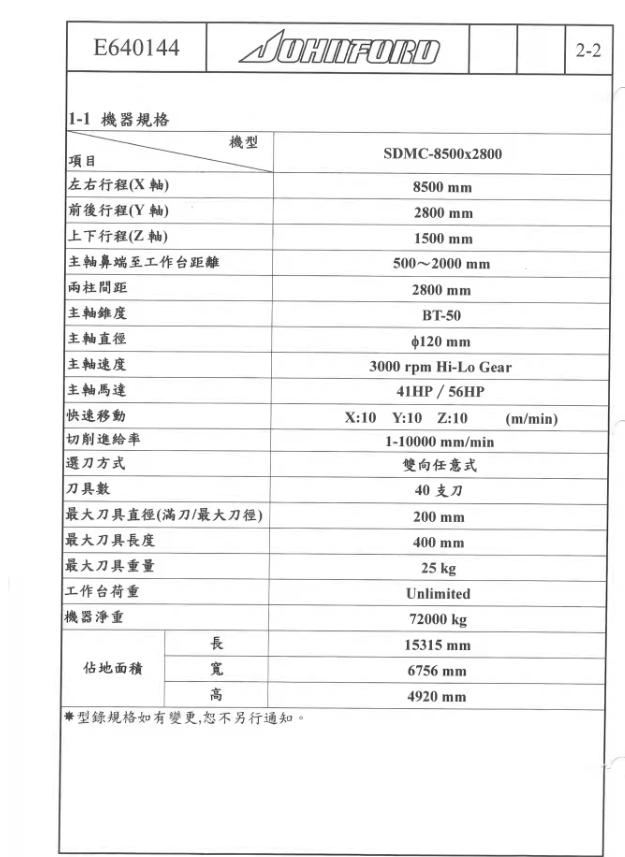

[Product Information]:

Gantry width: 2800mm

Gantry height: 2000mm

Worktable size: 2200*8000mm

Three-axis travel: 8500*2800*1500mm

Distance from spindle nose to worktable: 500-2000mm

Distance between column: 2800mm

Spindle taper: BT-50

Spindle diameter: 120mm

Spindle speed: 3000rpm

Fast moving rate: 10m/min

Cutting feed rate: 1-10000mm/min

Tool magazine: 40
