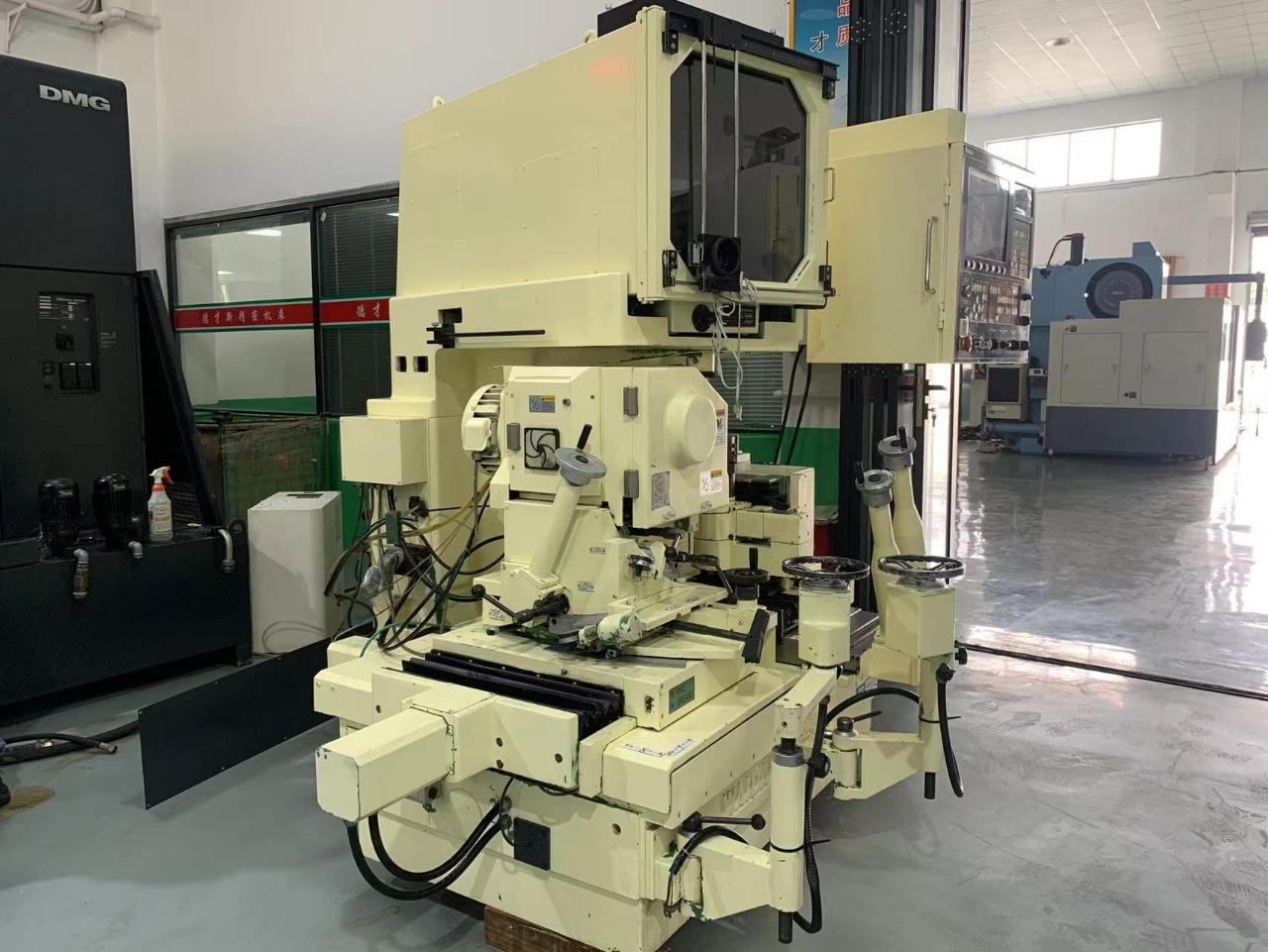

WAlDA PGX4500 Optical profile grinding

X axis: 200mm

Y-axis: 150mm

V-axis: 100mm

C-axis: 120mm

Worktable: 500*500mm

Multiplier: 20/50

Projection size: 25*25mm (x20), 10*10mm (x50)

Spindle speed: 3000-30000RPM

Number of travels: 0-500st/min

Travel: 5-90mm

Grinding wheel external diameter: 30/75mm

Front change Angle setting range: 0-3°

Transverse Angle setting range: +/-3°

Horizontal rotation return Angle set range：+/-15°

Machine weight: 4500kg

Dimensions: 2220*2180*2130mm
