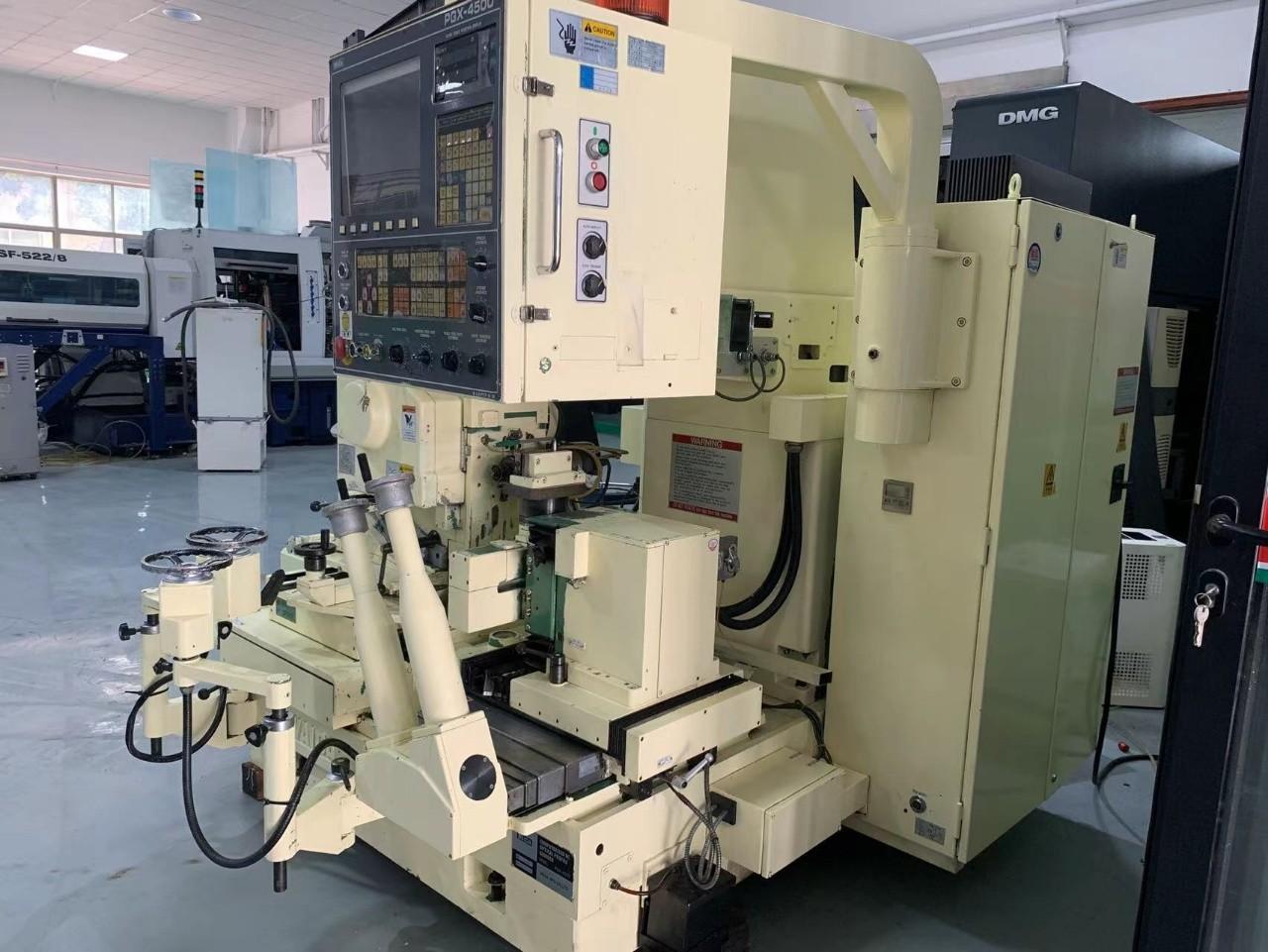

WAlDA PGX4500 Optical profile grinding
[Product Information]:
- Inventory number：70156
- Brand：WAlDA
- Model：PGX4500
- Origin：Japan
- Location：China
- Year：
- Create Time：2022-12-01
Specifications:
X axis: 200mmY axis: 150mmV axis: 100mmC axis: 120mm Table: 500*500mm Rate: 20/50 Projection size: 25*25mm (x20), 10*10mm (x50) Spindle speed: 3000-30000 Rotational stroke return Number: 0-500st/min Stroke: 5-90mm grinding wheel outside diameter: 30/75mm forward Angle setting range: 0-3 degrees transverse Angle setting range: plus or minus 3 degrees horizontal rotation back Angle setting range: plus or minus 15 degrees Machine weight: 4500kg Machine size: 2220*2180*2130mm
