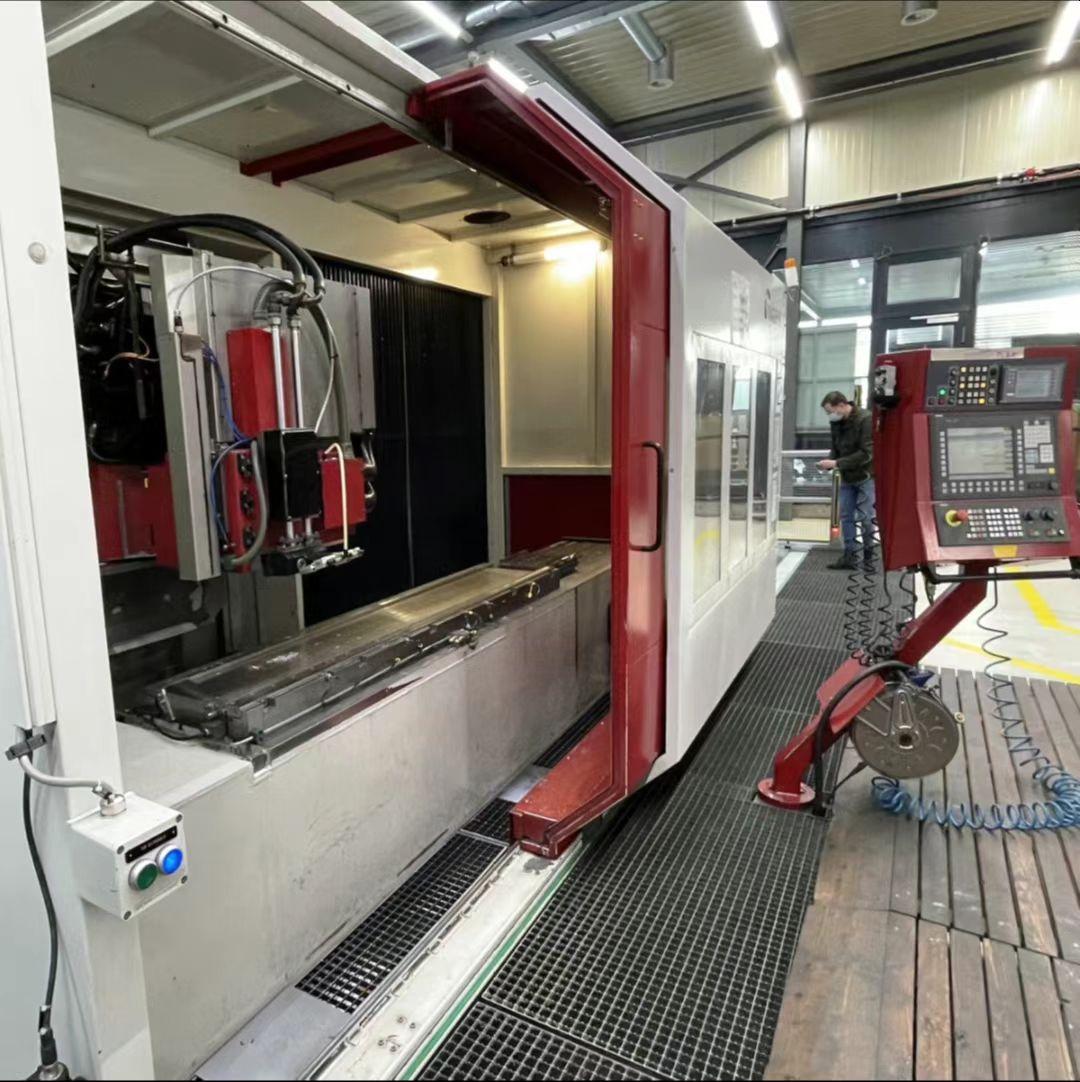

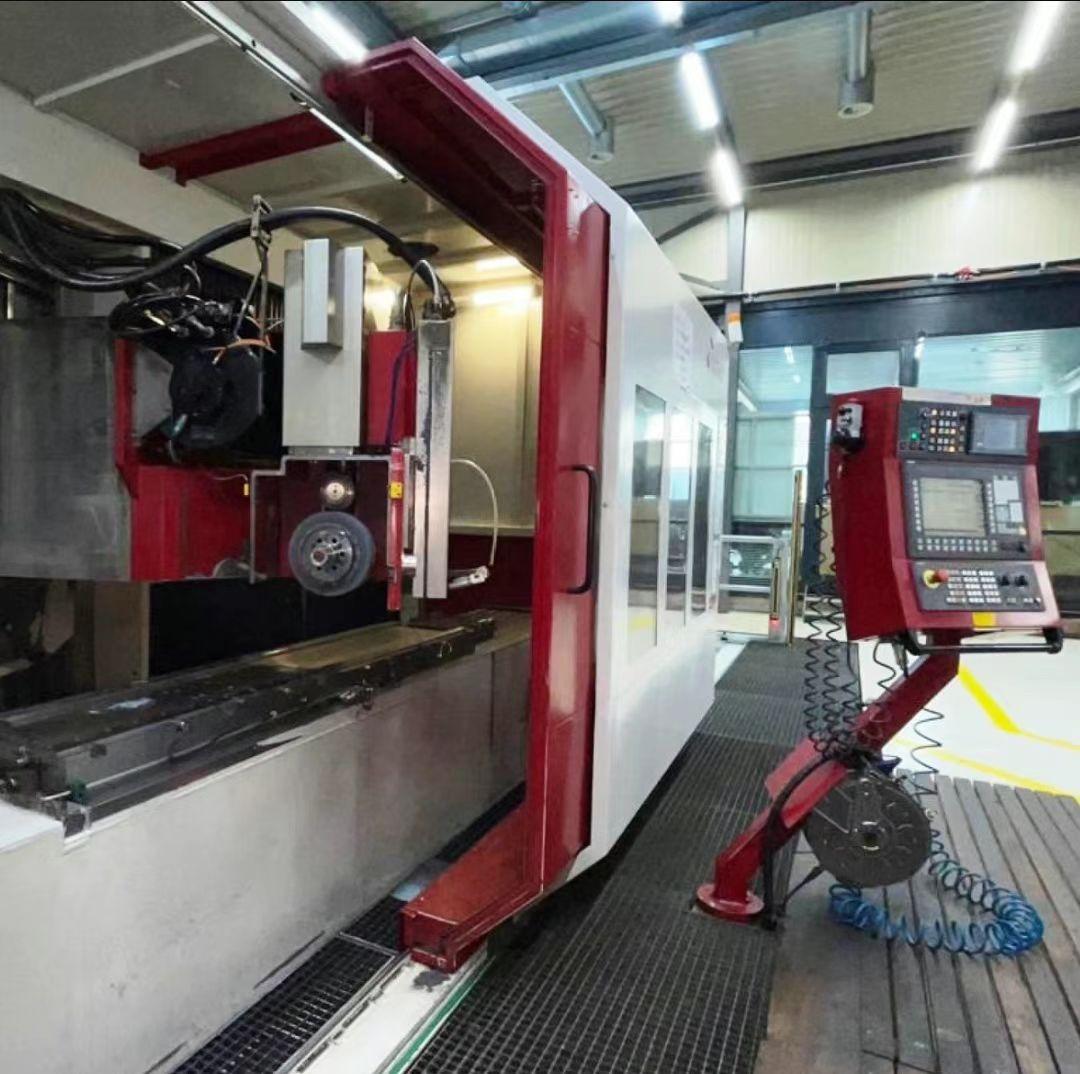

MAGERLE MGC 550 Surface grinder

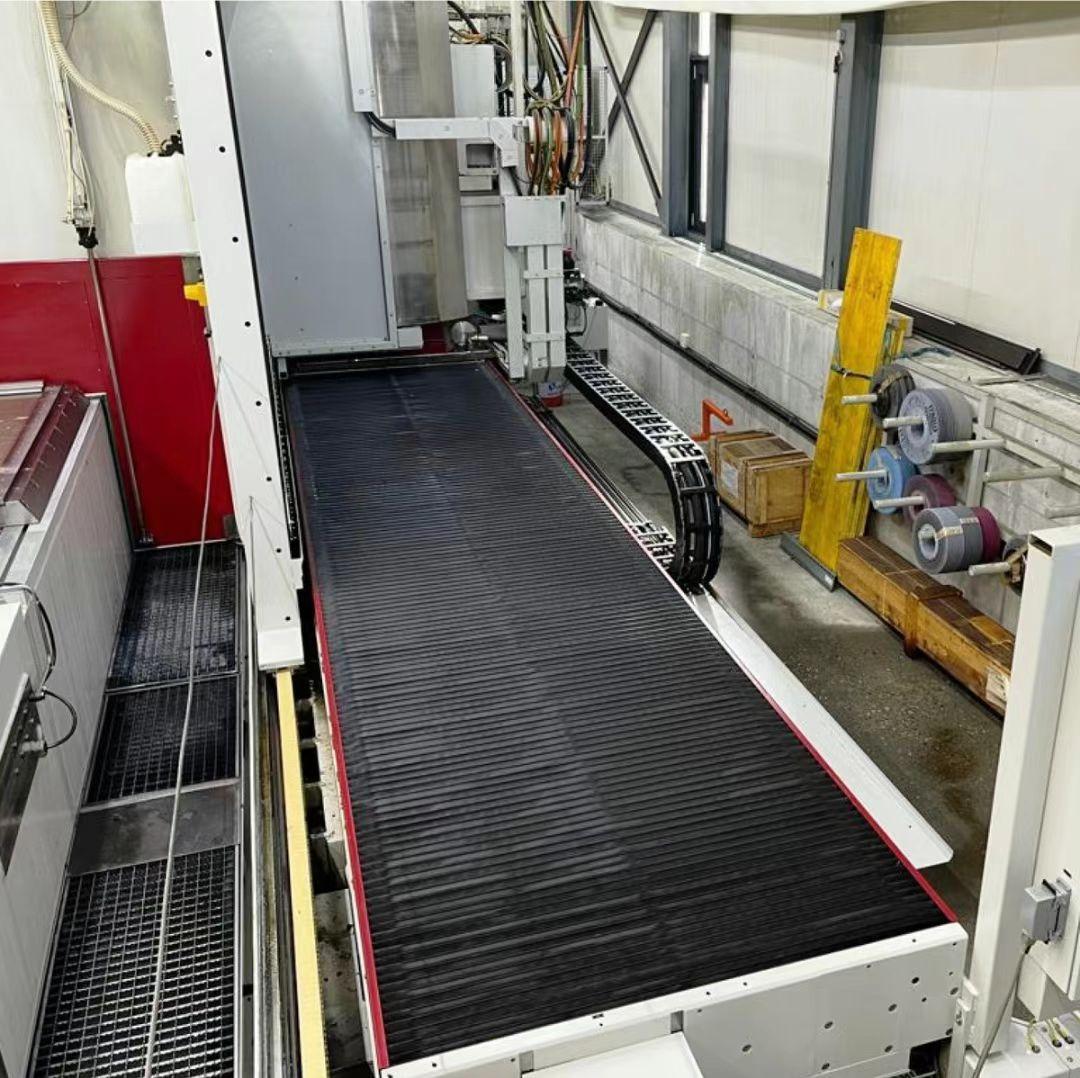

Worktable size: 5500×750mm

Three axes travel: 5500×650×750mm

Three-axis feed rate: 20000mm/min

External size of grinding stone: 600×300mm

Power: 115kw

Speed: 8000 RPM

B-axis grinding head rotation angle: 20º

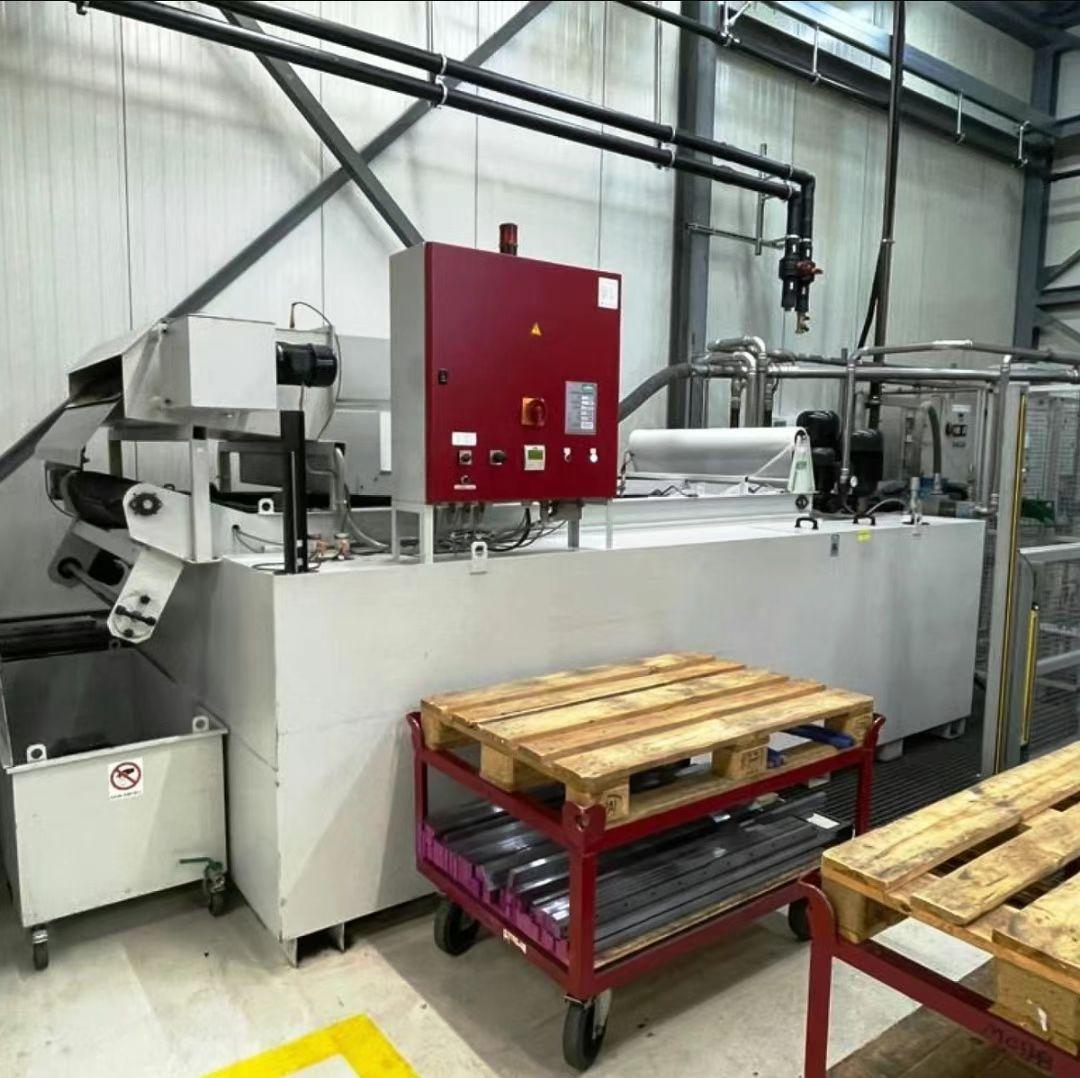

ARO-KKS coolant tank: 8000 L(dimensions: 4400×1900×2200mm)

Swing operation mode(twin worktable)

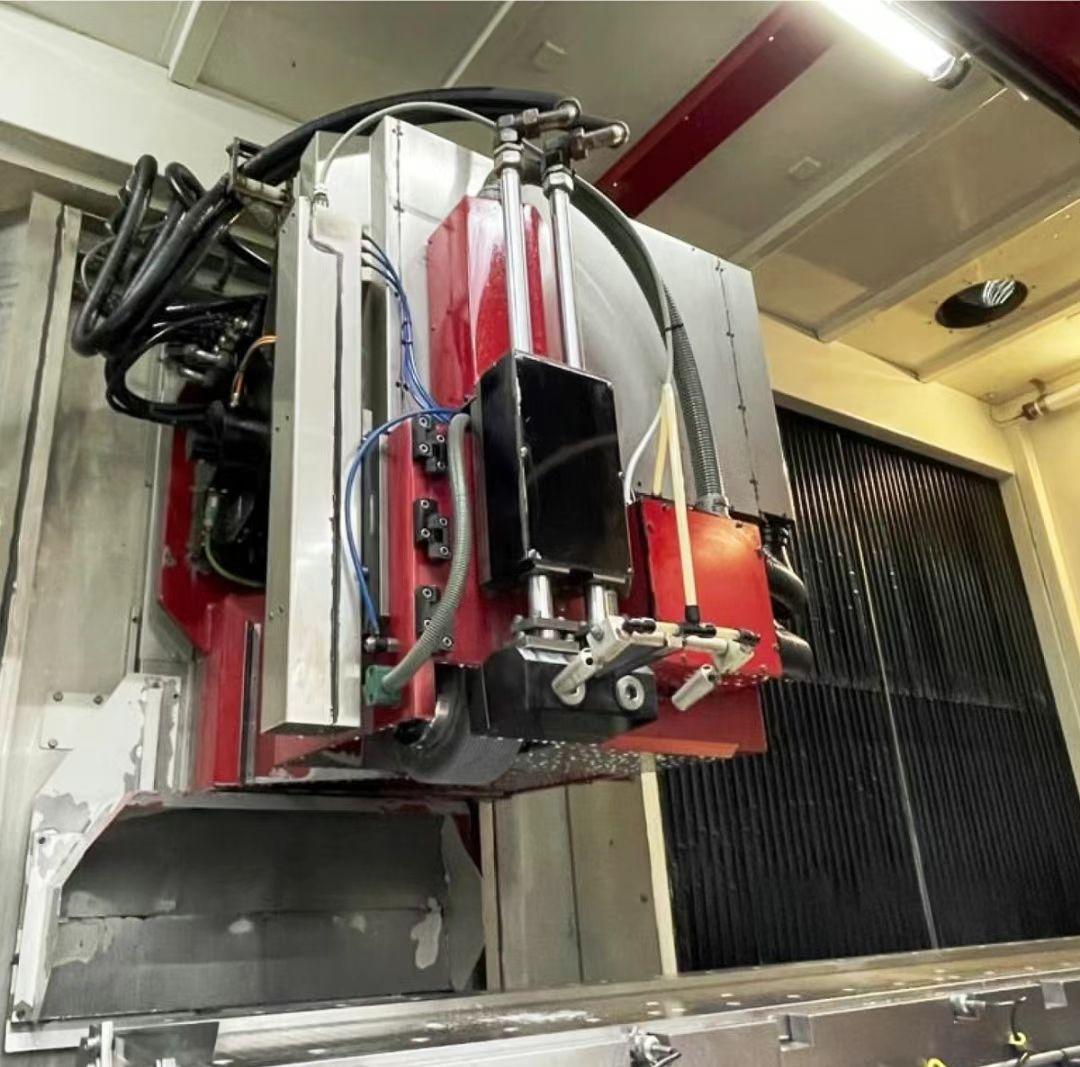

Automatic grinding head

Worktable dresser

Automatic grinding head, cooling system

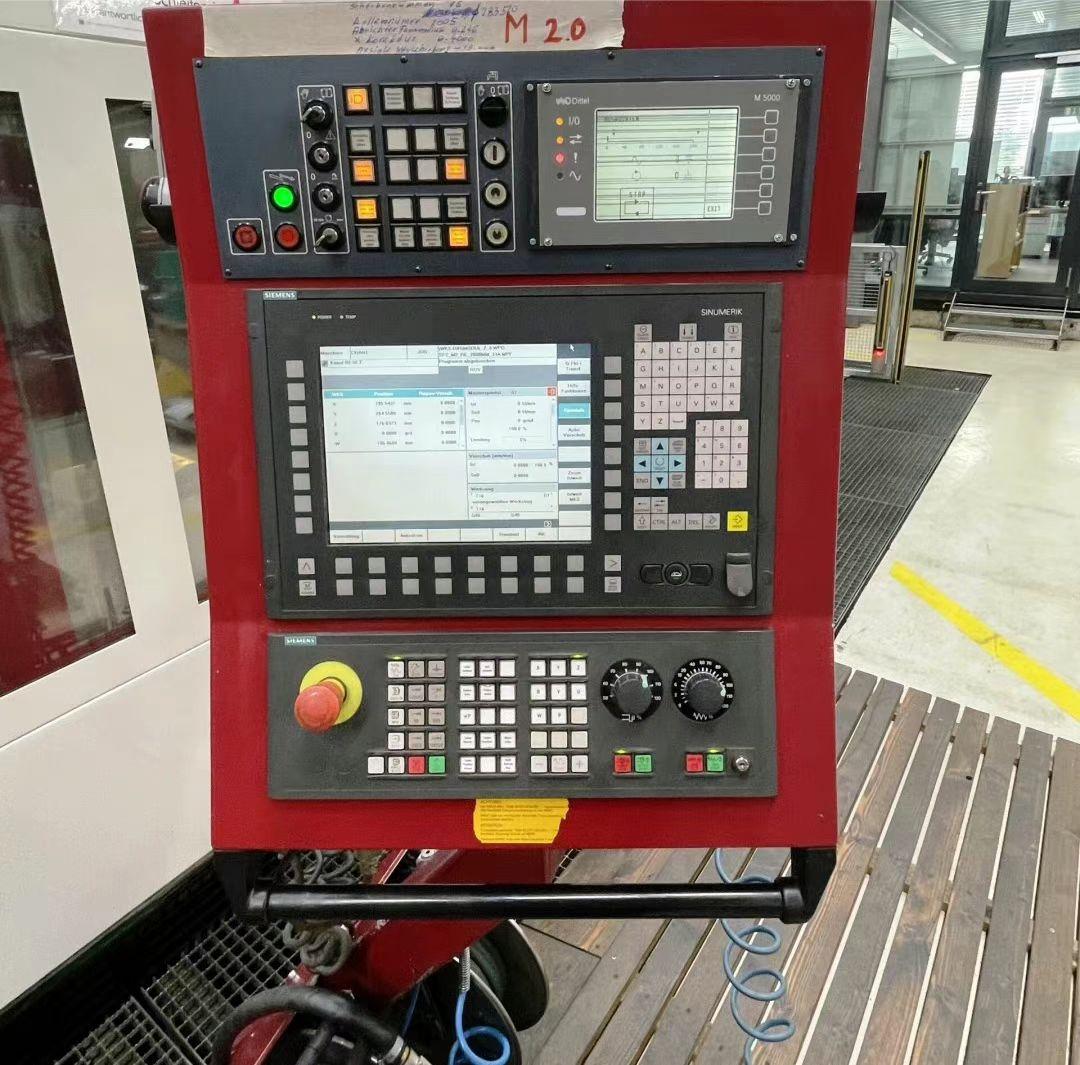

CNC system: Siemens 840D

Dimensions: 10700×4700×3800mm

Weight: 42 t
