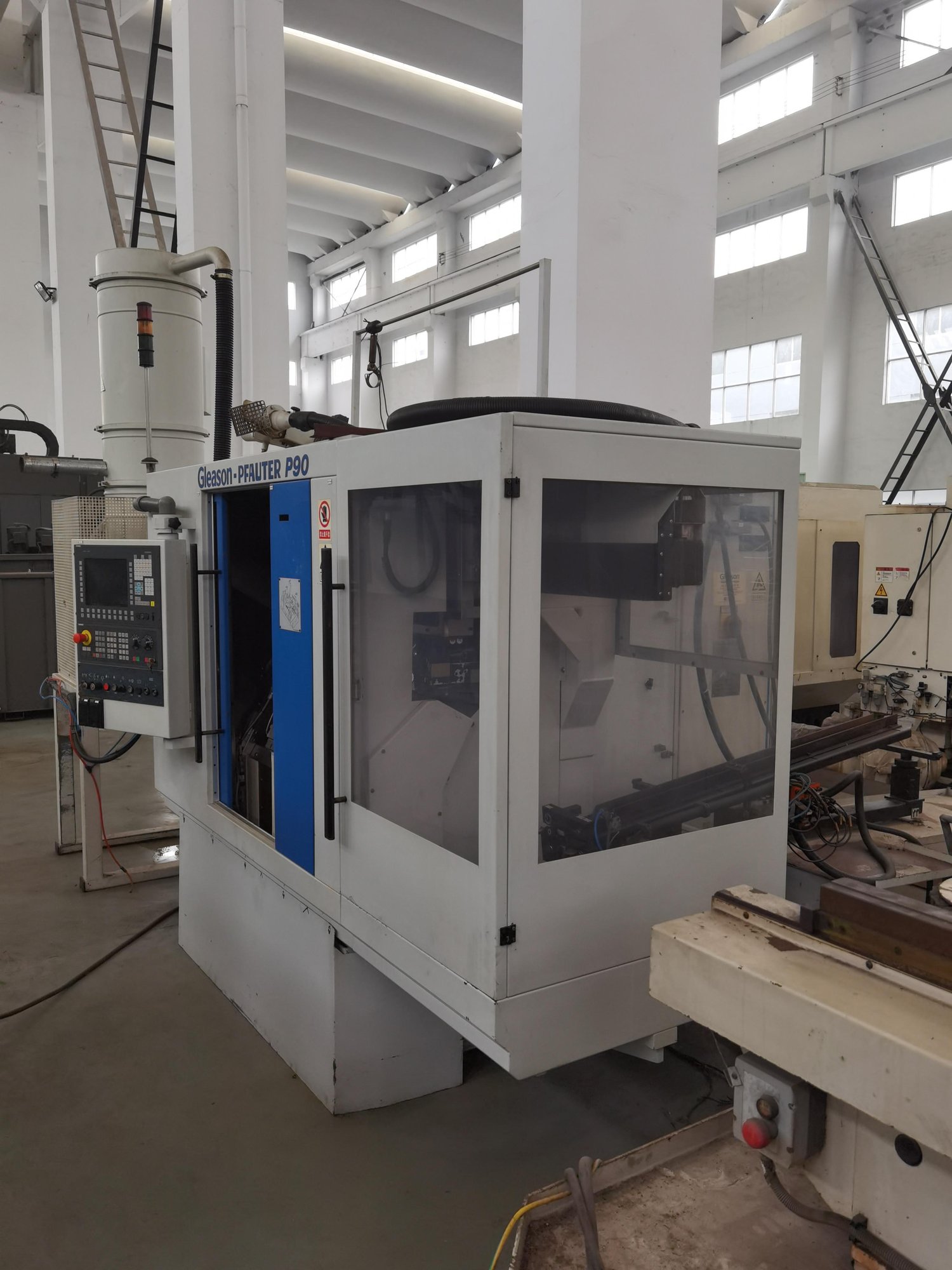

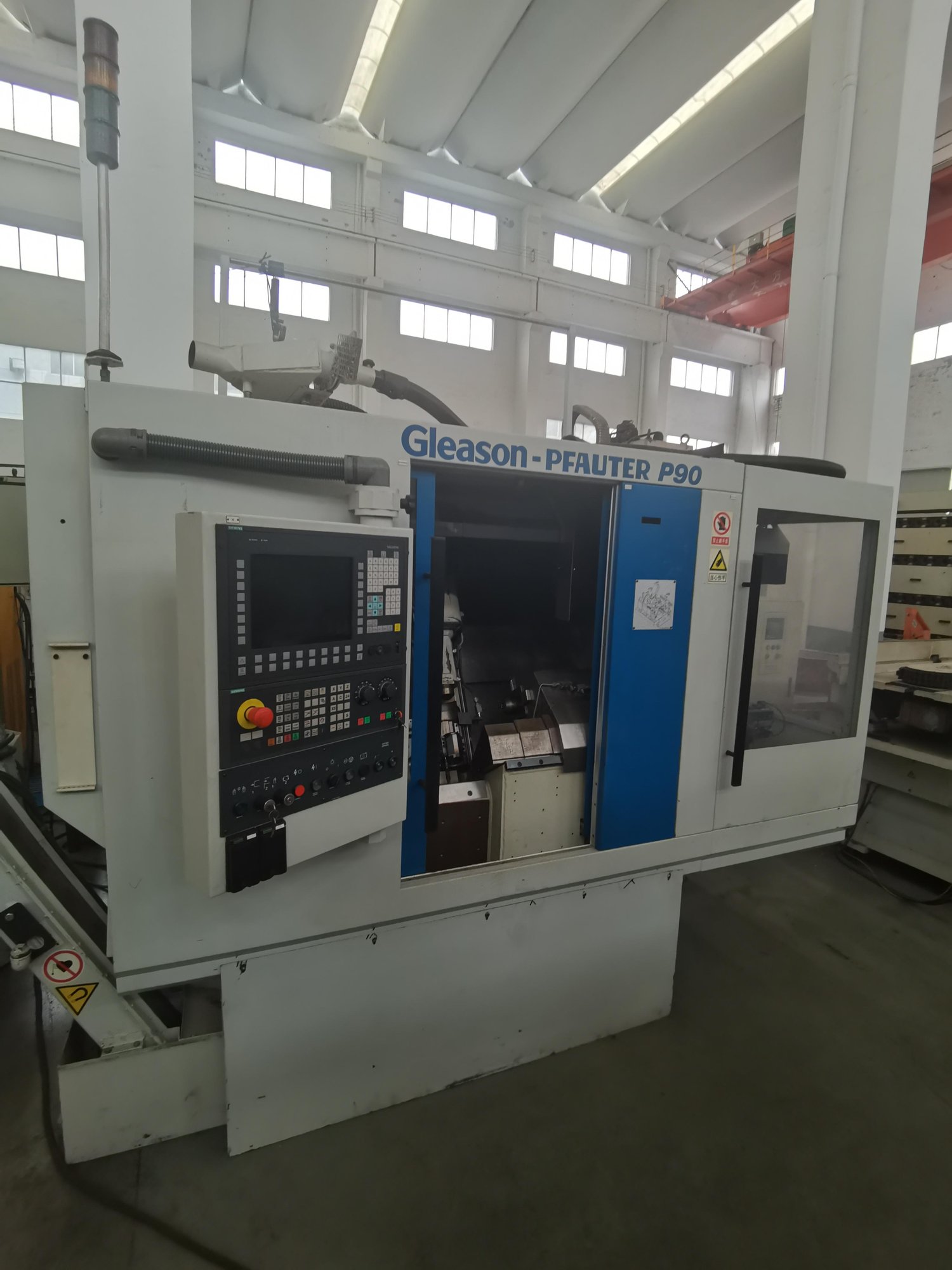

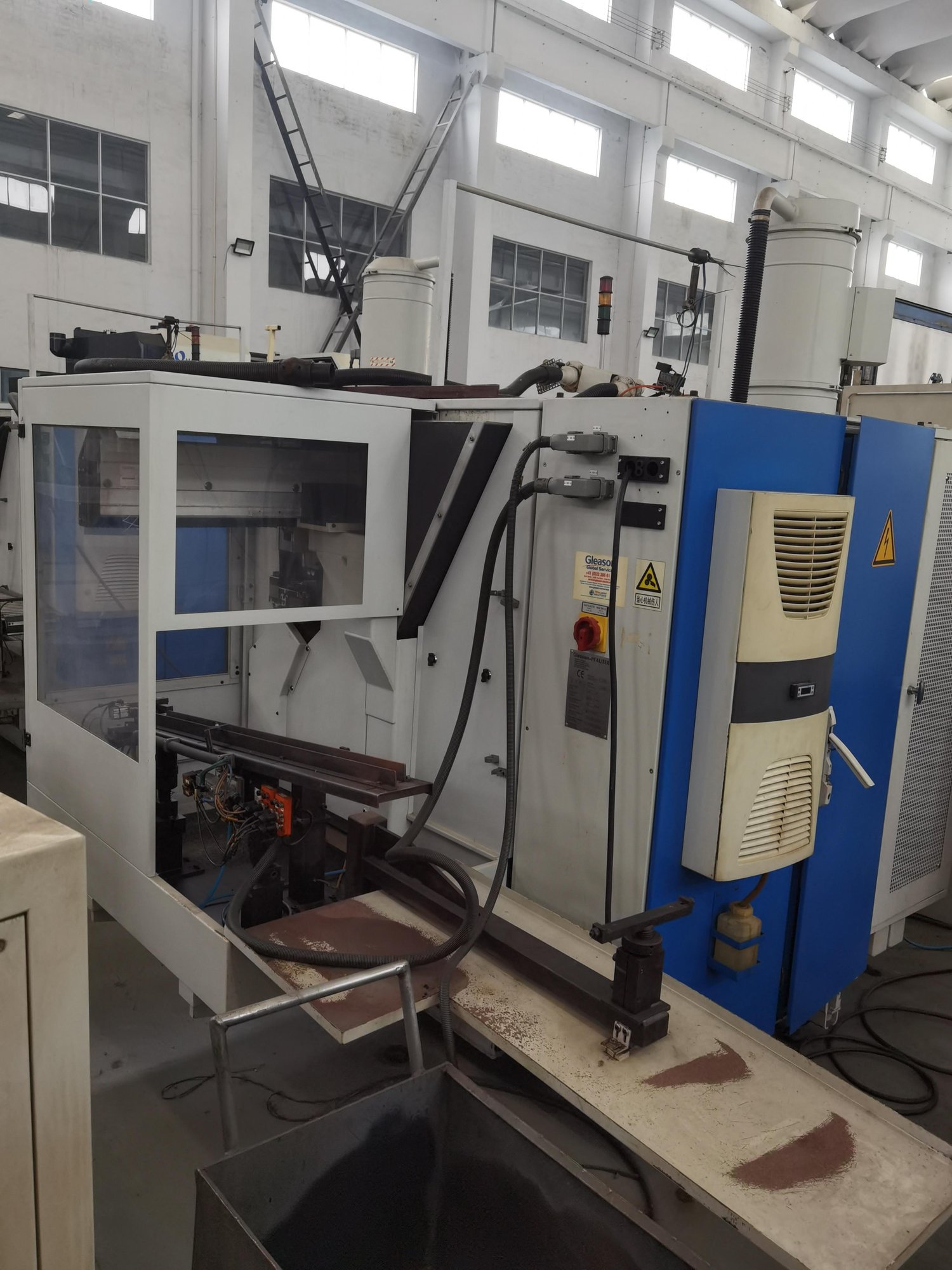

Grissom Pfart P 90 Hobbing machine

Part diameter :100 mm

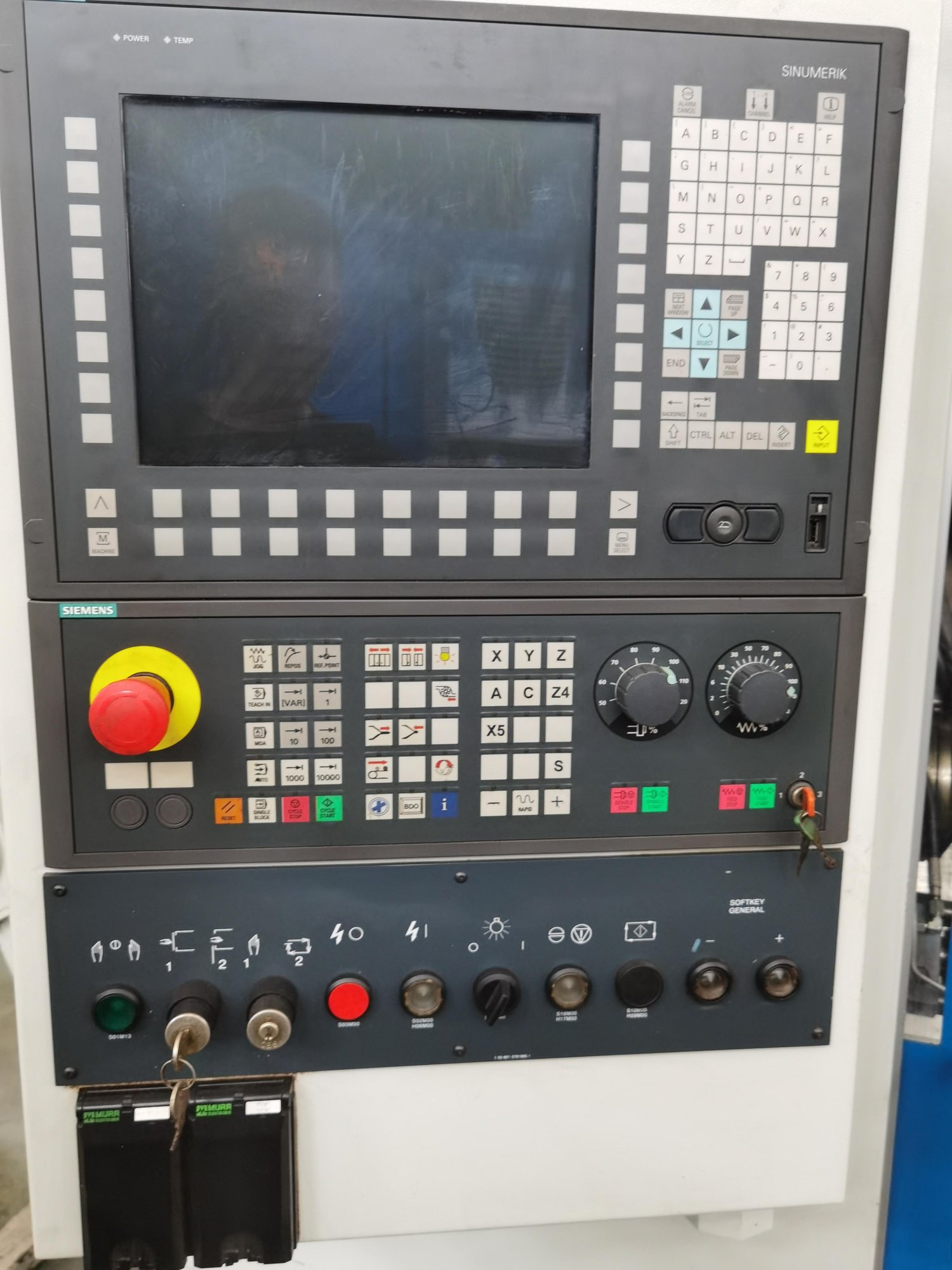

Controller :Siemens 840D

Nominal modulus hobbing: approximately 3.0mm

Non-shaft spiral milling: approximately 8.0mm

Maximum axial travel:320 mm

Tool head rotary angle:-45/+115°

Maximum spindle diameter: 118mm

Maximum spindle cutting length:180 mm

Maximum milling movement:160mm

Maximum parts rack spindle speed :3000rpm

Minimum/maximum spacing between spindles:10/100 mm

Tool head motor power :14 kw

Spindle speed :50-12000rpm

Weight :5000 kg

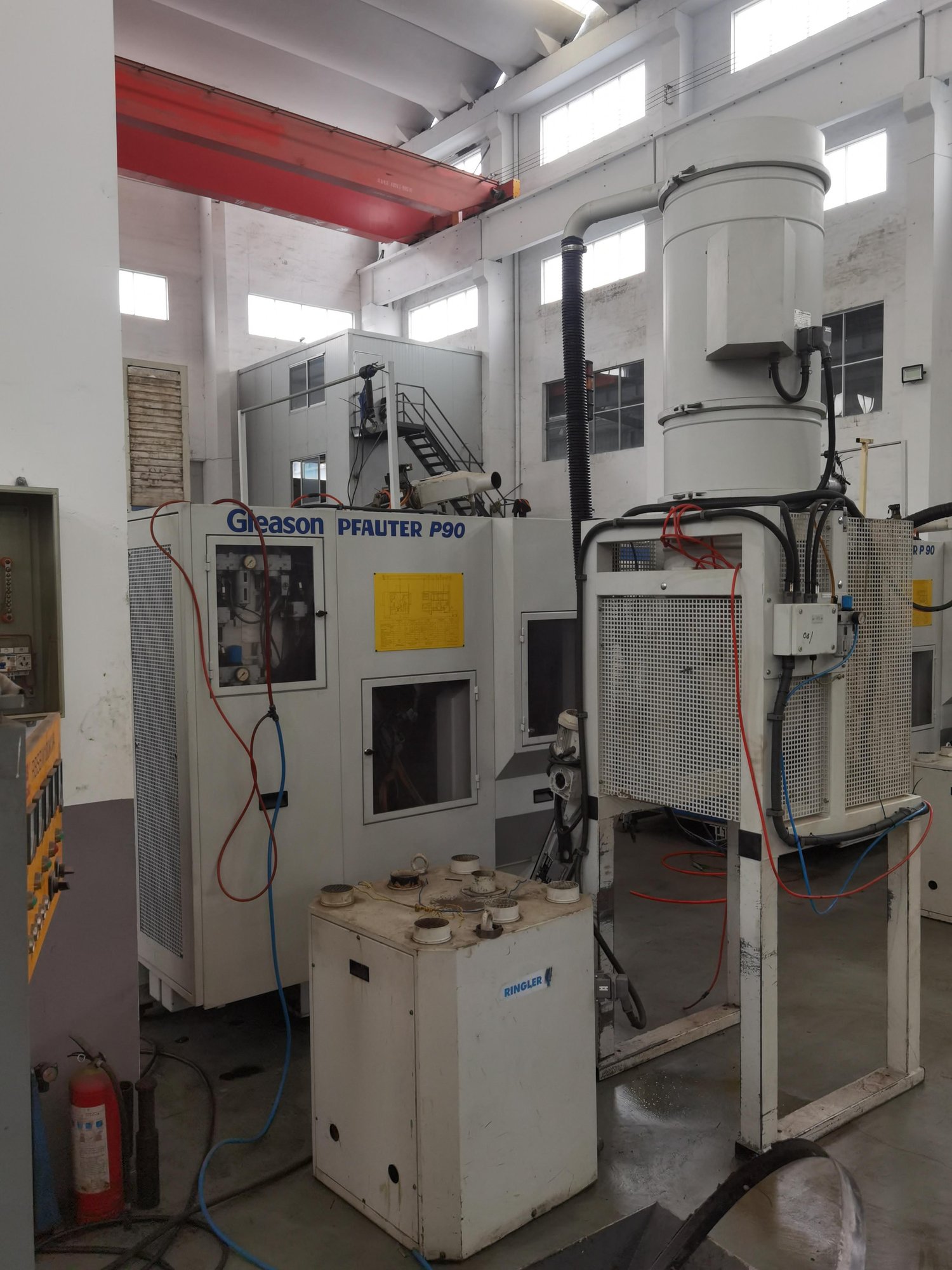

Coolant tank

Chip conveyor
