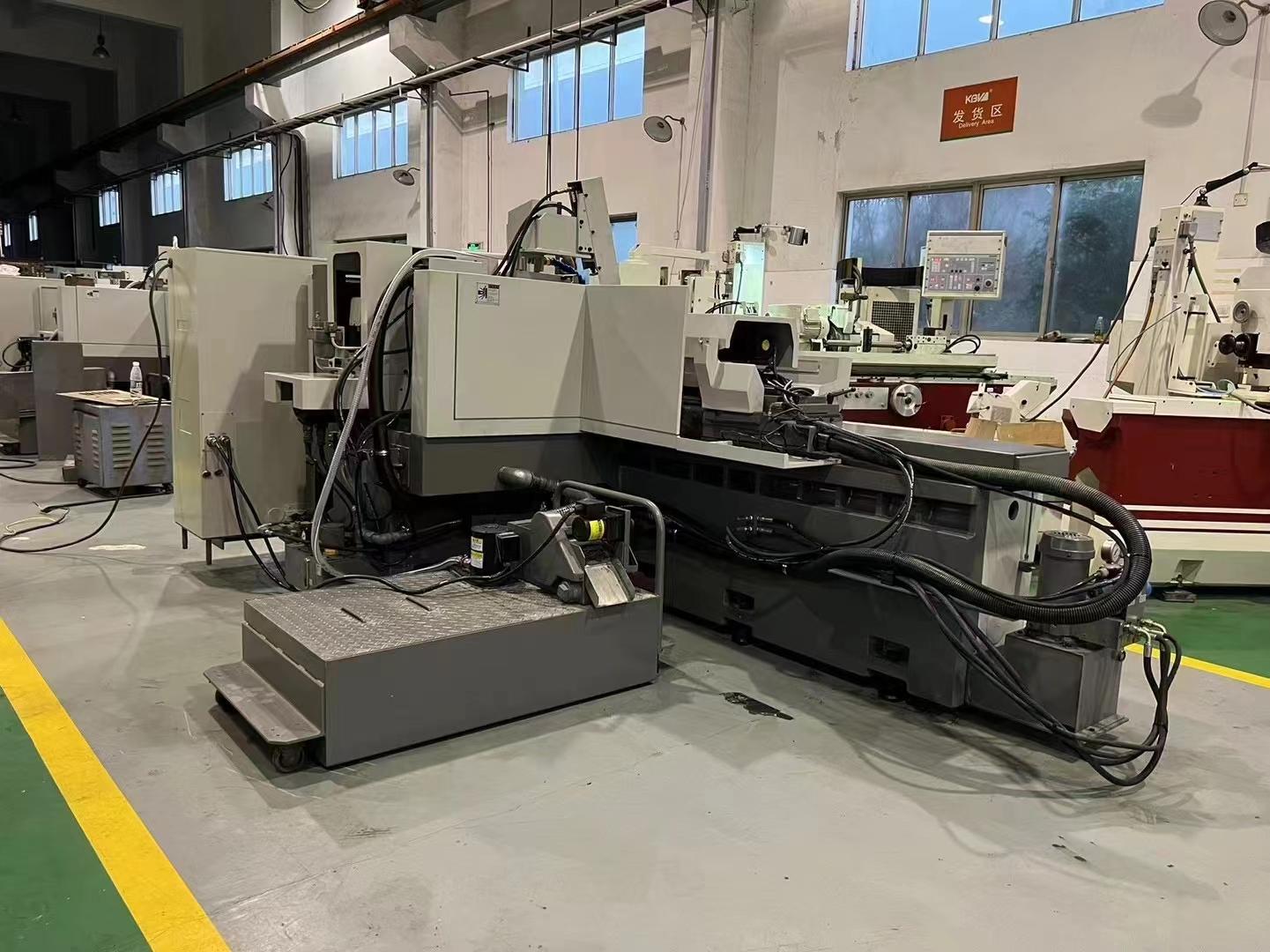

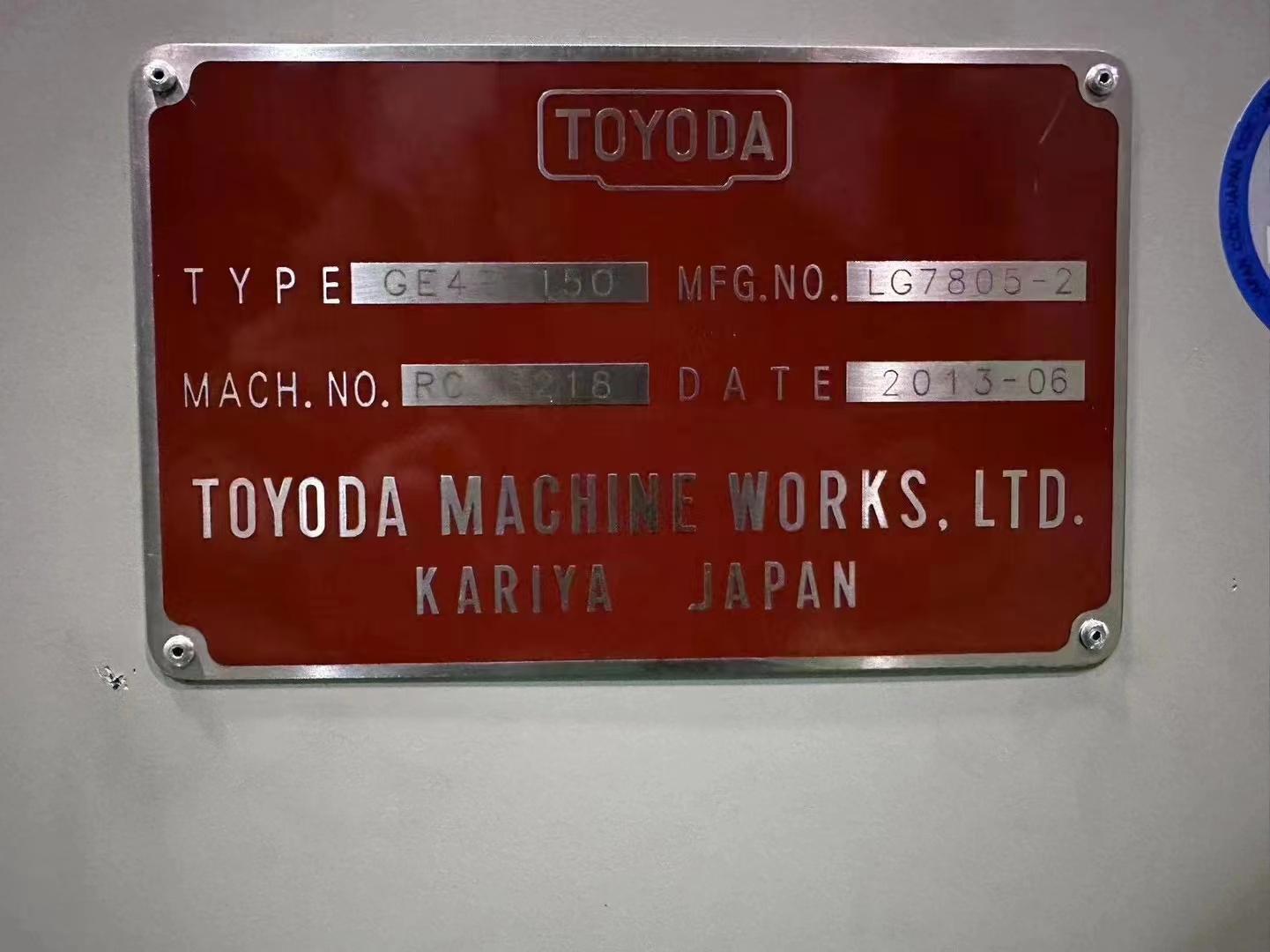

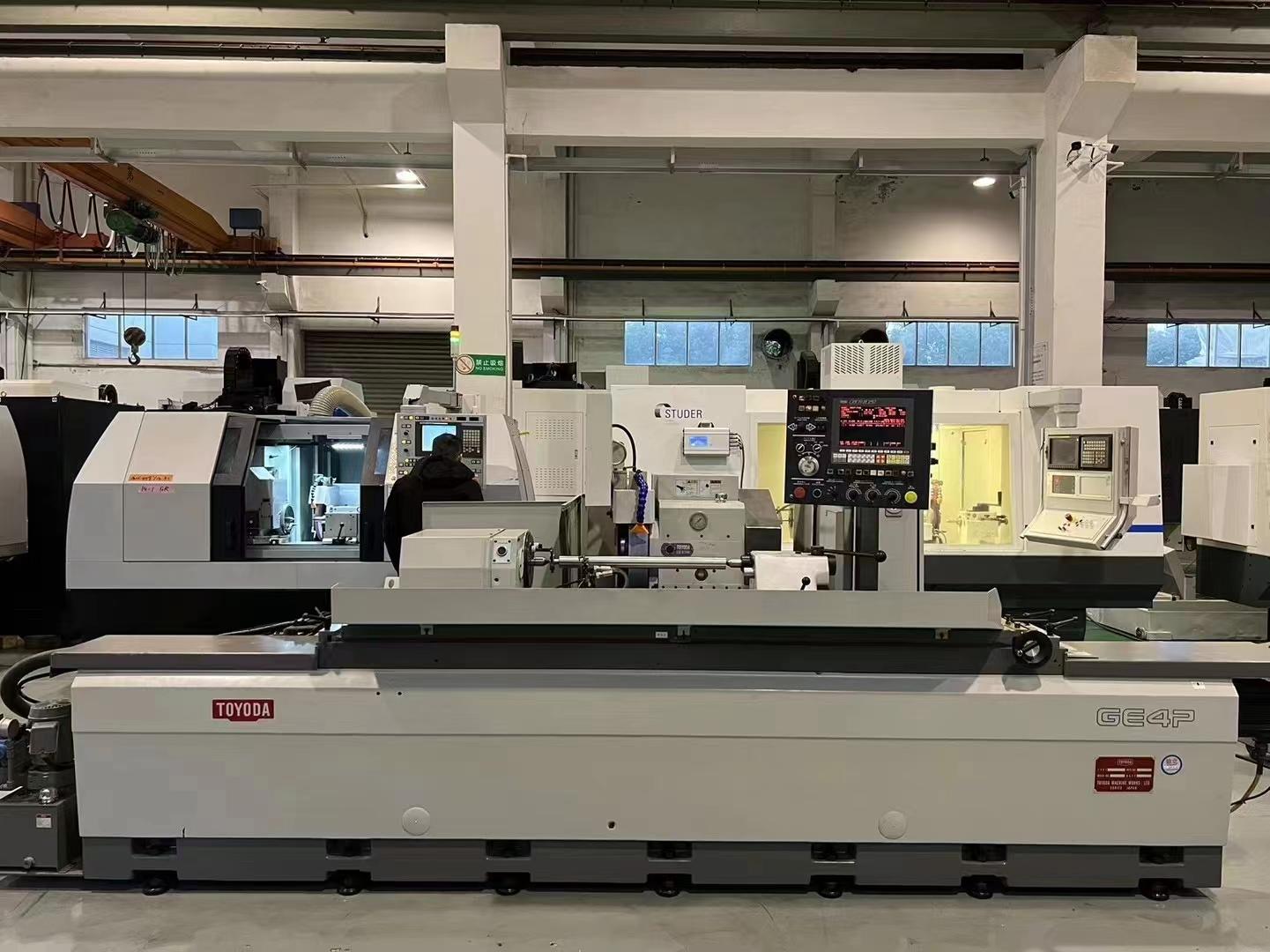

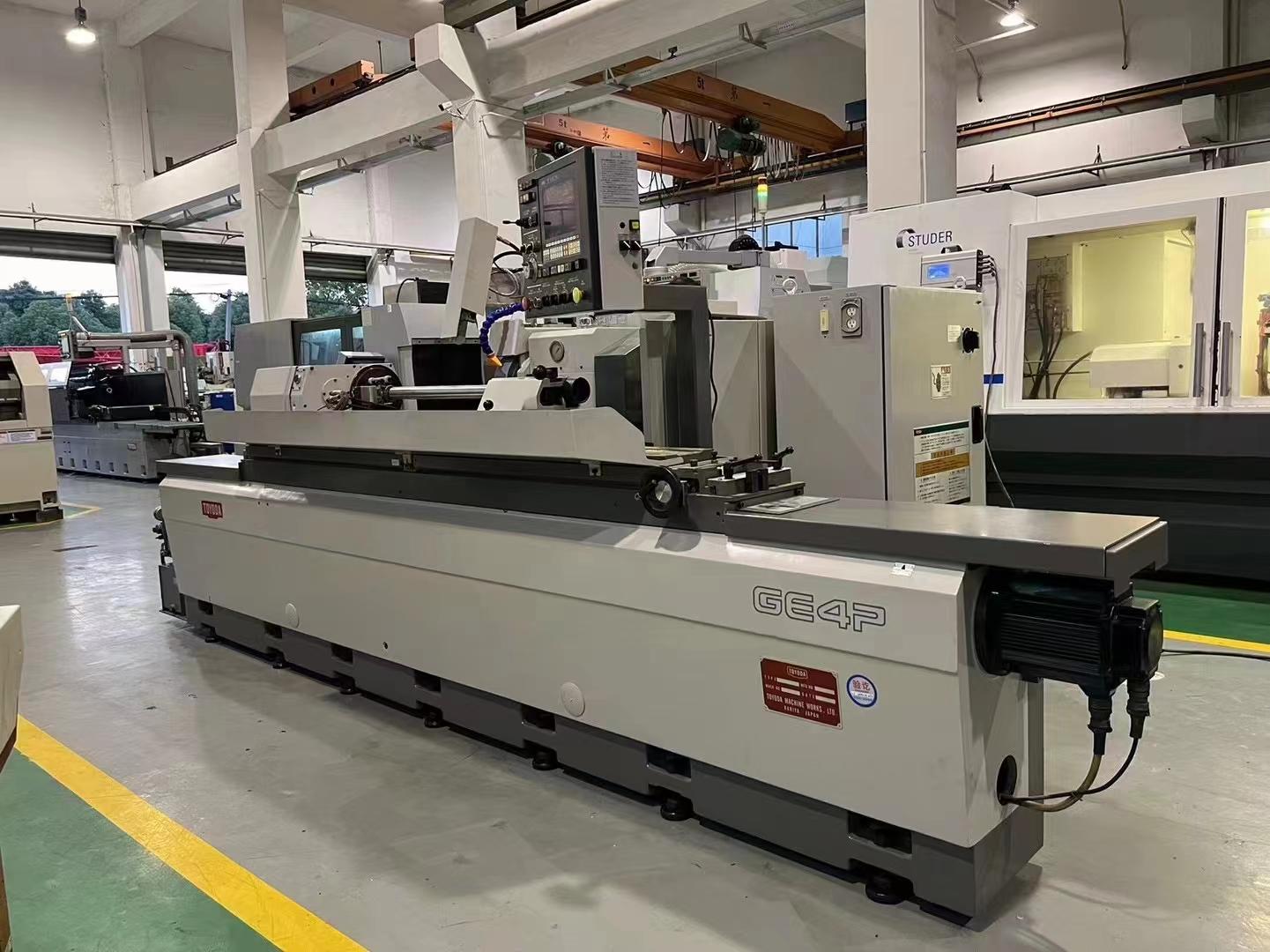

Toyoda machine GE4P-150 CNC Cylindrical grinder

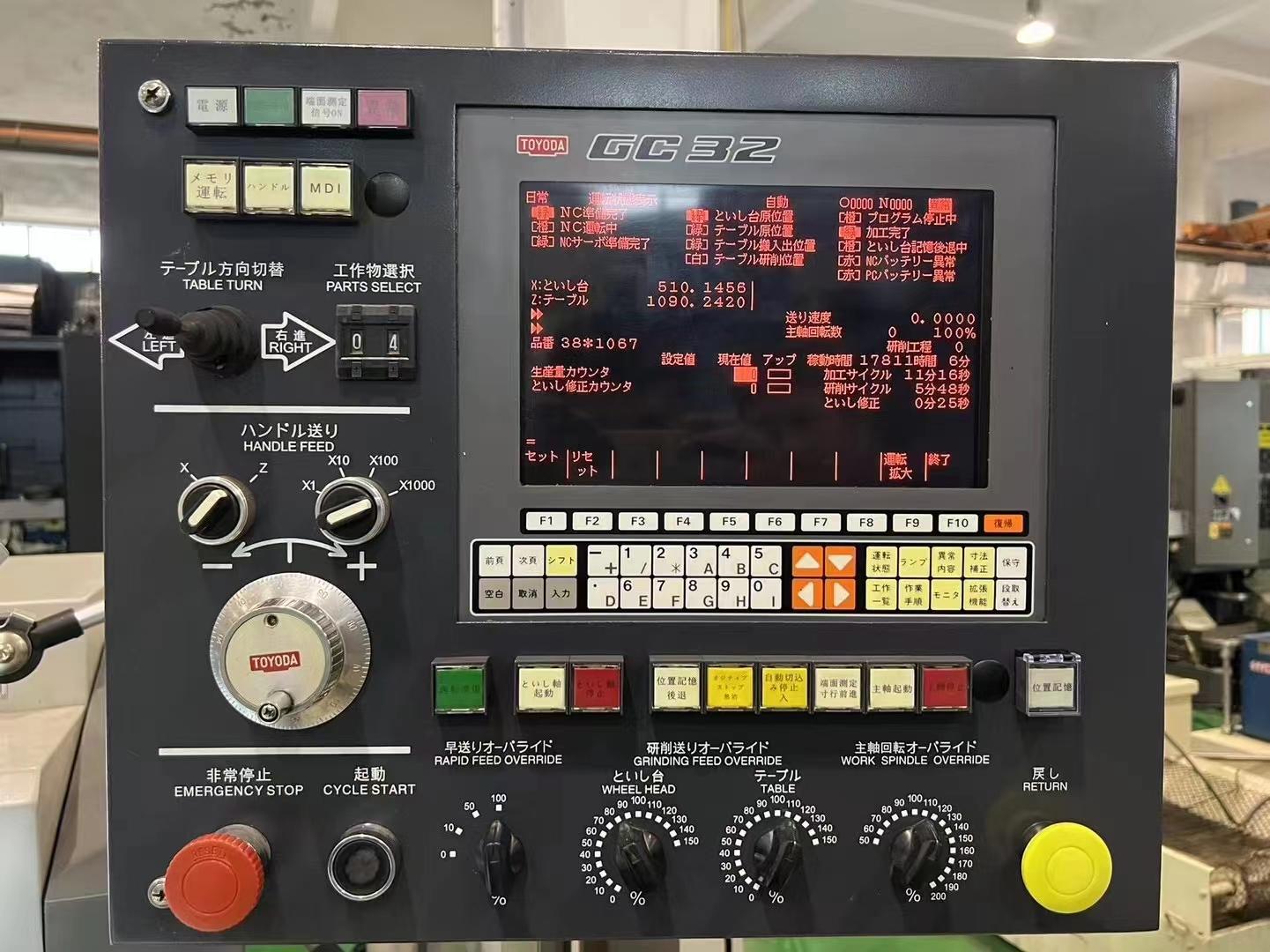

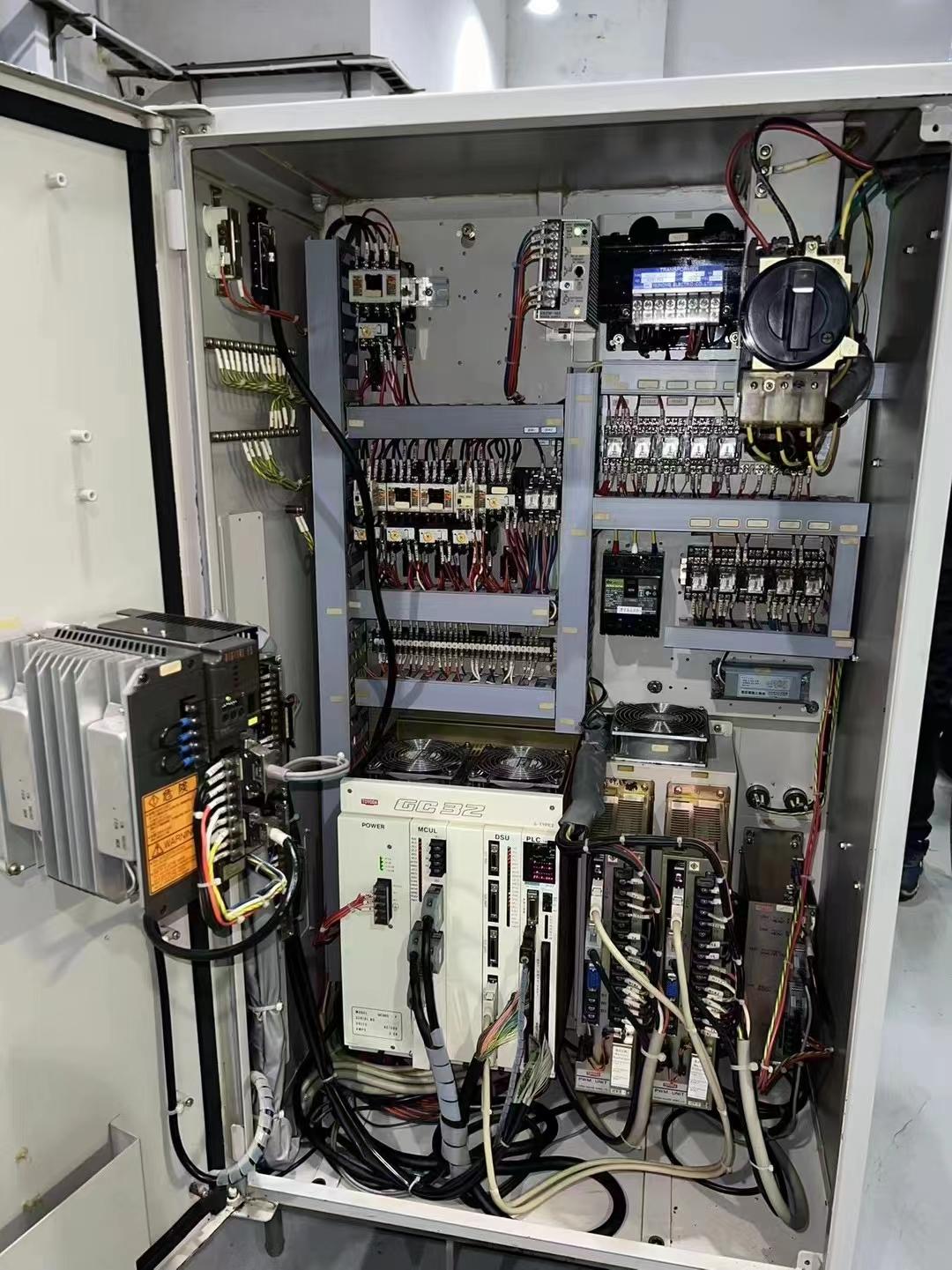

TOYODA GC32 CNC System

Center height :155mm

Distance between centers :1500mm

Grinding diameter :0 ~ 300mm

Maximum load between centers :150kg

Grinding wheel size :405 x 75 (maximum100) x 127*3 (50) mm

Speed :1550rpm

Circular speed :30m/s

Grinding wheel worktable travel:250mm

Fast feed rate :10m/min

Minimum setting unit (diameter) : 0.0001mm, not rotary

Worktable travel :1763mm

Fast feed rate :10m/s

Minimum setting unit :0.0001mm

Turning angle (counterclockwise - clockwise) :-30° ~ 90°

Workhead type:MT,No.4

Speed :10~500rpm

Turning angle :-30° ~ 90°

Tailstock :MT,No.4

Center thrust shaft travel:25mm

Floor footages:6010*1850mm

Weight :6000kg
