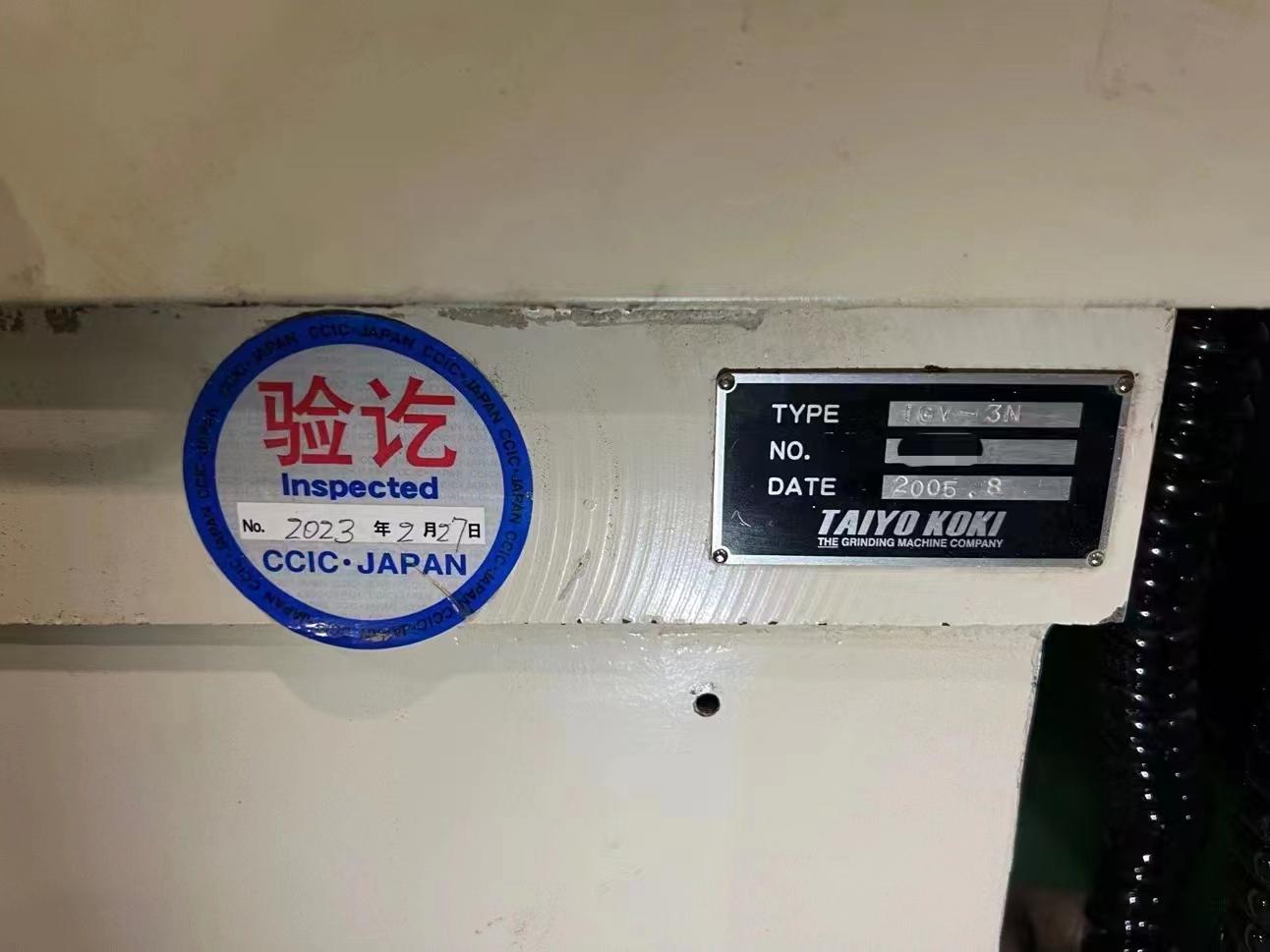

TAIYO KOKI IGV-3N Grinding machines

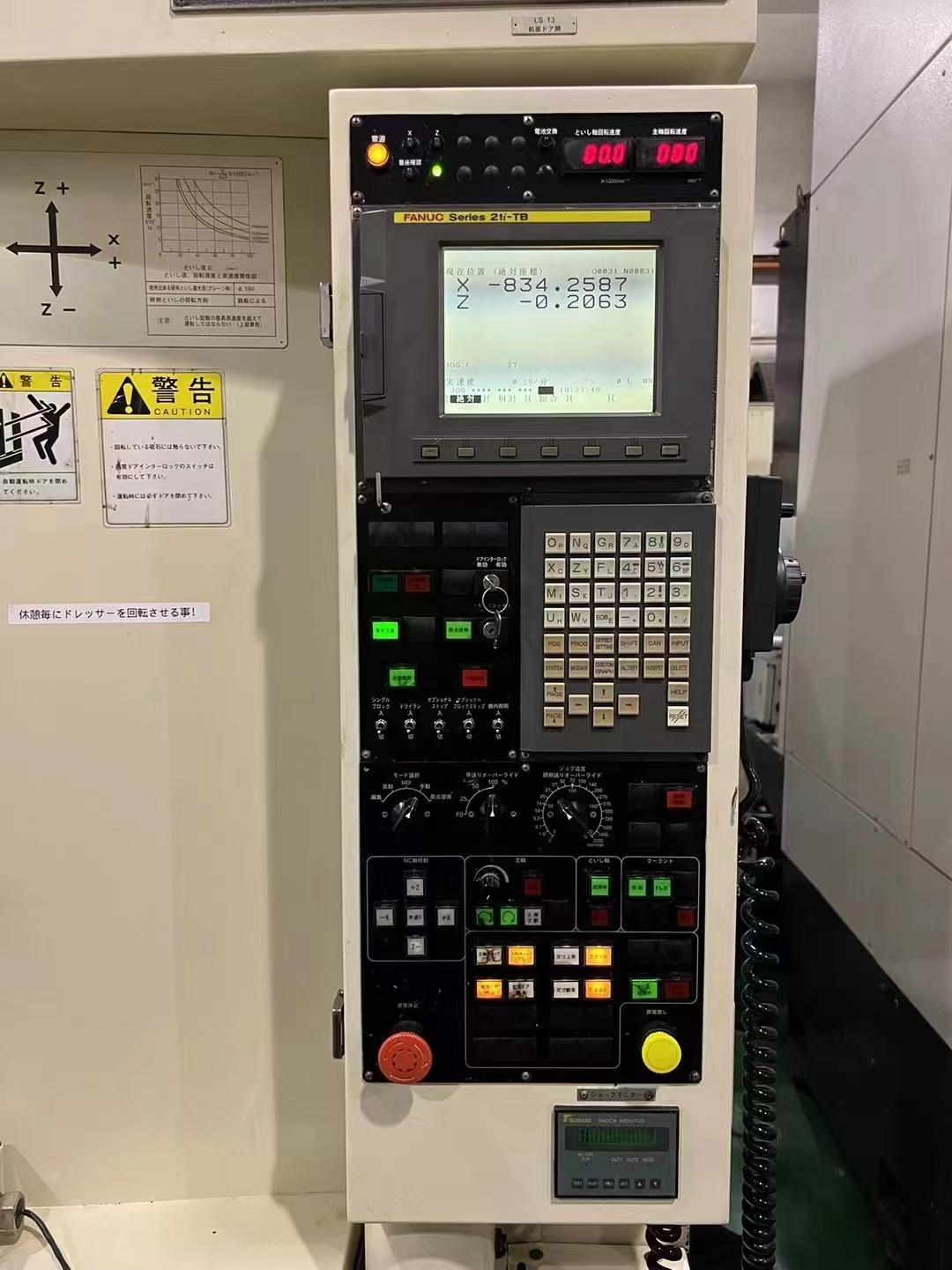

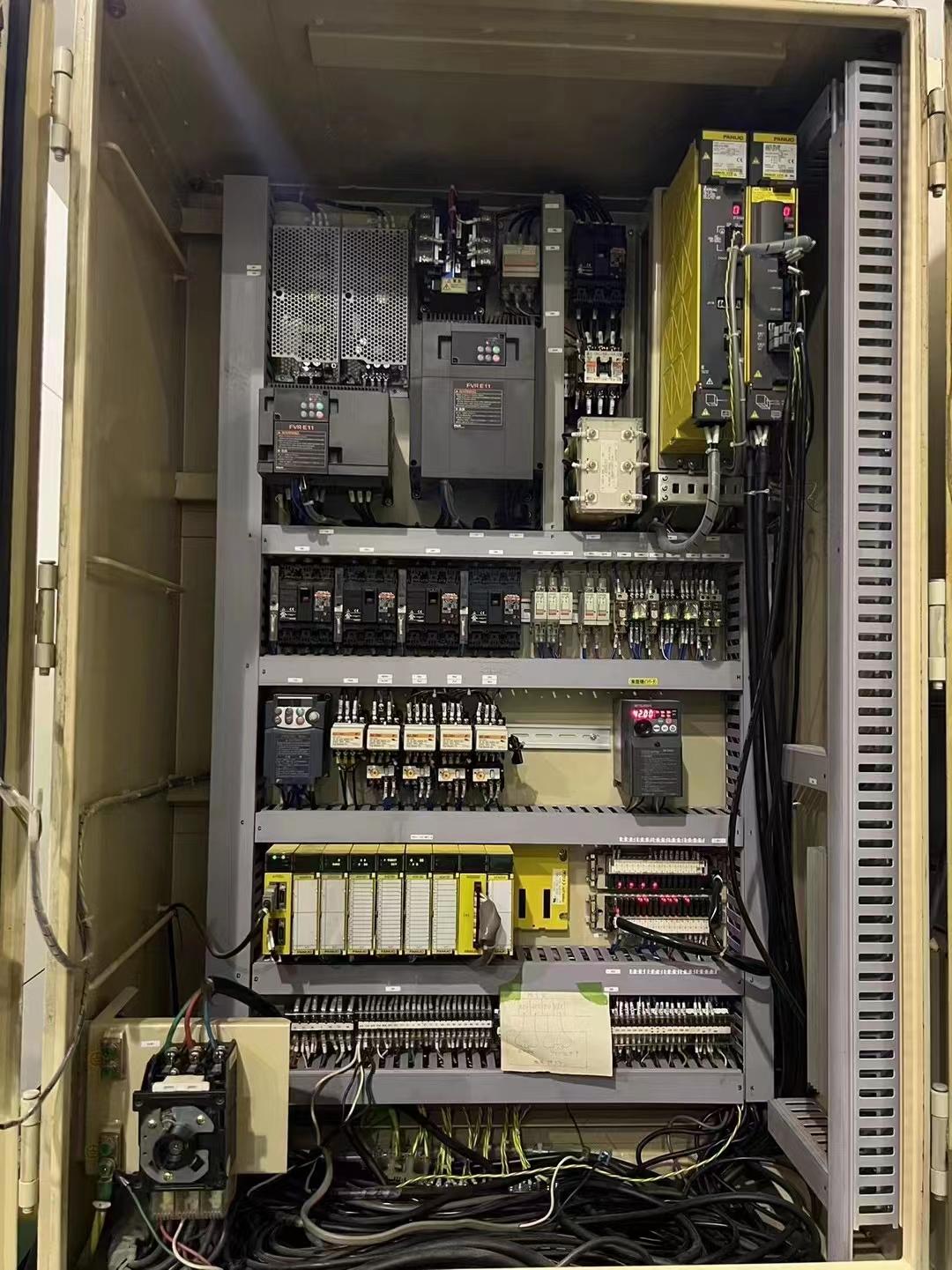

CNC System :FANUC 21i-TB

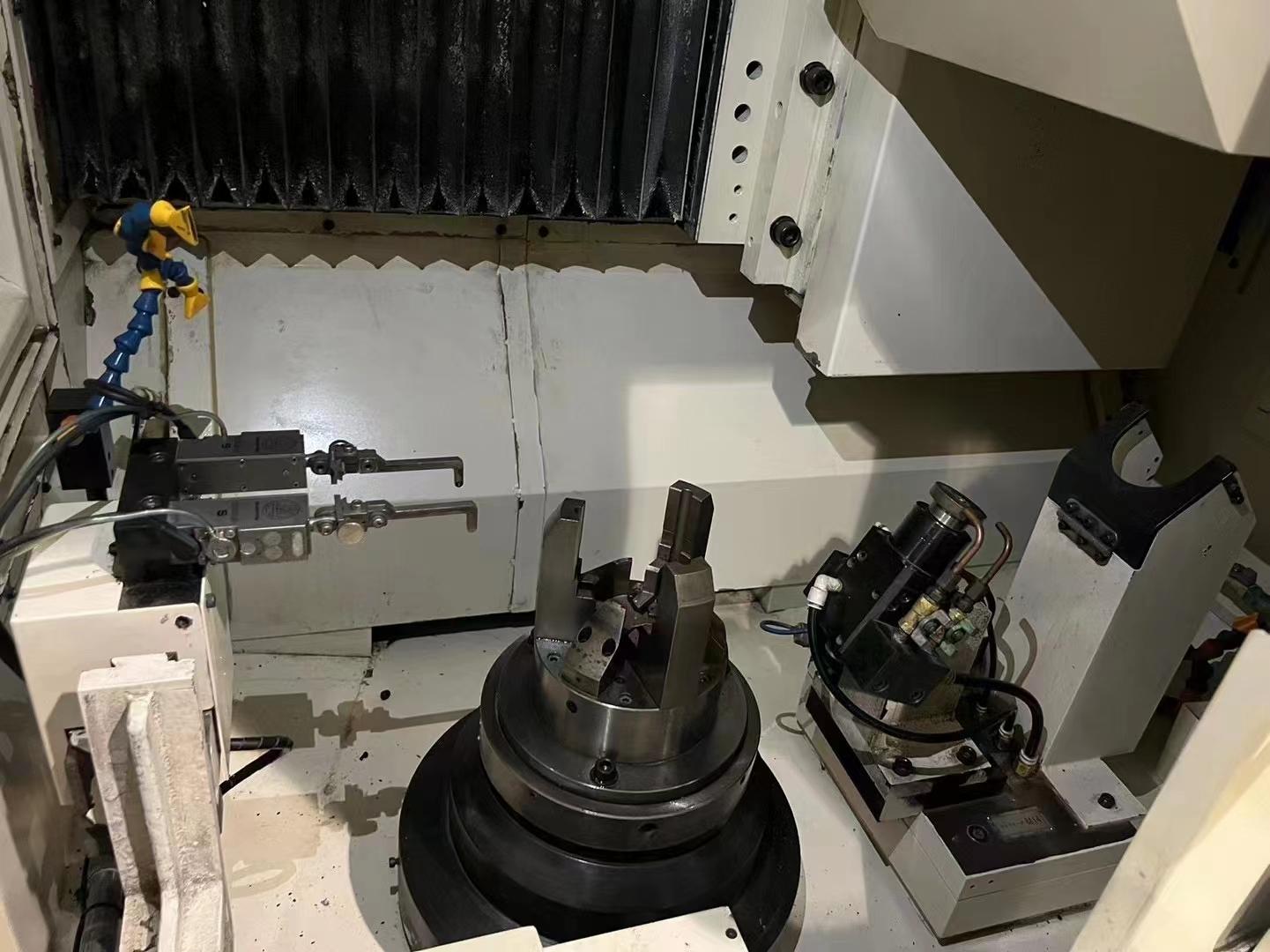

Grinding through hole :25 ~ 250mm

Grinding length :150mm

Grinding external diameter :320mm

Spindle swing diameter:380mm

Workpiece height :300mm (from spindle upper surface)

Worktable load:200kg (including fixture)

Internal grinding wheel shaft speed:18000rpm

Grinding wheel diameter:20～150mm

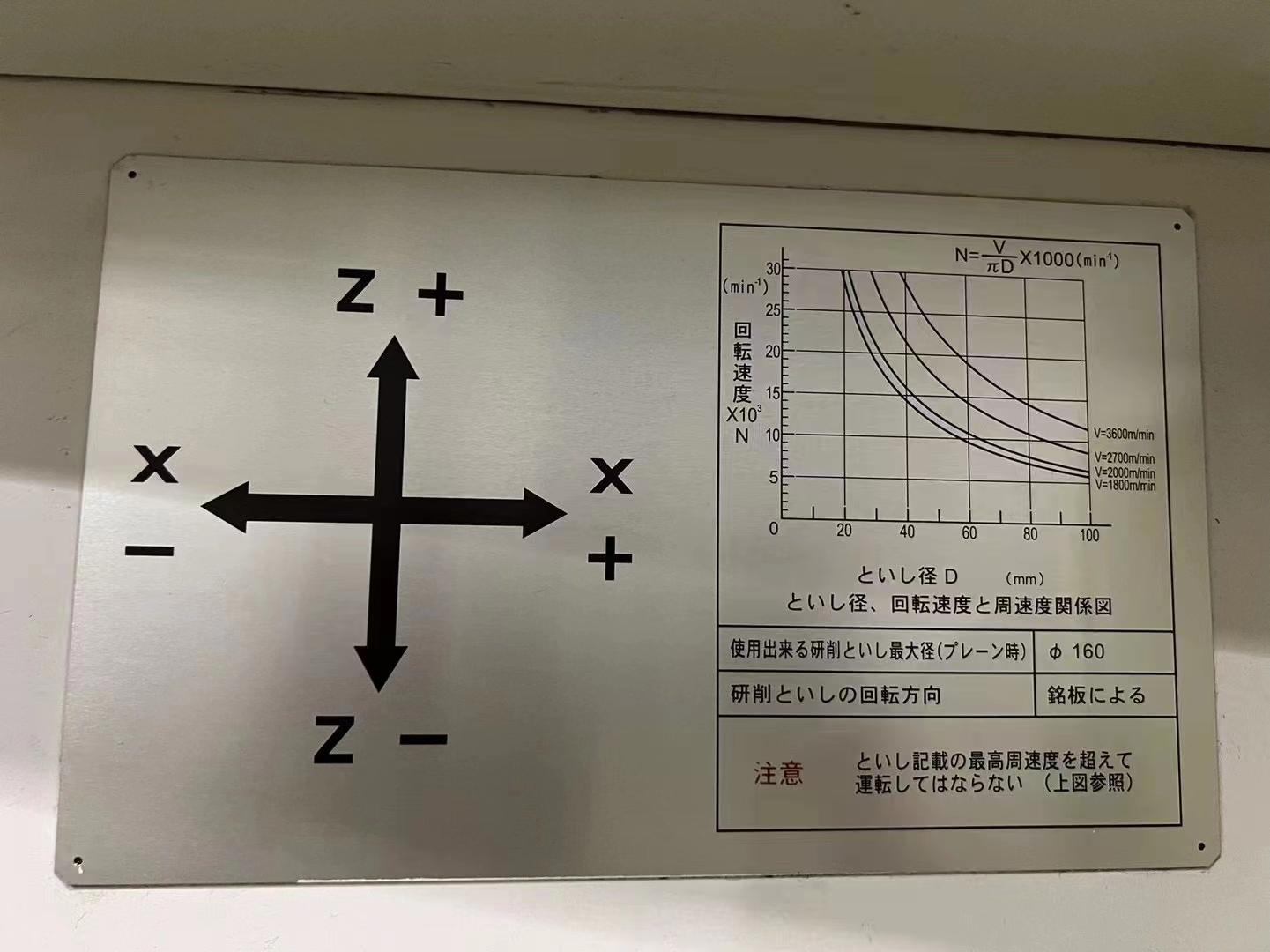

Maximum circumferential speed :2700m/min

Spindle speed :25 ~ 750min

X axis travel:500mm

Worktable speed :0 ~ 24000mm/min

Pulse remote control box rotation increment: 0.01/0.1/5.0mm

Pulse remote control box increment per scale: 0.0001/0.001/0.05mm

Minimum setting unit: 0.0001 (0.0002) mm

Z-axis travel: 325mm

Worktable speed: 0 ~ 24000mm/min

Pulse remote control box rotation increment: 0.01/0.1/5.0mm

Pulse remote control box increment per scale: 0.0001/0.001/0.05mm

Minimum setting unit :0.0001

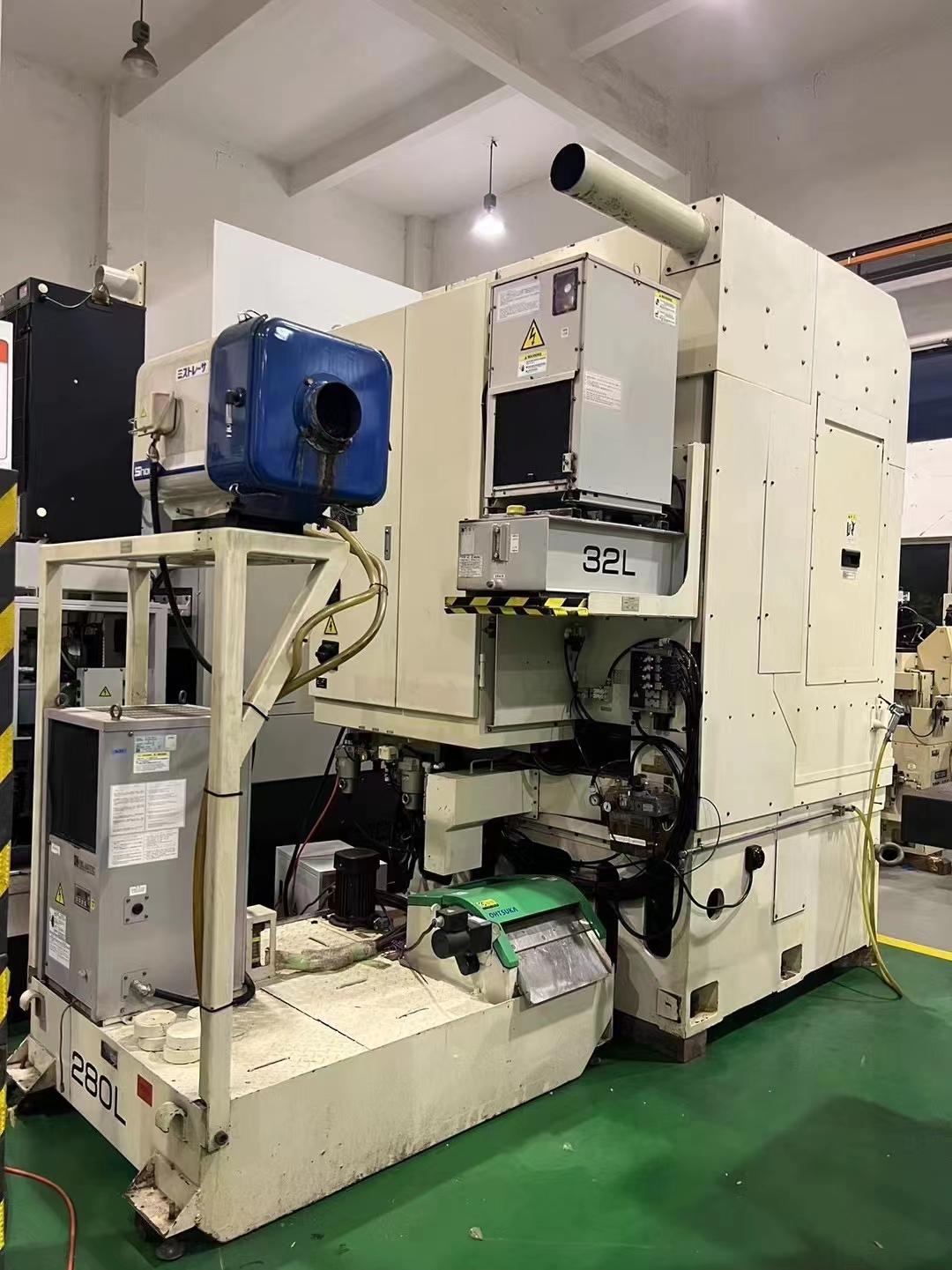

Water tank capacity (grinding liquid):280L

Spindle coolant tank:32L

Worktable height from ground to spindle nose :900mm

Dimensions:1400*3000*2650mm

Machine weight :4500Kg

Accessories:

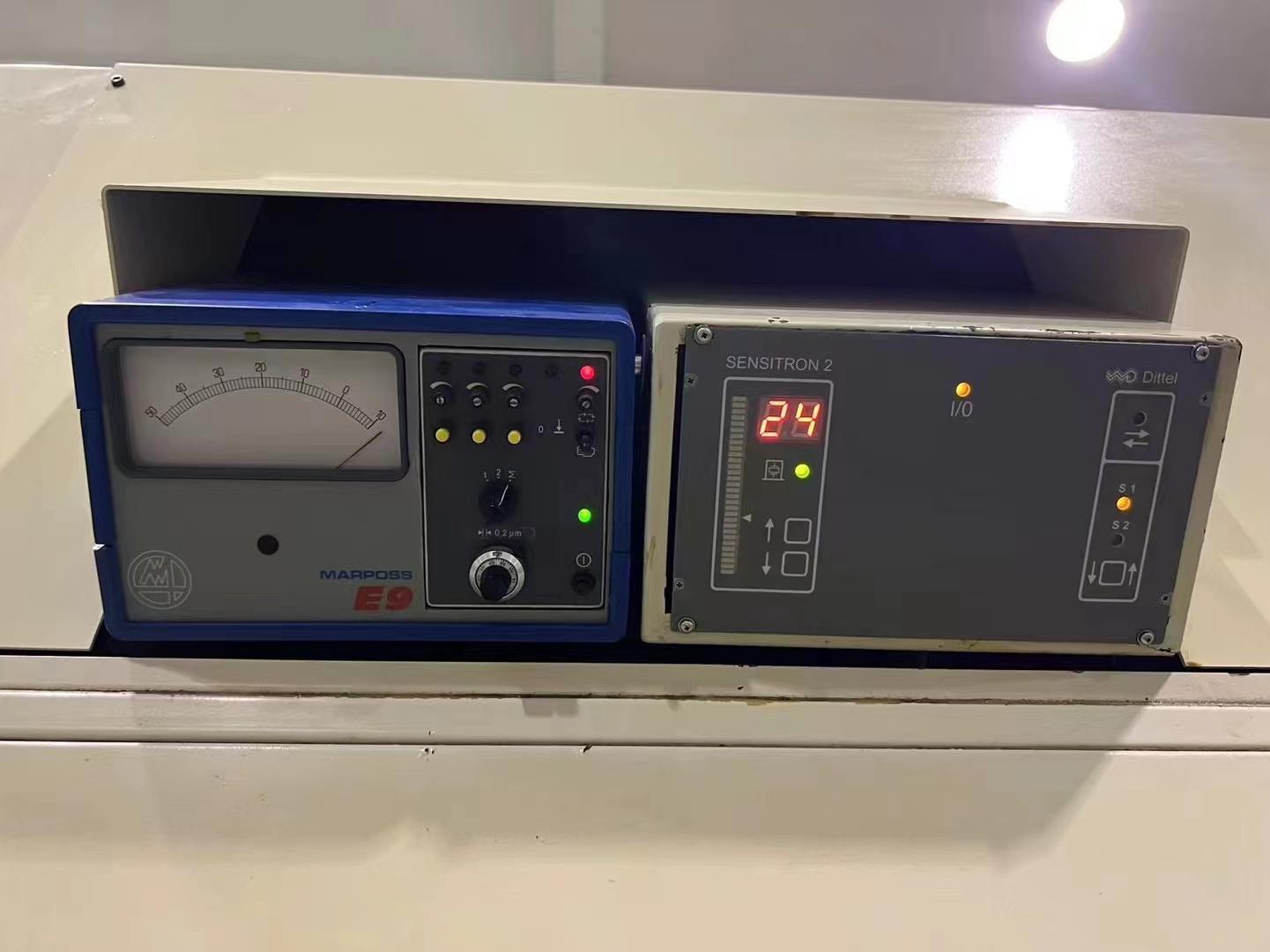

With Marposs external diameter measuring device,

Sensor control unit

Pneumatic door device

Spindle oil chiller

Rotary dresser

(Water chiller, water mist separator, oil mist separator)
