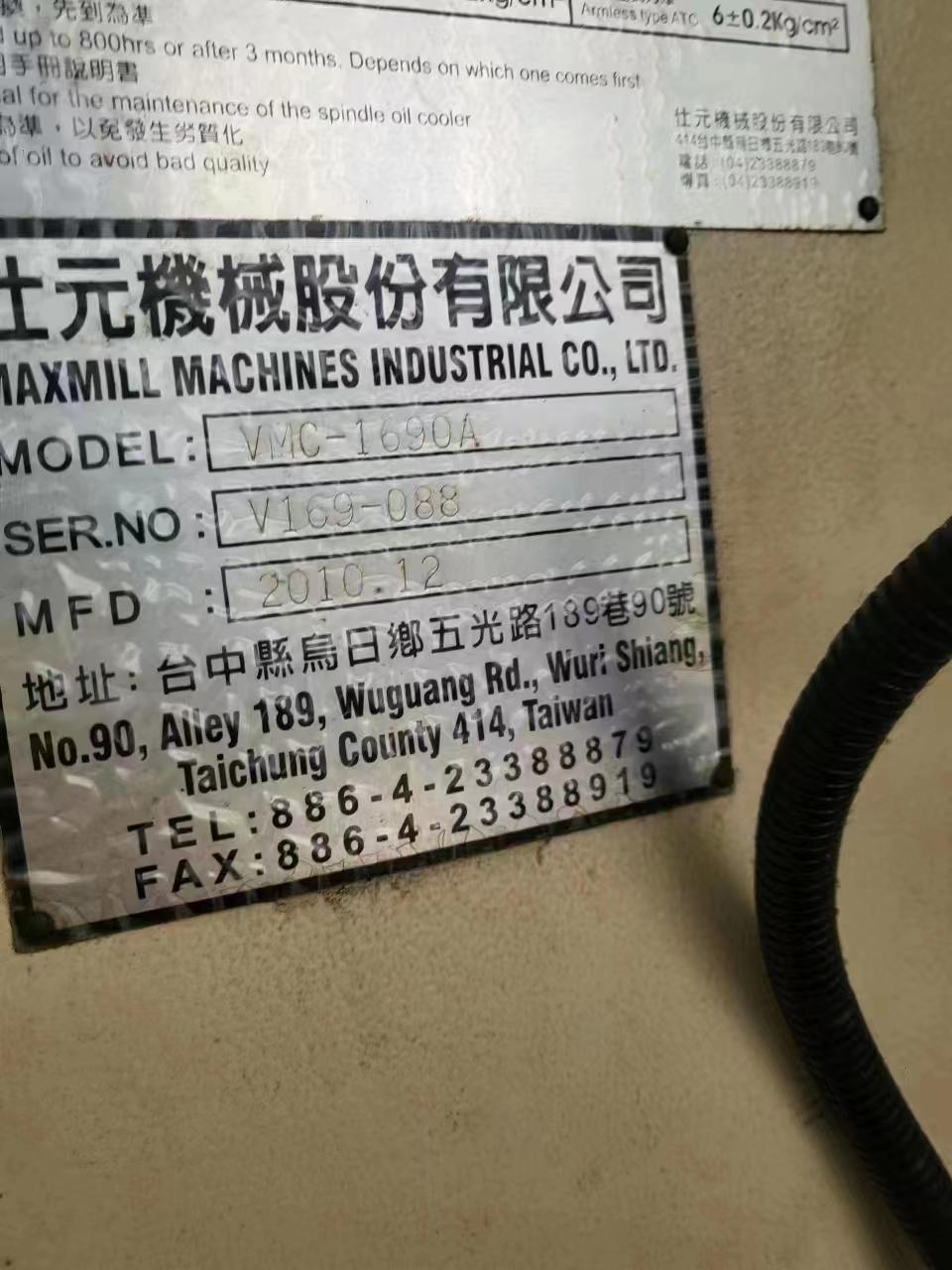

MAXMILL VMC-1690A Vertical Machining centre

Three axes travel: 1600x900x700mm

Distance from spindle nose to worktable: 200-900mm

Distance from spindle center to column: 990mm

Worktable size: 1900x850mm

Worktable load: 2000kg

T-slot: 5x22x150mm

Spindle speed: 6000rpm

Motor power:：15kw

Machine weight: 12800kg

Dimensions: 4030x3530x3280mm

CNC System: Mitsubishi M70

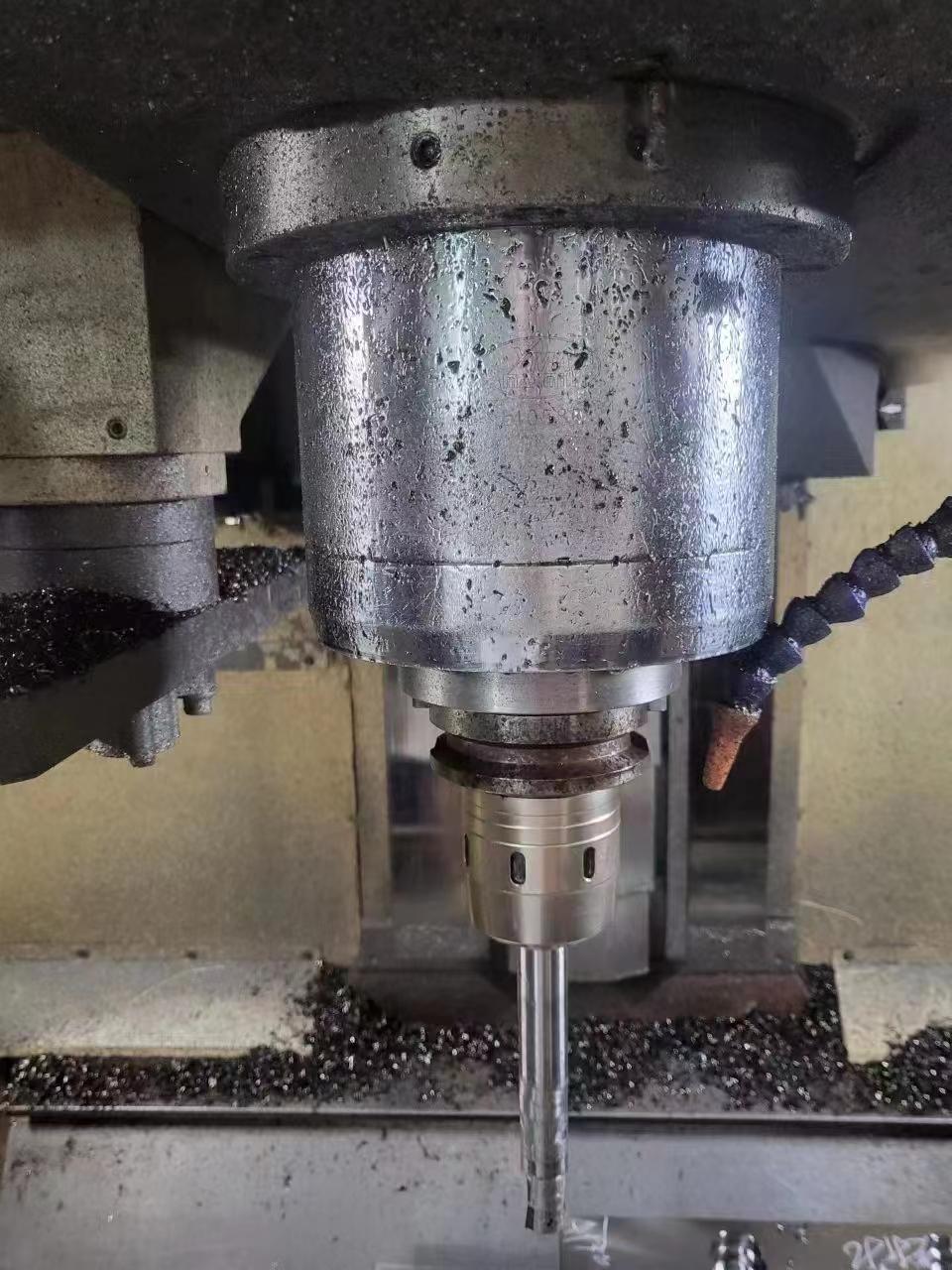

BT50 Spindle

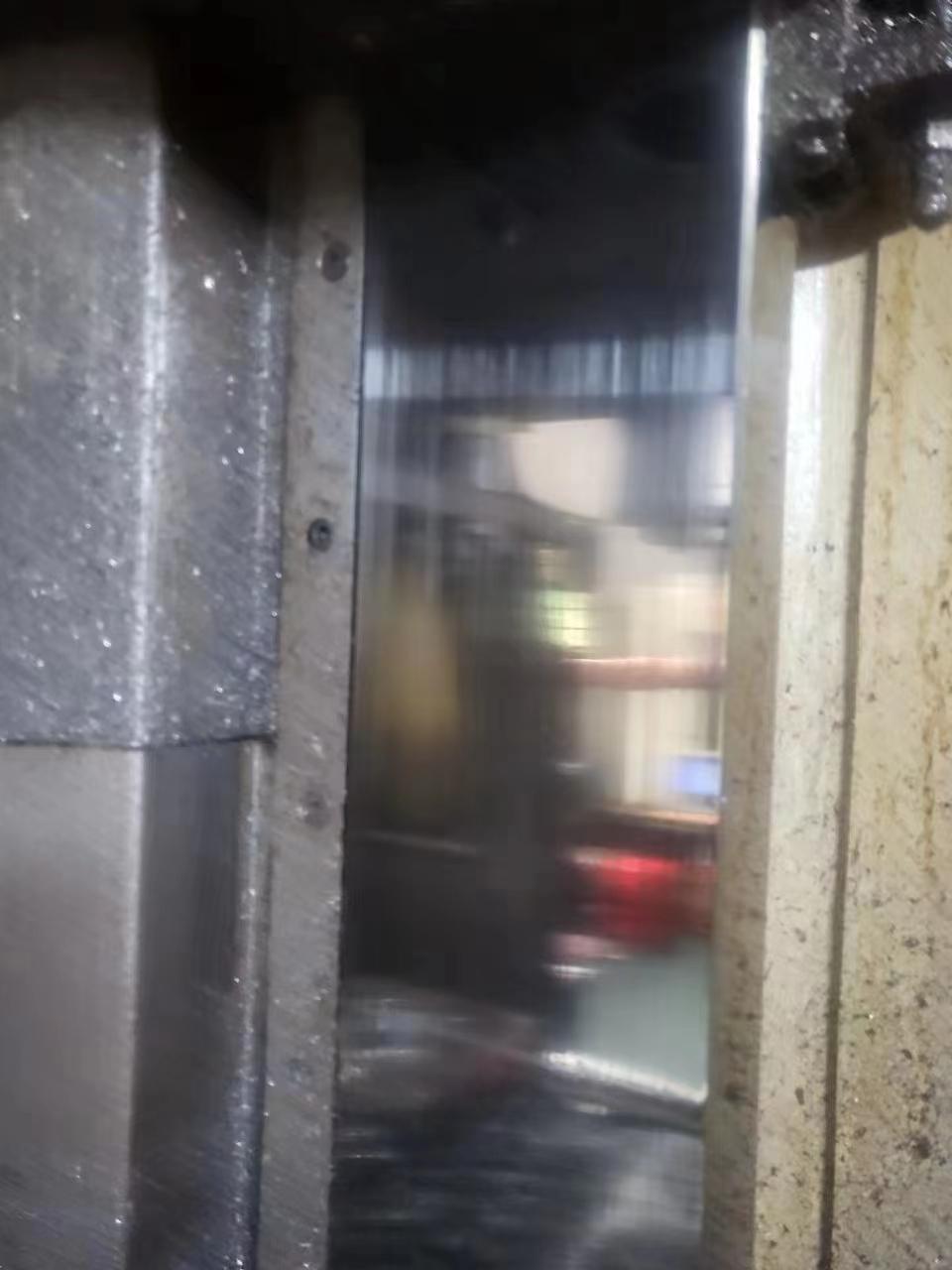

Three axes rigid guideway
