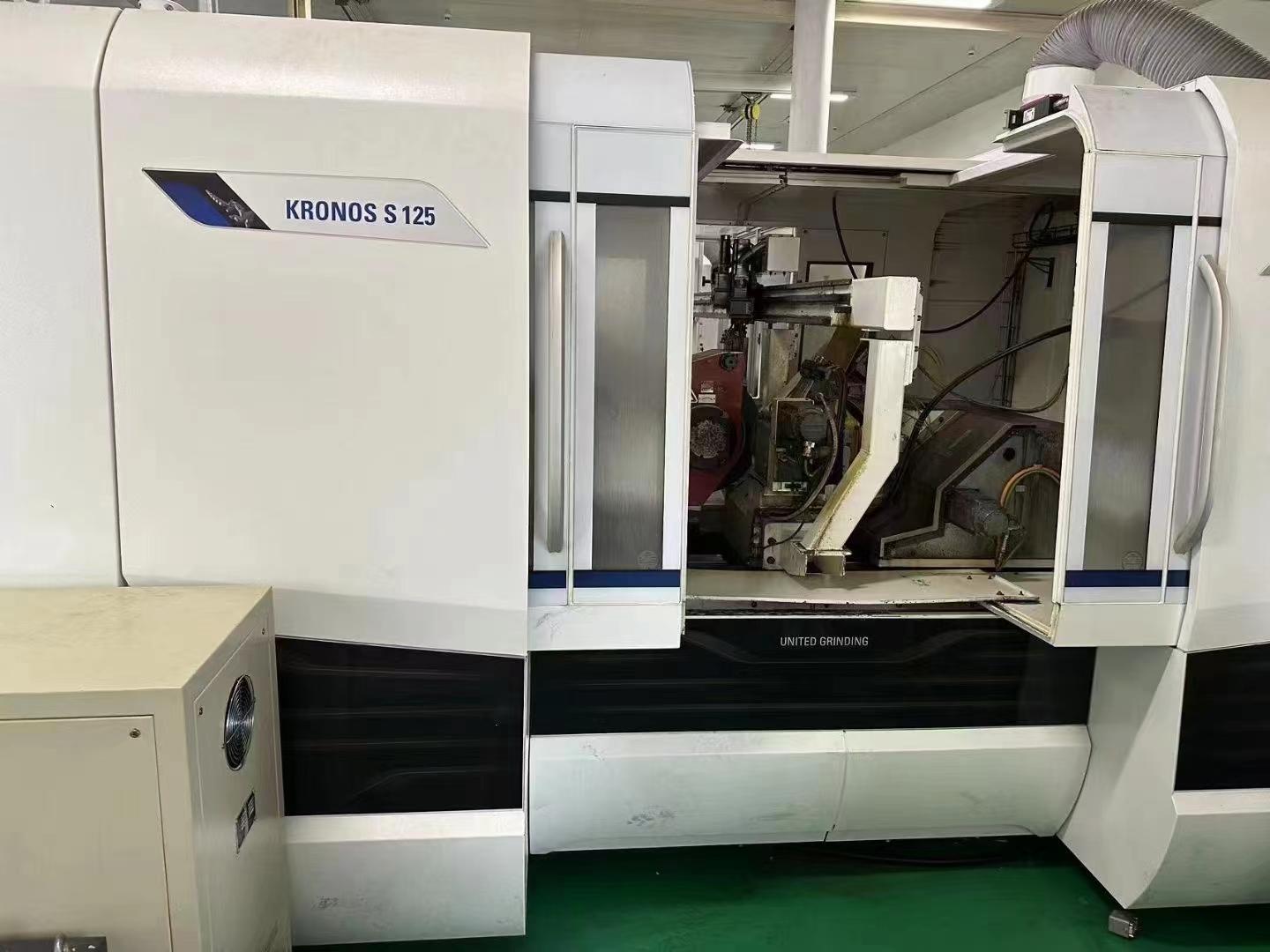

Mikrosa KRONOS S 125 Centreless grinding machine
[Product Information]:
- Inventory number：90583
- Brand：Mikrosa
- Model：KRONOS S 125
- Origin：Germany
- Location：China
- Year：2015
- Create Time：2023-09-16
Specifications:
Grinding range
Workpiece diameter: 0.5~30mm
Workpiece length（maximum for infeed grinding）: 120mm
Grinding wheel
Maximum diameter: 400mm
Maximum width:125
Bore: 203mm
Peripheral speed: 63m/s
Peripheral speed CBN (option available): 120m/s
Drive power: 11/15KW
Regulating wheel
Maximum diameter: 250mm
Maximum width:125mm
Bore: 127mm
Speed range, infinitely variable: 5~500rpm
Dressing speed: 1000rpm
Drive power: 5kw
Dimensions
Overall footage(include control cabinet):6500x4600mm
Maximum height: 2232mm
Machine weight:7.2t
