Okuma MILLAC1000VH Horizontal Machining centre

CNC System :FANUC 31i-A5

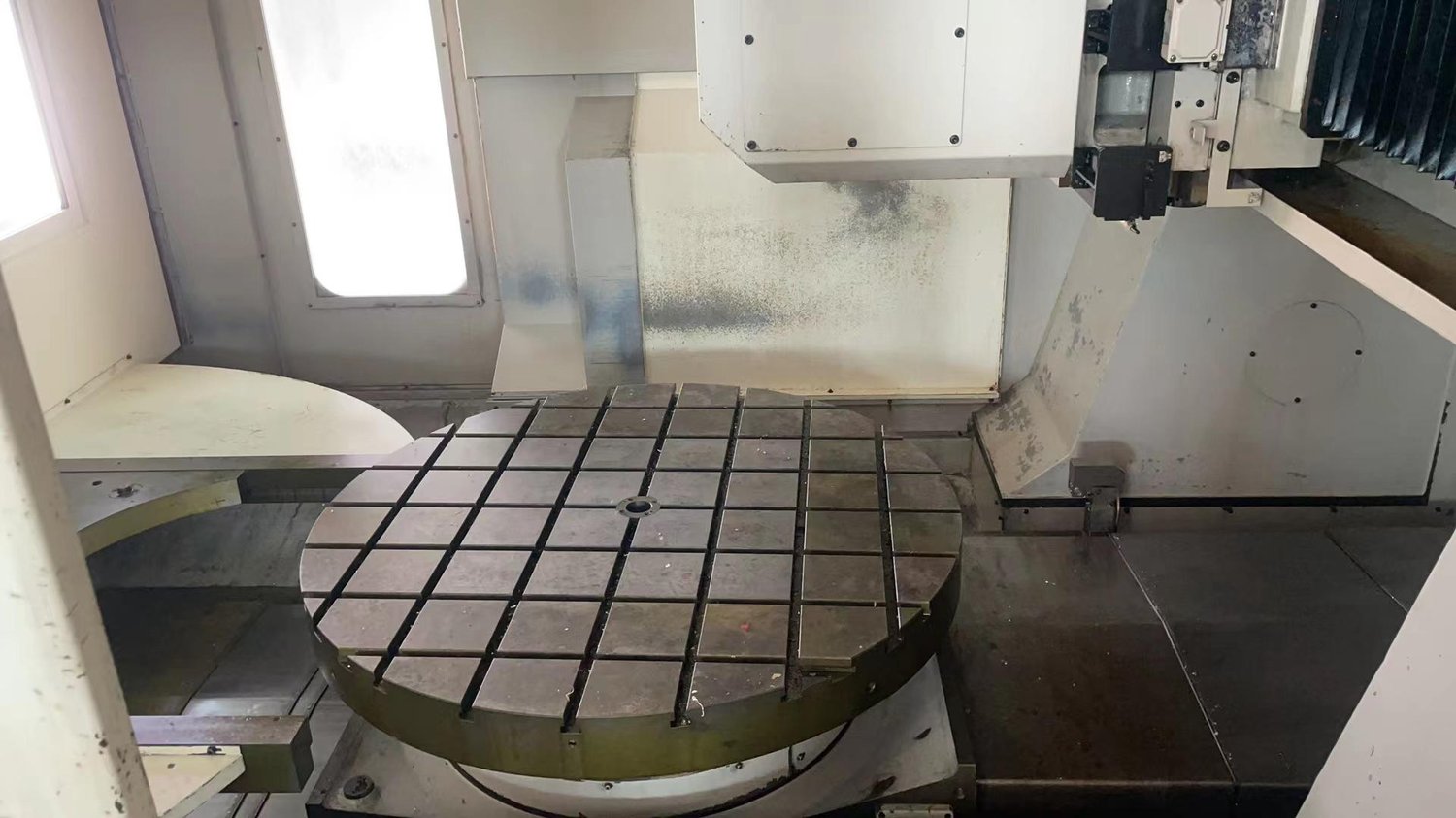

Worktable diameter :1250mm

Load :2000kg

X*Y*Z travel: 1650*1300*1000mm

Vertical distance from worktable to spindle :100 ~ 900mm

Distance between spindle center and worktable surface(parallel to spindle) :150 ~ 1150mm

Indexing resolution: 5 °,0.001°

Spindle speed :100~10000rpm

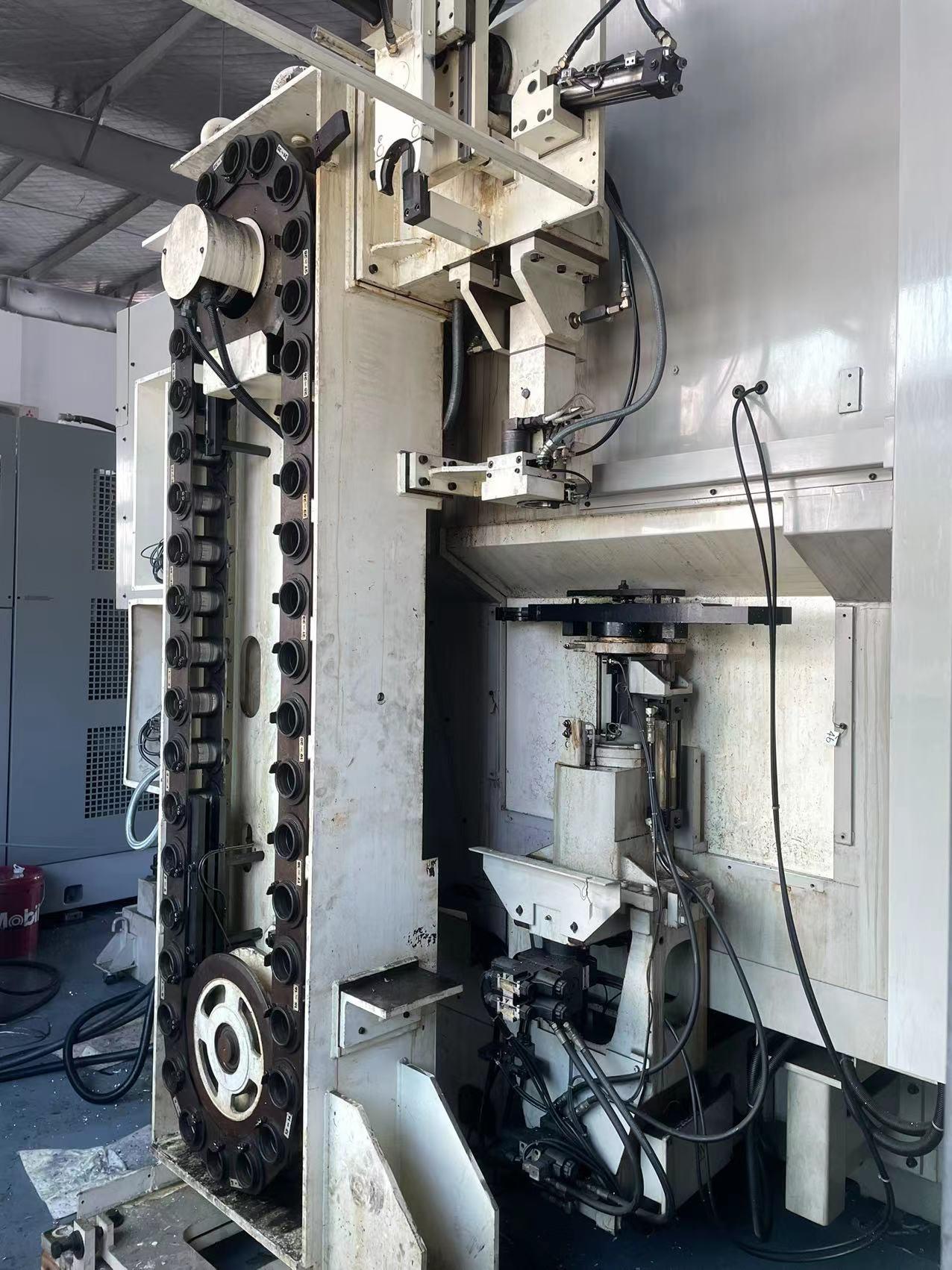

ATC: 40

BT50

Spindle motor: 22/18.5KW

Gantry width :1250 mm

Machine height :4154mm

Machine features:

Horizontal

Bevel machining

Vertical machining in arbitrary angle

AI profile II

5 axes simultaneous movement
