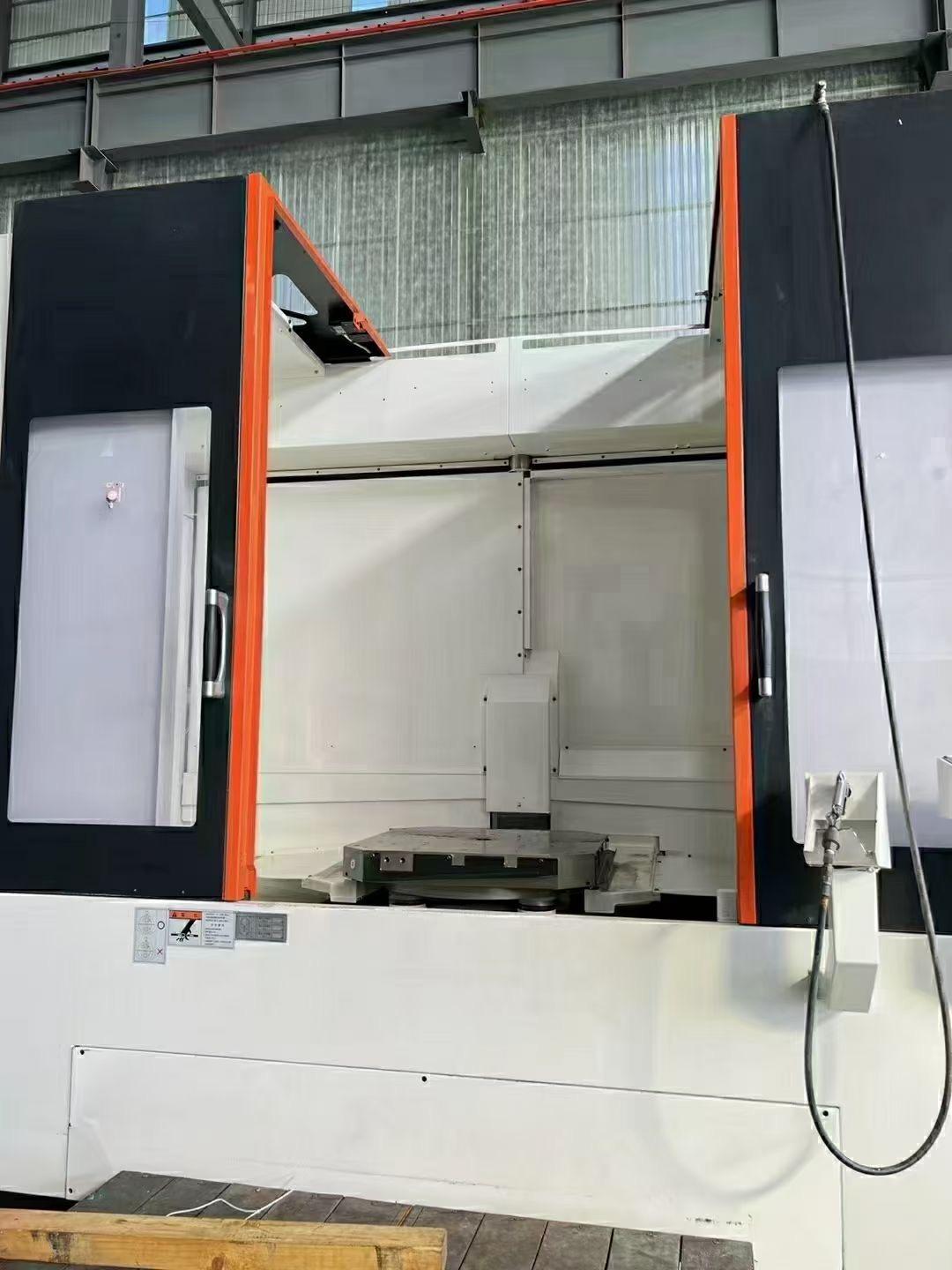

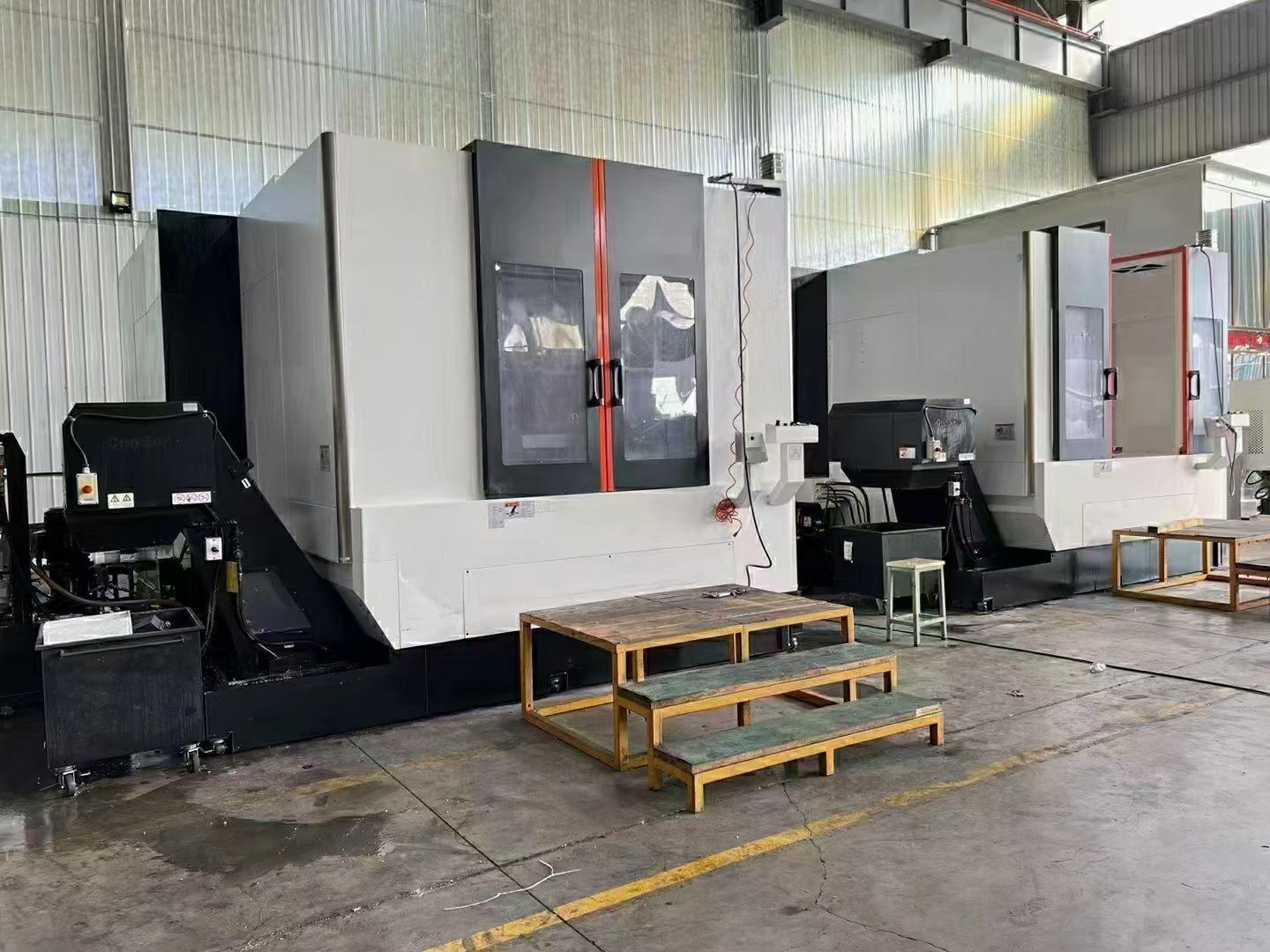

Mazak HCN8800-II Horizontal Machining centre

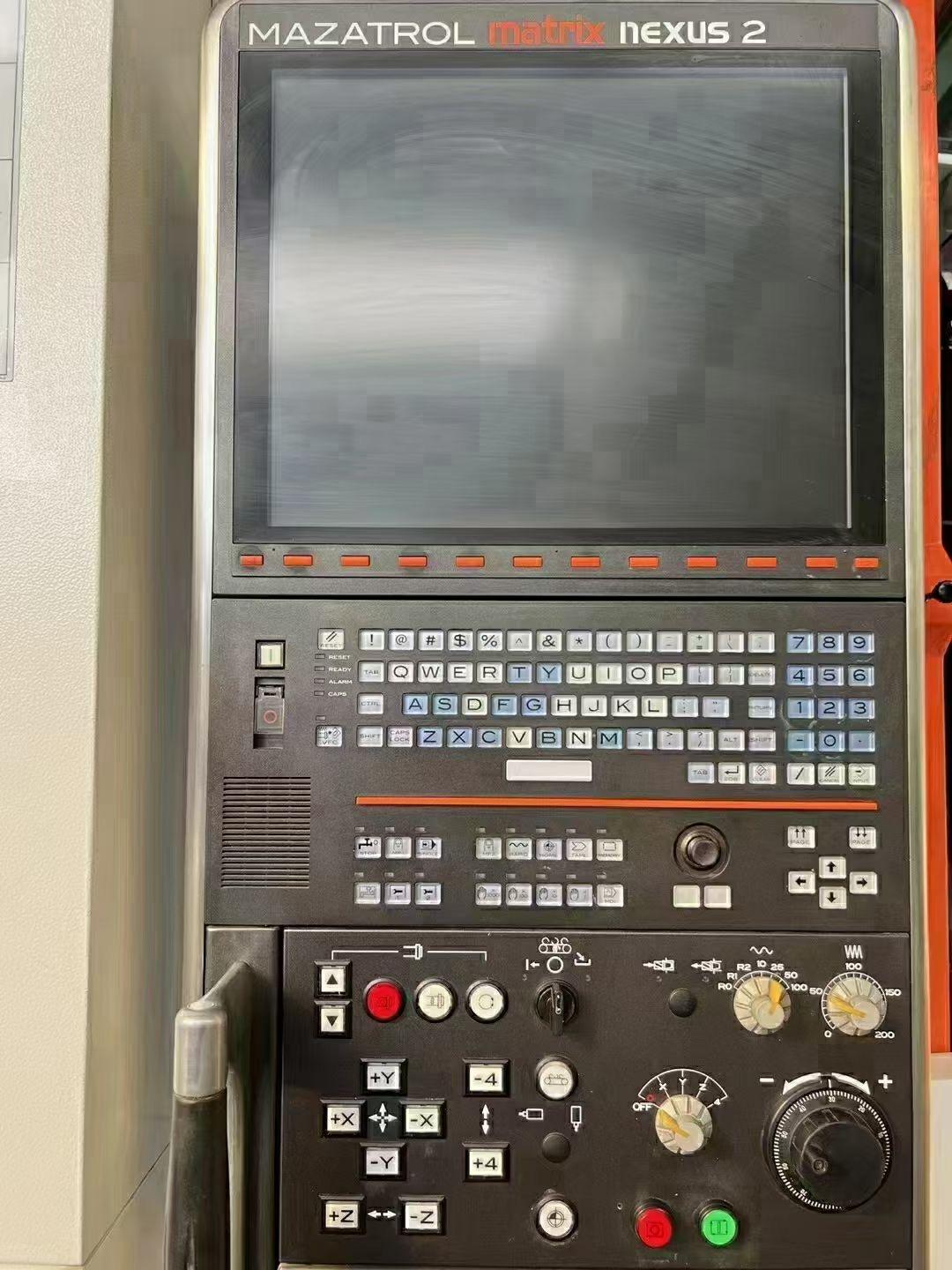

CNC System :MAZATRLO MATRIX NEXUS

X*Y*Z axis travel :1400*1200*1325mm

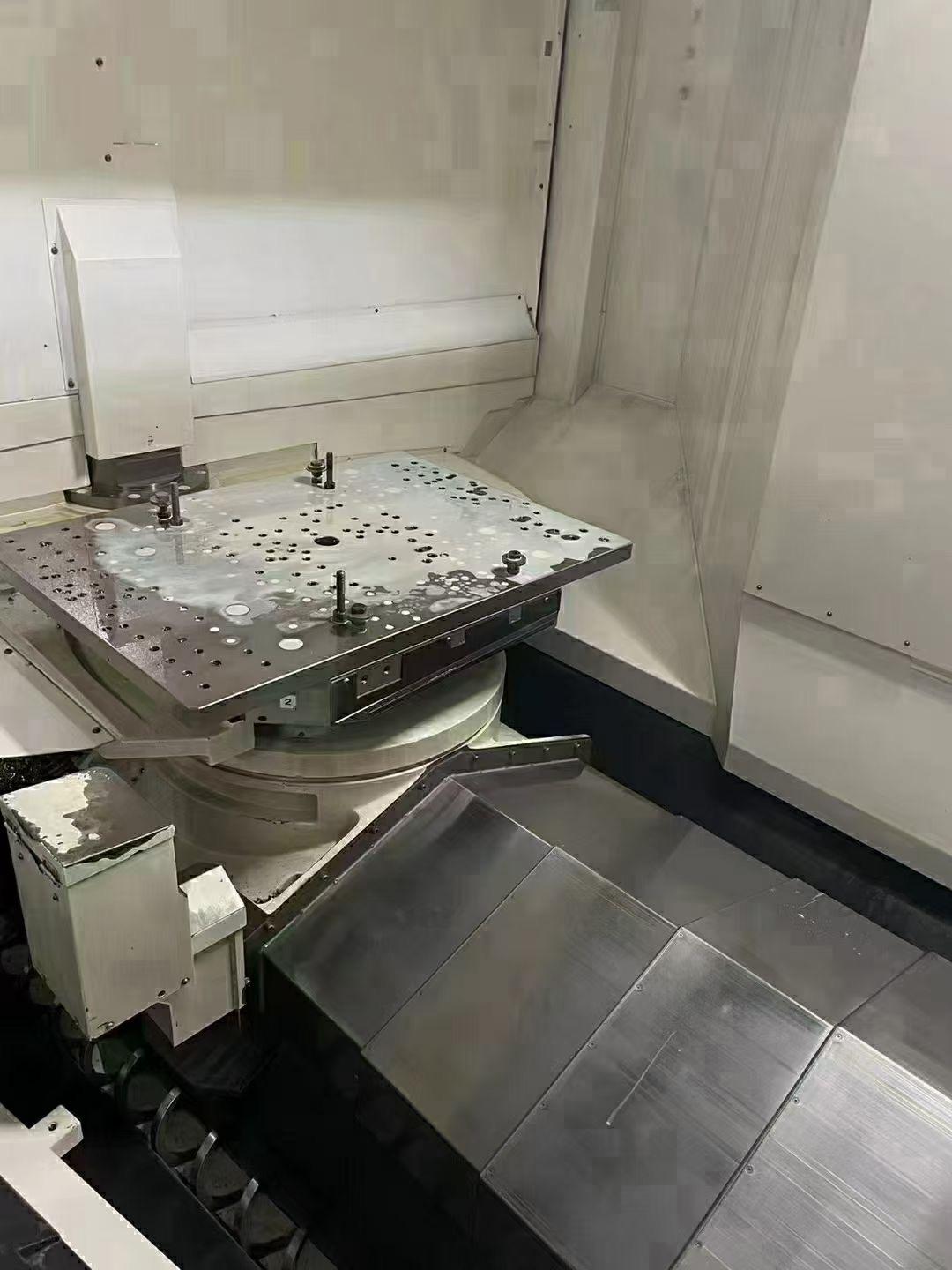

worktable size :800*800mm

Worktable load :2200KG

Distance from spindle to worktable :100-1275mm

Maximum rotating diameter :1450mm

Maximum machining height :1450mm

Indexing: one minute, one degree

Spindle speed :10000rpm

Tool holder :BT50

Number of tools :60

Maximum tool length :800mm

Maximum tool weight :30KG

X/Y/Z axes moving speed :60000mm/min

Floor area: 4072*6918*3678mm

Machine weight :30000KG
