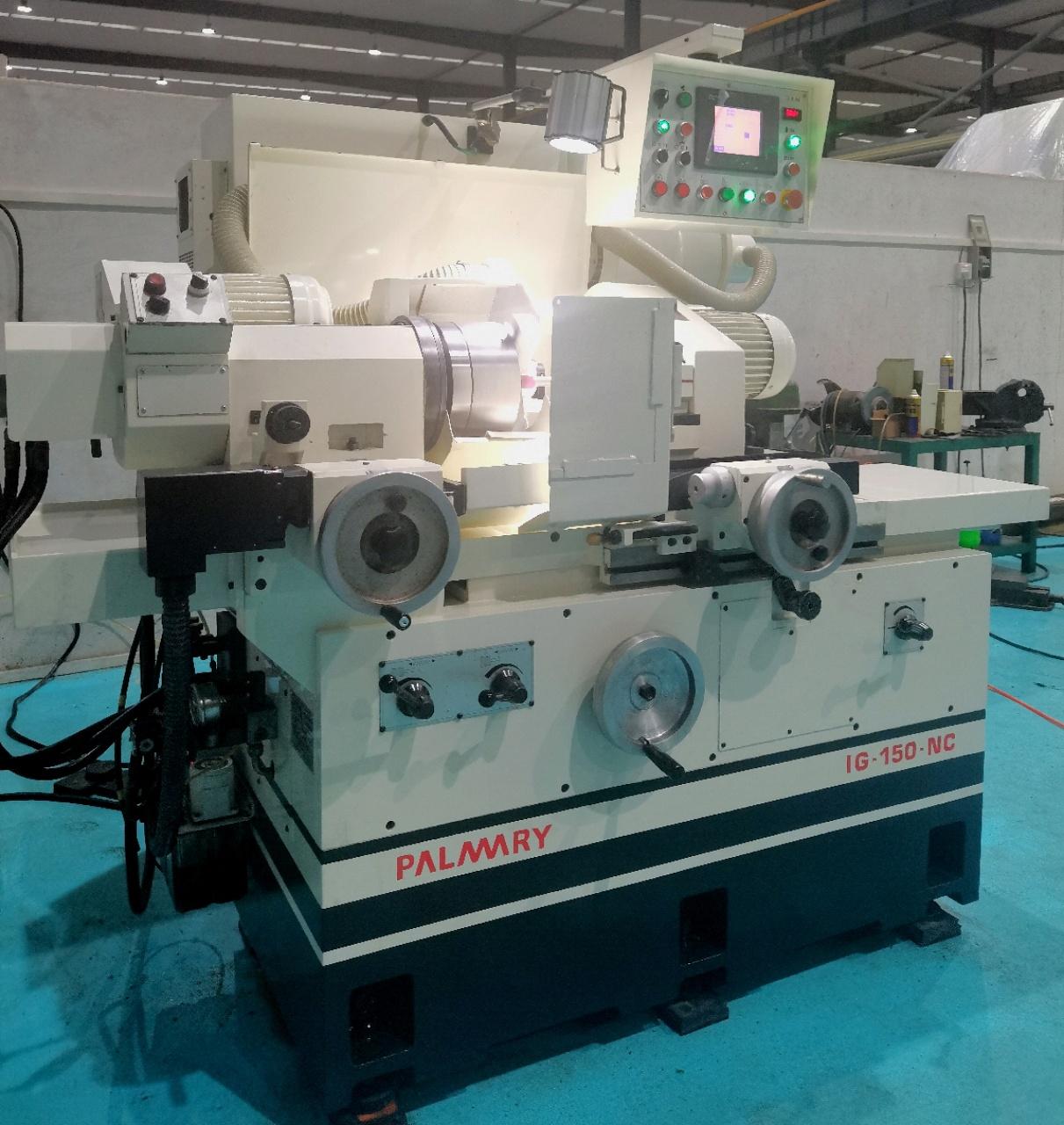

PALMARY IG-150NC Grinding machines

Standard machining range:6-150mm

Standard depth:150mm

Maximum chuck rotation diameter:520mm

Maximum worktable  travel:540mm

Maximum Z-axis feed rate:7.2m/min

X axis maximum feed rate:50m/s

X axis minimum increment:0.001mm

Spindle worktable rotation angle :
Front:8 deg

Back:7 deg

Machine weight:2.5 tons

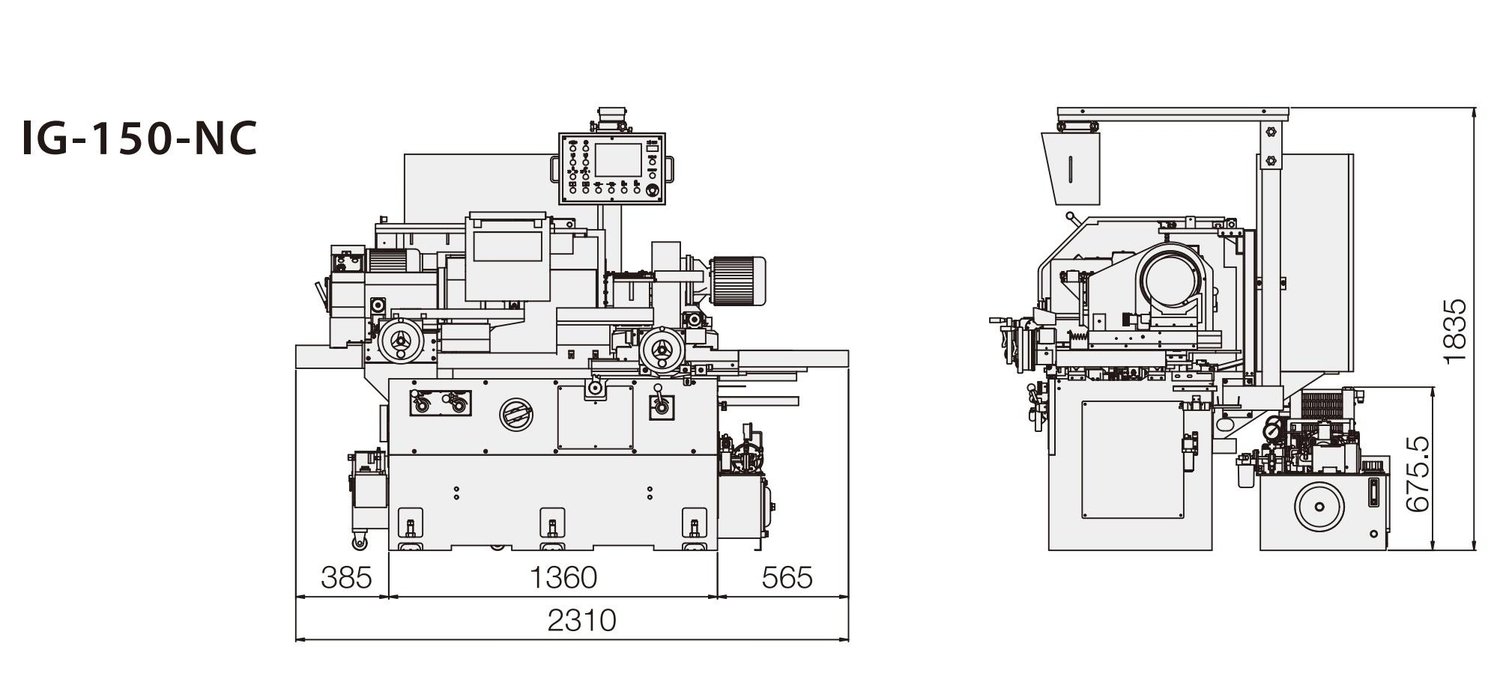

Machine dimensions:2600x1400x1700mm
