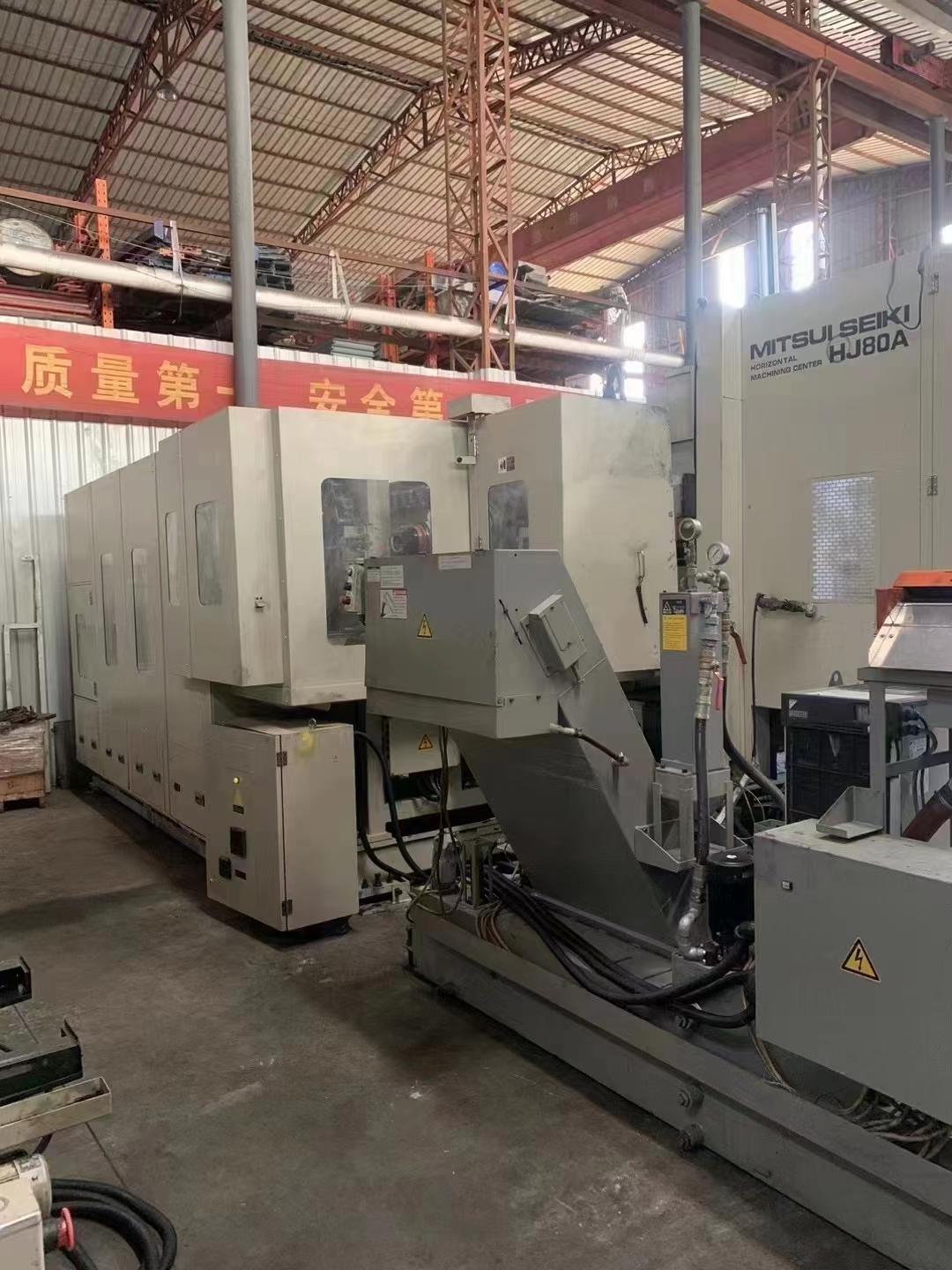

Mitsui HU80A Horizontal Machining centre
[Product Information]:
- Inventory number：90511
- Brand：Mitsui
- Model：HU80A
- Origin：Japan
- Location：China
- Year：2007
- Create Time：2023-09-08
Specifications:

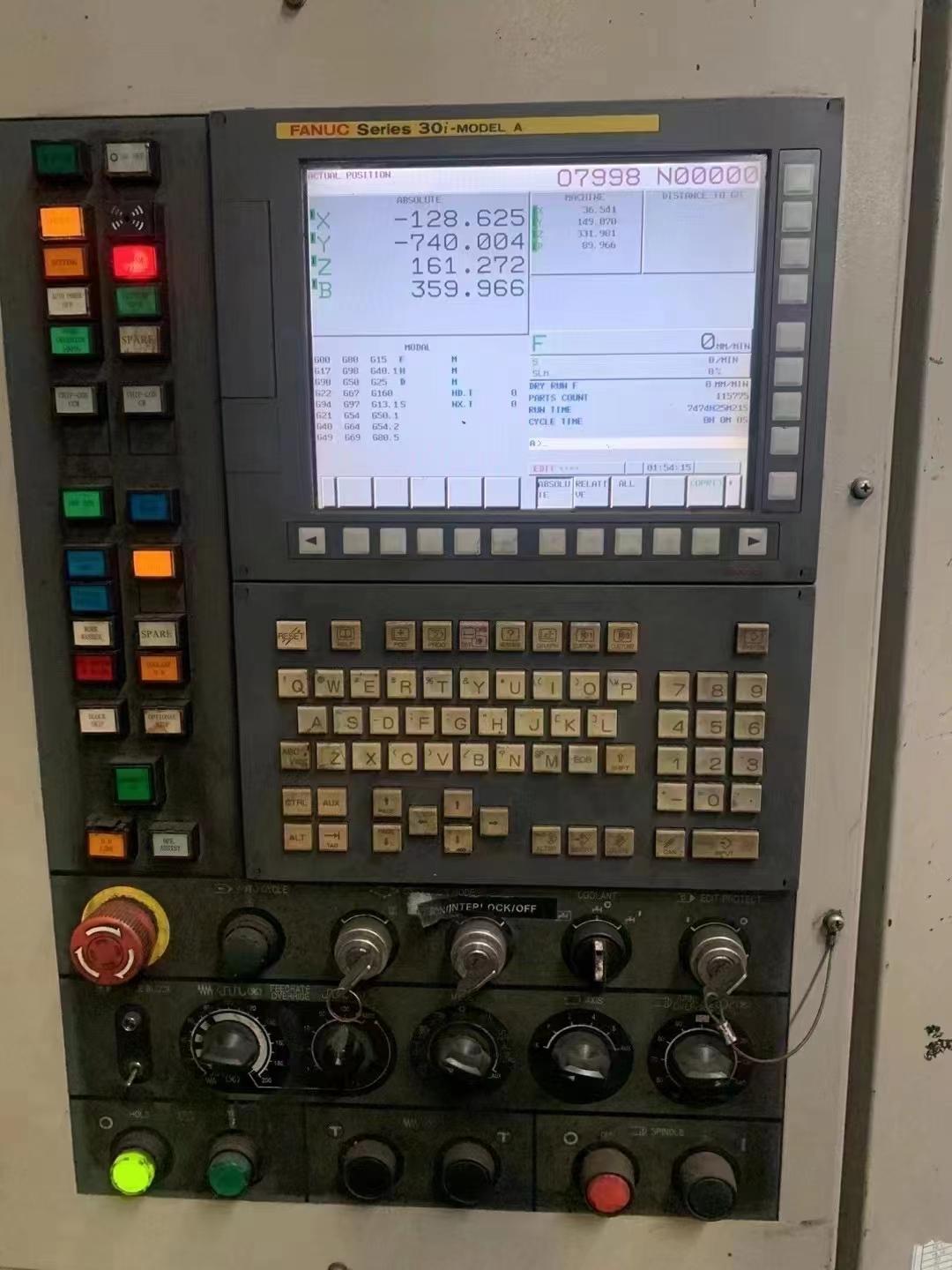

CNC System:Fanuc 30i-A
Travel:1200 X 950X 900mm
All axes are equipped with Heidenhain glass scale

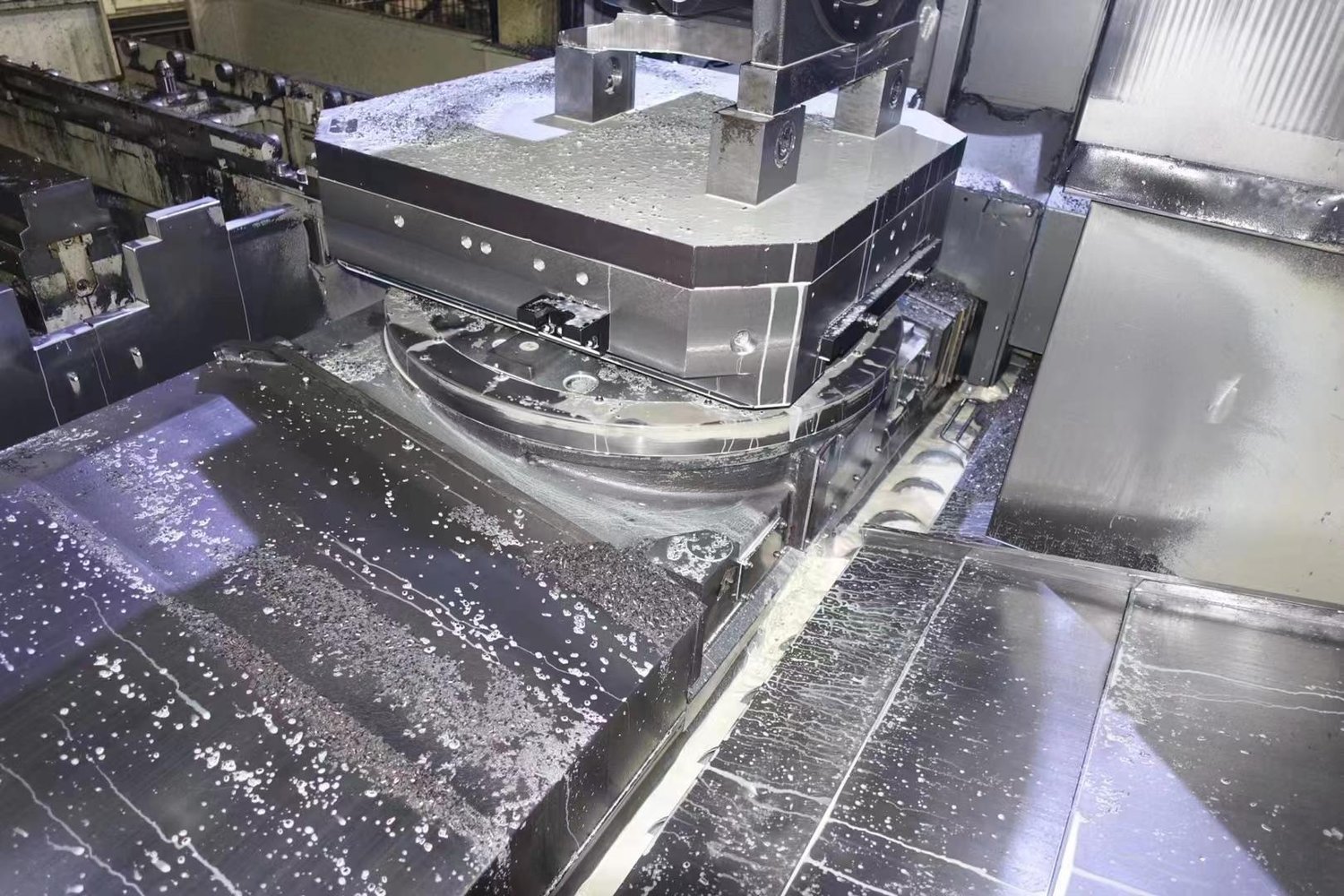

Worktable size :800 X 800 mm
Maximum diameter X height of workpiece :1170 X 1200mm
Maximum load:2000 KG

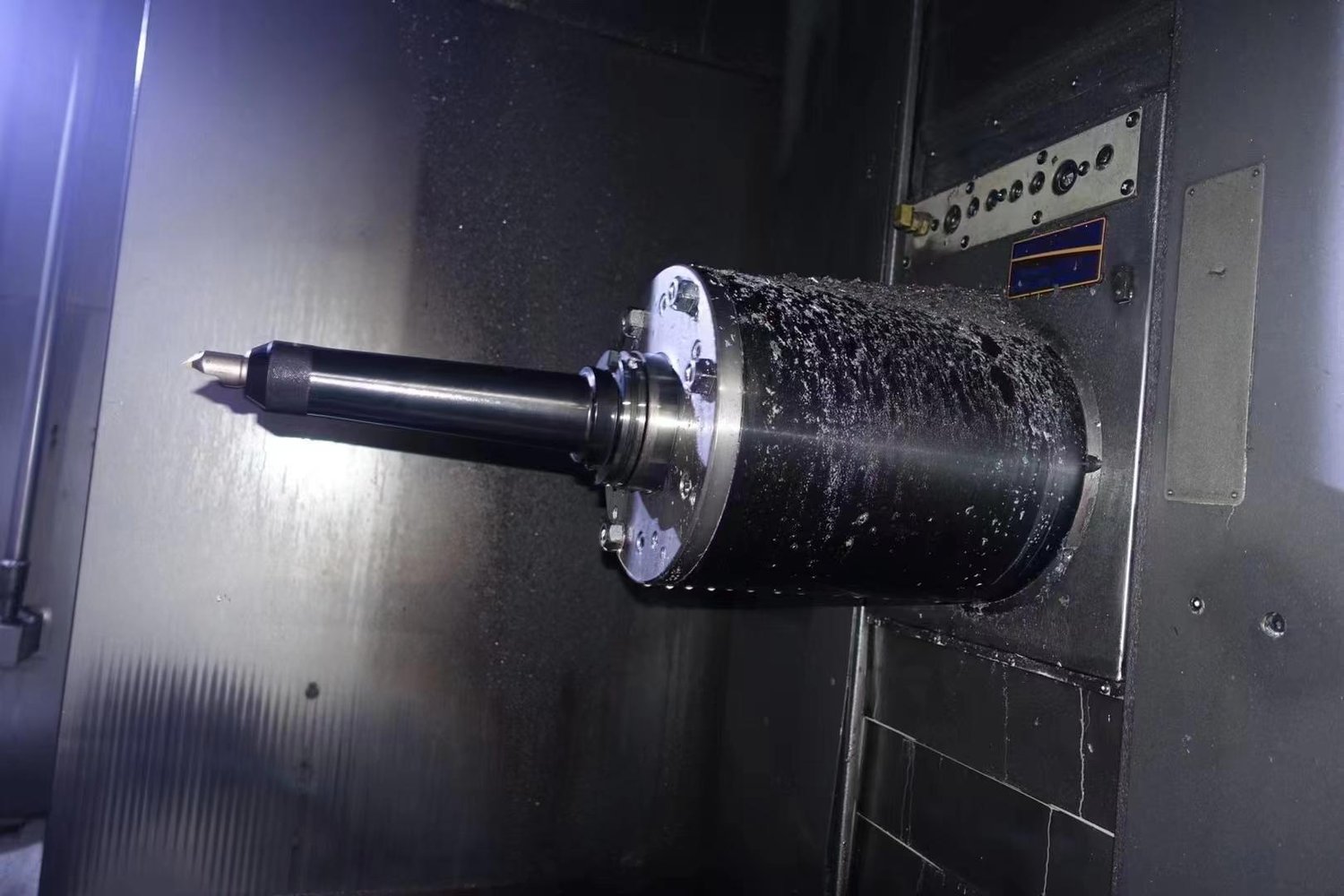

Spindle taper:ISO 7/24
Spindle speed:120-6000rpm
Spindle power:30 kw (30min)
Maximum fast feed rate:24 mm/min
Cutting feed rate (maximum) :10 mm/min
Tool magazine:240
Machine weight:20000 KG
