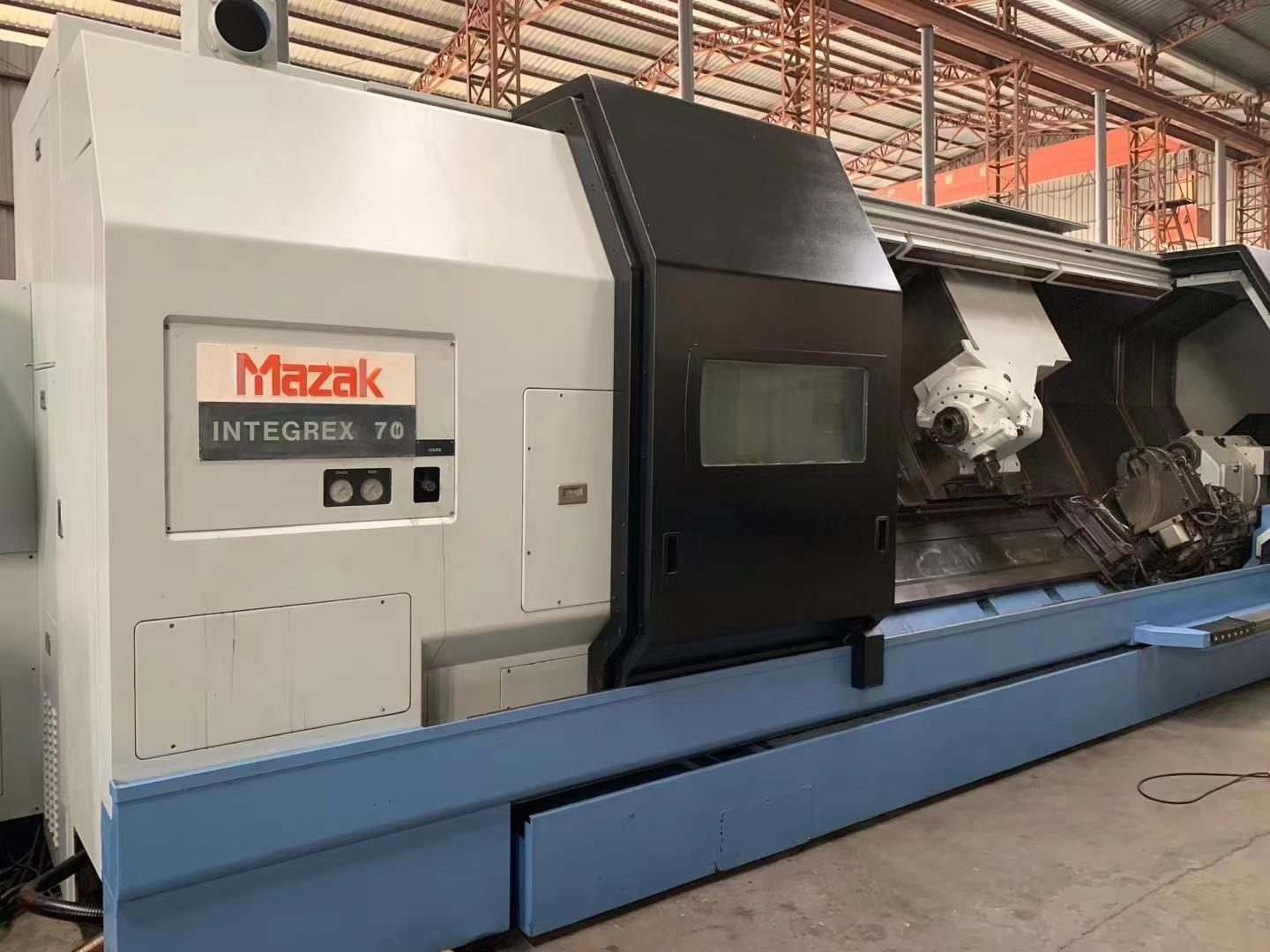

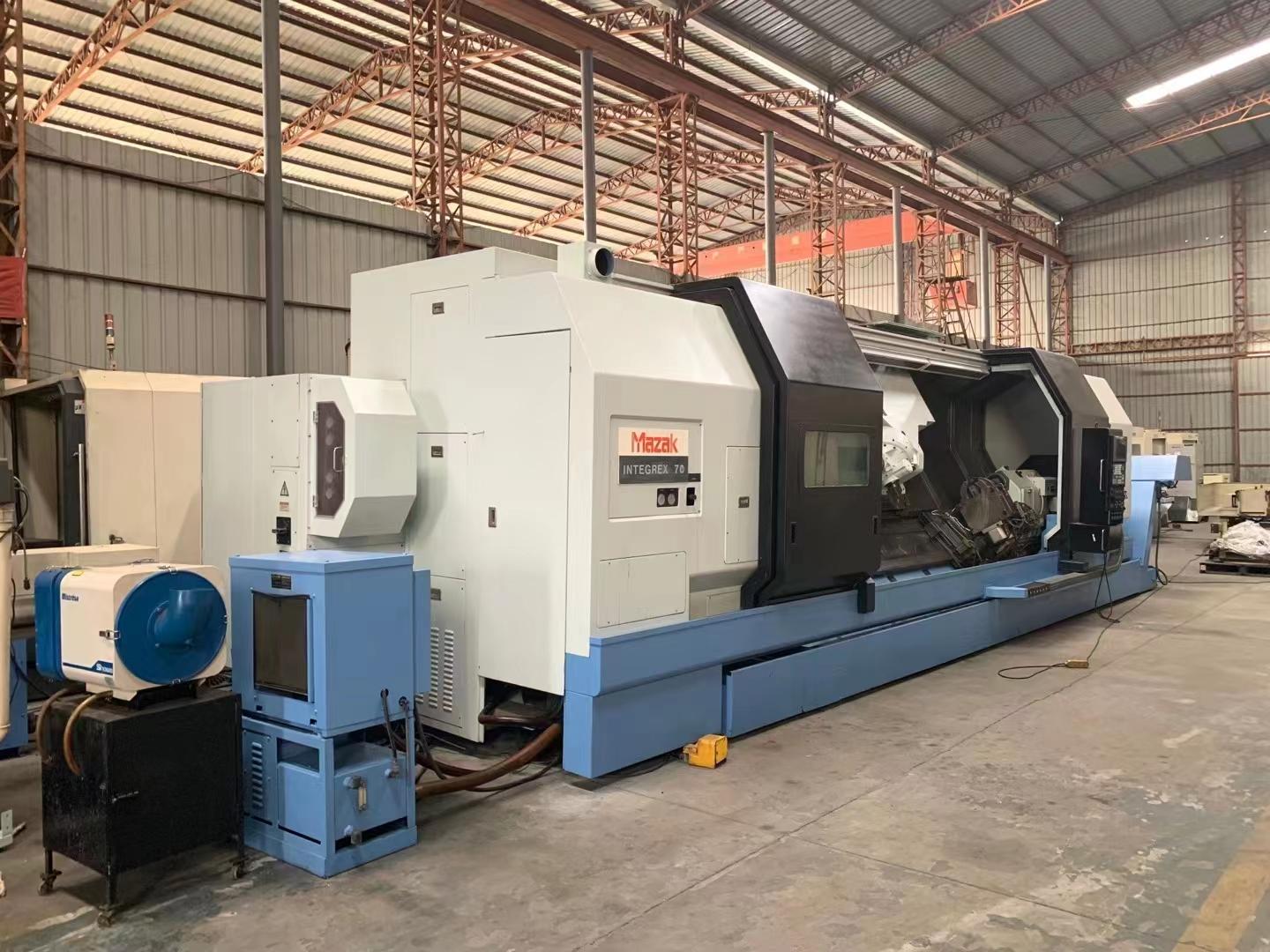

Mazak Integrex 70/4000 Machining centre

Swing diameter:914mm

Distance between centers :701~2205mm

Y-axis travel:+/-150mm

Z-axis travel:4000mm

Spindle through hole :118mm

Spindle speed :1300rpm

Spindle nose:JIS A-100

Surpporting weight between centers: 2994kg

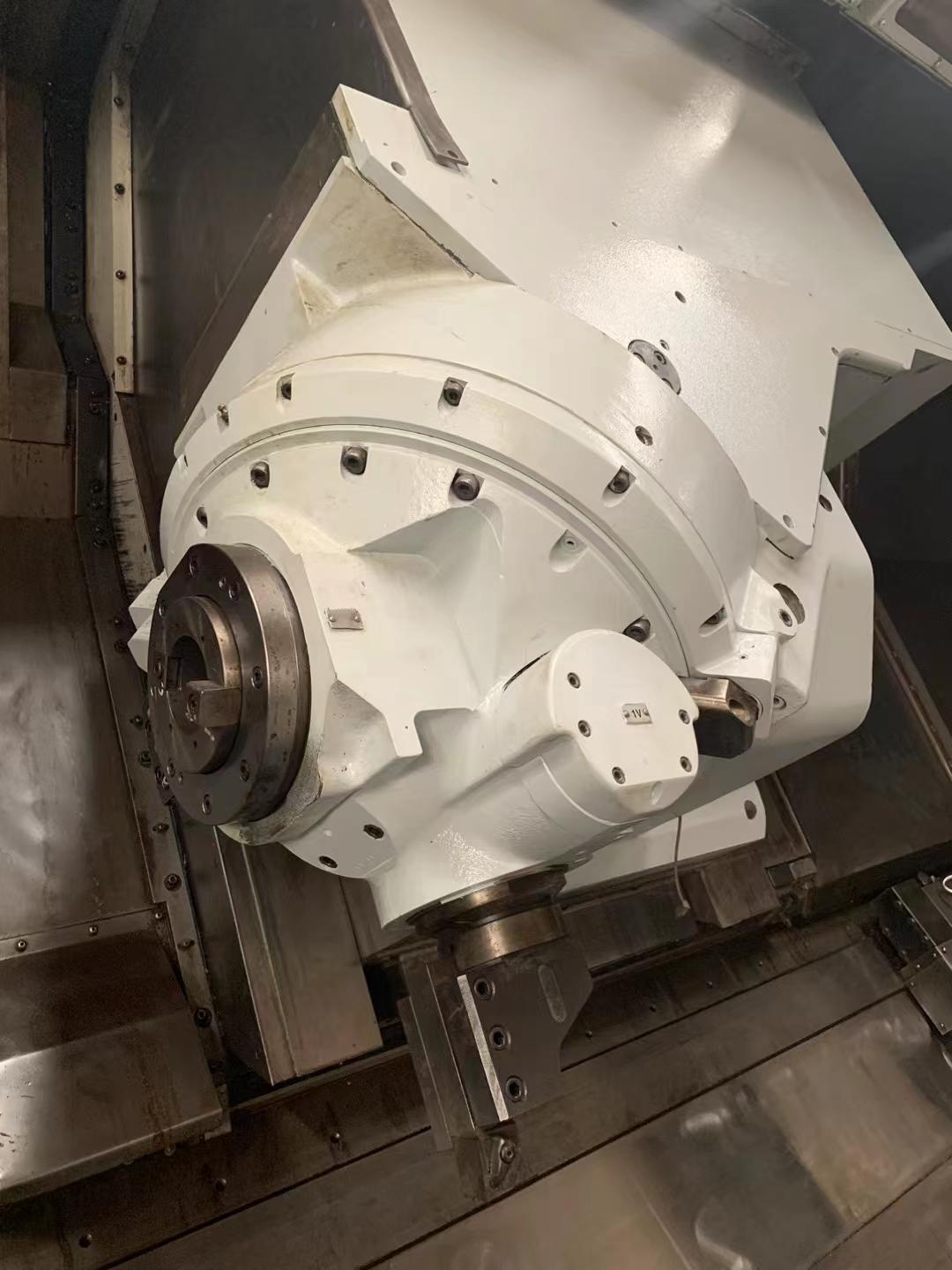

Milling tool spindle speed range: standard 333-2000rpm

Milling spindle taper :50

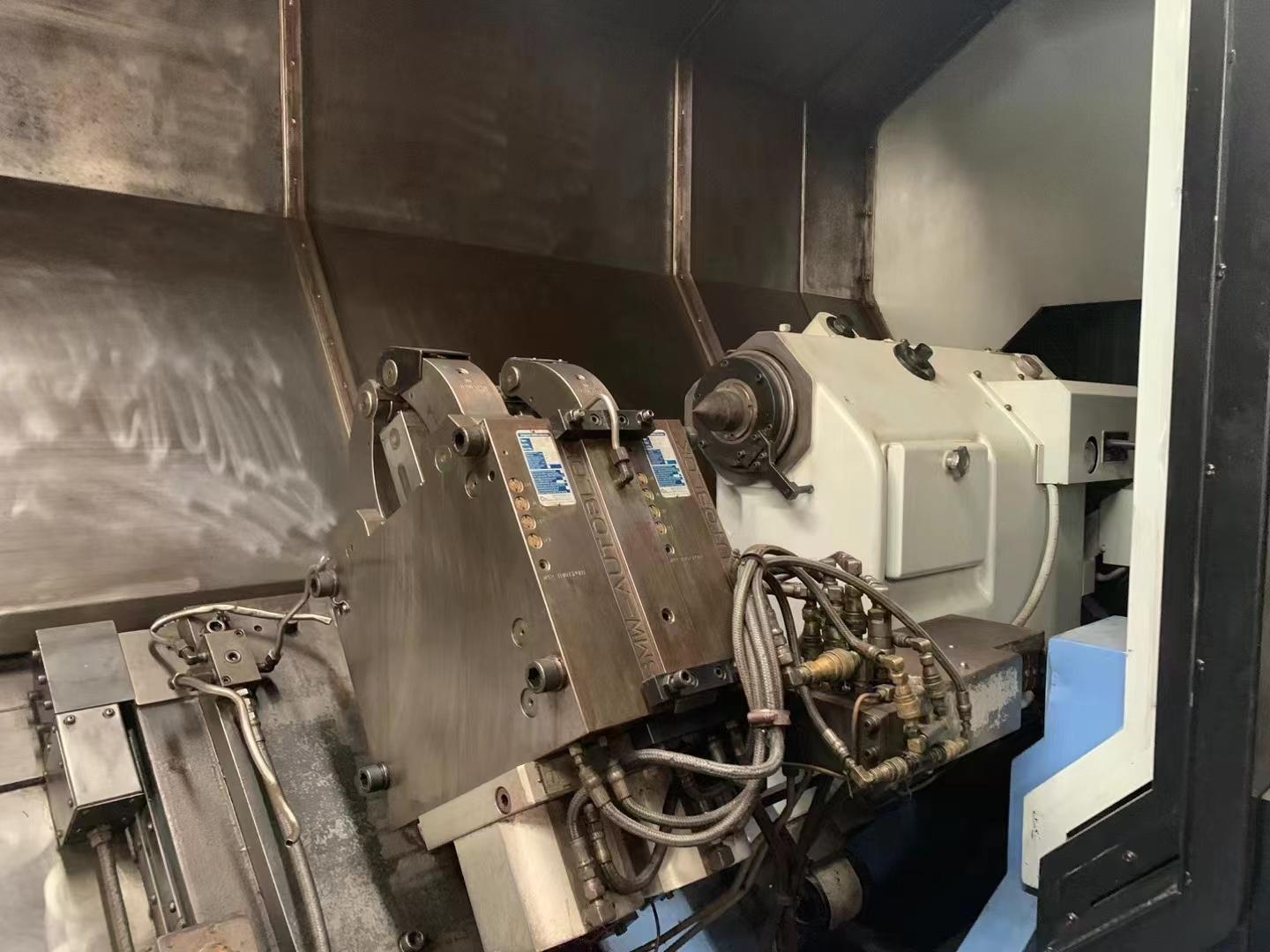

Turret positions :2

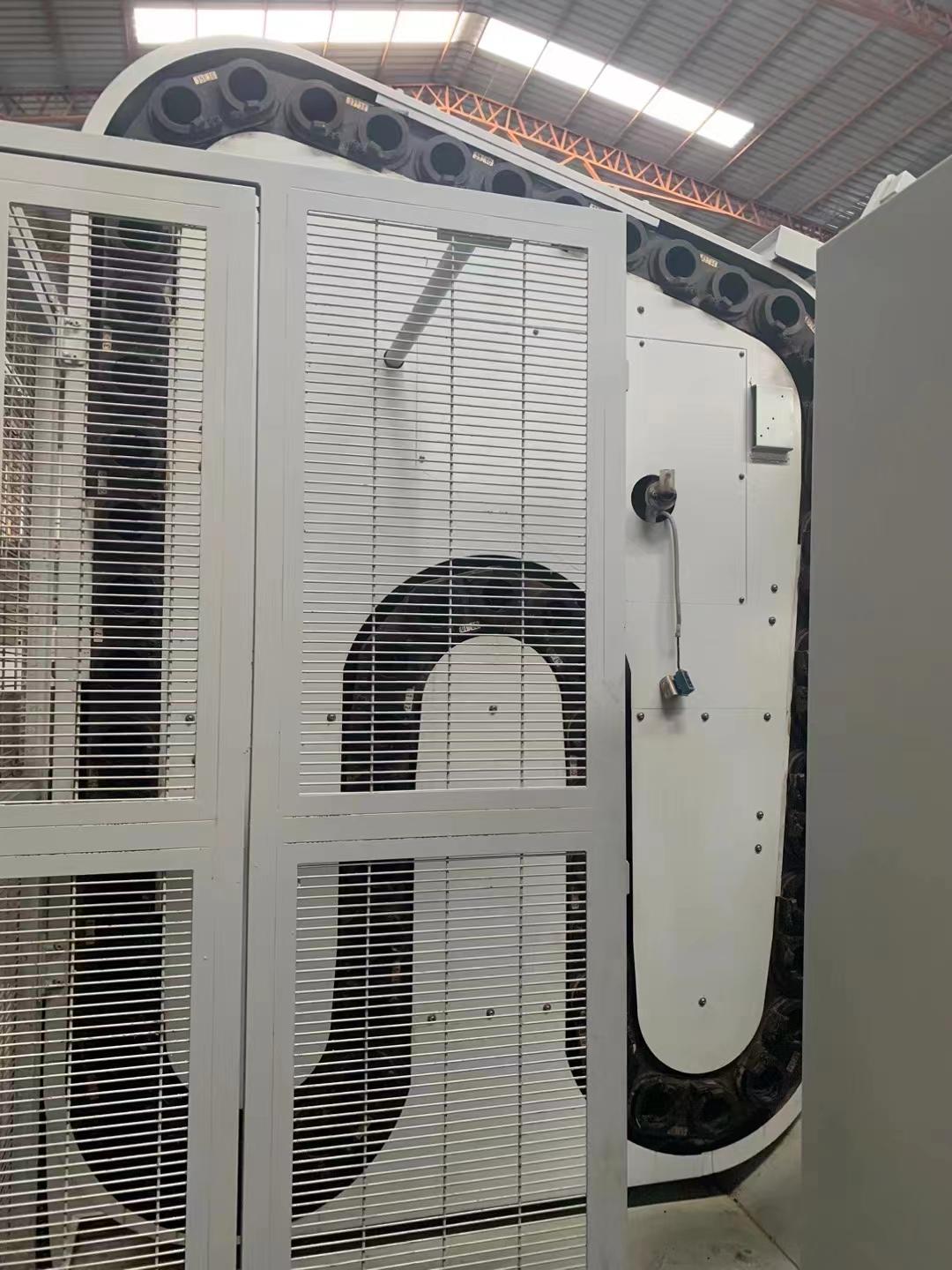

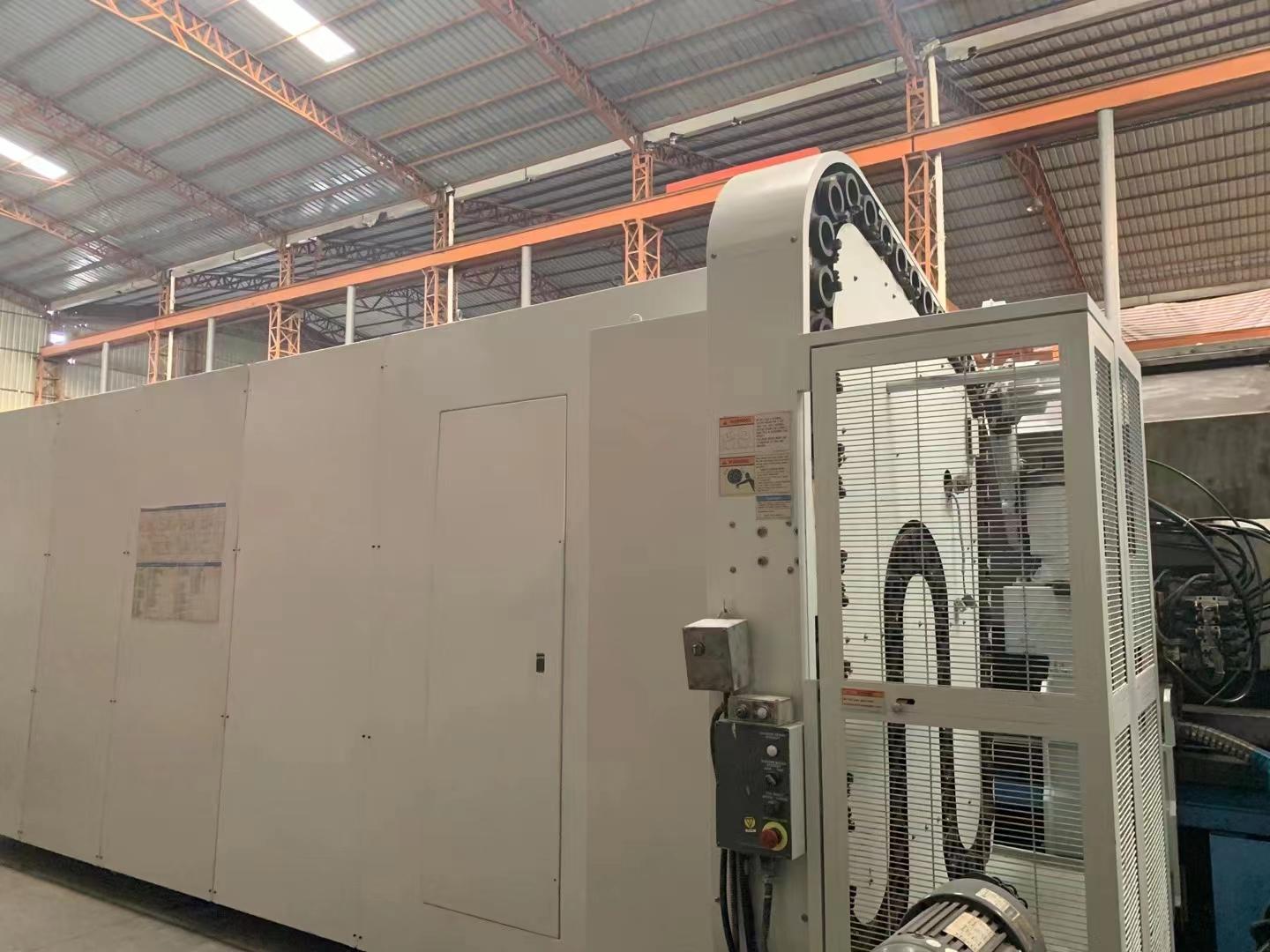

ATC:60

Tool diameter (without radiation tool) :160mm

Tool diameter (with radiation tool) :102mm

Tool length: 460mm

Tool weight: 20kg

Accessories:

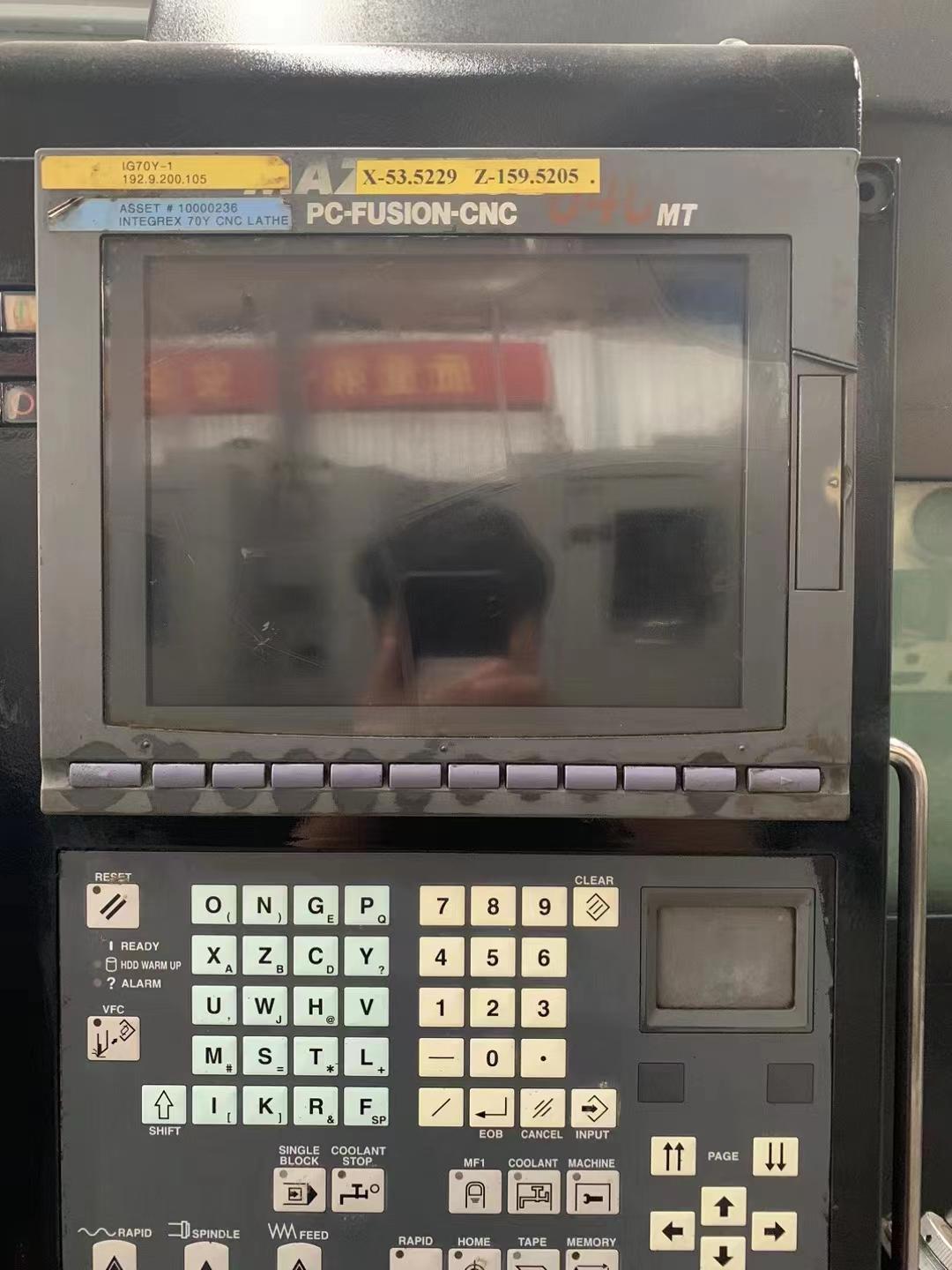

Mazatrol PC-Fusion 64MT CNC system

5486mm ball-locking collet
