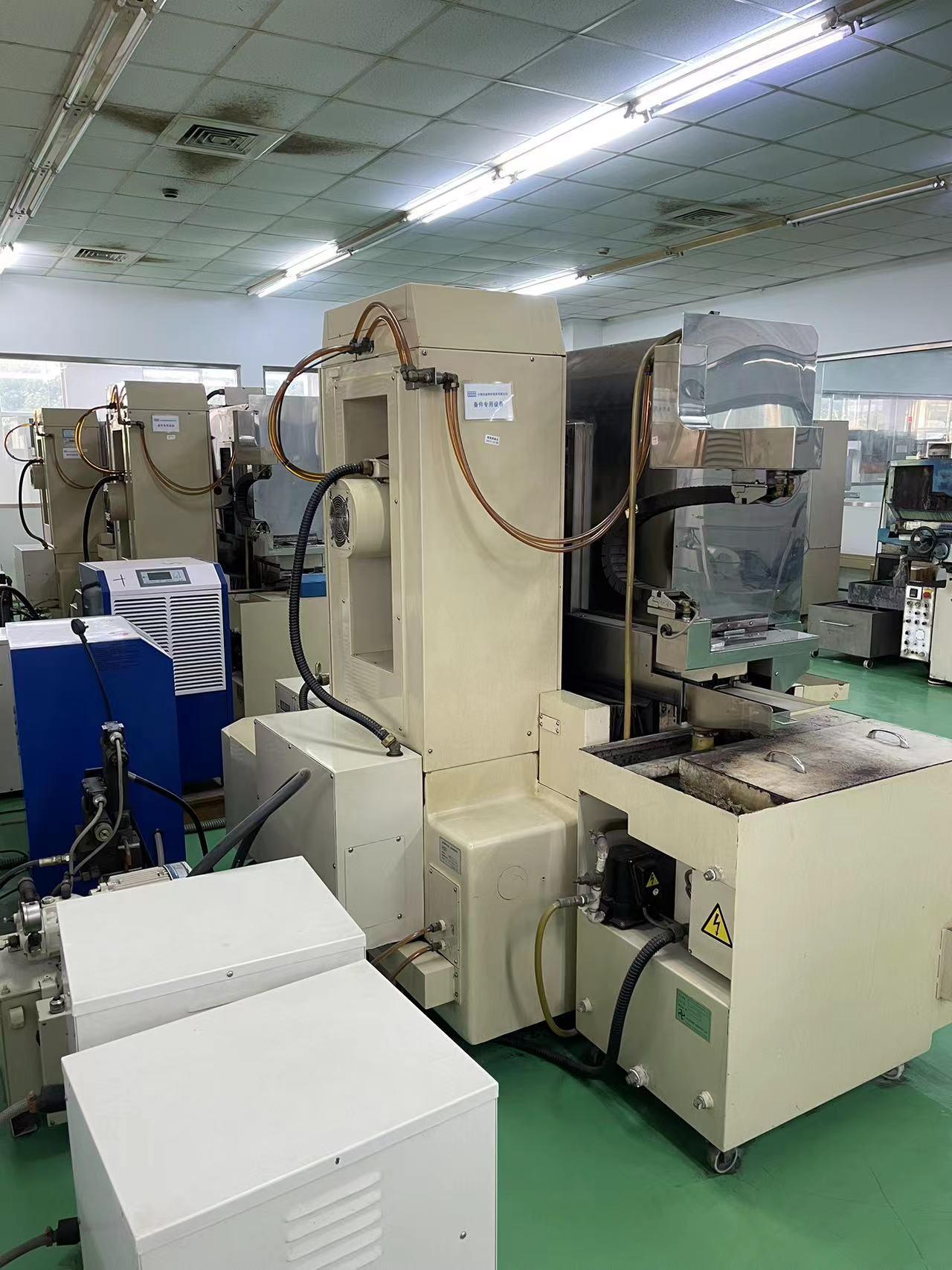

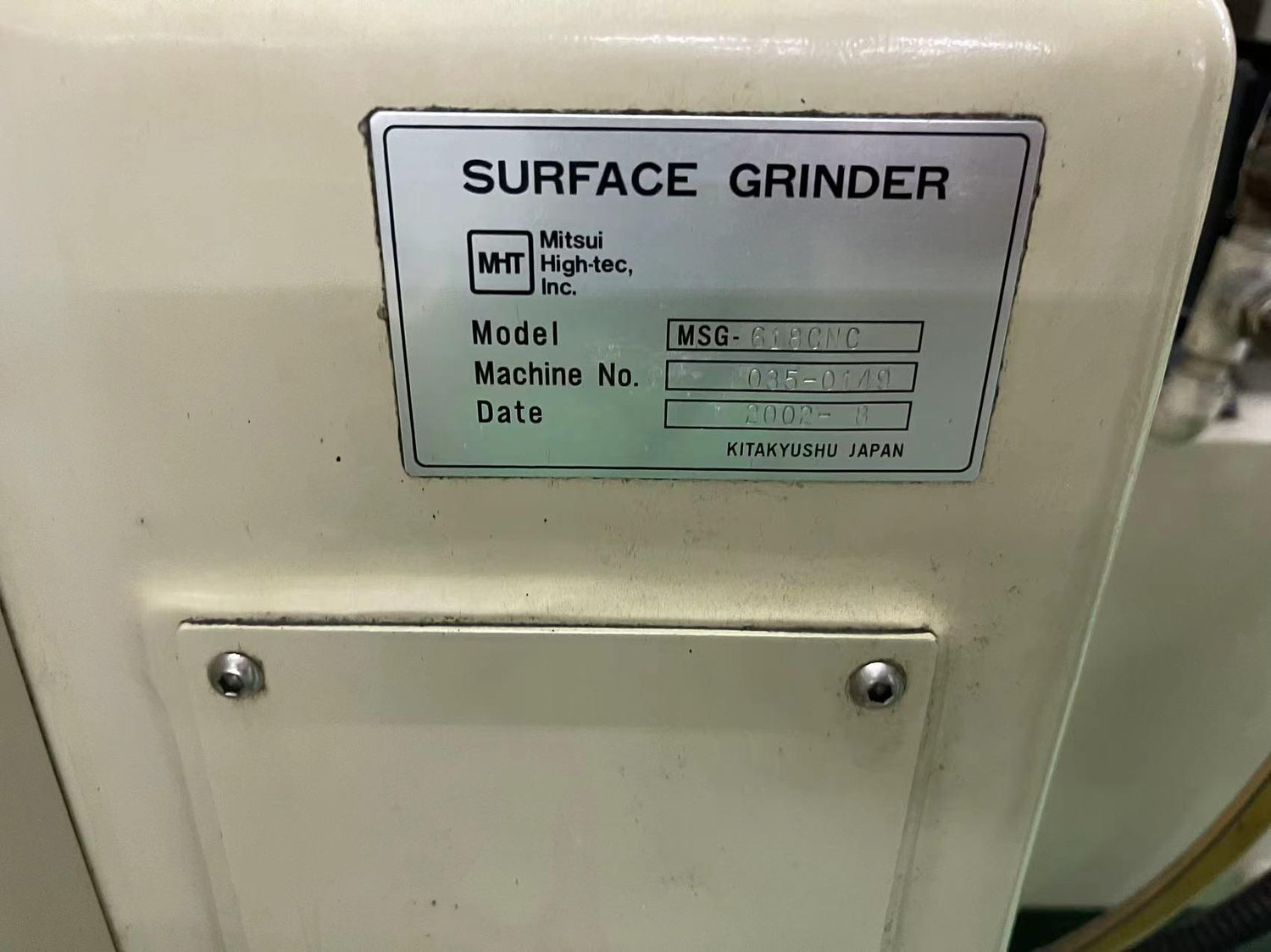

Mitsui MSG-618CNC Grinding machines

Capacity

Worktable size:150X480mm

Worktable travel:180X500mm

Maximum height:400mm

Worktable

Worktable speed:0-15m/min

Worktable speed (PCNCL):0-25m/min

Dial scale division:0.01mm

Continuous feed rate:0-3000mm/min

Crossfeed

Dial increment per revolution:0.01/0.1/1mm

Dial scale division:0.0001mm

Continuous feed rate:0-330mm/min

Minimum increment:0.0001mm

Increment feed:0.0001mm

Head

Dial increment per revolution:0.01/0.1/1mm

Dial scale division:0.0001mm

Continuous feed rate:0-300mm/min

Minimum increment:0.0001mm

Increment feed:0.0001mm

Wheel

Wheel size:205X20X32mm

Spindle speed:500-4000rpm

Motor

For spindle:0.45KW

For cross feed:0.45KW

For vertical feed:0.45KW

For longitudinal feed:Coreless linear motor 3KW

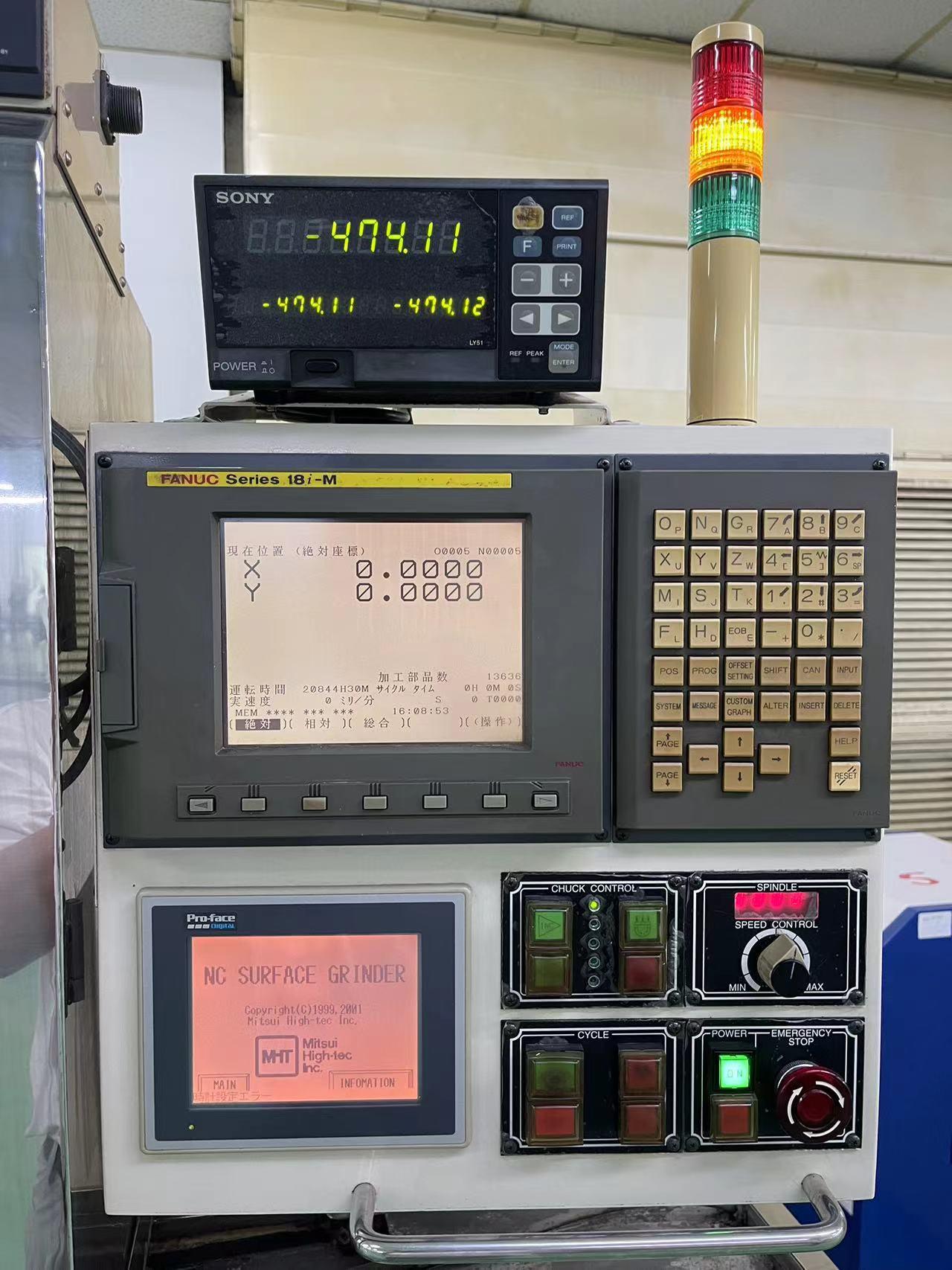

CNC

NC System:PC+Motion control

Control axes:3

Simultaneous axes:2

Power supply:3 phase 200-220V 50/60Hz

Power required:11KVA

Machine dimensions:2550X1600X1800mm
