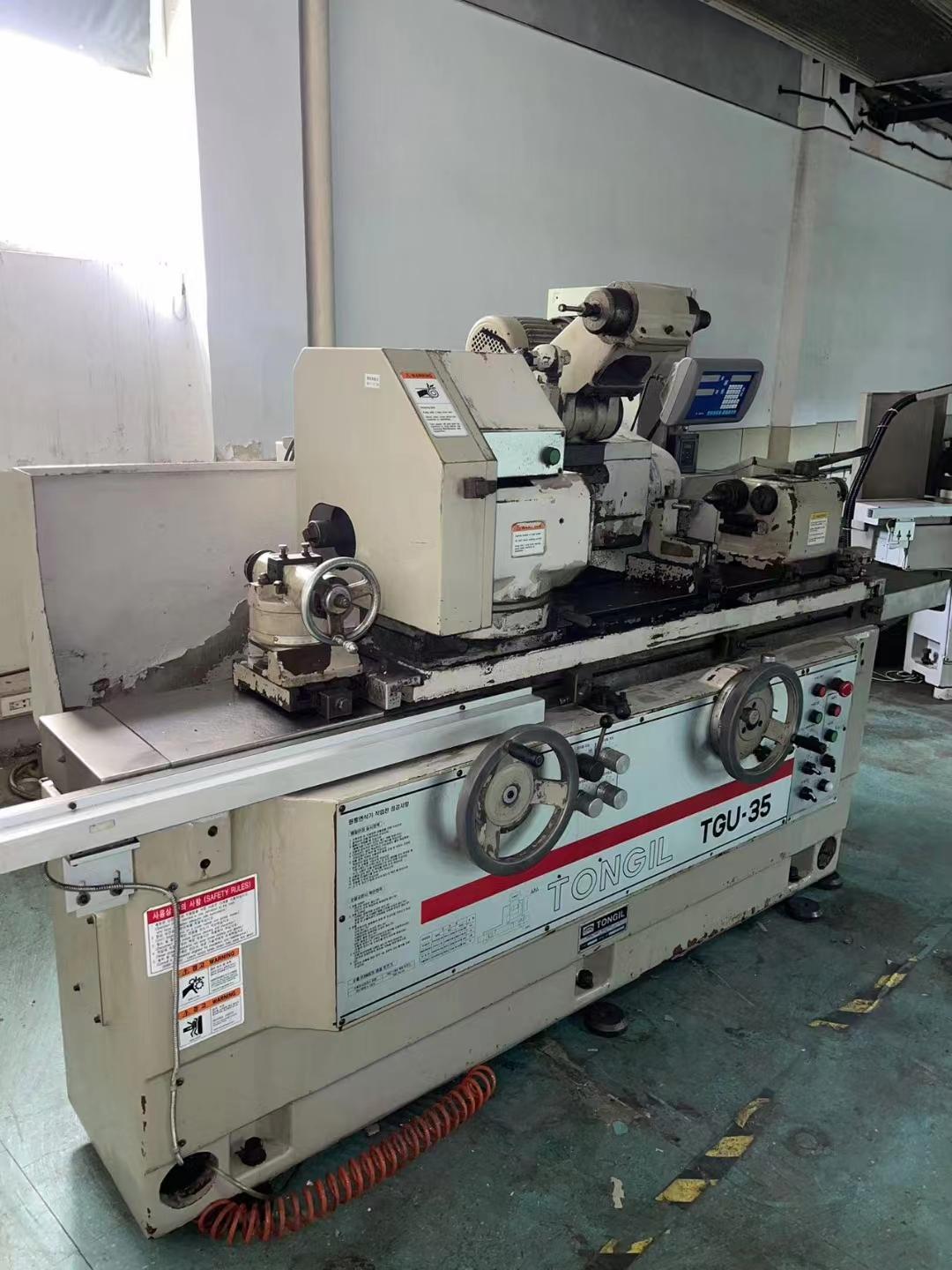

TONGIL TGO-35 Surface grinder

Working range (cylindrical grinding )

Swing diameter (maximum):350mm

Workpiece weight between centers (maximum):130kg

Working range (external grinding)

Grinding diameter (maximum): 270mm

Grinding length (maximum):1200mm

Spindlestock grinding spindle

Tilting range (b-direction) minimum:30°

Tilting range (b-direction) maximum: 30°

Grinding Tool

Diameter (maximum)：405mm

Borehole:

Diameter:152mm

Width：50mm

Total weight:approximately 3100kg
