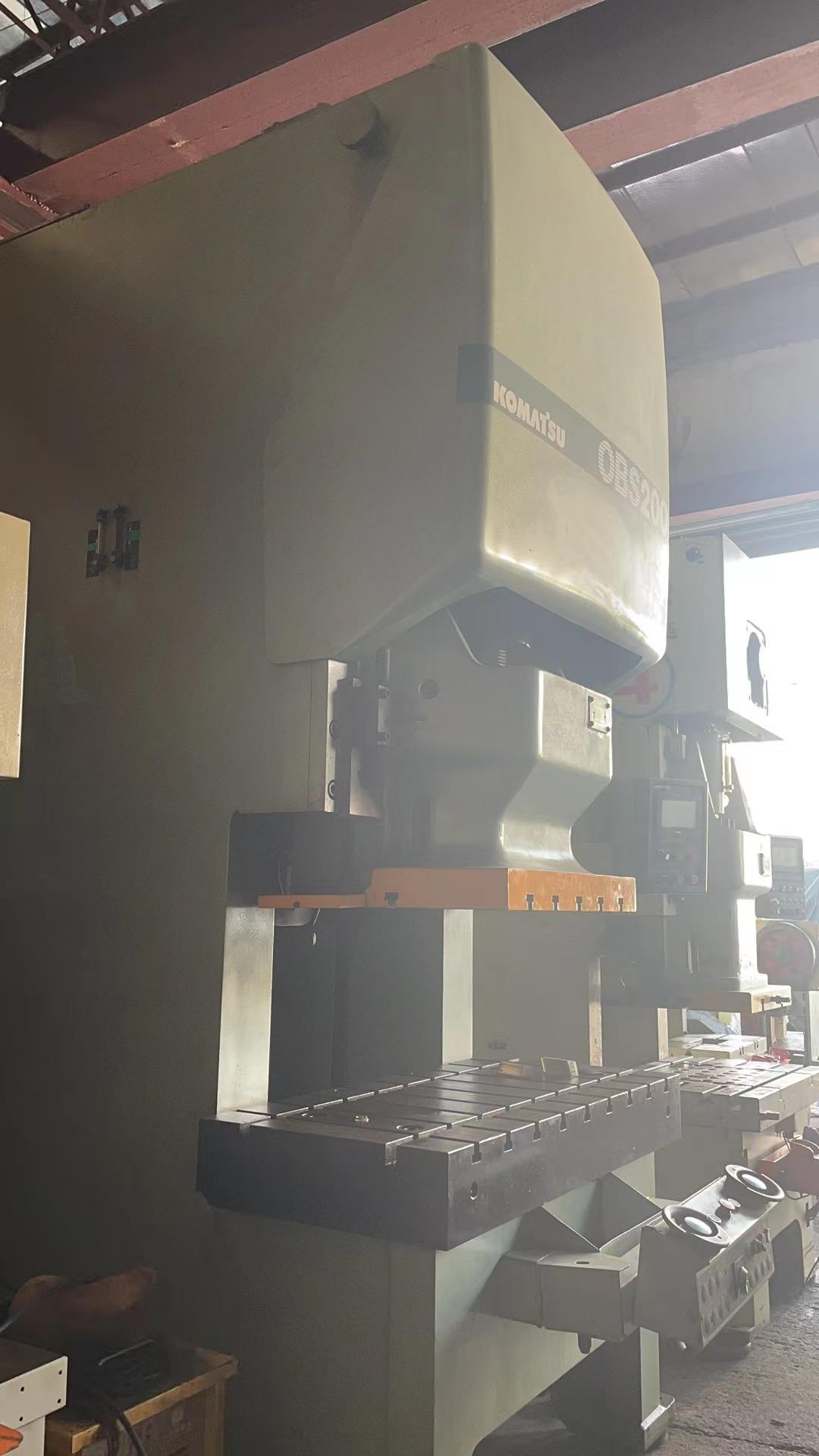

KOMATSU OBS200 Punch / press

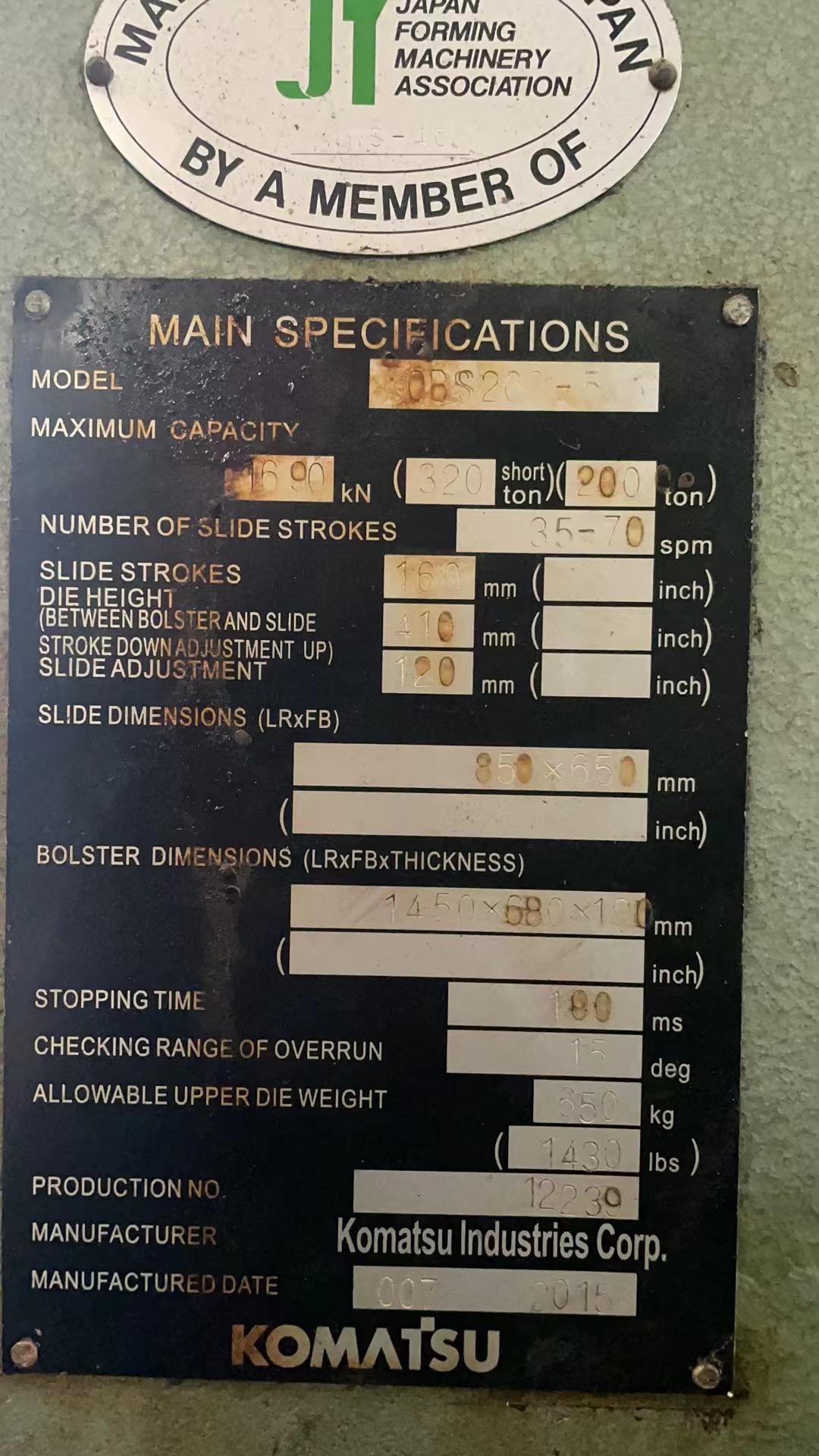

Maximum capacity:1690KN(short ton)(200 ton)

Number of slide strokes: 35~70mm

Slide stokes:160mm

Die height(Between bolster and slide stroke down adjustment up):410mm

Slide adjustment:120mm

Slide size(Left-right*front-back):850*650mm

Bolster size(Left-right*front-back*thickness):1450*680*180mm

Stopping time:180ms

Checking range overrun:15deg

Allowable upper die weight: 650kg
