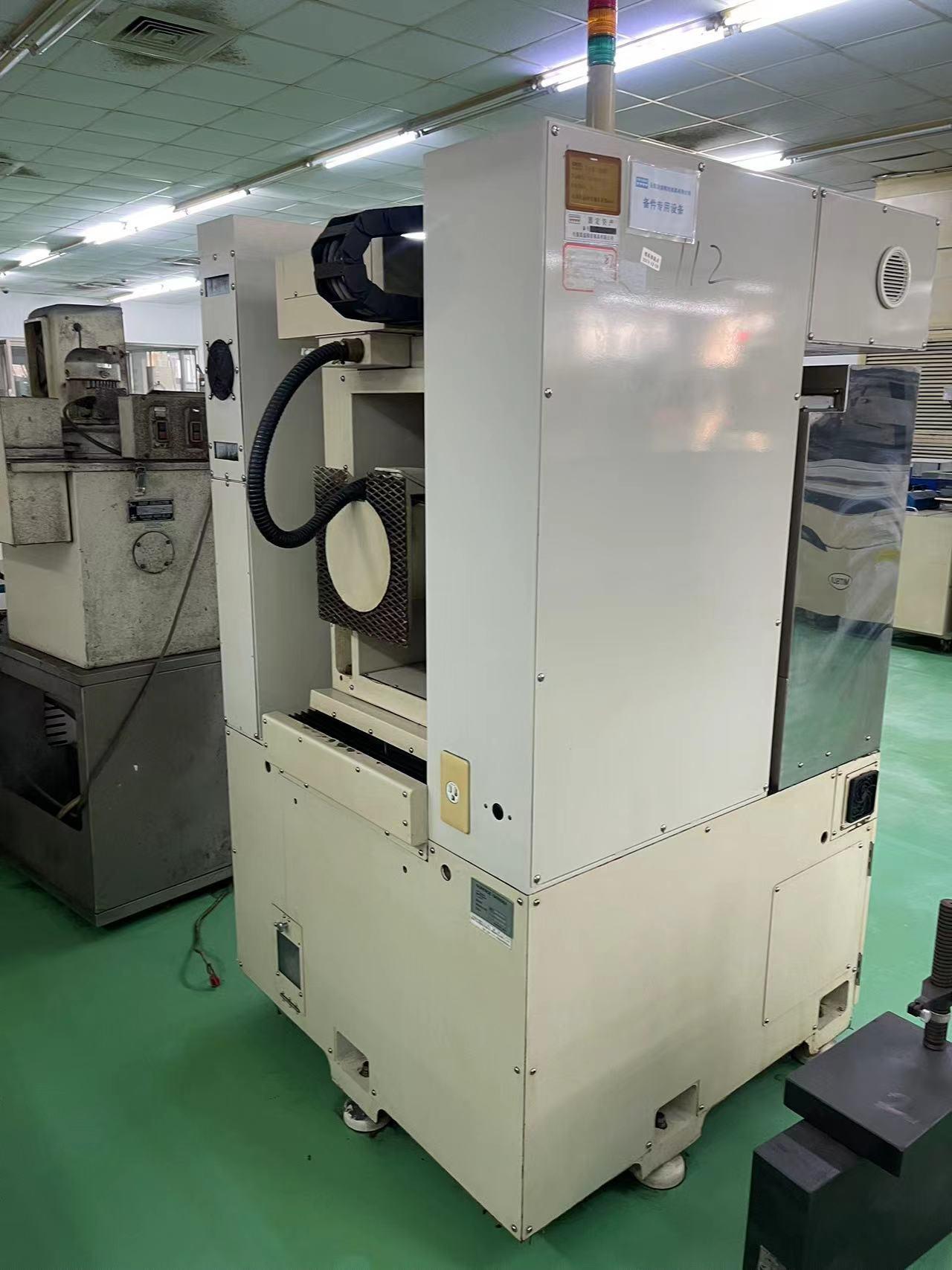

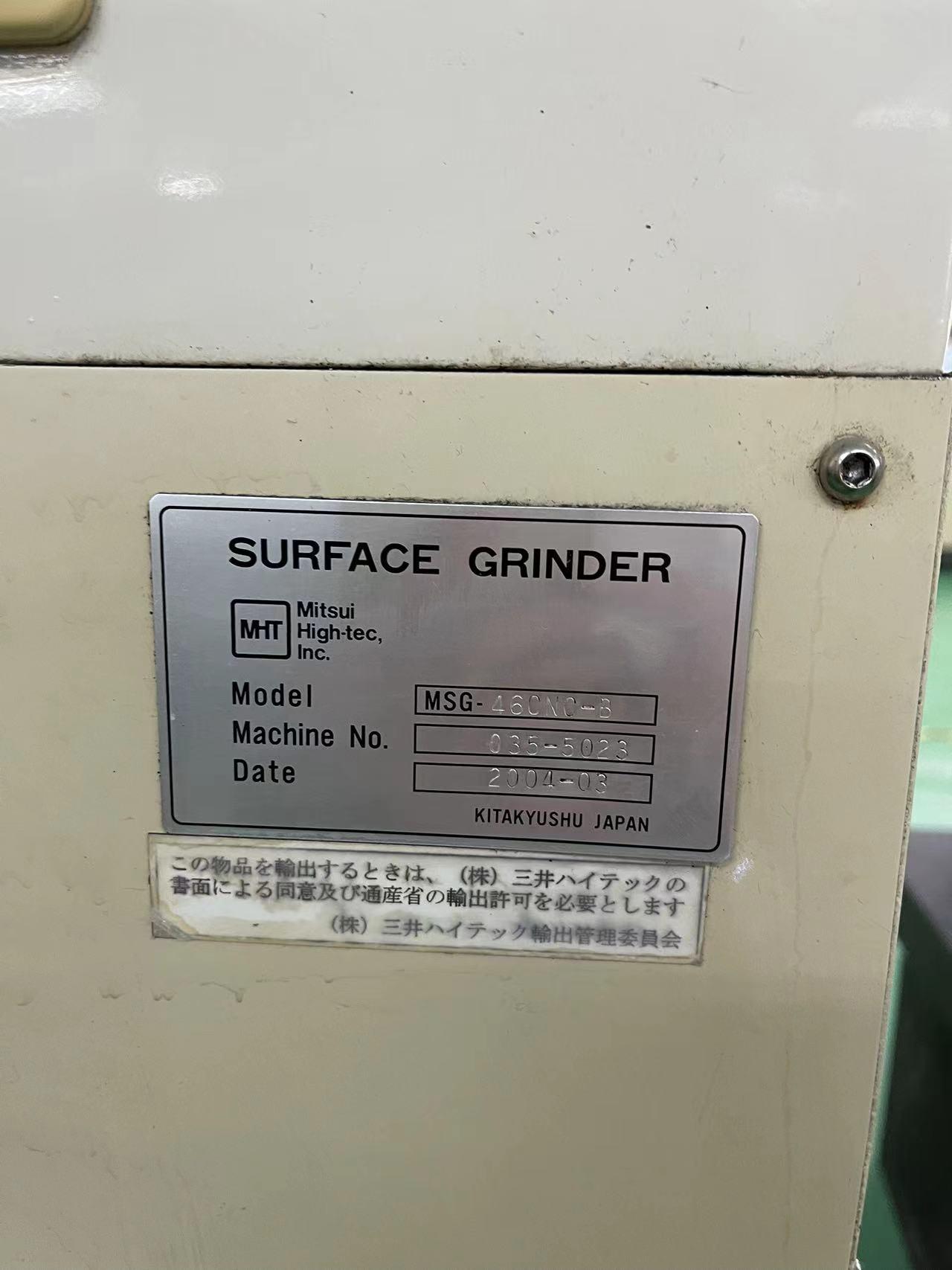

Mitsui MSG46CNC-B Grinding machines

Worktable travel(YX):120X300mm

Distance from worktable to grinding wheel mandrel:230mm

Worktable size:100X190mm

Automatic feed rate(X axis):1-40m/min.

Manual feed rate(X axis):

Remote control box feed rate per revolution:0.1/1/10mm

Grinding wheel size:(external diameter x width x internal diameter) 180x13x32mm

Grinding wheel shaft motor:1.5kw/2P

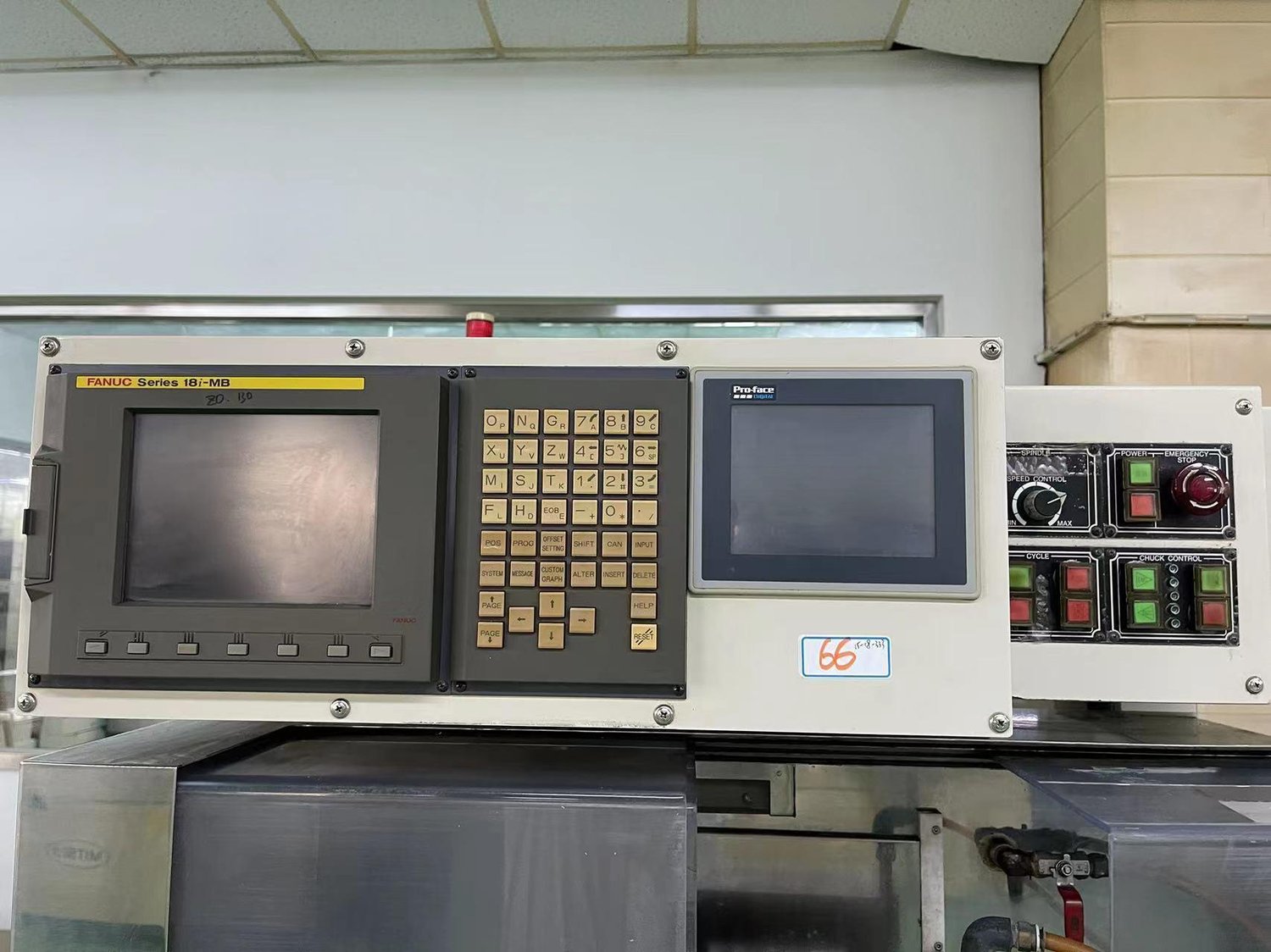

Fanuc 18i-MB

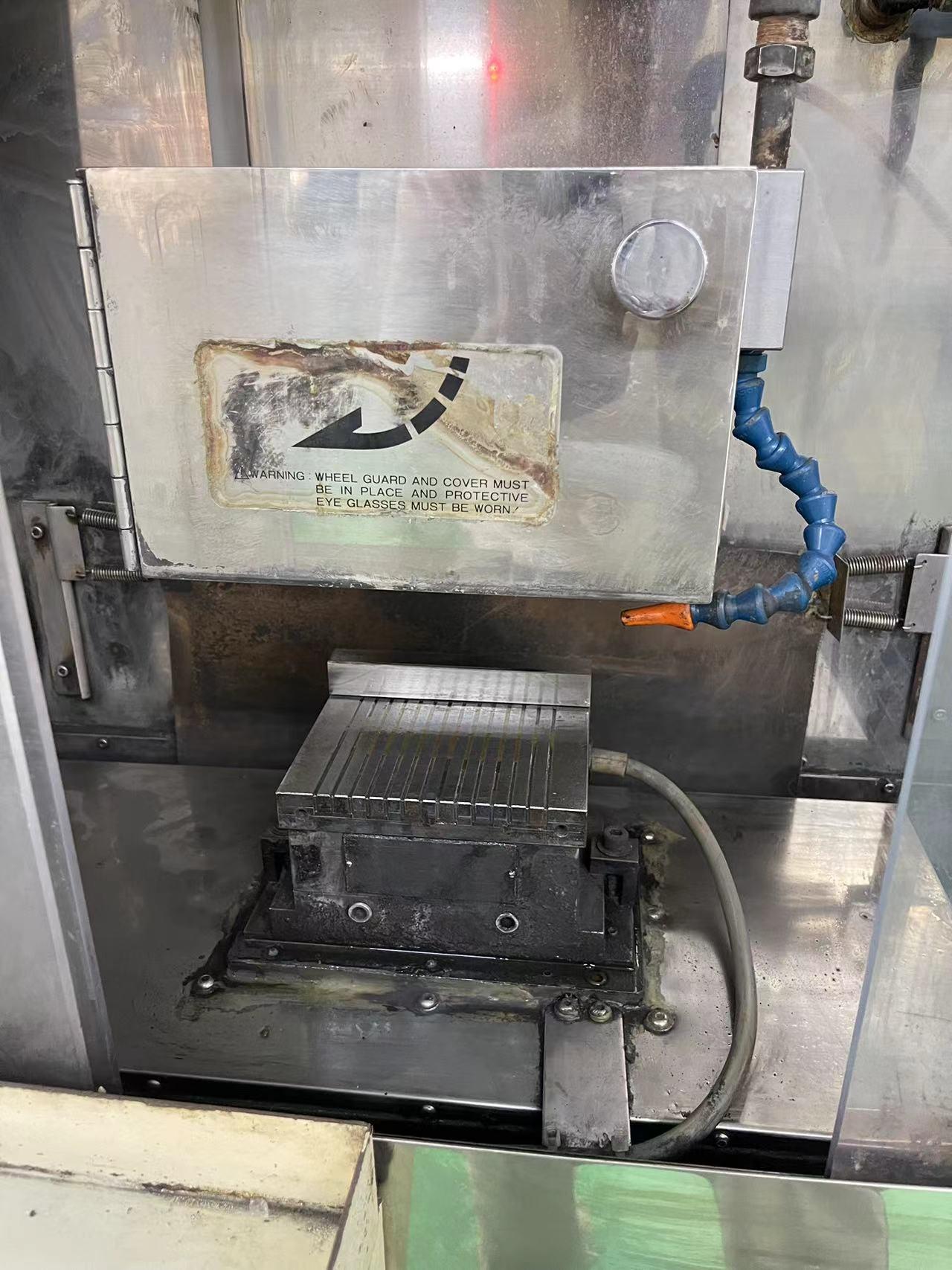

Magnetic disk size:100 x 140mm
