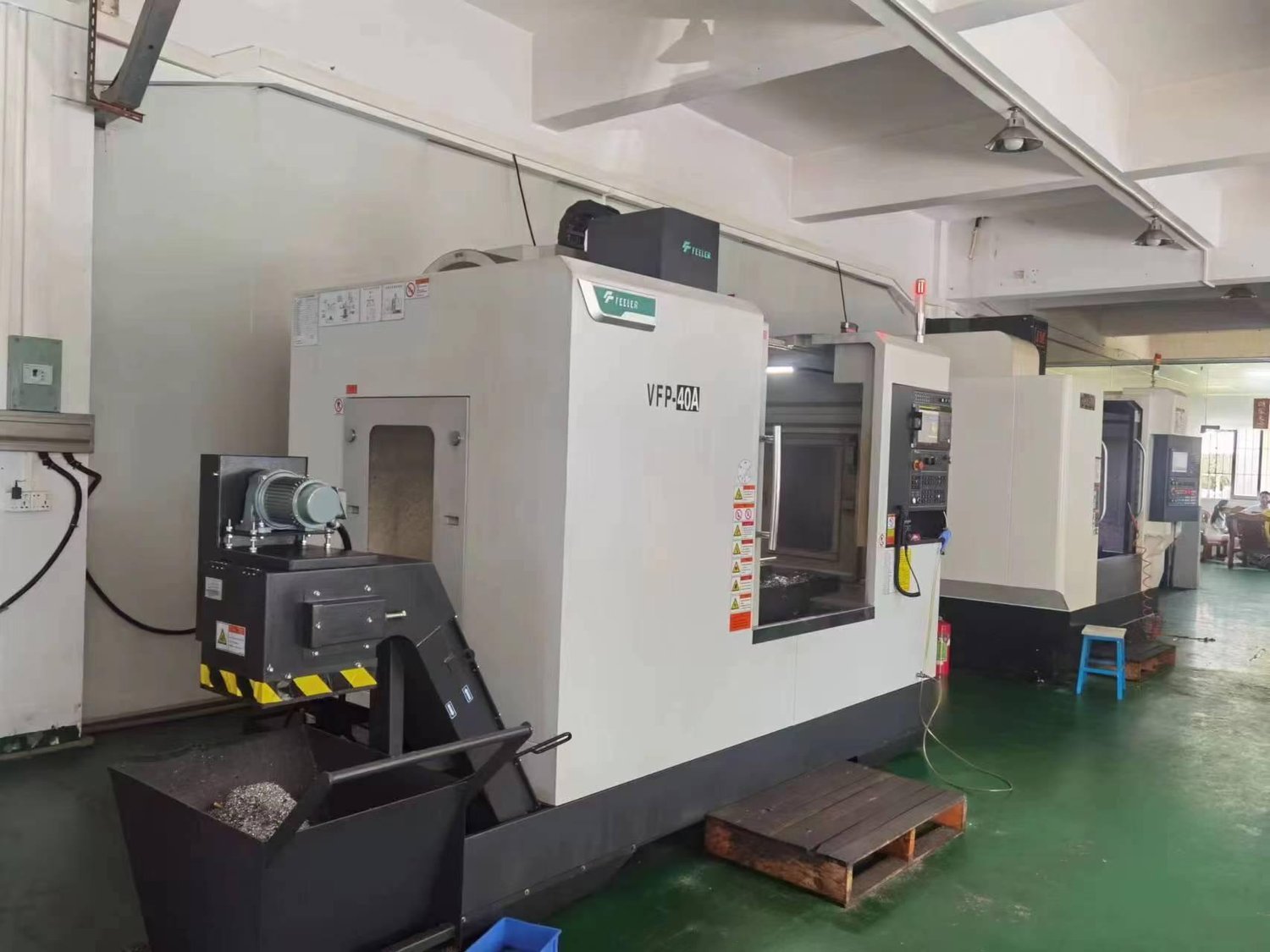

FEELER VFP-40A Vertical Machining centre

XYZ axis travel 1020*520*505mm

Distance from spindle nose to worktable :80-585mm

Distance from Distance from spindle center to column rail :560mm

Worktable size :L1150mmx520mm

Worktable: 800kg

T-slot (width x number of slots x spacing) :18x5x100mm

Spindle speed: 10000rpm

Spindle through hole taper :L 7/24 taper NO. 40

Spindle diameter :70mm

Spindle motor :7.5/11KW

X/Y/Z fast feed :32/24/24m/min

Cutting feed :15m/min

Number of tools: 22/ (24)

Floor area :2800x2178mm

Machine weight: 5700kg

Machine height :2795mm

Power capacity :25KVA
