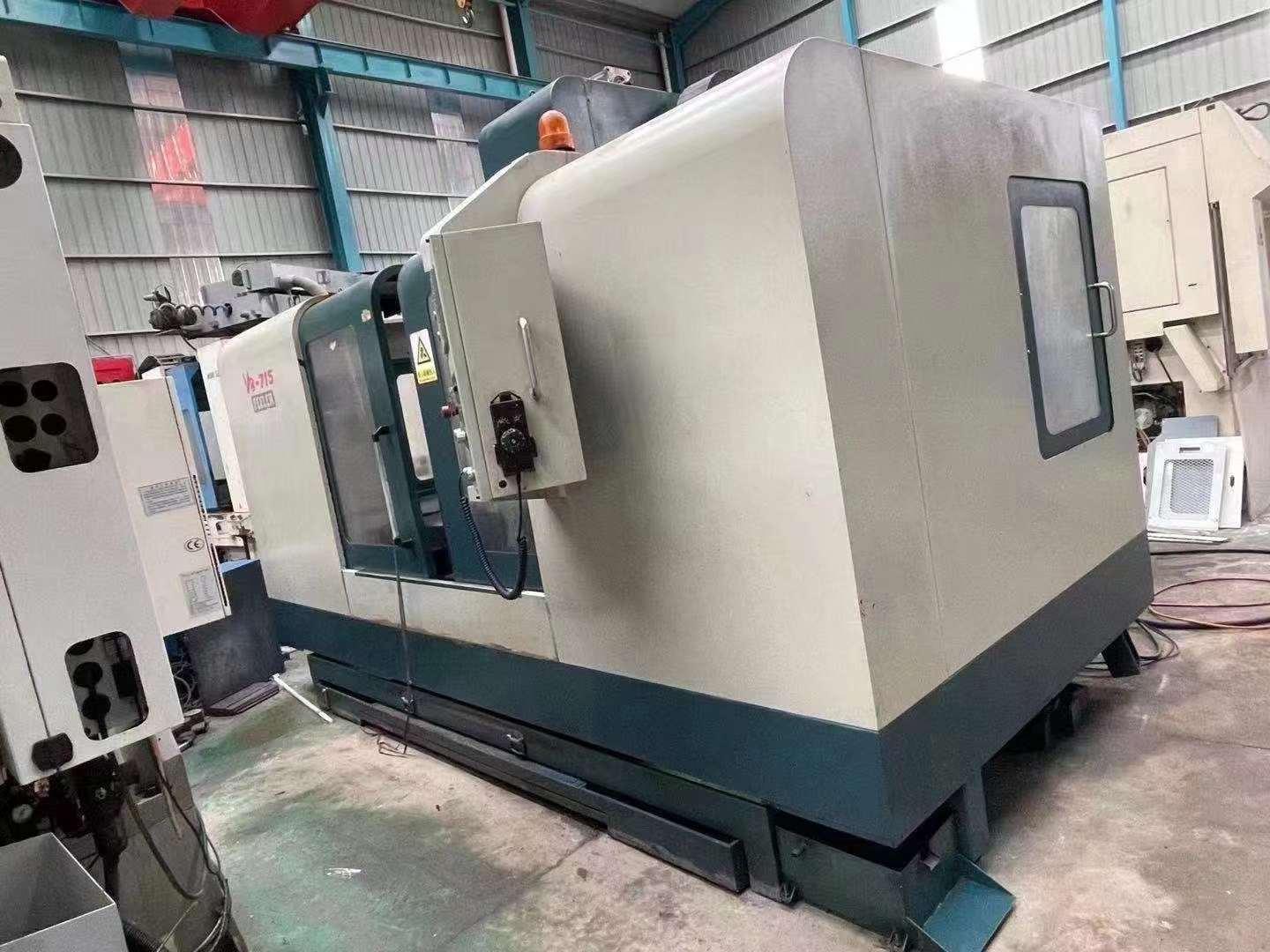

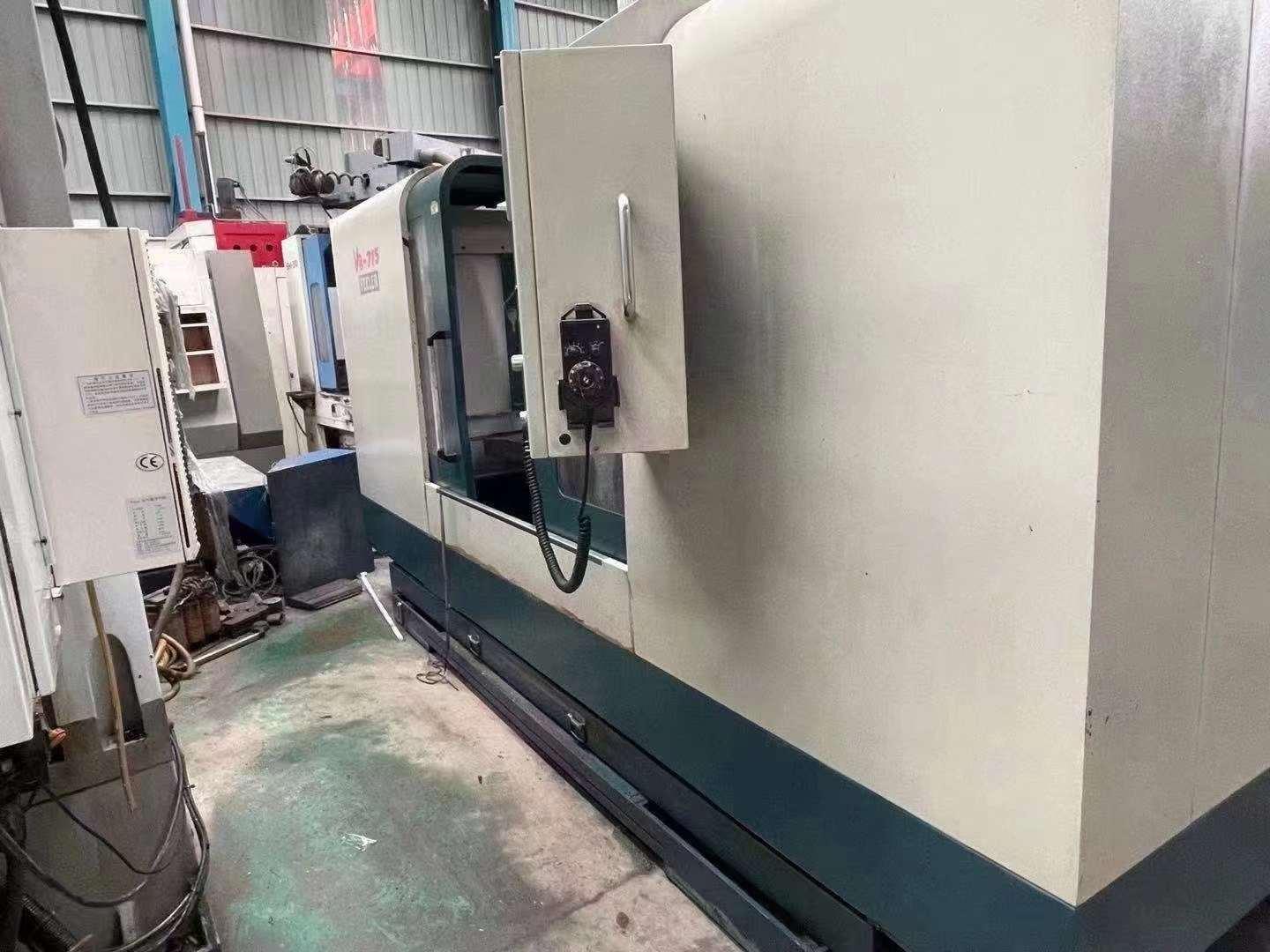

FEELER VB-715 Machining centre

X-axis travel: 1,400mm

Y-axis travel: 715mm (4 rails)

Z-axis travel: 700mm

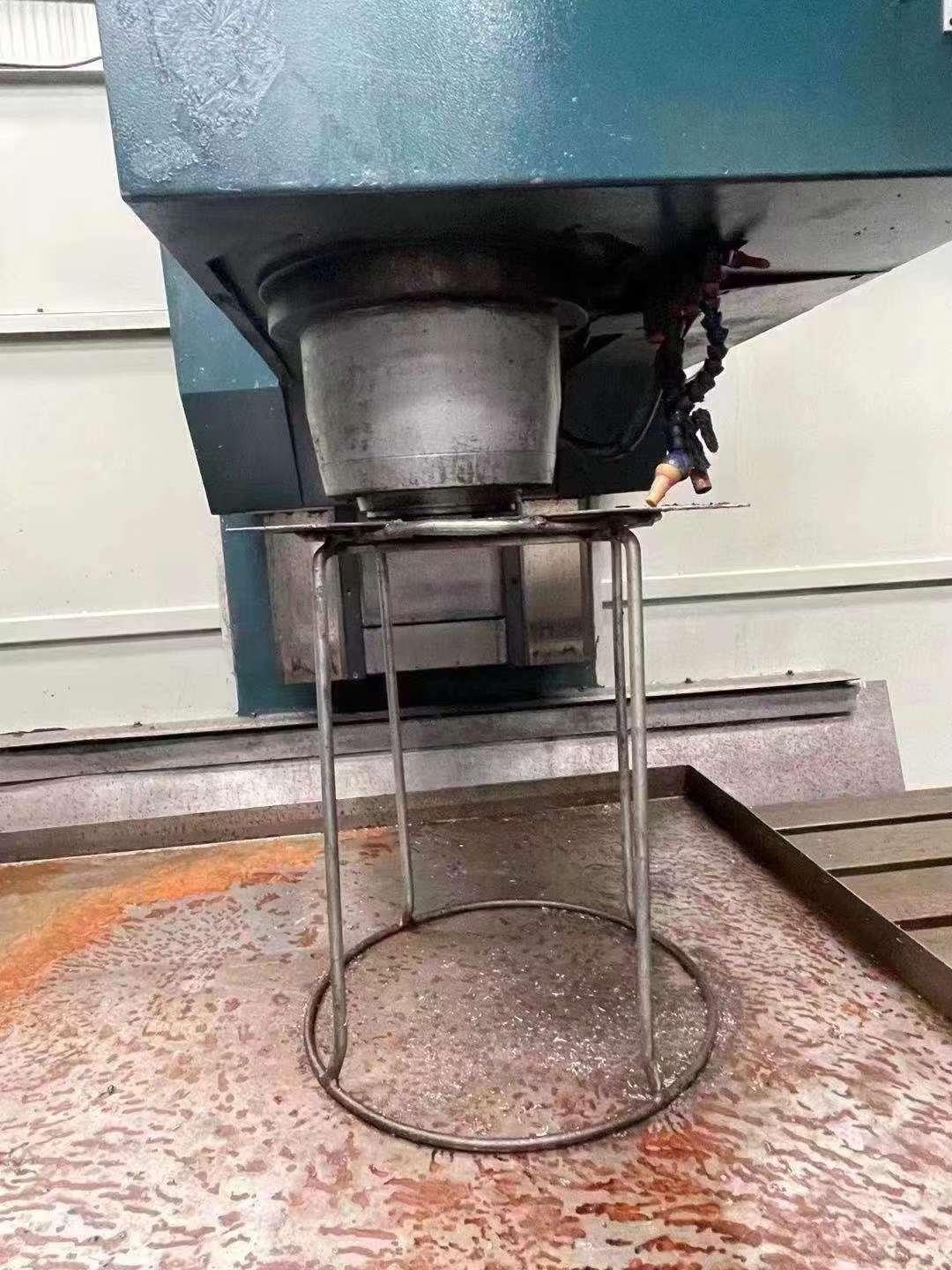

Distance from spindle nose to worktable surface: 145-845mm

Distance from spindle center to column guideway: 750mm

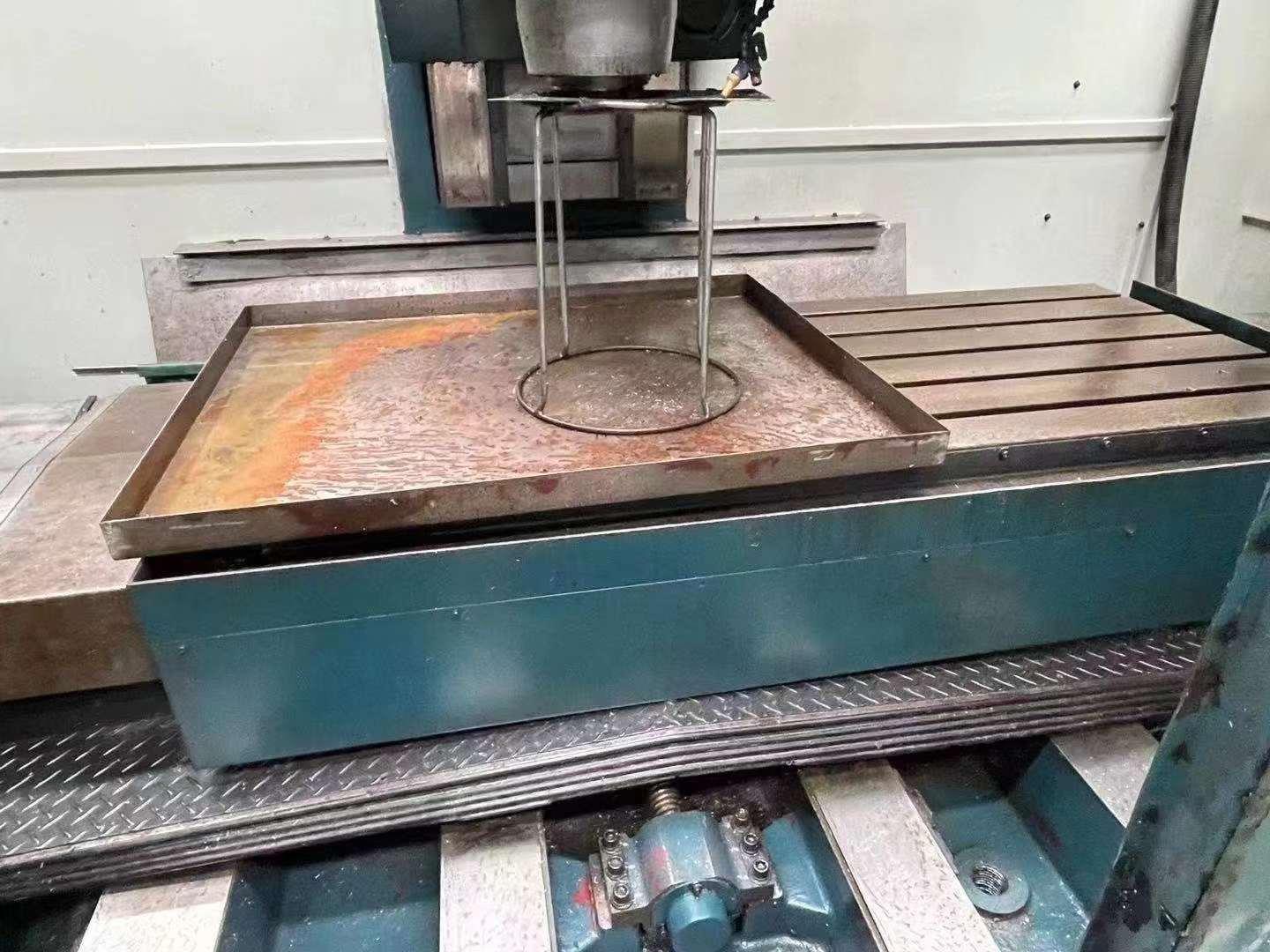

Worktable size: 1,650x700mm

Maximum worktable load: 1500kg

T-slot: 22x5x125mm

Spindle speed: 4000rpm

Spindle through hole taper: 7/24 NO.50

Spindle motor: 11/15kw

Fast feed rate(X/Y/Z axes) : 15/15/12m/min

Cutting feed rate: 1-5000mm/min

Tool holder bolt: P-50T

Maximum tool weight: 15kg

Maximum tool length: 300mm

Minimum tool diameter: 100mm

Maximum tool diameter: 200mm

Floor area: 4300x3100mm

Machine weight: 12000kg

Machine height: 3300mm
