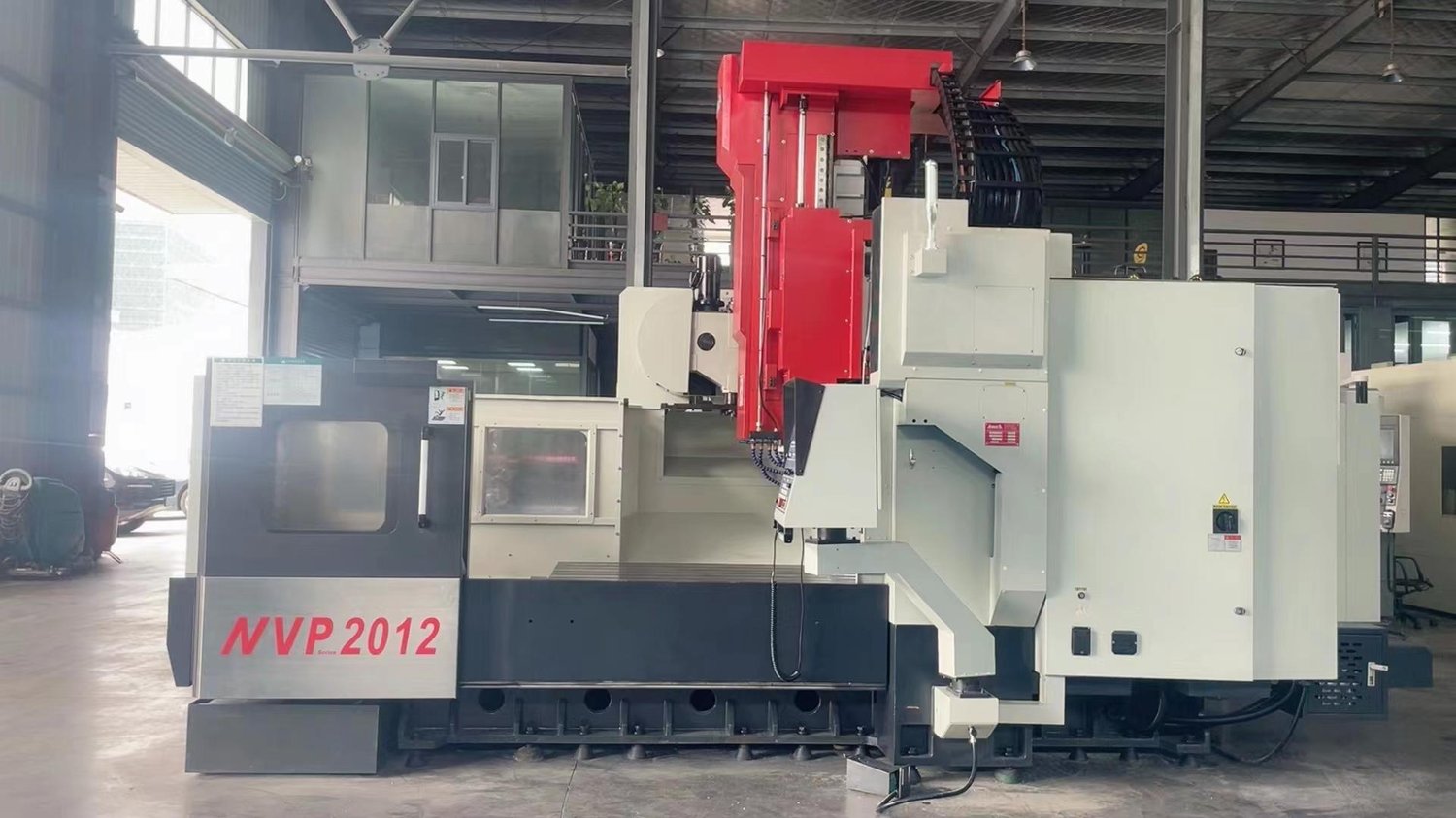

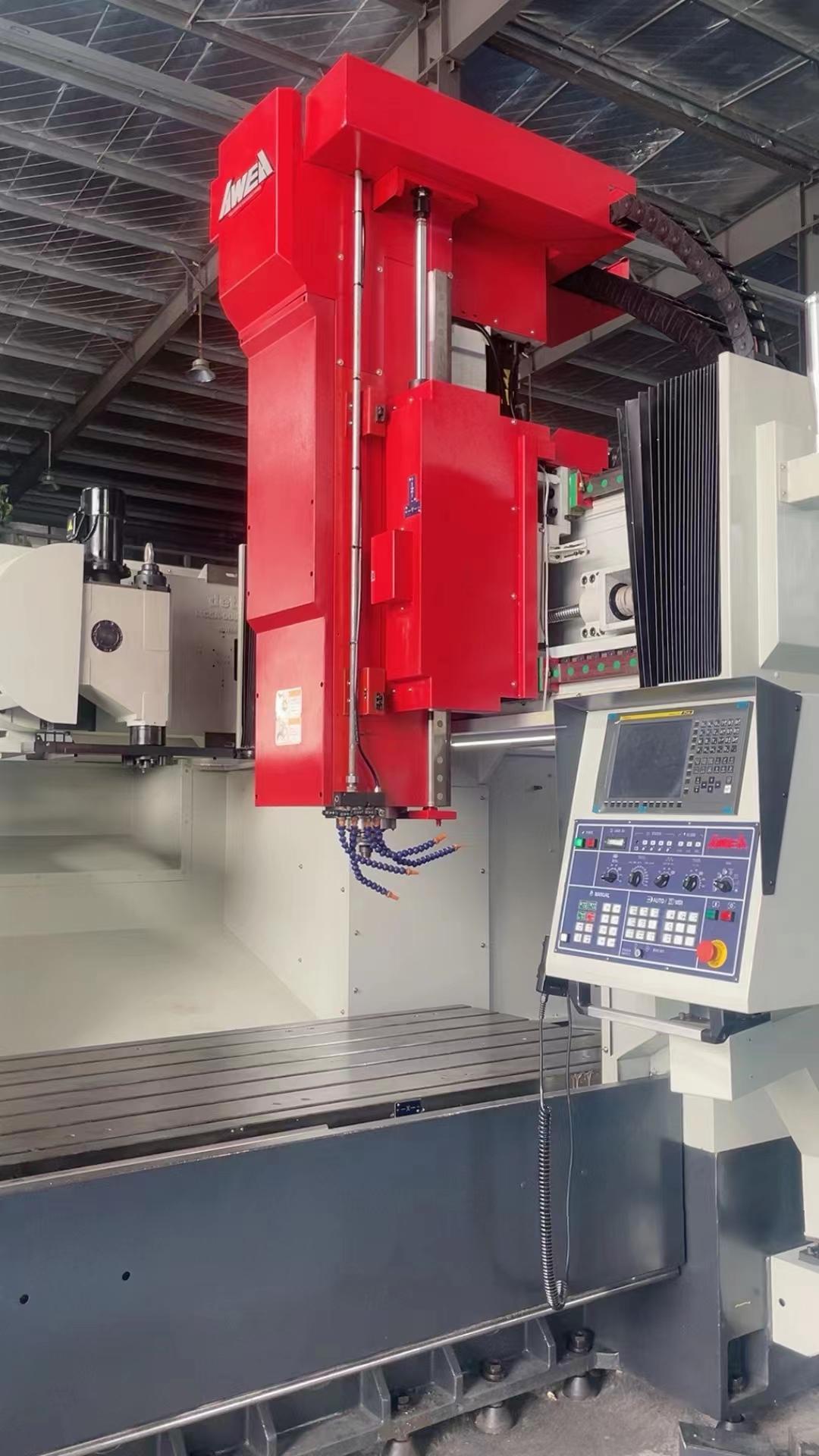

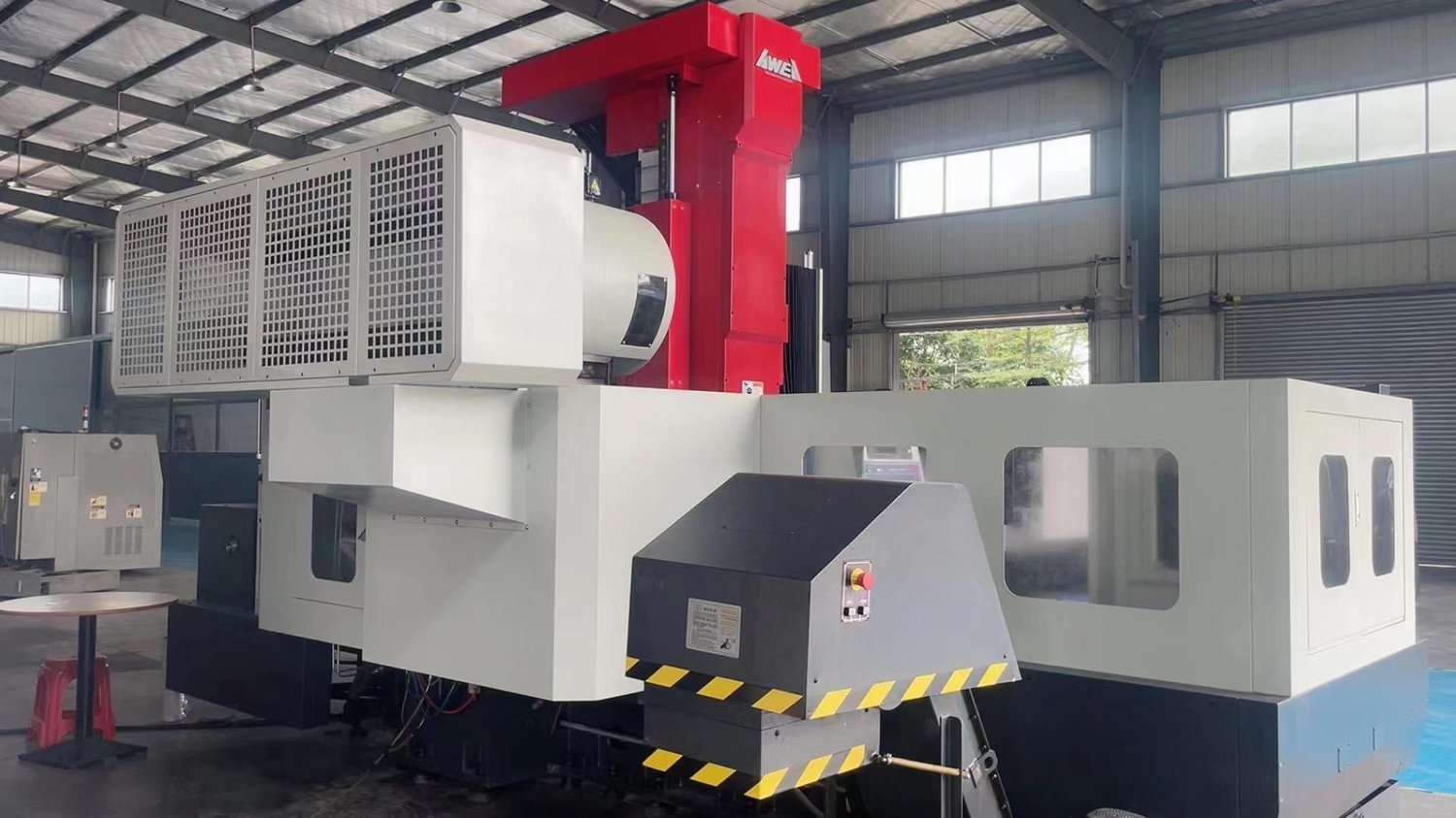

AWEA NVP2012 Gantry machining centre

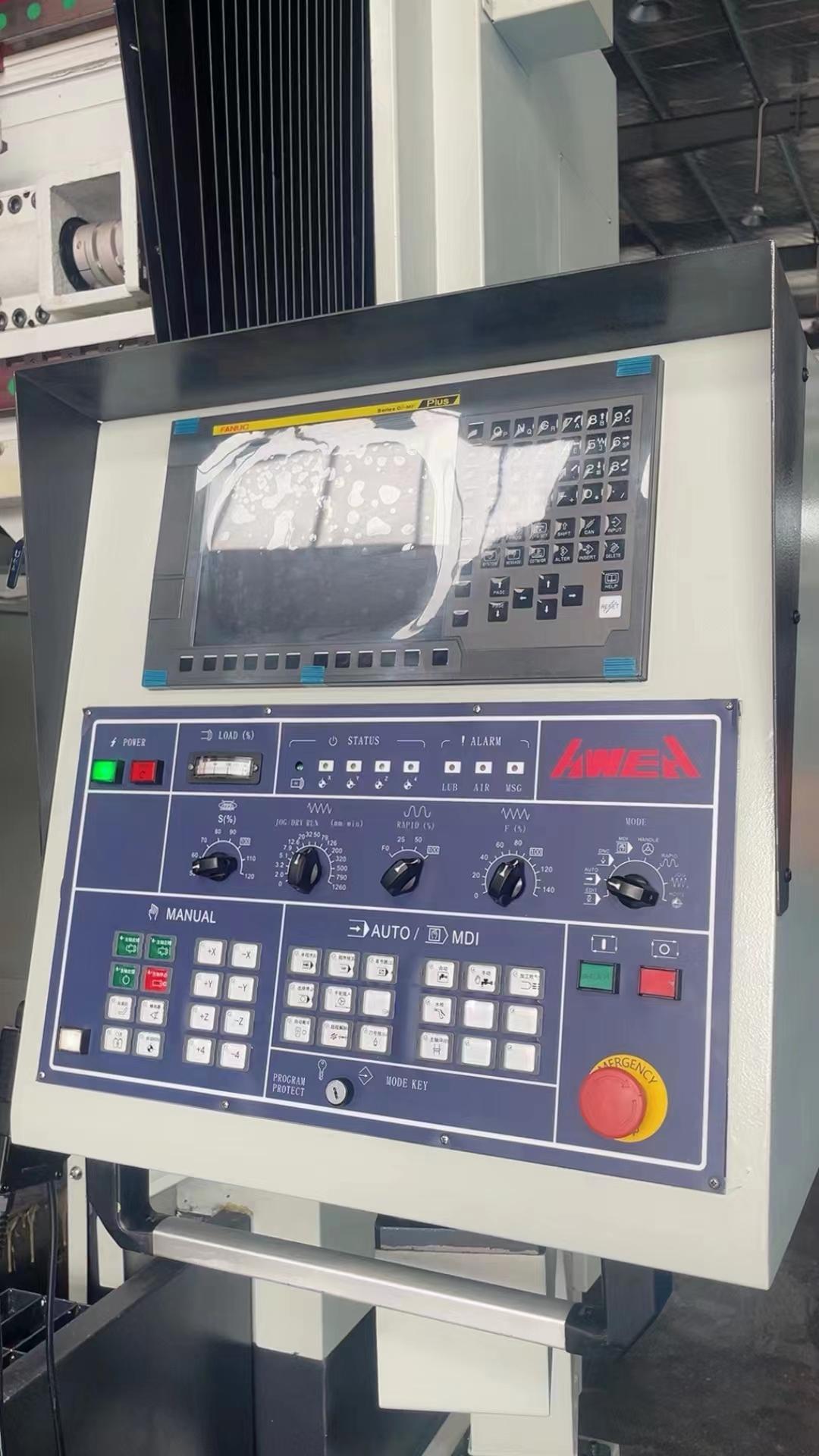

CNC System:FANUC Oi WF,PLUS

X/Y/Z axes travel:2000/1200/760 mm

Gantry width :1300mm

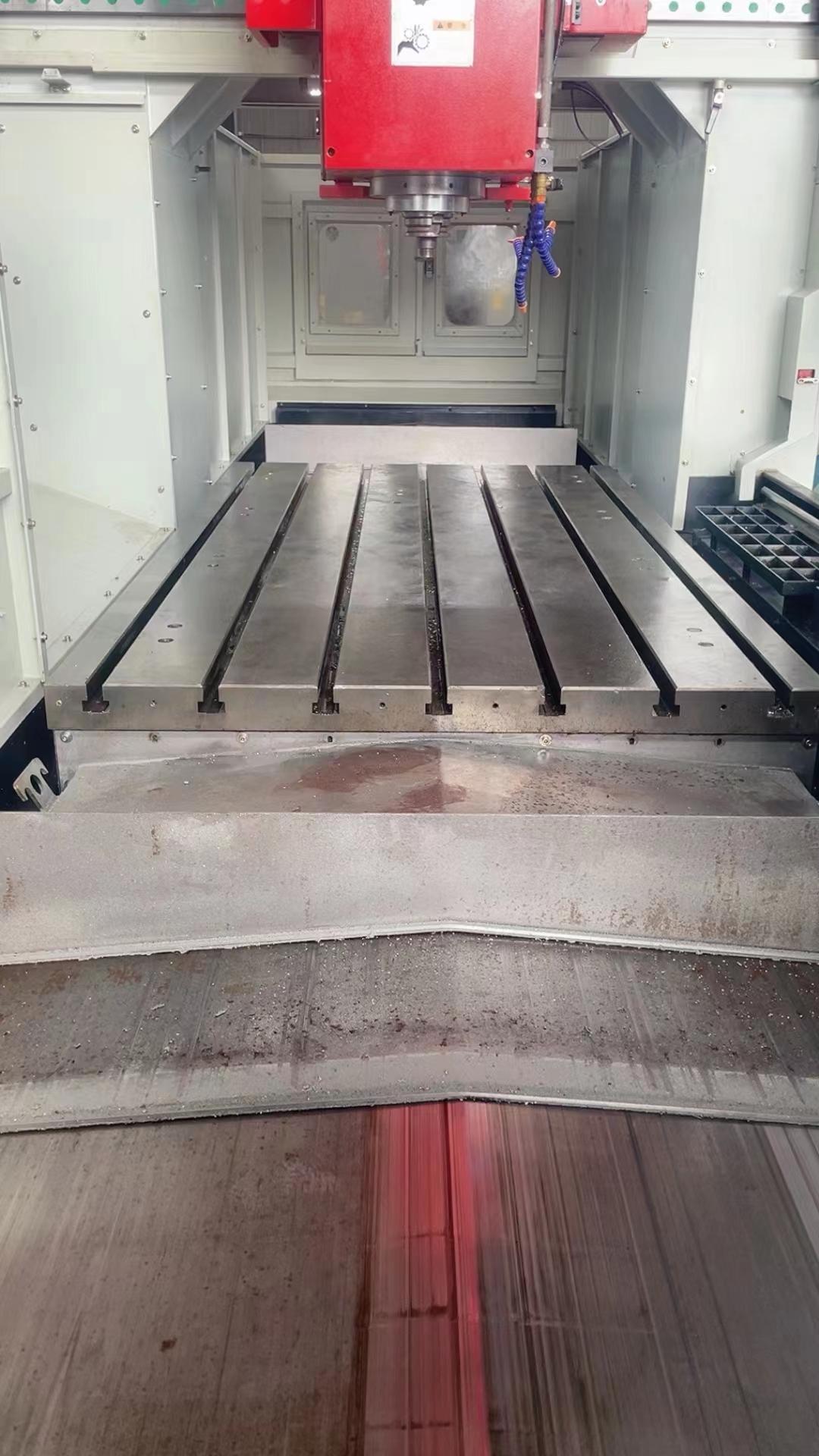

Worktable size :2000*1100mm

Spindle drive motor:18.5/20.3Kw

Spindle speed range :50-10000/min

Spindle taper:BT50

Maximum load:3500kg

Machining feed rate :1-20000 mm/min

Fast feed rate :20000 mm/min

Tool magazine:32

Machine weight:16000kg

Accessories: glass scale, chip conveyor, transformer, water tank, oil chiller
