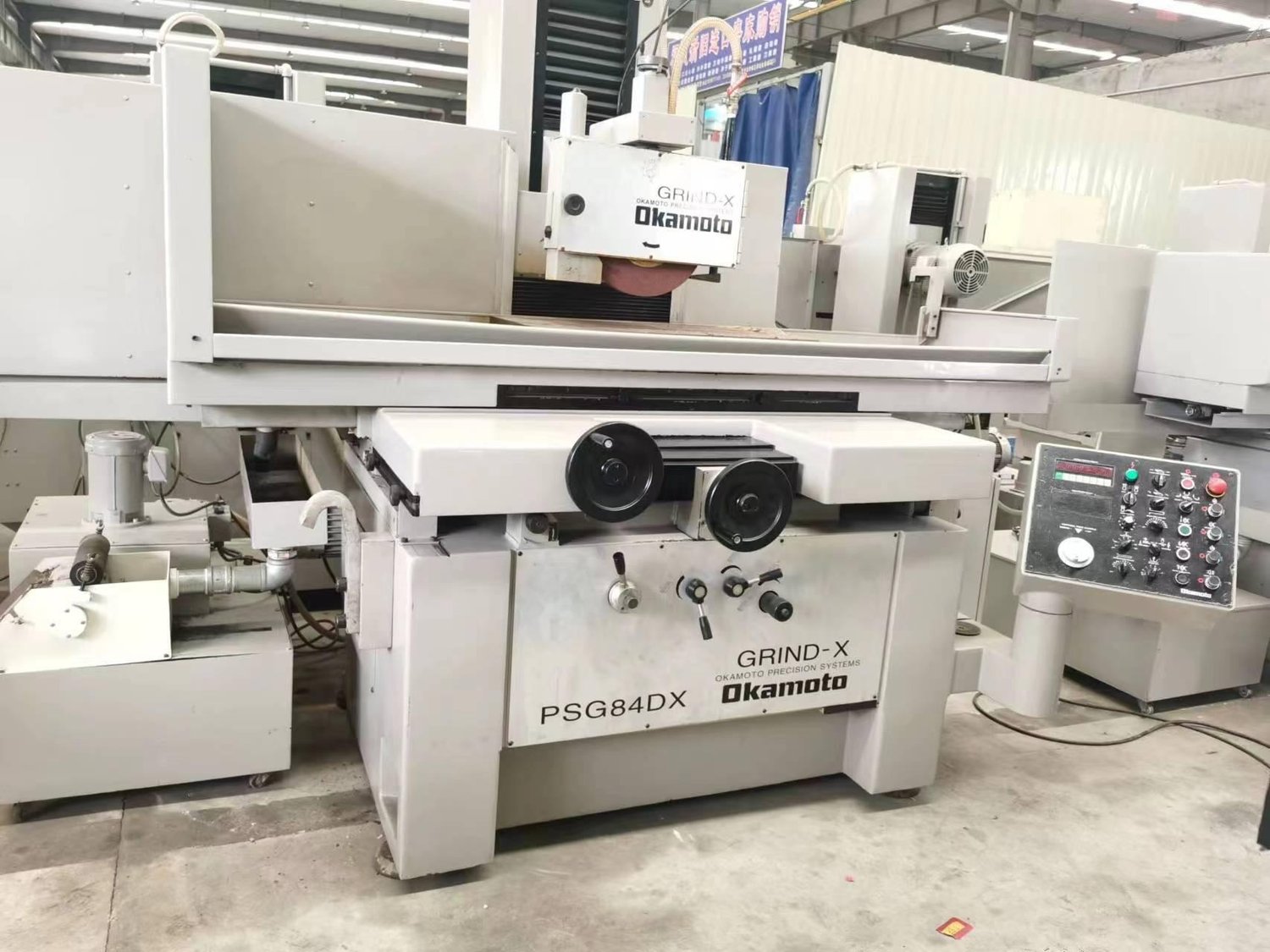

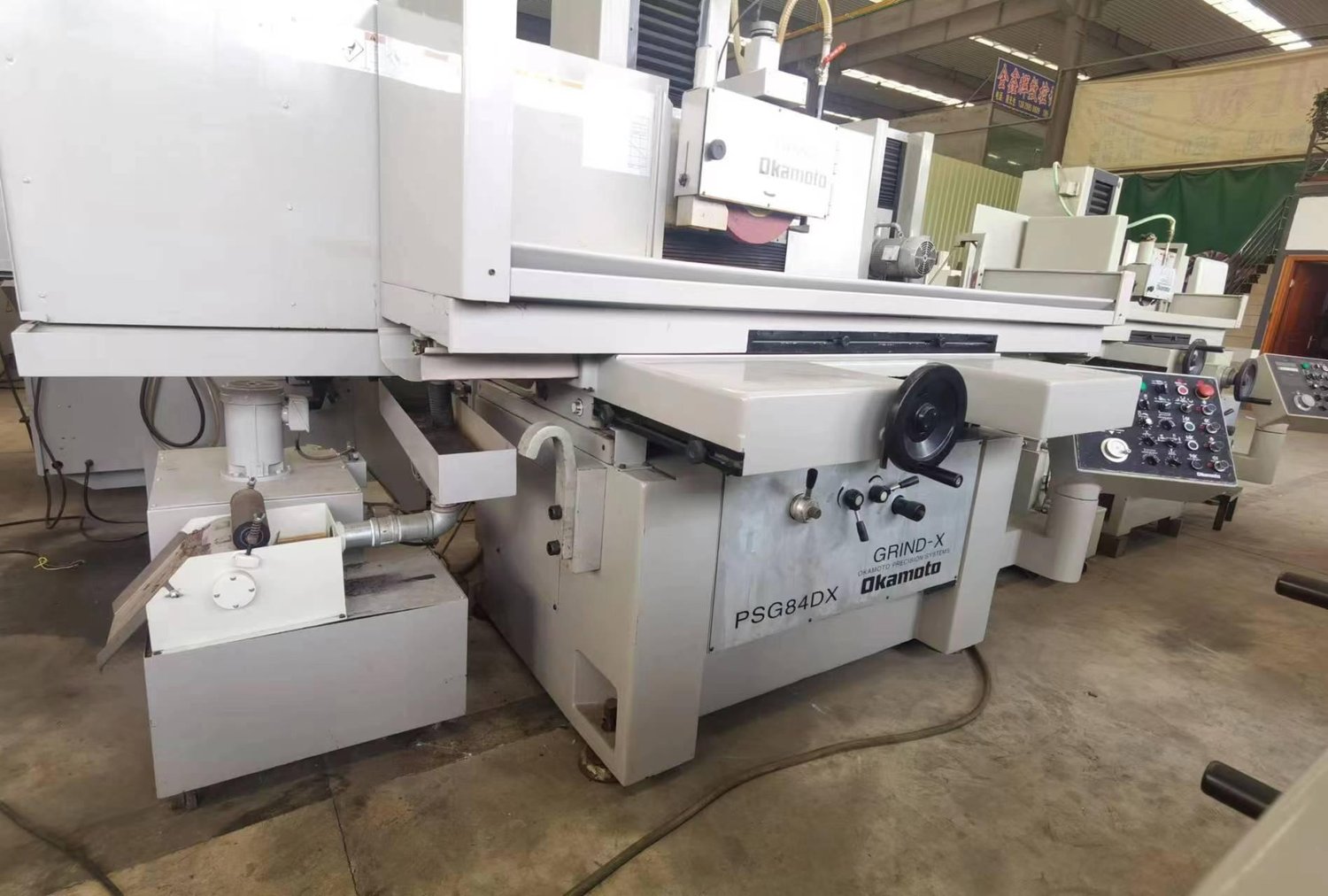

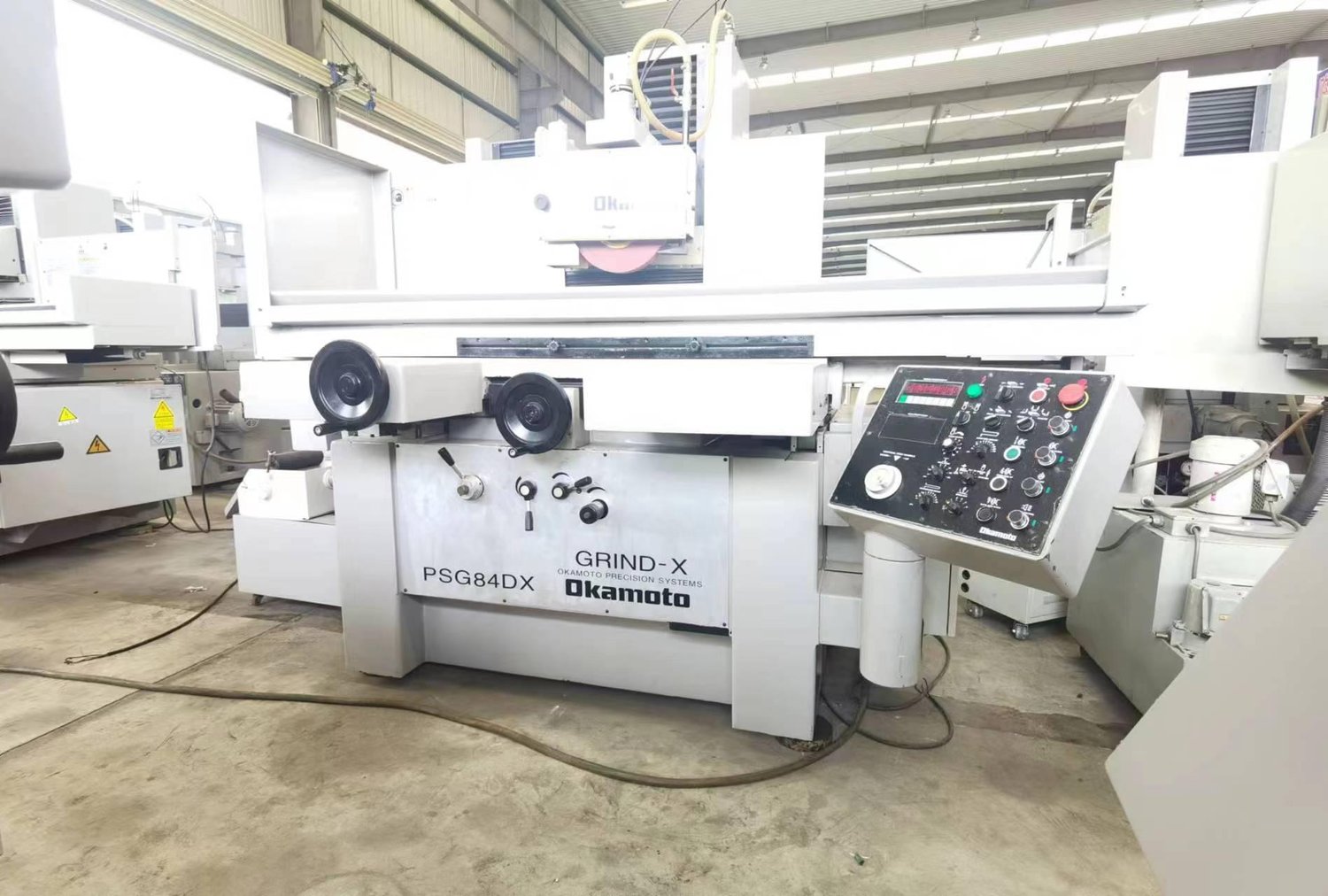

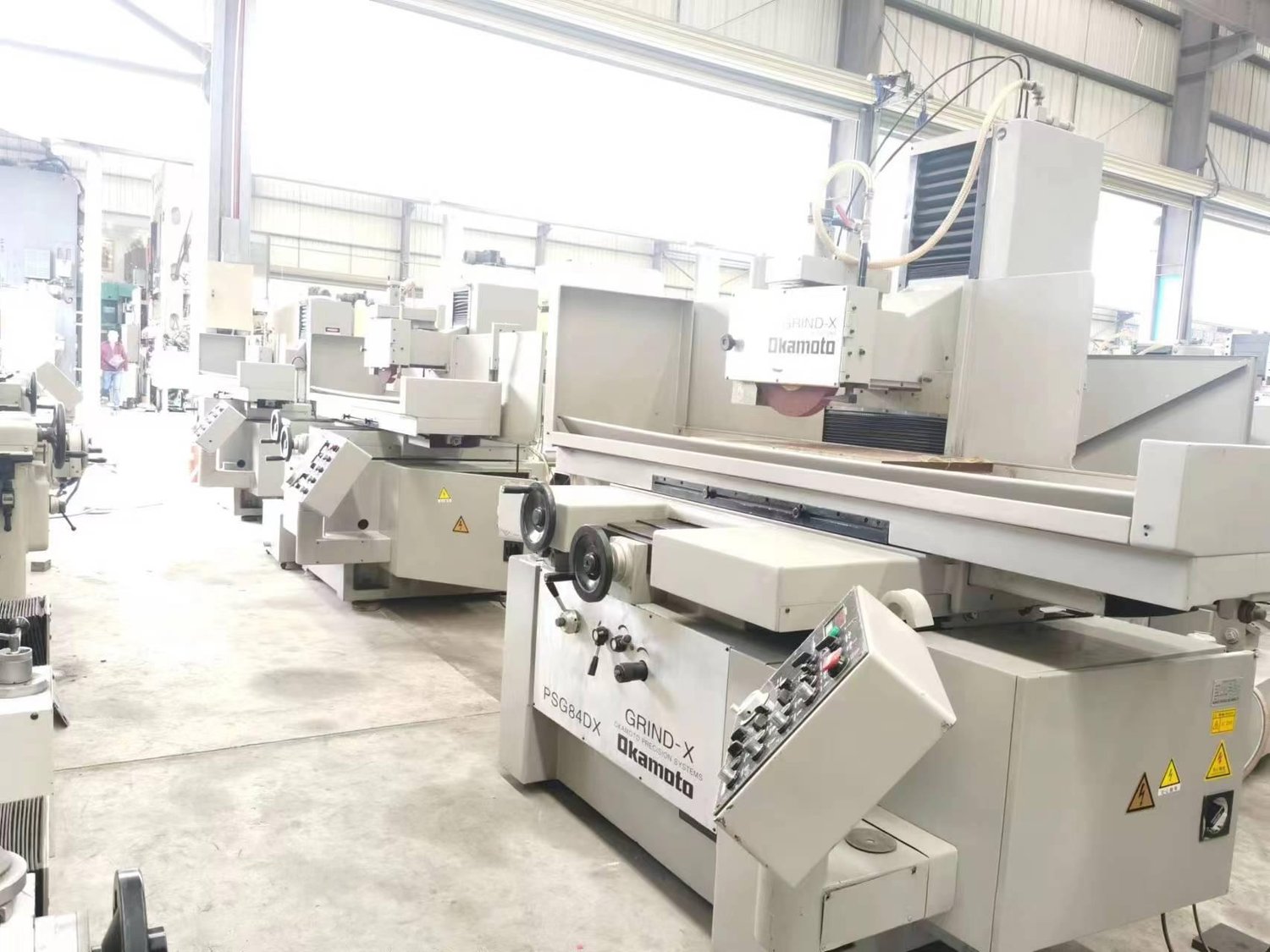

Okamoto 84DX Grinding machines

Worktable size:850X400mm

Standard chuck size:800X400X85mm

Worktable load (including magnetic worktable):700KG

T-slot (number X width):17X3mm

Longitudinal feed:

Maximum feed rate:950mm

Average longitudinal feed:3~25mm/min

Manual feed rate per revolution:47mm

Transverse feed:

Maximum feed rate:440mm

Manual feed rate per revolution:5.0mm

Remote control box scale:0.02mm

Automatic feed:

Discontinuous feed rate:0.5~20mm

Continuous feed rate:0.2~1.0m/min

Vertical feed:

Automatic horizontal cutting feed rate:0.0001~0.03mm(15 gears)

Manual feed rate:

Manual fine feeding rate:0.0001/0.001/0.01mm

Manul feed rate per revolution:0.01/0.1/1.0mm

Empty grinding:0~5

Vertical fast feed rate:600mm/min

Grinding wheel size:

Diameter (50/60HZ)*width*internal diameter:355/305*38*127mm

Speed (50/60HZ):1500/1800rpm

Spindle motor power :3.7/4kw/p

Hydraulic pump :2.2/4kw/p

Vertical downward fast feed:0.4kw(AC servo)

Power consumption (electromagnetic chuck + cooling CNC System):11.0KVA

Machine footage:3322X2211X2115mm

Weight:3900KG
