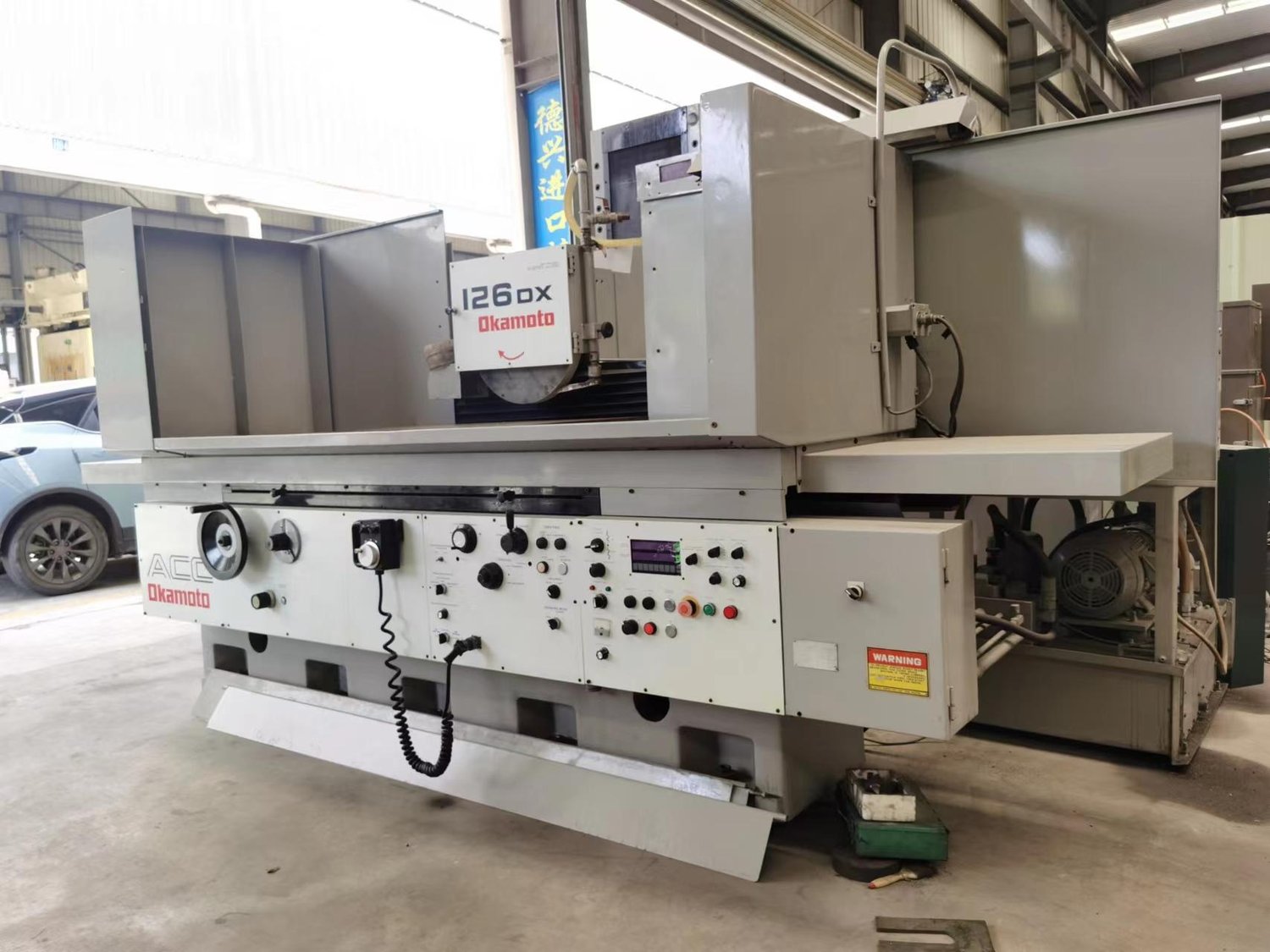

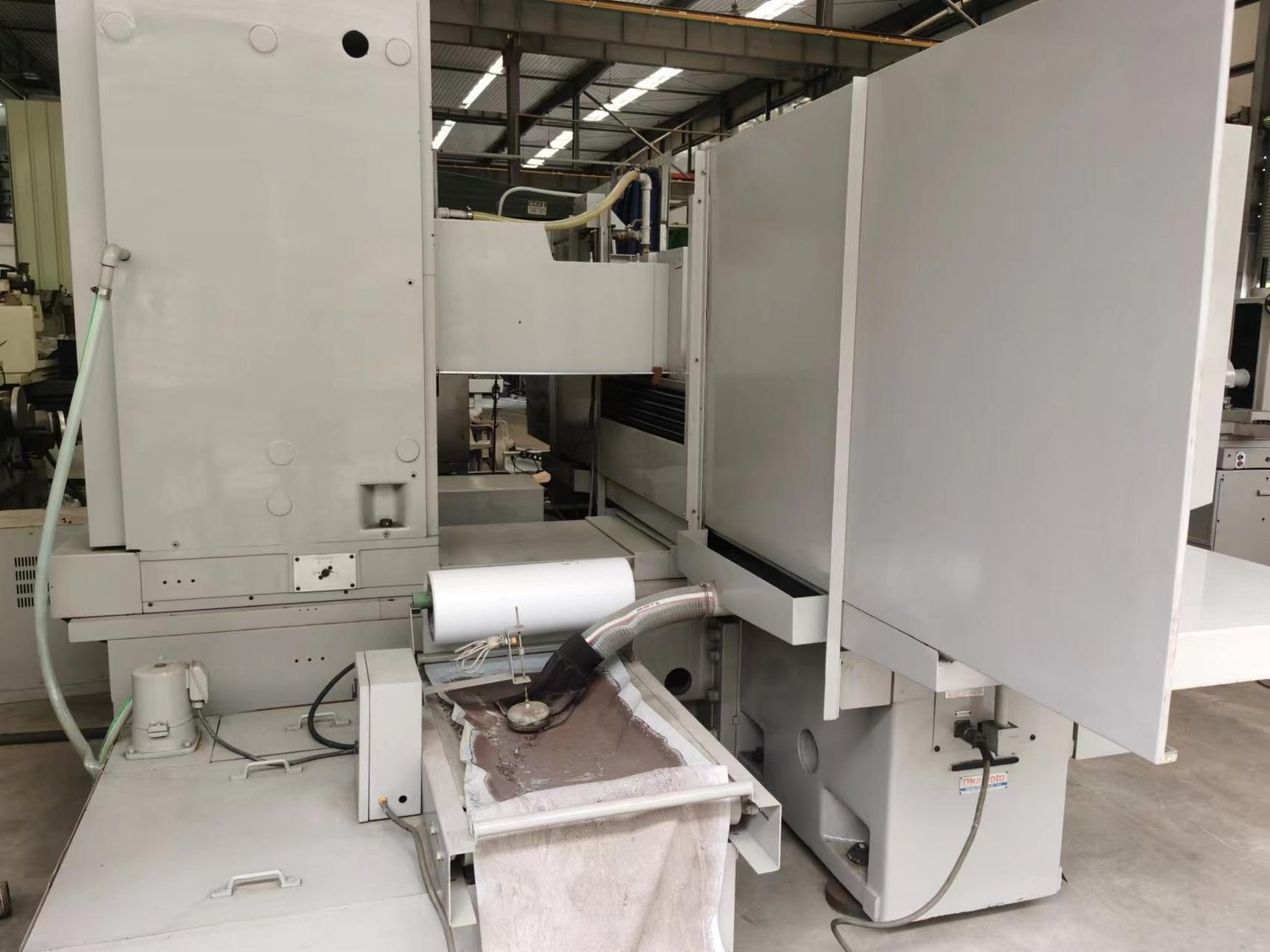

Okamoto 126DX Grinding machines

X*Y*Z axis travel:1200*600*595mm

X*Y maximum travel:1250*600mm

Standard chuck size:1200X600X110mm

Worktable load (including magnetic worktable):2000KG

T-slot (number X width):200X3mm

Average longitudinal feed rate:2-25m/min

Remote control box feed rate per revolution :25mm

Y-axis:

Maximum travel :660mm

Single feed:5-35mm

Continuous feed rate:0.3-5m/min

Manual feed rate per revolution:5mm

Continuous hydraulic feed rate:0.2mm

Z-axis:

Automatic feed rate:0.001-0.05mm

Fast feed rate:0.36m/min

Manual feed rate per revolution:0.1(X1)/1(X10)mm

Dial scale:0.001(X1)/0.01(X10)mm

Grinding wheel diameter*width*external diameter:510*50*127mm

Spindle speed :980/1100rpm

Spindle motor power :7.5/6KW

Hydraulic motor power :3.7/6KW

Servo motor power:0.8KW

Machine footage:5400*2693*2195mm

Weight:7800KG
